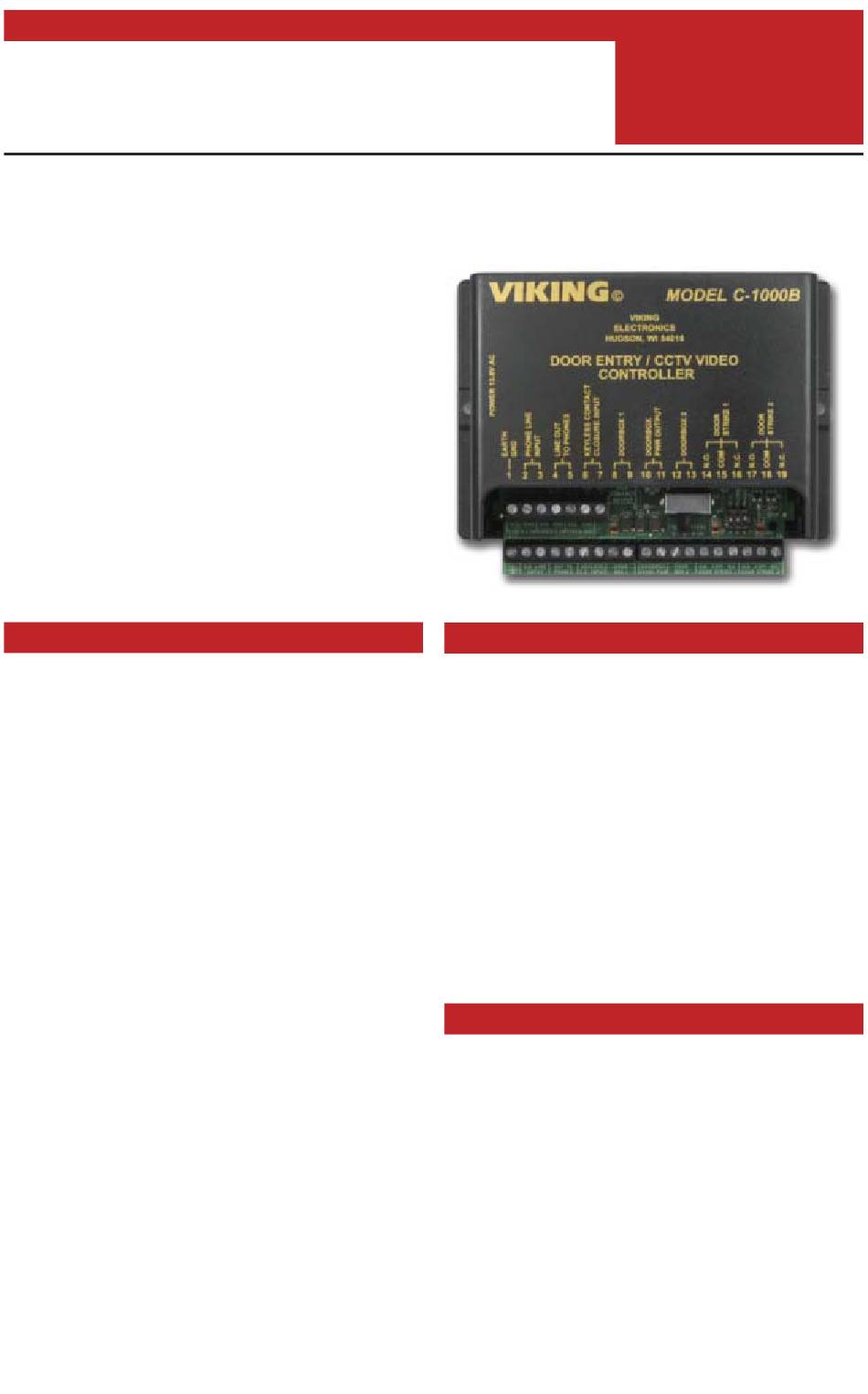

Viking C-1000B Product Manual

Designed, Manufactured and Supported in the USA
VIKING
S E C U R I T Y & C O M M U N I C A T I O N S O L U T I O N S
Add One or Two Doorboxes to an Existing
Phone Line and Provide CCTV Camera Control
The C-1000B allows single line phones or
phone systems to share a phone line with
one or two Viking doorboxes or paging
amplifiers. The C-1000B provides two Touch
Tone controlled relays to operate door strikes
or gate openers and provides doorbox
triggered CCTV camera switching.
The C-1000B allows Viking doorboxes and
paging amplifiers to be used on single line,
residential or home office applications as well
as on fully loaded systems, because they are
no longer limited to installation on unused
trunk ports.
Features
• Allows two Viking doorboxes or Viking paging
amplifiers to share a single telephone line with a
residential or business telephone system
• Programmable door strike activation code
• Doorbox triggered CCTV camera switching
• Custom ringing mode allows you to distinguish
doobox calls from C.O. calls
• Compatible with up to two of the following Viking
doorbox models: W-1000, W-2000A, or W-3000
Alternatively, the Analog PABX/KSU station
mode allows compatibility with a single Viking
handsfree phone (E-10A, E-20B, E-30,
K-1700-3 or 1600A Series, etc.)
• Compatible with Viking's Single Line Paging
Controller, Model SLP-1
• Call waiting tones indicate which doorbox is
calling and distinguish a doorbox call from a
C.O. line call
• Calls can be placed on hold when visitors call
from the doorbox or when paging
• Provides two Touch Tone controlled N.O. or N.C.
dry contact closures (5 amp rating) for door
strikes or gate openers
• Keyless entry/postal lock input
• Built-in talk battery for "No C.O. Line"
applications
• Auxiliary contact output for doorbells, lights, etc.
PRODUCT MANUAL
Applications
• Add one or two Viking doorboxes to your home or
office phones
• Switch between two CCTV cameras
automatically when either doorbox is activated
• Add a Viking SLP-1 or SLP-4 Single Line Paging
Controller to provide paging, intercom, loud
ringing, door chime and music on hold features
• Provide commercial or residential security via two-
way handsfree communication from a door or gate
• Use as a line concentrator (one fax machine or
answering machine can answer three lines)
www.VikingElectronics.com
Information: 715-386-8861
Specifications
Power: 120V AC/13.8V AC 1.25A, UL listed adapter
provided
Dimensions: 5.25" x 4.1" x 1.75" (133mm x 104mm x
44mm)
Shipping Weight: 2 lb (0.9 kg)
Environmental: 32° F to 90° F (0° C to 32° C) with 5% to
95% non-condensing humidity
Door Strike Relay Contacts: 5A @ 30V DC/250V AC
maximum
CCTV/Auxiliary Relay Contacts: .5A @ 125V AC, 1A @
30V DC
Pulse Dialing Detection: 10 pps
Talk Battery: 28V DC
Maximum Doorbox Power Supply Length: 100 ft, 24
AWG wire
Connections: (1) 7 position terminal block and (1) 19
position terminal block
C-1000B
Door Entry and CCTV
Camera Controller
January 25, 2018
