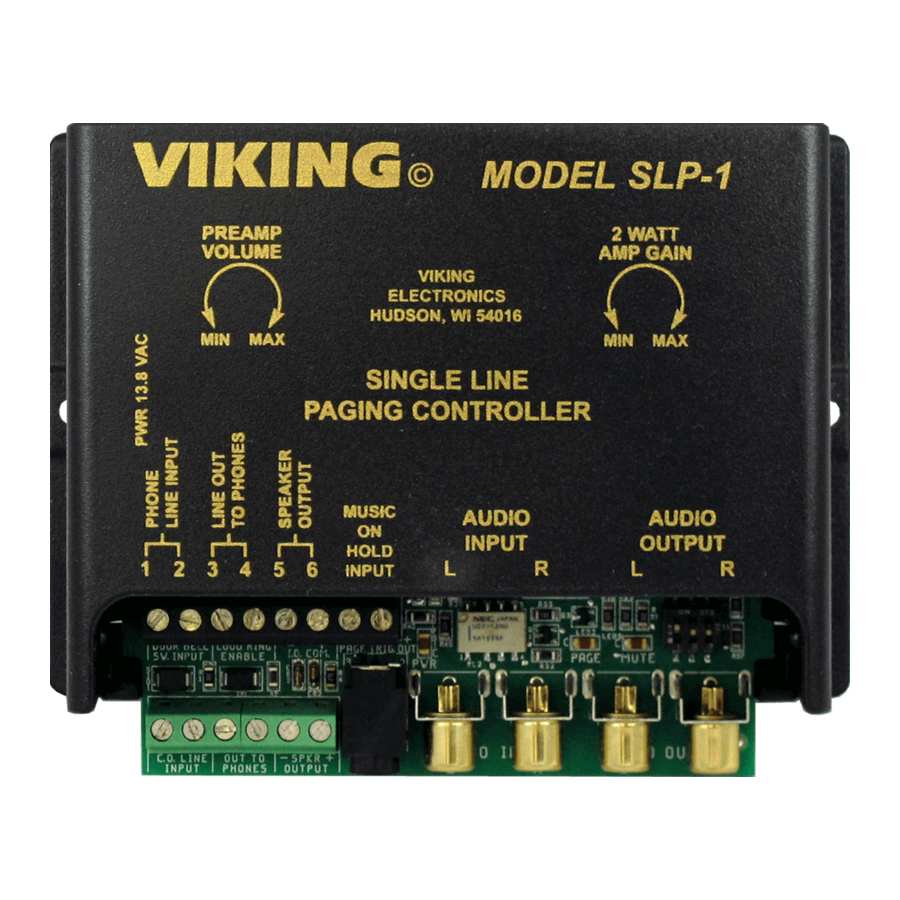

Add Paging to Your Existing Phone Line

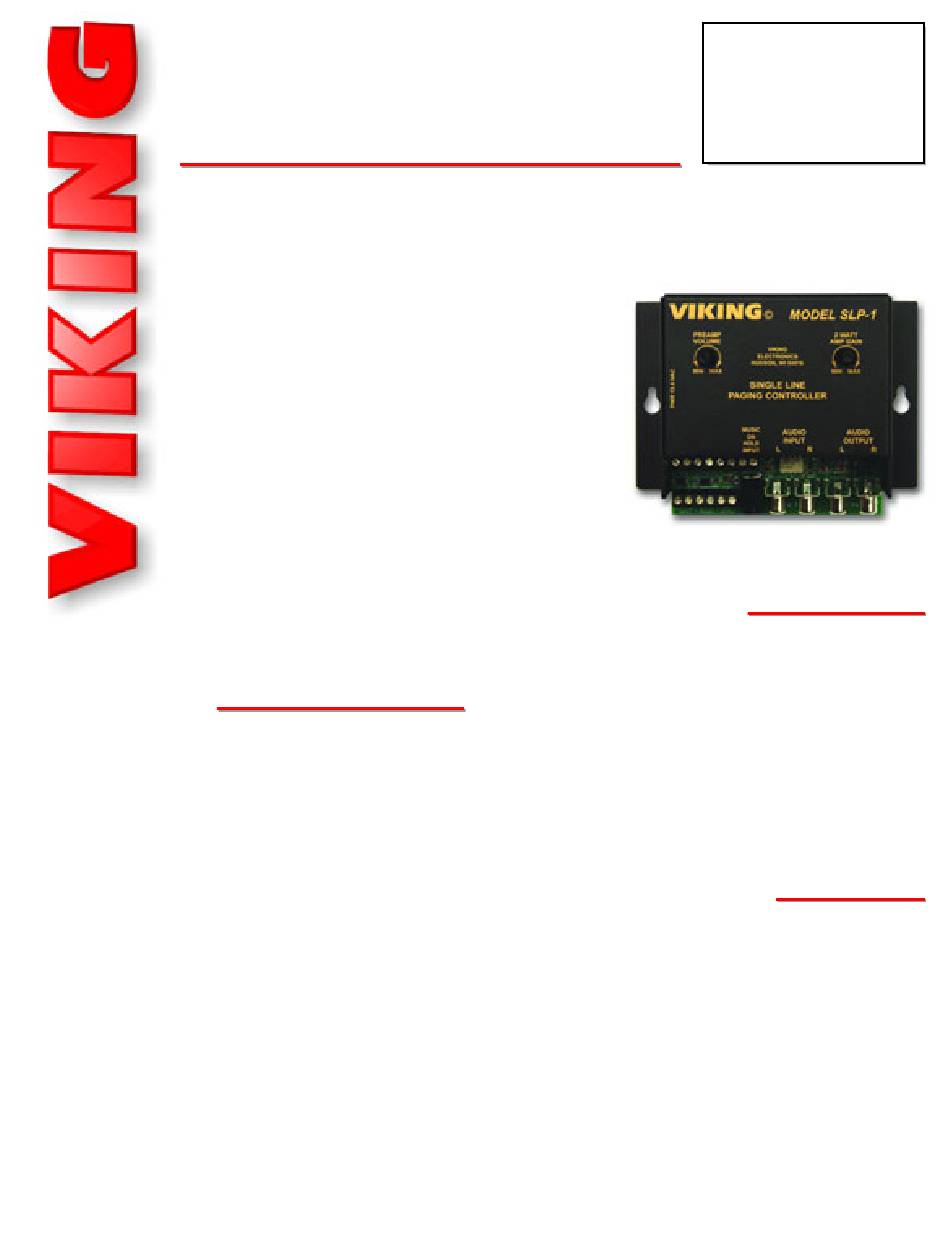

The SLP-1 Single Line Paging controller will allow
you to page family members or co-workers from
any phone in your home or small office. The pages
can be heard over the same speakers that are
installed for music distribution.
The SLP-1 connects in series with a single existing
phone line. The unit has a built-in 2 watt amplifier,
pre-amp output, music on hold input, intercom fea-
tures and selectable loud ringing. The SLP-1 pro-
vides an input for a lighted doorbell switch, allowing
a door chime to be heard over existing speakers. Page from several different phone
lines by connecting multiple units.
P
P
i
n
f
o
@
i
n
f
o
@
F
e
a
t
u
r
e
s
F
e
a
t
u
r
e
s
• Whole house/small business paging from existing phones
• Built-in two-watt mono paging amplifier with gain control
• Phone to phone intercom
• Page from several different phone lines by connecting
multiple units
• Music on hold
• Caller on hold
• Can provide background music from an external source
• Background music mute (automatic during paging or
touch tone selectable while you are on a call)
• Selectable loud ringing (electronic warble over speakers)
• Doorbell switch input (lighted or non-lighted) for activating
door chime (ding-dong sound over speakers)
• Unique front and back door chimes when used with a
C-1000B or C-2000A doorbox controllers
• Switch selectable On-Hold alarm tones
• Stereo pre-amp input and line level output for use with
receivers and high wattage amplifiers
• Simple control commands - no touch tone programming
• Page trigger output (12V signal for enabling paging
source input on multi-source amps)
• Pre-amp volume control
• Bypass code - ignores all touch tones on next off-hook
allowing you to steer through auto attendants, etc.
• Comes complete with power supply
