Synco P2T User Manual

User Manual
Microphone P2T
Thank you for choosing SYNCO product.
Please read this manual carefully before use and follow all instructions mentioned herein.
Caring For Your SYNCO Product
Please keep the product in a dry, clean, dust-free environment.
Keep corrosive chemicals, liquids and heat source away from the product to prevent mechanics damage.
Use only a soft and dry cloth for cleaning the product.
Malfunction may be caused by dropping, impact of external force.
Do not attempt to disassemble the product. Doing so voids warranty.
Please have the product checked or repaired by authorized technicians if any malfunctions happened.
Failure to follow all the instructions may result in mechanics damage.
Warranty does not apply to human errors.

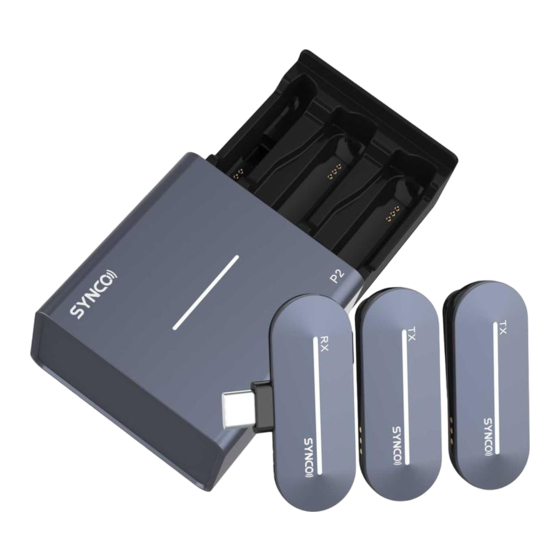

Package List
Charging Cable x1
RX Receiver (Type-C
TX Transmitter x2 Connector) x1 Wireless Charging Case x1 Type-C to 3.5mm Adapter x1
Product Instruction
TX Transmitter RX Receiver Wireless Charging Case
TX Transmitter RX Receiver Wireless Charging Case
① Power ① Vocal Effects/ Mono/Stereo ① Pairing/ Power Prompt
② Working Indicators ② Type-C Port ② Type-C Port
③ Built-in Mic ③ Working Indicators ③ Working Indicators
④ Contacts ④ Connector ④ Contacts
⑤ Pocket Clip ⑤ Contacts
Indicator — Transmitter (Double press the Power button to turn off light effect)
Flash concurrently
System unpaired
Illuminate sequentially(light effect on)
Working
Indicators(White System paired, normal working
Single light keeps on (light effect off)
Light)
Single light flashes
Low battery
Working
Single light keeps on (in the case)
Charging, and then turns off when fully charge
Indicators(Red Light)
Indicator — Receiver
Flash concurrently
System unpaired
Illuminate sequentially
System paired
Working Single light keeps on & Illuminate sequentially
Mono mode-Original sound
Indicators
(White
Single light flashes twice & Illuminate sequentially
Mono mode-Vocal effects on
Light)
Single light keeps on & Illuminate sequentially
two-way Stereo mode (Only original is supported)
Indicator — Wireless Charging Case
Working
Illuminate sequentially
Pairing
Indicators(White Light)
Operations
1. Usage
① Tap on the right side of charging case to pop out the drawer
② Take the TX and RX out
③ TX should boot automatically as it leaved the case, and switch itself off automatically
when returning to the case.
(Forcible switch: Long press the Power button on TX for 3 seconds)
④ RX should boot automatically as it is plugged into smartphone
2. Pairing
Long press for 3 seconds
① Place the TX and RX in the case with their contacts are connected with the case's
② Long press the Pairing button on the case for 3 seconds with the drawer open
③ The indicators on the TX and RX should light up and illuminate sequentially when
pairing is successful
Note: The transmitter will automatically switch off if it is unpaired or disconnected for 5
minutes.
3. Charging
Charge the TX: Place the TX in the case with contacts connected with the case's.
Charge the case: Connect the case with power supply via the charging cable.
4. Check the power
TX: Short press the Power button, the indicators will light up according to remain power
for 5 seconds
Charging Case: Short press the Power Prompt button, the indicators will light up
according to remain power for 5 seconds
5. Use vocal effects
Short press the Vocal Effects button on the receiver to switch sound effects: Original >> Studio FX >> KTV FX >> Voice
Amplification >> EDM (Electronic Dance Music) >> Baby FX >> Male to Female >> Female to Male >> Monster FX.
Default effect: Original.
Note: The vocal effect will apply to both transmitters. In Stereo mode, only original is supported. Other vocal effects are
unavailable.
6. Mono/ Stereo
Long press the Mono/Stereo button on the RX once Long press the Mono/Stereo button on the RX once
Mono-Original Stereo
Mono-Other vocal effects
Long press the Mono/Stereo button on the RX once
Mono-Original
