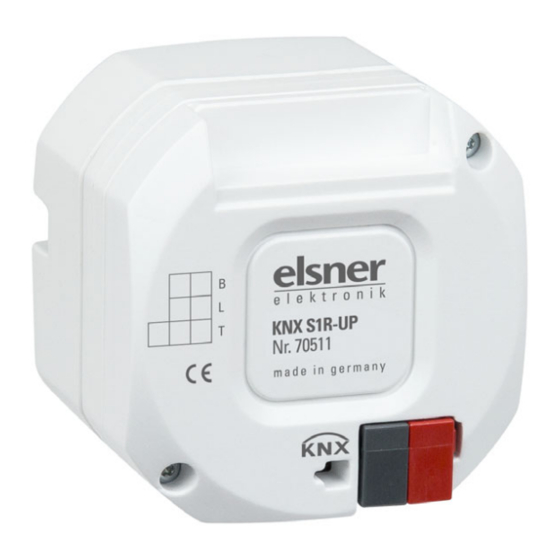

- Page 1 KNX S1R-UP KNX S1R-BA2-UP KNX S1R-BA4-UP Multifunctional Actuators Item numbers 70511 (KNX S1R-UP), 70512 (KNX S1R-BA2-UP), 70513 (KNX S1R-BA4-UP) Installation and Adjustment...
-
Page 3: Table Of Contents
6.3.1. Temperature threshold value 1, 2, 3, 4 ............. 55 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany Actuators KNX S1R-UP • from software version 4.00, ETS programme version 4.0 Status: 27.05.2020 • Subject to technical changes. Errors excepted. - Page 4 The change status (software version and date) can be found in the contents footer. If you have a device with a later software version, please check www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to- date version of the manual is available.
-
Page 5: Description
Configuration is made using the KNX software ETS 5. The product file can be down- loaded from the ETS online catalogue and the Elsner Elektronik website on www.els- ner-elektronik.de in the “Service” menu. Actuators KNX S1R-UP • Version: 27.05.2020 • from software version 4.00, ETS programme version 4.00 • Technical changes and errors excepted. -
Page 6: Scope Of Delivery
KNX S1R-UP: 147 KNX S1R-BA2-UP: 174 KNX S1R-BA4-UP: 200 The product is compliant with the provisions of EU guidelines. Actuators KNX S1R-UP • Version: 27.05.2020 • from software version 4.00, ETS programme version 4.00 • Technical changes and errors excepted. -
Page 7: Installation And Start-Up
(danger of being locked out). • Correctly decommission the system for maintenance and cleaning work. Actuators KNX S1R-UP • Version: 27.05.2020 • from software version 4.00, ETS programme version 4.00 • Technical changes and errors excepted. -
Page 8: Installation
KNX S1R-BA4-UP: 1: GND | 2: IN1 | 3: GND | 4: IN2 | 5: GND | 6: IN3 | 7: GND | 8: IN4 All GND connectors are internally bridged. Fig. 2: Output side Connector for drive/consumers (free of potential) Actuators KNX S1R-UP • Version: 27.05.2020 • from software version 4.00, ETS programme version 4.00 • Technical changes and errors excepted. -
Page 9: Connection
Two 230V consumers at the output: Mains Mains (230V) (230V) Each terminal contact may be loaded with a maximum of 10 A. Actuators KNX S1R-UP • Version: 27.05.2020 • from software version 4.00, ETS programme version 4.00 • Technical changes and errors excepted. - Page 10 1 and T-NTC temperature sensor on input 4. Connection of the temperature sensor is in- dependent of the polarity. Actuators KNX S1R-UP • Version: 27.05.2020 • from software version 4.00, ETS programme version 4.00 • Technical changes and errors excepted.
-
Page 11: Instructions For Assembly And Operational Start-Up
After use, the device must be disposed of or recycled in accordance with the legal reg- ulations. Do not dispose of it with the household waste! Actuators KNX S1R-UP • Version: 27.05.2020 • from software version 4.00, ETS programme version 4.00 • Technical changes and errors excepted. -
Page 12: Transfer Protocol
Transfer protocol Transfer protocol 5.1. List of all communication objects Abbreviations: Read W Write Communication Transfer Text Function Flags Data Point Type Size Software version Readable R-C- [217.1] 2 Bytes DPT_Version Channel A status automatic Output R-CT 1 Bit or manual 1.xxx Channel A manual long Input... -
Page 13: Control (Drives)
Transfer protocol Text Function Flags Data Point Type Size Channel A - Learn object 1 Input RWC- [1.1] 1 Bit position memory manually DPT_Switch Channel A - Approach Input RWC- [1.1] 1 Bit position memory DPT_Switch automatically Channel A - Learn object 0 Input RWC- [1.1]... - Page 14 Transfer protocol Text Function Flags Data Point Type Size Channel A shading Input RWC- [9.4] 2 Bytes brightness DPT_Value_Lux Measurement value 2 Channel A shading Input RWC- [9.4] 2 Bytes brightness DPT_Value_Lux Measurement value 3 Channel A shading Input / RWCT [9.4] 2 Bytes...
- Page 15 Transfer protocol Text Function Flags Data Point Type Size Channel A inside Input RWC- [9.1] 2 Bytes temperature opening DPT_Value_Temp measurement value Channel A inside Input RWC- [9.1] 2 Bytes temperature opening target DPT_Value_Temp value Channel A inside Input / RWCT [9.1] 2 Bytes...
- Page 16 Transfer protocol Text Function Flags Data Point Type Size Channel A malfunction Output R-CT 1 Bit object 1.xxx Channel A block 1 blocking Input RWC- [1.1] 1 Bit object DPT_Switch Channel A block 1 wind Input RWC- [1.1] 1 Bit blocking object DPT_Switch Channel A block 1 wind...
- Page 17 Transfer protocol Text Function Flags Data Point Type Size Channel A block 4 wind Output RWC- [1.1] 1 Bit blocking status DPT_Switch Channel A block 4 rain Input RWC- [1.1] 1 Bit blocking object DPT_Switch Channel A block 5 blocking Input RWC- [1.1]...
- Page 18 Transfer protocol Text Function Flags Data Point Type Size Channel A2 start stair case Input -WC- [1.10] 1 Bit light function DPT_Start Channel A2 start stop stair Input RWC- [1.10] 1 Bit case light function DPT_Start Channel A2 connection Input RWC- [1.2] 1 Bit...
- Page 19 Transfer protocol Text Function Flags Data Point Type Size Temp. threshold value 3: Output R-CT [1.1] 1 Bit Switching delay from 0 to 1 DPT_Switch Temp. threshold value 3: Input -WC- [1.1] 1 Bit Switching delay from 1 to 0 DPT_Switch Temp.
- Page 20 Transfer protocol Text Function Flags Data Point Type Size Input 1 - Temperature Output R-CT [9.1] 2 Bytes sensor total value DPT_Value_Temp Input 1 - Temperature Input -WC- [9.1] 2 Bytes sensor measured value DPT_Value_Temp external Input 1 - Temperature Output R-CT [9.1]...
