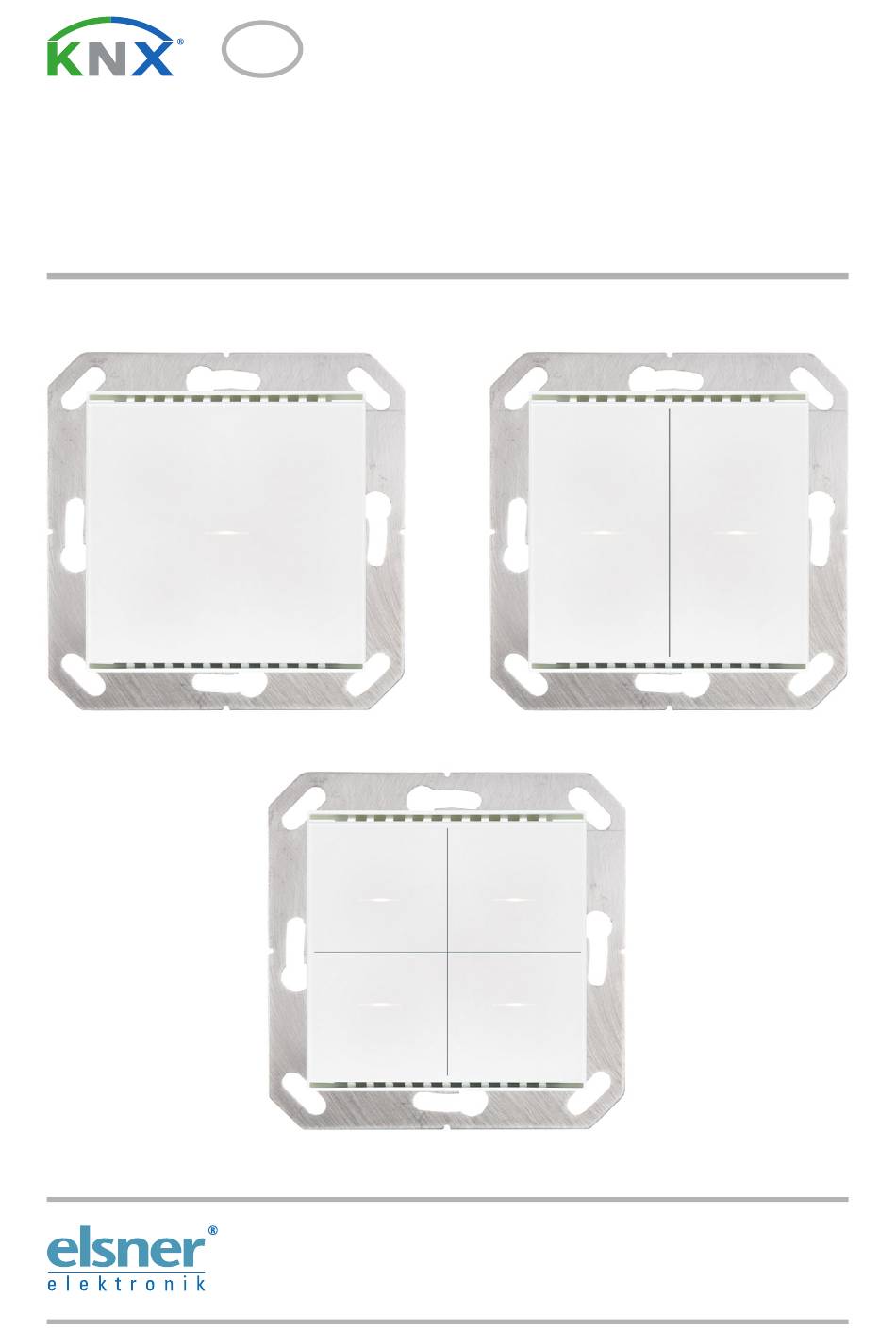

- Page 1 Cala KNX M-T Push Button with Temperature Sensor Cala KNX M1-T Cala KNX M2-T Item numbers 70860 (white), 70862 (black) Item numbers 70870 (white), 70872 (black) Cala KNX M4-T Item numbers 70880 (white), 70882 (black) Installation and Adjustment...
-
Page 3: Table Of Contents
5.6.1. AND logic 1+2 and OR logic outputs 1+2 ..........20 5.6.2. OR LOGIC connection inputs ..............22 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany Cala KNX M-T push button • from application 1.0 Version: 13.09.2019 • Technical changes and errors excepted. - Page 4 The change status (software version and date) can be found in the contents footer. If you have a device with a later software version, please check www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to- date version of the manual is available.
-
Page 5: Description
1-bit or 2 x 8-bit Configuration is made using the KNX software ETS 5. The product file can be down- loaded from the ETS online catalogue and the Elsner Elektronik website on www.els- ner-elektronik.de in the “Service” menu. Cala KNX M-T push button • Version: 13.09.2019 • Technical changes and errors excepted. -
Page 6: Scope Of Delivery
Description 1.0.1. Scope of delivery • Push button in casing • Base plate Additionally required (not included in the deliverables): • Junction box Ø 60 mm, 42 mm deep • Frame (for insert 55 x 55 mm), compatible to the switch scheme used in the building 1.1. -
Page 7: Installation And Commissioning
Elsner Elektronik is not liable for any changes in norms and standards which may occur after publication of these operating instructions. - Page 8 Installation and commissioning Fig. 1: Sectional drawing. The Cala KNX M-T push button fits in a standard con- nector socket (Ø 60 mm, depth 42 mm). The frame is not included in the delivery! Installation depth 27 mm Construction depth 10 mm May be installed and operated in dry interior rooms only.
-
Page 9: Device Structure
Installation and commissioning 2.3. Device structure 2.3.1. Casing Fig. 2: Front Ventilation slit (top and bottom) Touch areas with LEDs Fig. 3: Back Base frame KNX terminal BUS +/- Programming button (recessed) for teaching the device Programming LED (recessed) Catches 2.4. -
Page 10: Notes On Mounting And Commissioning
Maintenance 2.5. Notes on mounting and commissioning Never expose the device to water (e.g. rain) or dust. This can damage the electronics. You must not exceed a relative humidity of 95%. Avoid condensation. After the bus voltage has been applied, the device will enter an initialisation phase last- ing a few seconds. -
Page 11: Transfer Protocol
Transfer protocol Transfer protocol Units: Temperatures in degrees Celsius 4.1. List of all communications objects Abbreviation flags: Communication Read W Write Transmit U Update Text Function Flags DPT type Size Software version Output R-CT [217.1] DPT_Version 2 Bytes Only with Cala KNX M2-T and Cala KNX M4-T Area operation on/off Input -WC-... - Page 12 Transfer protocol Text Function Flags DPT type Size Temperature sensor: meas- Output R-CT [9.1] DPT_Value_Temp 2 Bytes ured value minimum Temperature sensor: meas- Output R-CT [9.1] DPT_Value_Temp 2 Bytes ured value maximum Temperature sensor: meas- Input -WC- [1.17] DPT_Trigger 1 Bit ured value min./max.
- Page 13 Transfer protocol Text Function Flags DPT type Size Push-button 4 encoder 8 bit Output R-CT [5.10] DPT_Value_1_U- 1 Byte count Push-button 4 encoder 16 bit Output R-CT [9] 9.xxx 2 Bytes Push button 4 Scene Output R-CT [18.1] DPT_SceneCon- 1 Byte trol For all models Logic input 1...
-
Page 14: Setting The Parameters
Setting the parameters Setting the parameters 5.1. Behaviour on power failure/ restoration of power Behaviour following a failure of the bus power supply: The device sends nothing. Behaviour on bus restoration of power and following programming or reset: The device sends all outputs according to their send behaviour set in the parameters with the delays established in the "General settings"... -
Page 15: Push Button
Setting the parameters At and above change of 0.1°C • 0.2°C • 0.5°C • ... • 5.0°C (if sent on change) Send cycle 5 s • 10 s • ... • 2 h (if sent periodically) The minimum and maximum readings can be saved and sent to the bus. Use the "Reset temperature min/max. -
Page 16: Push Button 1 / 2 / 3 / 4
Setting the parameters 5.4.1. Push button 1 / 2 / 3 / 4 Set the function of the push button. Function • Switch • Selector switch • Blind • Shutters • Awning • Windows • Dimmer • 8-bit encoder • 16-bit encoder •... - Page 17 Setting the parameters Use additional function for button held down Time between tap and hold (0.1 sec) 0 ... 50; 10 Command when pressing the button Do not send message Command when releasing before time • Switch expires • Do not send message Command when pressing the button •...
- Page 18 Setting the parameters Command • Brighter • Darker • Lighter/Darker Time between switching and dimming 0 ... 50; 5 (in 0.1 s) Repeat the dim command No • Yes Repeat the dim command with a long hold every 0.1 s • ... • every 0.5 s • ... • every 2 s of the button Dim by 100% •...
-
Page 19: Control Modes For Drive Control
Setting the parameters 5.4.2. Control modes for drive control Behaviour on button actuation in standard control mode: short: hold Blind Stop/Step Up or down Shutters Stop Up or down Awning Stop In or out Windows Stop Closed or open Standard: If briefly operated, the drive will move incrementally or stops. -
Page 20: Leds
Setting the parameters Fig. 4 Time interval comfort mode diagram Time 1 Time 2 1 + 2 Point in time 0: Push of button, start of time 1 Release before time 1 expired: step (or stop if drive is moving) Point in time 1: End of time 1, start of time 2 Moving command... -
Page 21: Logic
Setting the parameters Use objects No • Yes Object value on/off after reset 0 • 1 (if objects are used) Use automatic switch-off after pressing a No • Yes button Switch off after (is automatic switch off is 1 ... 255; 30 secs. after pressing used) All LEDs individually controllable This is where you set the brightness of the LEDs, whether objects are used and whether... -
Page 22: And Logic 1+2 And Or Logic Outputs 1+2
Setting the parameters 5.6.1. AND logic 1+2 and OR logic outputs 1+2 The same setting options are available for AND and OR logic. Each logic output may transmit one 1-bit or two 8-bit objects. Determine what the out put should send if logic = 1 and = 0. 1. - Page 23 Setting the parameters Set the output send pattern. Transmission behaviour • on change of logic • on change of logic to 1 • on change of logic to 0 • on change of logic and periodically • on change of logic to 1 and periodically •...
-
Page 24: Or Logic Connection Inputs
Setting the parameters 5.6.2. OR LOGIC connection inputs The OR logic connection inputs are the same as those for the AND logic. Additionally, the following inputs are available for the OR logic: Switching output AND logic 1 Switching output AND logic 1 inverted Switching output AND logic 2 Switching output AND logic 2 inverted Cala KNX M-T push button •... - Page 26 Elsner Elektronik GmbH Control and Automation Engineering Sohlengrund 16 75395 Ostelsheim Phone +49 (0) 70 33 / 30 945-0 info@elsner-elektronik.de Germany +49 (0) 70 33 / 30 945-20 www.elsner-elektronik.de Technical support: +49 (0) 70 33 / 30 945-250...
