Grizzly T32732 Instructions Manual

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T32732 Bench Grinder Sharpening
System replaces the light-duty tool rests on your
6"–8" bench grinder and provides an easily adjust-
able platform for sharpening chisels, gouges, and
other woodworking tools.
To reduce your risk of
serious injury, read this
entire
using machine.

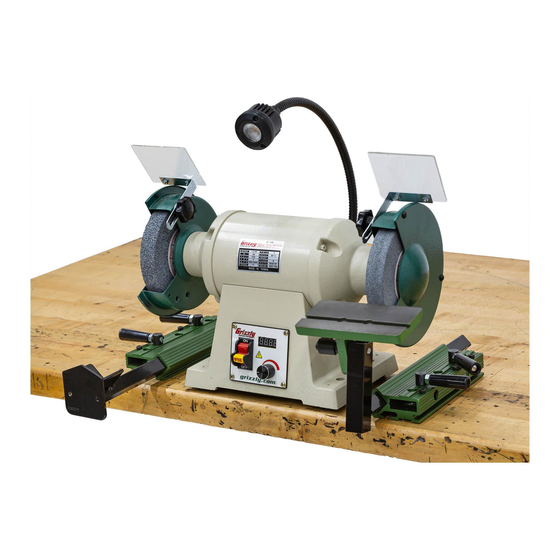

Figure 1. Model T32732 installed for use with
bench grinder.
Specifications
Table Size ..................................................3" x 6"
T-Slot Size ......................................................
Weight .........................................................6 lbs.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
manual BEFORE
COPYRIGHT © OCTOBER, 2021 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 10/21) #CS22103 PRINTED IN TAIWAN
MODEL T32732
BENCH GRINDER
SHARPENING SYSTEM
Inventory
Description
A. Short Arm Assembly .................................. 1
B. Long Arm Assembly ................................... 1
C. Table ........................................................... 1
D. Adjustable Handle
E. Flat Washer
F.
Wood Screws
D
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
⁄ "
5
16
INSTRUCTIONS
⁄ "-18 x 1
5
16
⁄ " ......................................... 1
5
16
⁄ " x 1 ⁄ " .............................. 6
1 1
4 4
A
B
F
E
Figure 2. Inventory.
NOTICE
Qty
⁄ " ................. 1
1
2
C
V1.10.21
