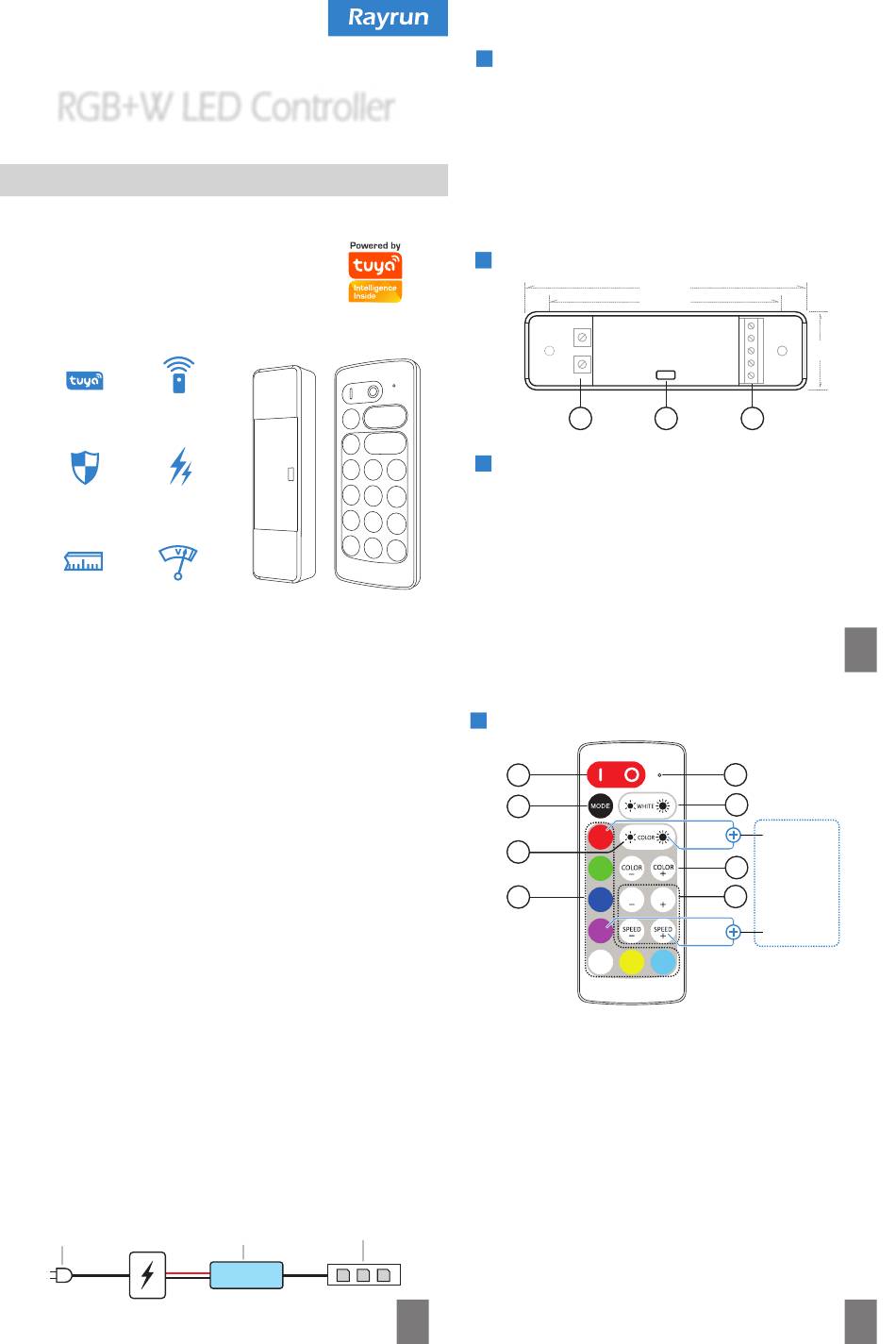

Rayrun NT40W Manual

Smart & Remote Control
RGB+W LED Controller
Model: NT40 (W/Z/B)
Tuya Smart Wireless Remote
Full Protection High Power
Compact Size 12V/24V voltage
2. LED output
Connect LED fixtures to this terminal. Install LED
common anode cable into the terminal marked with '+' and
each channel LED cables into the terminal marked with R,
G, B and W. Please make sure the LED rated voltage is
same as the power supply and each channel's maximum
load current is below the controller rated current.
The controller will run into protection if the output
been overloaded or short circuited. The indicator will flash
red color and stop working in this case, Please check the
wiring and load current to remove the fault.
3. Work status indicator
This indicator shows all working status of the
controller. It displays different events as following:
Steady yellow: Remote only mode, Tuya disconnected.
Steady green: Remote and Tuya smart mode.
Single green blink: Command received.
Long single yellow blink: Brightness or speed reach
limit.
Red flash: Overload protection.
Yellow flash: Over heat protection.
Green flash 3 times: Setup command received.
4. Wiring diagram
To 110/230 12-24V DC output
AC power Power supply
12-24V DC
NT40 LED
2
LED Strips
Controller
12-24V Driving
LED Controller
Introduction Introduction
NT40 RGB+W LED controller is designed to drive
constant voltage LED products with common anode
connection in voltage range of DC12-24V. It can be
controlled by smart phone with Tuya smart app connection
or by the stand alone RF remote controller. user can setup
white and RGB LED color, brightness, scene and dynamic
effects with the rich function on smart phone Tuya app or
the easy operation remote controller.
Dimension
Wiring & Indicator
1. Power supply input
Install positive power cable into the terminal marked
with '+' and negative power cable into the terminal marked
with '-'. The controller can accept DC power from 12 to
24V, the output is PWM driving signal with same voltage
level as the power supply, so please make sure the LED
rated voltage is same as the power supply.
Functions
5
6
10
8
5. Turn ON / OFF
Press 'I' key to turn on unit or press 'O' key to turn off.
The power on status can be set to last status or default
status from app. At last status mode, the controller will
memorize the on/off status and will restore to the
previous status on next power on. Please use remote
controller or app to turn on if it was switched to off status
before power cut.
6. Light mode switch
Press this key to switch between RGB, white and
RGB+White mode. In RGB mode, white channel will be
disabled; In white mode, RGB channel will be disabled; In
RGB+White mode, all channels are usable.
2
87mm
72mm
1 3
12
9
7
11
EFFECT EFFECT
24mm
2
1 1
Pair new
remote
Press in 10
seconds once
receiver powered
Reset to
factory
3
