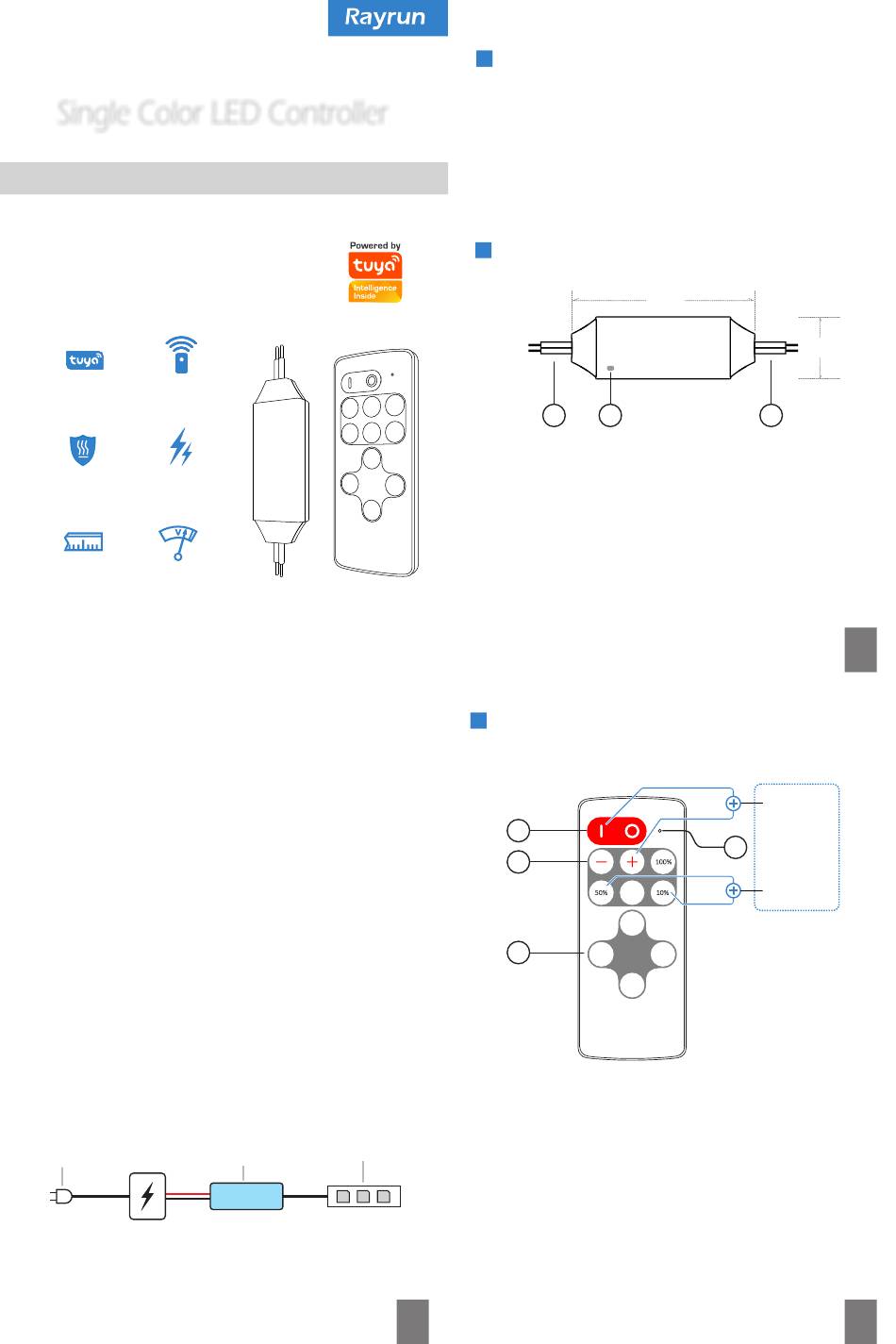

Rayrun TT10 W Manual

Smart & Remote Control
Single Color LED Controller
Model: TT10 (W/Z/B)
Tuya Smart Tuya Smart Wireless Remote Wireless Remote
High Power
Overheat Protection
Compact Size
12V/24V voltage
2. LED output
Connect LED fixtures positive to the cable marked
with '+' and negative to the cable marked with '-'.
Please make sure the LED rated voltage is same as the
power supply and the maximum load current is below
the controller rated current.
CAUTION! The controller will be permanently
damaged if output cables short circuited. Please ensure
the cables are well insulated to each other.
3. Work status indicator (optional)
This indicator shows all working status of the
controller. It displays different events as following:
Steady on: Remote and Tuya smart mode.
Flash twice: Tuya not connected.
Flash 3 times: Over heat protection.
Blink: New command received.
Long single blink: Brightness or speed reach limit.
4. Wiring diagram
To 110/230 12-24V DC output
AC power Power supply
12-24V DC
TT10 LED
LED Strips
Controller
12-24V Driving
LED Controller
2
Introduction
TT10 LED controller is designed to drive constant
voltage single color LED products in voltage range of
DC12-24V. It can be controlled by Tuya smart app or by a
RF wireless remote controller. User can setup LED
brightness, scene and dynamic effects with the rich
function on the Tuya smart app or from the easy operation
remote controller.
Terminal & Size
1
1. Power supply input
Connect positive power to the cable marked with '+'
and negative to the cable marked with '-'. The controller
can accept DC power from 12V to 24V, the output is PWM
driving signal with same voltage level as the power supply,
so please make sure the LED rated voltage is same as the
power supply.
Functions
5
6
7
5. Turn ON / OFF
Press 'I' key to turn on unit or press 'O' key to turn off.
The power on status can be set to last status or default
status from app. At last status mode, the controller will
memorize the on/off status and will restore to the
previous status on next power on. Please use remote
controller or app to turn on if it was switched to off status
before power cut.
2
60mm
3
8
25%
MODE
+
SPEED SPEED
-
+
MODE
-
20.5mm
2
1 1
Reset to
factory
Press in 10
seconds once
receiver powered
Pair new
remote
3
