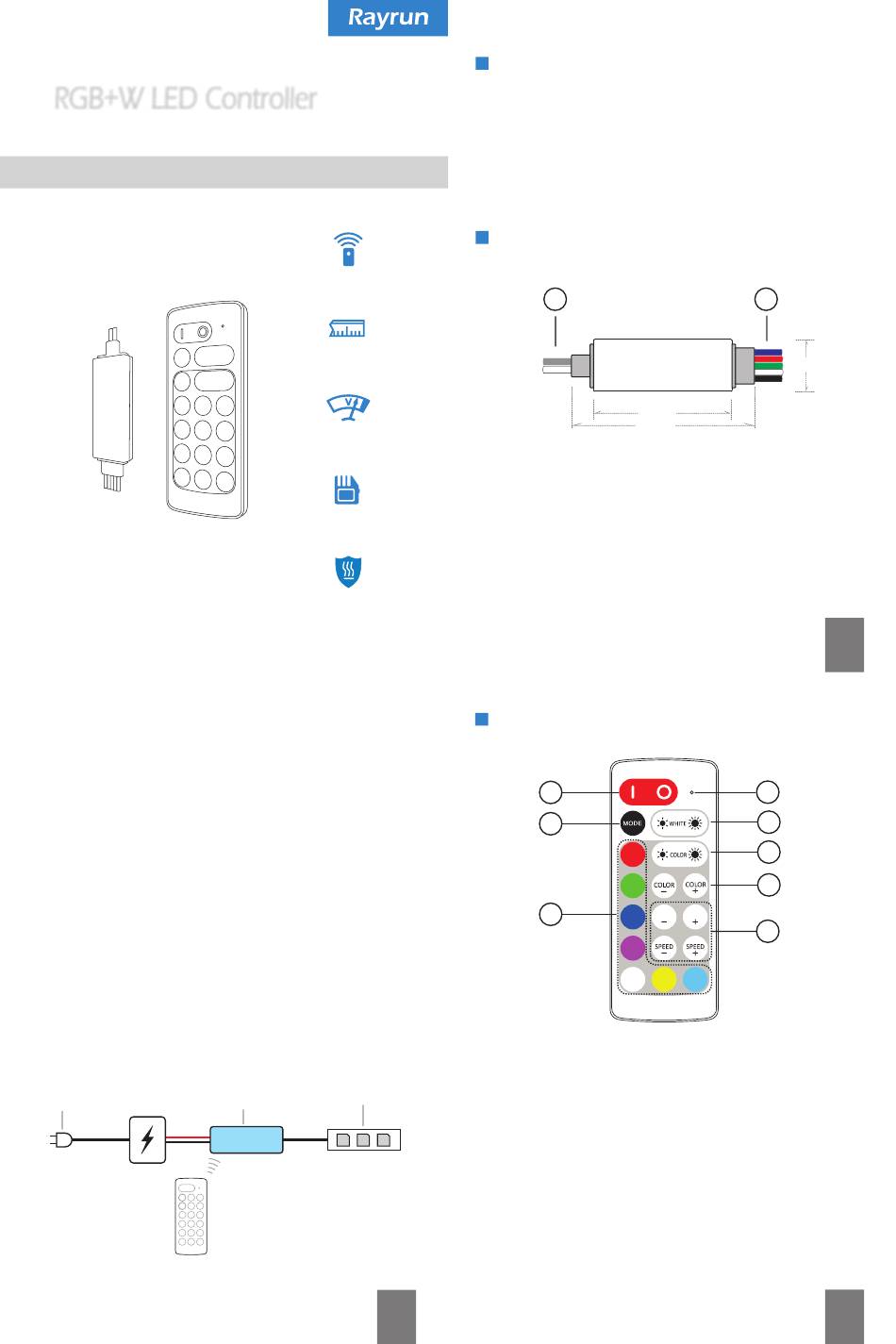

Rayrun T140-H Manual

Advanced RF Remote
RGB+W LED Controller
Model: T140(-H)
2. LED output
Connect LED fixtures to this terminal. Install LED
common anode cable into the terminal marked with '+' or
black cable and each channel LED cables to the relevant
color cables. Please make sure the LED rated voltage is
same as the power supply and each channel's maximum load
current is below the controller rated current.
CAUTION! The controller might be permanently
damaged if output cables short circuit. Please make sure
the output cables are well insulated to each other.
3. Wiring diagram
Please connect the controller output to LED loads and
power supply to the controller power input. The output
voltage of power supply must be same as the LED load's
rated voltage. Check all cables to be well connected and
insulated before power on.
To 110/230 5-24V DC output
AC power Power supply
5-24V DC
Wireless Remote
Ultra Compact
Wide Voltage Range
Memory Function
Overheat Protection
T140 LED
LED Strips
Controller
5-24V Driving
LED Controller
RF遥控器
2
Introduction
T140 LED controller is designed to drive constant voltage
RGB+White LED products with common anode connection in
voltage range of DC5-24V. The receiver works with the RF
remote controller, user can setup white LED brightness, RGB
LED color, brightness and dynamic effects on the remote
controller, the receiver is powered by DC power supply and
receives remote controller commands to drive LED fixtures.
Receiver & wiring
1
38mm
50mm
1. Power supply input
The controller supply voltage range is from DC 5V to 24V.
The white power cable should be connected to power positive
pole and gray to negative (For other cable color, please refer
to the labels). The output voltage is at the same level as the
power voltage, please make sure the power supply voltage is
correct and the power rating is capable for the load power
range.
Remote controller function
4
5
7
4. Turn ON / OFF
Press 'I' key to turn on controller or press 'O' key to turn
off. The controller will memorize the on/off status and will
restore to the previous status on the next power on.
Please use remote controller to turn on the unit if it was
switched to off status before power cut.
5. Light mode switch
Press this key to switch between RGB, white and
RGB+White mode. In RGB mode, white channel will be
disabled; In white mode, RGB channel will be disabled; In
RGB+White mode, all channels are usable.
2
15mm
11
8
9
6
EFFECT EFFECT
10
1
3
