INSTALLATION and OPERATION MANUAL for VIP
Model
VIP-LD
VIP-TD
NOTE: Automatic models without faucet is also available.
N E W C O

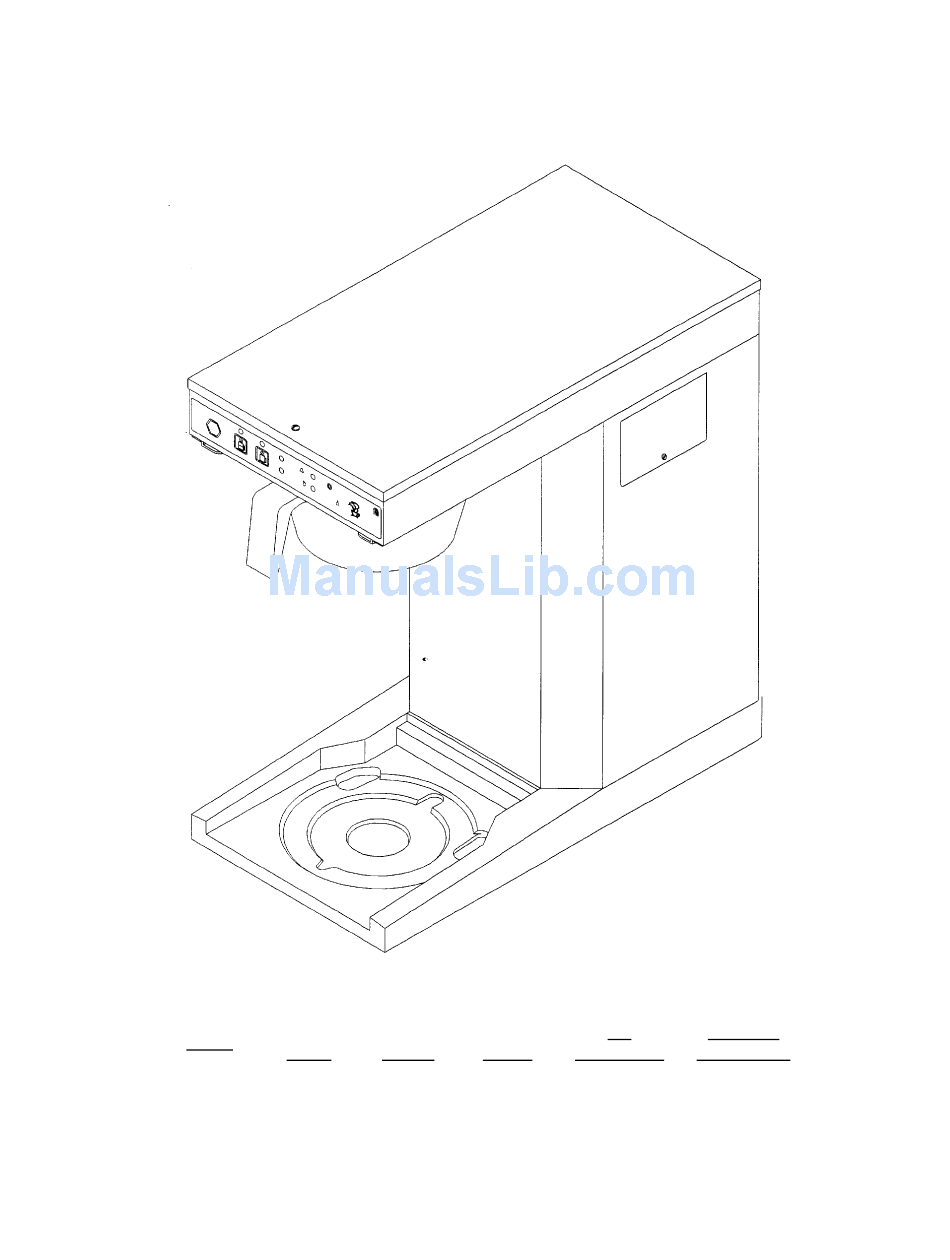

BREWER SPECIFICATIONS
Width
Length
8-5/8"
16-5/8"
8-5/8"
16-5/8"
E N T E R P R I S E S
Height
120V Amps
17-1/2"
23-3/4"
II
BREWERS
Model VIP-LD
US
CANADA
120V Amps
13
11.7
13
11.7
P/N 111525 Rev 081003
Advertisement
Table of Contents
Related Manuals for Newco VIP-LD
Summary of Contents for Newco VIP-LD
- Page 1 NOTE: Automatic models without faucet is also available. E N T E R P R I S E S BREWER SPECIFICATIONS Width Length Height 8-5/8” 16-5/8” 17-1/2” 8-5/8” 16-5/8” 23-3/4” P/N 111525 Rev 081003 BREWERS Model VIP-LD CANADA 120V Amps 120V Amps 11.7 11.7...
- Page 2 PLUMBER'S INSTALLATION INSTRUCTIONS CAUTION: Power to brewer must be OFF before proceeding with plumbing installation. 1) Flush water line before installing brewer. Brewer should be connected to COLD WATER LINE for best operation. 2) Water pressure should be at least 20 lbs. For less than a 25 ft run, use 1/4" copper tubing and connect to 1/2" or larger water line.
- Page 3 COFFEE PREPERATION PROCEDURES 1) Place filter into brew basket. 2) Put the appropriate amount of ground coffee into the filter for the volume of coffee being brewed. 3) Slide the brew basket into holder. 4) Remove the dispenser lid unless it is a brew through design. Place the dispenser directly under the brew basket. 5) Press the desired “regular”...
- Page 4 BREW SYSTEM DESIGN FEATURES Feature Settings Available Brew Time 30-300 seconds (.5-5 minutes). Visi-Brew 30-240 seconds (.5-4 minutes). Temperature 170-208 F. Autoarm On or Off; (Wiring determines value). Power Modes Power Save; Adjustable 30-240 mins. Use "RUN TIME..." DIAL Normal. Default when dial is in off position. Digital Brew Timing - Brew time is accurate to within .1 seconds over the entire adjustment range of 30 to 360 seconds.
- Page 5 Temperature Override - Turns the tank heater on at the start of a brew cycle to the maximum setting for 1 minute. This assures a more uniform brew temperature and reduces the recovery time required for rebrewing. As an additional safety check on the heater circuit the control board continuously monitors how long the element is on. If the run time exceeds 30 minutes the tank element is shut down and an error message is produced.
-
Page 6: Wiring Diagram
WARRANTY Newco coffee brewers are warranted against defects in workmanship or materials, under normal use, for 90 days from the date of purchase. Brewer parts are warranted against defect for 12 months from date of purchase. Liability in all events is limited to the purchase price paid and liability under the aforesaid warranty is limited to replacing or repairing any part or parts which are defective in material or workmanship, and returned to our factory, shipping cost prepaid.
