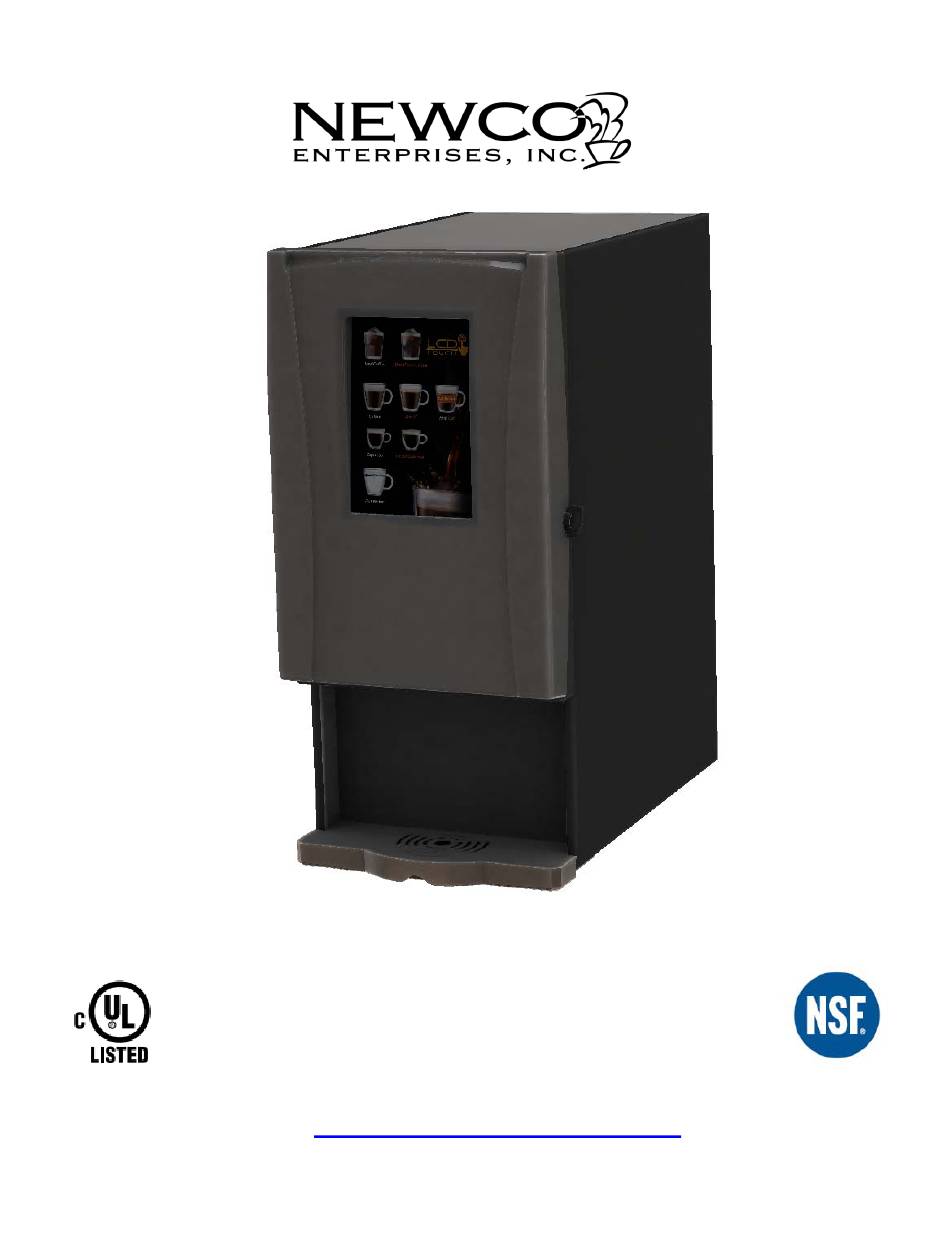

- Page 1 PN 122117 REV. 10-18-18 Lcd Touch Operating Instruction Manual Model LCD-TCH 1-800-325-7867 3650 NEW TOWN BLVD ST. CHARLES MO 63301 WWW.NEWCOCOFFEE.COM...
-
Page 2: Table Of Contents
Table of Contents Introduction & Newco Product Warranty ........4 Machine Dimensions & Specifications ........5 Machine Features ................6 Plumbing Connections ..............7 Plumber’s Installation Instructions ..........7 Electrical Hook-Up ................. 7 Installation Instructions ..............8 Set up instructions for LCD-Touch Machine ....... 9 Product Installation Procedure............. - Page 3 Warning Labels NOTICE: Read and follow all notices posted on this machine. Do not damage or destroy these notices as they are for your protection WARNING DO NOT OVERLOAD CIRCUIT. ALWAYS ELECTRICALLY GROUND THE CHASSIS OR ADAPTOR PLUG. ...
-
Page 4: Introduction & Newco Product Warranty
(800) 556-3926 or by writing to PO Box 852, Saint Charles, MO 63302; 2) if requested by Newco, shipping the defective equipment prepaid to an authorized Newco service location; and 3) receiving prior authorization from Newco that the defective equipment is under warranty. -
Page 5: Machine Dimensions & Specifications
Machine Dimensions & Specifications 120 VAC-1600W HEATER-15A USA POWER SUPPLY 120 VAC-1400W HEATER-15A CANADIAN POWER SUPPLY 6-20 OZ CUP SIZE TEMPERATURE RANGE 170-205F DRIP TRAY PRODUCT & SELECTION DRIP TRAY SWITCH GRATE & DISPLAY WATER INLET & PRODUCT POWER DISPENSE SWITCH AREA (CUP) -
Page 6: Machine Features
Machine Features NO CALIBRATION NEEDED-PLUG & PLAY TOUCH SCREEN OPERATION CUSTOMIZED LOGO SCREEN DECAF BUTTON SWITCHES TO DECAF BIB PRE-PROGRAMMED DRINK RECIPES 6-8-10-12-16-20 OUNCE DRINK CHOICES CUP SELECTION MENU CUSTOM CALL FOR SERVICE NUMBER ... -
Page 7: Plumbing Connections
Plumbing Connections Plumber’s Installation Instructions CAUTION: Disconnect Power to machine before proceeding with plumbing installation. Attach water line to water filter, rear of machine. Flush water line before installing machine. Machine should be connected to COLD WATER LINE ONLY. Water pressure should be at least 40 lbs. For less than a 25 ft run, use 1/4" copper tubing and connect to 1/2"... -
Page 8: Installation Instructions
Installation Instructions WARNING: - Read and follow installation instructions before plugging or wiring in machine to electrical circuit. Warranty will be void if machine is connected to any voltage other than that specified on the nameplate serial tag. Machine must be on a flat and level surface. Plug or wire in machine to appropriate voltage as noted on the brewer serial tag. -
Page 9: Set Up Instructions For Lcd-Touch Machine
Set up instructions for LCD-Touch Machine Product Installation Procedure Fig. 1 Open product box and remove the BIB outlet, Fig. 1. Remove cardboard circle and seat coffee outlet in box cutout as shown in Fig. 2. - Page 10 Product Installation Procedure Cont’d Fig. 2 Remove the plastic insert from the BIB fitment as and attach product fitting shown in Fig 3. Fig. 3 Using finger and thumb only to prevent over-tightening, thread the BIB connector on to the BIB fitment until it is fully seated .
-
Page 11: Touch Screen Shutdown Procedure
Product Installation Procedure Cont’d Fig. 4 Place the product in the storage compartment as shown in Fig.4. Fig. 5 Regular Decaf Repeat installation for 2 product and position boxes and hoses as shown in Fig. 5. Note: Regular Coffee BIB is installed on the LH side of the product compartment and Decaf Coffee BIB is installed on the RH side of the product compartment... -
Page 12: Touch Screen Startup Procedure
Touch Screen Startup Instructions 1 . OPEN DOOR, PRESS AND HOLD ON/OFF BUTTON FOR 10 SECONDS. RELEASE BUTTON WHEN DISPLAY SHOWS STARTUP SCREEN 2 . WAIT 30 SECONDS‐‐ THEN CYCLE POWER SWITCH TO ‘ON’ POSITION. NOTE: THIS MACHINE IS DESIGNED TO BE RUN WITH POWER CYCLED ON AT ALL TIMES. REFER TO THE STARTUP AND POWER DOWN INSTRUCTIONS BELOW AND ALSO ATTACHED TO THE INSIDE OF THE CABINET DOOR FOR SHUTTING DOWN THE TOUCH SCREEN DISPLAY WHEN THE MACHINE IS NOT IN USE. - Page 13 Touch Screen Shutdown Instructions When storing machine, or if loss of power occurs, the tablet should be shutdown using the following procedure: 1 . OPEN DOOR, PRESS AND HOLD ON/OFF BUTTON FOR 10 SECONDS—RELEASE WHEN DISPLAY CHANGES TO POWER DOWN OPTIONS 2 . CONFIRM SHUT DOWN ...
- Page 14 Machine Startup Instructions NOTE: TABLET MUST BE POWERED ON PRIOR TO CYCLING POWER TO THE MACHINE Insure that there is a proper water supply connected to the machine and water is turned on. Insure that the machine is plugged into a proper power outlet and there is power supplied to the machine.
- Page 15 Brewing Drinks To dispense a drink, place a cup under the dispense area, press a brew selection To dispense a drink, place a cup under the dispense area, press a brew selection To dispense a drink, place a cup under the dispense area, press a brew selection To dispense a drink, place a cup under the dispense area, press a brew selection , choose a cup size and press “Brew”...
- Page 16 Drink Submenu Cup Size Indicator* *(Shows Ounces if Coffee selected--See Strength Drink Selection Indicator Menu Page18 ) Cup Size Selections Cup Strength Small –Medium- Selections Large* Use to Change Mild –Regular- Bold Cup Size Use to Change Coffee Strength Default Regular Brew Return Button...
-
Page 17: Programming
OFF, Dispense Only, Always On Total Water Usage Water filter Reset Default is Dispense Only Total Gallons of water Primary Newco Server Select this after changing dispensed* (Future Use) filters to reset water filter Global Ratio (Reg & Decaf) - Page 18 Programming-Cont’d. Drink Selection Menu Drink Selection Menu Ability to turn Drink Selections and/or Cup Sizes On or Off Cup Size Choices are 6-8-10-12-16-20 Ounces or OFF Drink Strengths are Mild-Regular-Bold Iced & Espresso Drinks can be turned Off or Default Cup size Determines which cup size will Dispense by Default Ounces Displayed Cup size in Ounces or Small Medium Large...
-
Page 19: Machine Startup Procedure
Programming-Cont’d SECONDARY PROGRAMMING MODE (SERVICE MENU) RECIPES AND CALIBRATION TAP 3 TIMES ON CENTER OF “ ” THEN TAP 3 TIMES ON CENTER OF “ ” TO ENTER SECONDARY PROGRAMMING MODE IF A BREWING ICON IS ACCIDENTLY TOUCHED USE THE RETURN ARROW TO TRY AGAIN CALIBRATION Coffee Valve Calibration-- Insert a... - Page 20 Programming-Cont’d SCROLL THROUGH RECIPES BY Note: Changing the SELECTING RECIPE values in these NUMBER AS SHOWN recipes can result THEN USE PLUS in changes in cup AND MINUS (+ -) volume and taste BUTTONS TO profile and should SCROLL UP AND be performed by DOWN authorized...
-
Page 21: Custom Logo (Sleep Screen)-Wifi Setup
Custom Logo-Wifi Setup TURN OFF POWER TO MACHINE USING SWITCH AT LOWER LEFT REAR OF MACHINE WIFI SETUP CAN ALSO BE ACCESSED FROM “Local Setup” MENU-UNDER “Network Setup” (pg. 17) 1. TOUCH TO ACCESS 2. PRESS “Settings” ICON 3. PRESS “Wifi” ICON TO ACCESS APPLICATION ... - Page 22 Install Custom Logo (Sleep Screen) TAP “ ” 3 TIMES TO ENTER ANDROID VERSION) PROGRAMMING MODE --IF A BREWING ICON IS ACCIDENTLY THIS ADDRESS IS UNIQUE FOR TOUCHED USE THE RETURN EVERY MACHINE. NOTE THAT IT ARROW TO TRY AGAIN IS USED FOR THE HOST ADDRESS WHEN SETTING UP COMMUNICATION SITE...
- Page 23 Install Logo Instructions-Custom Sleep Screen (APPLE IOS VERSION) OPEN THE APP AND SLELCT INSTALL THE “ITRANSFER” APP ONTO FTP/FTPS/ SFTH, ADD SERVER, A LOCAL PHONE OR TABLET. CONNECT THE LOCAL PHONE OR TABLET TO THE SAME WIFI NETWORK AS THE LCD-TOUCH. APPLICATION EXAMPLE SHOWN IS “ITRANSFER” FOR I-PHONE/IOS/APPLE SETUP FTP CONNECTION AS SHOWN- COPY HOST ADDRESS FROM LCD-...
- Page 24 Install Logo Instructions-Custom Sleep Screen Cont’d 7. STATUS ON LCD-TOUCH 8. TO SELECT A FILE TO 9. SELECT THE MACHINE CHANGES TO TRANSFER SELECT THE DIRECTORY WHERE THE Connected-Waiting for transfer UPLOAD BUTTON IMAGE FILE TO BE TRANSFERRED RESIDES 10. SELECT THE IMAGE TO 11.
-
Page 25: Cleaning & Sanitizing
Cleaning & Sanitizing Instructions Fig. 1 Fig. 2 1. Remove product from storage area and disconnect BIB connectors as shown in figures 1 & 2. - Page 26 Cleaning & Sanitizing Instructions-Cont’d Fig. 3 2. Place an empty container in the dispense area of the machine as shown in figure 3.
- Page 27 Cleaning & Sanitizing Instructions-Cont’d Fig. 4 3. Connect the cleaning solution to the BIB connector for Pump and connect cleaning BIB (PN 900083) as shown in figure 4.
-
Page 28: Cleaning Instructions
Cleaning Instructions 1. Remove the product BIBs from the machine and connect a BIB of cleaning solution to the PUMP 1 (COFFEE) BIB connector as shown in figs. 1-4 pages 25-27. 2. Enter Cleaning and Priming Menu (See Page 18) ... -
Page 29: Weekly Sanitizing Instructions
Weekly Sanitizing Instructions Remove the bag connector from the product box and disassemble or prop open the internal valve to allow free flow of product through the connector. NOTE: Cutting the mating fittings from an empty bag makes an excellent “free flowing” connector for this purpose. -
Page 30: Service Notes
Service Notes & Troubleshooting Load Software Update Future updates to the Touch Screen Software will be delivered via e-mail. Instructions for updating the firmware from a Smart Phone or Tablet will be included in the e-mail. These error screens will display a service phone number to call if entered in “Setup” Menu (Page 17) Display Reads Possible Cause(s) Remedies... -
Page 31: Wiring Diagram
Wiring Diagram... - Page 32 Wiring Diagram 240 VAC...
- Page 33 Notes...
