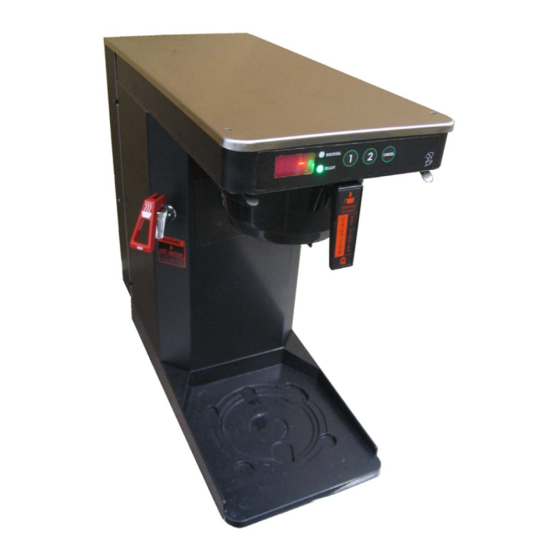

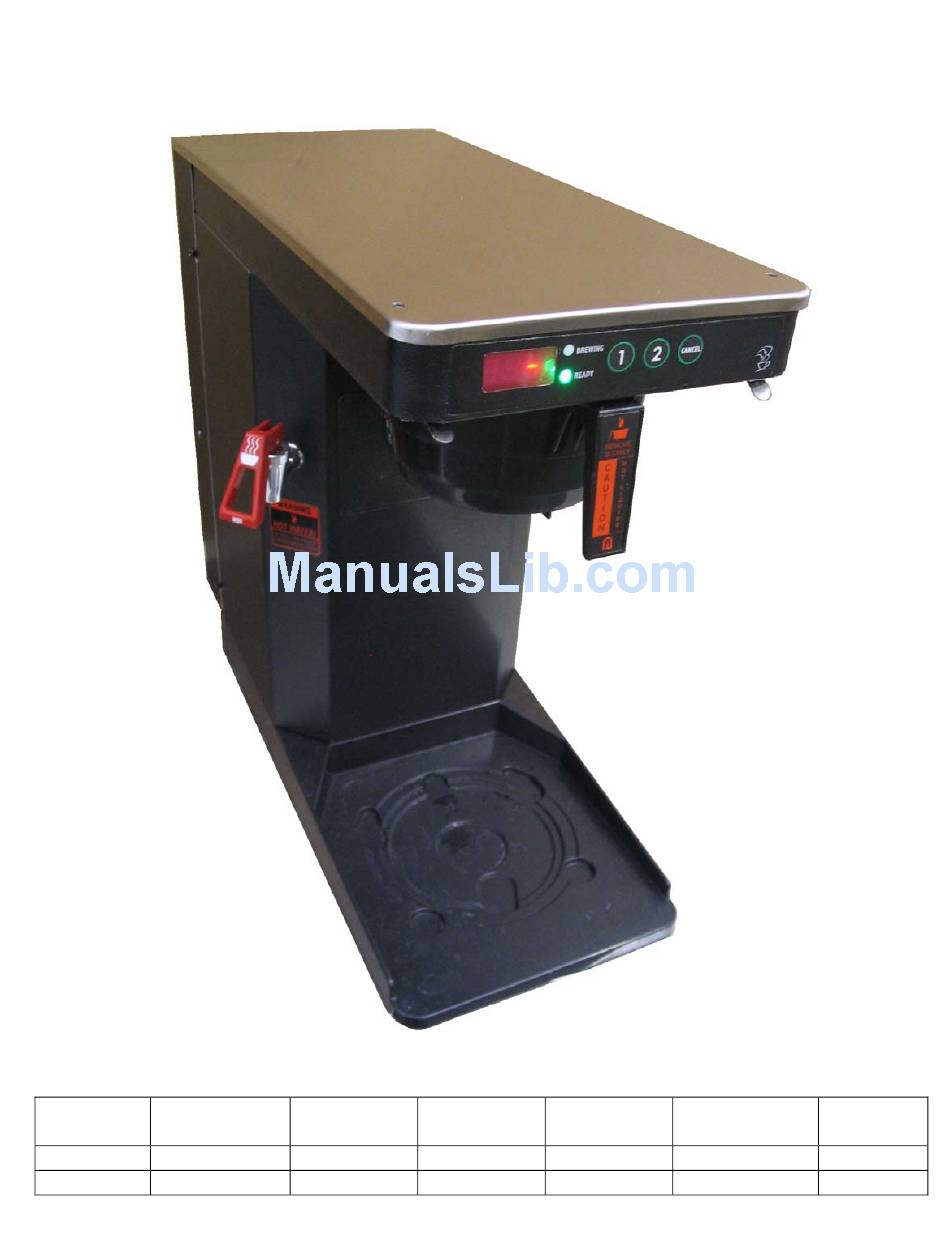

- Page 1 Manual PN 119985 Rev 02-06 20:1 Brewer Operation and Service Manual Model Height Width Depth US 120 V Canada 120 240 V NB-LD 17-7/8 8-1/2 19-1/4 14.6A 11.7A 14.6A NB-TD 24-3/16 8-1/2 19-1/4 14.6A 11.7A 14.6A...
- Page 2 Manual PN 119985 Rev 02-06 Firmware Rev 4 20:1 INSTALLATION / SETUP INSTRUCTIONS WARNING: - Read and follow installation / setup instructions before plugging or wiring in machine to electrical circuit. Warranty will be void if machine is connected to any voltage other than that specified on the name plate. Plumber's Installation Instructions 1) Plumb brewer in to water supply using 1/4 inch copper tubing.
- Page 3 Manual PN 119985 Rev 02-06 Firmware Rev 4 Pump calibration is necessary when the pump speed is changed or if the brewer is delivering substantially more or less beverage than what it has been programmed for in the user mode. Pump speed may be adjusted up or down if required to deliver water at a faster or slower rate to meet a specific beverage taste profile.
-
Page 4: Operation Instructions
Manual PN 119985 Rev 02-06 Firmware Rev 4 OPERATION INSTRUCTIONS Coffee Preparation Procedures Place filter into brew basket. Put the proper amount of coffee into the filter. Slide the brew basket into holder. Place the appropriate empty decanter into position below the brew basket. For airpots first open lid and remove pump stem unless of a brew through design. - Page 5 Manual PN 119985 Rev 02-06 Firmware Rev 4 LID ASSEMBLY 119972 Item # Part # Description 100190 NUT, 1/2 –20 JAM, BRASS 119997 CONNECT, FM 3/8C x 1/8P, MOD 119991 FITTING, 1/8 PIPE x 1/4 BARB 100030 GASKET, BRS, .566 ID, TIN/PLTD 100149 ELBOW, MALE, 1/4 COMP x 1/8 5 Alternate...
- Page 6 Manual PN 119985 Rev 02-06 Firmware Rev 4 LID ASSEMBLY 119972, CONTINUED Item # Part # Description 100409 GASKET, BRASS, .520ID, TN/PLT 151677 PROBE, TEMP, DUAL, 7,312 THERM 202025 ELEMENT, TANK, 1750W, 120V...
- Page 7 Manual PN 119985 Rev 02-06 Firmware Rev 4 TANK Item # Part # Description 704221 GASKET 119971 TANK, PUNCHED 111635 CLAMP, HOSE .574 ID 152213 TUBING, SIL, 3/8 ID x 5/8 OD 102835 BULKHEAD, FAUCET 781772 PUMP, ASSY, WATER...
- Page 8 Manual PN 119985 Rev 02-06 Firmware Rev 4 BREW PLATE / DISPLAY BOARD Item # Part # Description 100731 DISPLAY BOARD & HARNESS 120025 SPACER, 6-32, 3/8 HEX x 7/16L 120046 SCREW, 6-32 x 1/4, PPHMS, POLY 110941 WASHER, NYL, .151 x .345 x .031 119970 BREW PLATE SPTWLD 152218...
- Page 9 Manual PN 119985 Rev 02-06 Firmware Rev 4 COMPONENT, PANEL ASSY - 119994 Item # Part # Description 100255 KIP VALVE, SOLENOID 110944 SLEEVE, 1/4 SELF ALIGN 110946 NUT 1/4 SELF ALIGN 202044 INSERT TUBING, 3/16 101527 REPLACEMENT KIT, KIP VALVE 105115 TRANSFORMER 100022...
-
Page 10: Warranty
Prompt disposition will be made if item proves to be defective, within warranty. Before returning any item, write or call Newco, or the dealer from whom the product was purchased, giving model number, serial number, and date of purchase, and describe nature of the defect. If damage was incurred during transit to you, file claim with the...
