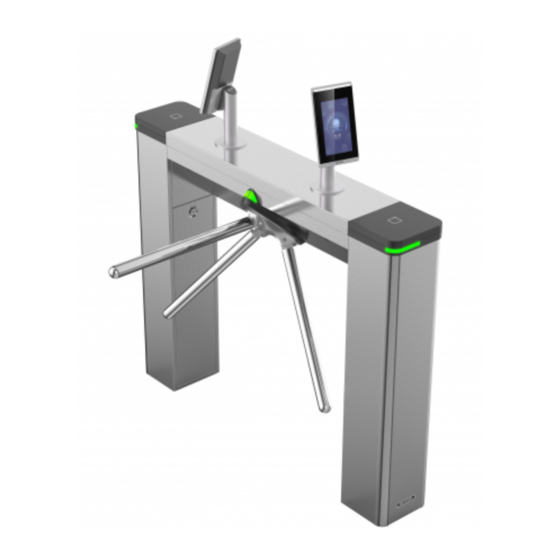

Tripod turnstile
Hide thumbs Also See for DS-K3G501S Series:
Table of Contents

Advertisement

Quick Links

Download this manual
DS-K3G501SX Series Tripod Turnstile
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K3G501S Series and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-K3G501S Series

Summary of Contents for HIKVISION DS-K3G501S Series

  • Page 1 DS-K3G501SX Series Tripod Turnstile User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K3G501SX Series Tripod Turnstile User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 DS-K3G501SX Series Tripod Turnstile User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 6 DS-K3G501SX Series Tripod Turnstile User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.
  • Page 7 DS-K3G501SX Series Tripod Turnstile User Manual Cautions: Stainless steel may be corroded in some circumstances. You need to clean and care the device by ● using the stainless steel cleaner. It is suggested to clean the device every month. Do not drop the device or subject it to physical shock, and do not expose it to high ●...
  • Page 8 DS-K3G501SX Series Tripod Turnstile User Manual Available Models Product Name Model Tripod Turnstile DS-K3G501S...

  • Page 9: Table Of Contents

    DS-K3G501SX Series Tripod Turnstile User Manual Contents Chapter 1 Overview ........................1 1.1 Introduction ........................... 1 1.2 Main Features ........................1 Chapter 2 System Wiring ......................3 Chapter 3 Installation ......................... 5 3.1 Disassemble Pedestals ......................5 3.2 Install Pedestals ........................5 Chapter 4 General Wiring ......................
  • Page 10 DS-K3G501SX Series Tripod Turnstile User Manual Chapter 7 Client Software Configuration ................... 29 7.1 Configuration Flow of Client Software ................. 29 7.2 Device Management ......................29 7.2.1 Add Device ........................30 7.2.2 Reset Device Password ....................37 7.3 Group Management ......................37 7.3.1 Add Group ........................
  • Page 11 DS-K3G501SX Series Tripod Turnstile User Manual 7.4.18 Move Persons to Another Organization ..............53 7.4.19 Issue Cards to Persons in Batch ................. 53 7.4.20 Report Card Loss ....................... 54 7.4.21 Set Card Issuing Parameters ..................54 7.5 Configure Schedule and Template ..................55 7.5.1 Add Holiday .........................
  • Page 12 DS-K3G501SX Series Tripod Turnstile User Manual 7.11 Time and Attendance ......................87 7.11.1 Configure Attendance Parameters ................87 7.11.2 Add General Timetable ..................... 93 7.11.3 Add Shift ........................95 7.11.4 Manage Shift Schedule ..................... 98 7.11.5 Manually Correct Check-in/out Record ..............101 7.11.6 Add Leave and Business Trip ...................
  • Page 13 DS-K3G501SX Series Tripod Turnstile User Manual Appendix E. Communication Matrix and Device Command ............. 119...

  • Page 14: Chapter 1 Overview

    DS-K3G501SX Series Tripod Turnstile User Manual Chapter 1 Overview 1.1 Introduction The tripod turnstile is designed to detect unauthorized entrance or exit. By adopting the turnstile integratedly with the access control system, person should authenticate to pass through the lane via swiping IC or ID card, scanning QR code, etc.
  • Page 15 DS-K3G501SX Series Tripod Turnstile User Manual Self-detection, Self-diagnostics, and automatic alarm ● Remote control and management ● Online/offline operation ● LED indicates the entrance/exit and passing status ● Barrier is in free status when powered down. People can pass through the lane along single/both ●...

  • Page 16: Chapter 2 System Wiring

    DS-K3G501SX Series Tripod Turnstile User Manual Chapter 2 System Wiring The preparation before installation and general wiring. Steps 1. Draw a central line on the installation surface of the left or right pedestal. 2. Draw other parallel lines for installing the other pedestals. Note The distance between the nearest two line is 782 mm.
  • Page 17 DS-K3G501SX Series Tripod Turnstile User Manual Figure 2-2 System Wiring Diagram Note The suggested inner diameter of the low voltage conduit is larger than 30 mm. ● If the face recognition module are required to be connected on the left lane, you should ●...

  • Page 18: Chapter 3 Installation

    DS-K3G501SX Series Tripod Turnstile User Manual Chapter 3 Installation 3.1 Disassemble Pedestals Before installation, you should use the key to open the pedestals. View the pictures below to find the lock holes. Figure 3-1 Lock Holes 3.2 Install Pedestals Before You Start Prepare for the installation tools, check the device and the accessories, and clear the installation base.
  • Page 19 DS-K3G501SX Series Tripod Turnstile User Manual Face recognition terminal installed: If the installation area is too close to the wall, make sure the distance between the pedestal and the wall should be more than 130 mm, or the surface may be scratched.
  • Page 20 DS-K3G501SX Series Tripod Turnstile User Manual Figure 3-2 Dimension 1. Prepare for the installation tools, check the components, and prepare for the installation base. 2. Drill holes on the ground according to the installation holes on the pedestals and insert the expansion sleeves.
  • Page 21 DS-K3G501SX Series Tripod Turnstile User Manual Figure 3-3 Installation Footprint...

  • Page 22: Chapter 4 General Wiring

    DS-K3G501SX Series Tripod Turnstile User Manual Chapter 4 General Wiring 4.1 Components Introduction By default, basic components of the turnstile are connected well. The turnstile supports wiring the AC electric supply for the whole system's power supply. Note The voltage fluctuation of the electric supply is between 100 VAC and 220 VAC, 50 to 60 Hz. The picture displayed below describes each component's position on the turnstile.

  • Page 23: Terminal Description

    DS-K3G501SX Series Tripod Turnstile User Manual Warning Terminal PE should connect to a ground wire to avoid hazard when people touching the device. Note The cable bare part should be no more than 8 mm. If possible, wear an insulation cap at the end ●...
  • Page 24 DS-K3G501SX Series Tripod Turnstile User Manual Figure 4-2 Access Control Board Diagram Table 4-1 Table of Access Control Board Terminal Description Access Control Board Terminal Description 24 V Power Input +24 V Power Input Grounding Wiegand Card Indicator of Card Reader Control Output (Invalid Card Reader 1 Output) Indicator of Card Reader Control Output (Valid Card...
  • Page 25 DS-K3G501SX Series Tripod Turnstile User Manual Access Control Board Terminal Description Wiegand Card Indicator of Card Reader Control Output (Invalid Card Reader 2 Output) Indicator of Card Reader Control Output (Valid Card Output) Card Reader Buzzer Control Output Wiegand Head Read Data Input Data1 Wiegand Head Read Data Input Data0 Grounding RS-485 Interface (In...
  • Page 26 DS-K3G501SX Series Tripod Turnstile User Manual Access Control Board Terminal Description Door 1 Signal Input Door Lock Door 1 Relay Output (Dry Contact) Door 2 Relay Output (Dry Contact) Alarm Output1/ NO/NC1 Alarm Output Relay 1 (Dry Contact) Alarm Output 2 COM1 NO/NC2 Alarm Output Relay 2 (Dry Contact)
  • Page 27 DS-K3G501SX Series Tripod Turnstile User Manual Terminal Group Terminal Name Color Description QR Code Scanner 5 V Power Terminal Terminal Group 232+ Blue Connect to QR Code Scanner RS-232+ 232- Green Connect to QR Code Scanner RS-232- Black Grounding Tamper Terminal TAMPER Brown Tamper Terminal...

  • Page 28: Access Control Board Serial Port Id Description

    DS-K3G501SX Series Tripod Turnstile User Manual 4.3.2 Access Control Board Serial Port ID Description You can use the jumper cap on the access control board to switch the interface communication mode. For details about switching between RS-232 and RS-485 communication type, see Switching RS-485/RS-232 Mode.
  • Page 29 DS-K3G501SX Series Tripod Turnstile User Manual Serial Port 3 Jumper Cap Use the jumper cap to switch the serial port communication mode. You can switch between the RS-232 communication mode and the RS-485 communication mode. By default, it is in RS-232 communication mode.

  • Page 30: Wiring

    DS-K3G501SX Series Tripod Turnstile User Manual 4.3.3 RS-485 Wiring Note There are four RS-485 interfaces, which are for connecting ID card reader, IC card reader, QR ● code scanner, fingerprint and card reader, card recycler, text screen, fingerprint reader, and face recognition terminal.

  • Page 31: Wiring

    DS-K3G501SX Series Tripod Turnstile User Manual 4.3.4 RS-232 Wiring Note The RS-232 interfaces can connect QR code scanner, and card recycler. ● For details about text screen, see Configuring Screen Parameters in User Manual of iVMS-4200 ● AC Client Software. Take the wiring of text screen as an example.

  • Page 32: Wiegand Wiring

    DS-K3G501SX Series Tripod Turnstile User Manual 4.3.5 Wiegand Wiring Note Connect the OK/ERR/BZ if the access controller should control the LED and buzzer of the Wiegand card reader. 4.3.6 Barrier Control Wiring By default, the barrier has connected with the access control board. If possible, the device can connect with a third party control board to control the third party barriers.
  • Page 33 DS-K3G501SX Series Tripod Turnstile User Manual Note The output signal is relay. The terminals cannot connect with the devices carrying voltage. Entering Wiring...

  • Page 34: Alarm Output Wiring

    DS-K3G501SX Series Tripod Turnstile User Manual Exiting Wiring 4.3.7 Alarm Output Wiring Note For details about changing the relay output status via the jumper cap, see Alarm Relay Output Mode (NO/NC) .

  • Page 35: Chapter 5 Device Settings

    DS-K3G501SX Series Tripod Turnstile User Manual Chapter 5 Device Settings You can also set the turnstile to passing mode and memory mode, pair the keyfob, initialize the hardware, switching between RS-485 communication mode and RS-232 communication mode, and view relay output NO/NC diagram by setting the DIP switch on the access control board. Normal Mode: The device will work properly.

  • Page 36: Initialize Device

    DS-K3G501SX Series Tripod Turnstile User Manual 3. Power on the turnstile and it will enter the keyfob pairing mode. 4. Hold the Close button for more than 10 seconds. Or pair turnstile and keyfob in the client software, see Manage Keyfob User for more details. The keyfob's indicator of the will flash twice if the pairing is completed.

  • Page 37: Switch To Rs-485/Rs-232 Mode

    DS-K3G501SX Series Tripod Turnstile User Manual Figure 5-1 Initialization Jumper Cap 2. Disconnect the power and reboot the device. The device buzzer buzzes a long beep. 3. When the beep stopped, plug the jumper cap back. 4. Disconnect the power and power on the device again. Caution The initialization of the device will restore all the parameters to the default setting and all the device events are deleted.

  • Page 38: Alarm Relay Output Mode (No/Nc)

    DS-K3G501SX Series Tripod Turnstile User Manual Figure 5-2 Jumper Cap Status of RS-485 Interface If the Jumper cap's position is like the picture displayed below. (The black part is the jumper cap.) The serial port is in RS-232 communication mode. Figure 5-3 Jumper Cap Status of RS-232 Interface 5.4 Alarm Relay Output Mode (NO/NC) Alarm Relay Output Mode (NO):...

  • Page 39: Chapter 6 Activation

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/en/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 40: Activate Device Via Ivms-4200 Client Software

    DS-K3G501SX Series Tripod Turnstile User Manual Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP.
  • Page 41 DS-K3G501SX Series Tripod Turnstile User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 42: Chapter 7 Client Software Configuration

    DS-K3G501SX Series Tripod Turnstile User Manual Chapter 7 Client Software Configuration 7.1 Configuration Flow of Client Software Follow the flow diagram below to configure on the client software. Figure 7-1 Flow Diagram of Configuration on Client Software 7.2 Device Management The client supports managing access control devices and video intercom devices.

  • Page 43: Add Device

    DS-K3G501SX Series Tripod Turnstile User Manual Example You can control entrance & exit and manage attendance after adding access control devices to the client; you can perform video intercom with the indoor stations and door stations. 7.2.1 Add Device The client provides three device adding modes including by IP/domain, IP segment, and ISUP protocol.
  • Page 44 DS-K3G501SX Series Tripod Turnstile User Manual Password Enter the device password. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 45 DS-K3G501SX Series Tripod Turnstile User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 46 DS-K3G501SX Series Tripod Turnstile User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 47 DS-K3G501SX Series Tripod Turnstile User Manual Add Devices by IP Segment If the devices share the same port No., user name and password, and their IP addresses are sharing an IP segment. You can specify the start IP address and the end IP address, port No., user name, password, etc of the devices to add them to the client.
  • Page 48 DS-K3G501SX Series Tripod Turnstile User Manual 7. Check Synchronize Time to synchronize the device time with the PC running the client after adding the device to the client. 8. Optional: Check Import to Group to create a group by the device name. 9.
  • Page 49 DS-K3G501SX Series Tripod Turnstile User Manual Adding Mode Enter 0 or 1 or 2. Address Edit the address of the device. Port Enter the device port number. The default port number is 8000. User Name Enter the device user name. By default, the user name is admin. Password Enter the device password.

  • Page 50: Reset Device Password

    DS-K3G501SX Series Tripod Turnstile User Manual Refresh Click on Operation column to get the latest device information. Delete Device Select one or multiple devices and click Delete to delete the selected device(s) from the client. 7.2.2 Reset Device Password If you forgot the password of the detected online devices, you can reset the device password via the client.

  • Page 51: Add Group

    DS-K3G501SX Series Tripod Turnstile User Manual 7.3.1 Add Group You can add group to organize the added device for convenient management. Steps 1. Enter the Device Management module. 2. Click Device Management → Group to enter the group management page. 3.

  • Page 52: Remove Resources From Group

    DS-K3G501SX Series Tripod Turnstile User Manual Before You Start Import the resources to group. Steps 1. Enter the Device Management module. 2. Click Device Management → Group to enter the group management page. All the added groups are displayed on the left. 3.

  • Page 53: Configure Basic Information

    DS-K3G501SX Series Tripod Turnstile User Manual Note Up to 10 levels of organizations can be added. 4. Optional: Perform the following operation(s). Edit Organization Hover the mouse on an added organization and click to edit its name. Delete Hover the mouse on an added organization and click to delete it.

  • Page 54: Issue A Card By Local Mode

    DS-K3G501SX Series Tripod Turnstile User Manual Figure 7-2 Configure Basic Information Note Once validity period expired, the credentials and access control settings of the person will be invalid and the person will have no authorization to access the doors\floors. You can click Extend to extend the person's validity period for 1 month, 3 months, 6 months, or 1 year.
  • Page 55 DS-K3G501SX Series Tripod Turnstile User Manual 5. Select Local as the card issuing mode. Figure 7-3 Issue a Card by Local Mode 6. Set other related parameters. Card Enrollment Station Select the model of the connected card enrollment station. Note Currently, the supported card enrollment station models include DS-K1F100-D8, DS-K1F100- M, DS-K1F100-D8E, and DS-K1F180-D8E.

  • Page 56: Upload A Face Photo From Local Pc

    DS-K3G501SX Series Tripod Turnstile User Manual Buzzing Enable or disable the buzzing when the card number is read successfully. Card No. Type Select the type of the card number according to actual needs. M1 Card Encryption This field is only available when the model is DS-K1F100-D8, DS-K1F100-D8E, or DS-K1F180- D8E.

  • Page 57: Take A Photo Via Client

    DS-K3G501SX Series Tripod Turnstile User Manual 7.4.5 Take a Photo via Client When adding a person, you can take a photo of the her/him via the client and set this photo as the person's profile. Before You Start Make sure PC running the client has a camera or you have connected other USB camera to the PC. Steps 1.

  • Page 58: Collect Face Via Access Control Device

    DS-K3G501SX Series Tripod Turnstile User Manual Figure 7-4 Take a Photo via Client 7. Confirm to add the person. - Click Add to add the person and close the Add Person window. - Click Add and New to add the person and continue to add other persons. 7.4.6 Collect Face via Access Control Device When adding person, you can collect the person's face via access control device added to the client which supports facial recognition function.

  • Page 59: Collect Fingerprint Via Client

    DS-K3G501SX Series Tripod Turnstile User Manual 2. Select an organization in the organization list to add the person and click Add. Note Enter the person's basic information first. For details about configuring person's basic information, refer to Configure Basic Information . 3.

  • Page 60: Configure Access Control Information

    DS-K3G501SX Series Tripod Turnstile User Manual 2) Place and lift your fingerprint on the fingerprint recorder to collect the fingerprint. 3) Click Add to save the recorded fingerprint. 7. Confirm to add the person. - Click Add to add the person and close the Add Person window. - Click Add and New to add the person and continue to add other persons.

  • Page 61: Customize Person Information

    DS-K3G501SX Series Tripod Turnstile User Manual Note If there are repeated PIN codes, a prompt will pop up on the client. The admin can generate a new PIN code to replace the repeated PIN code and notify related persons. 5. Check the person's operation permissions. Super User If the person is set as a super user, he/she will have authorization to access all the doors/ floors and will be exempted from remaining closed restrictions, all anti-passback rules, and...

  • Page 62: Configure Resident Information

    DS-K3G501SX Series Tripod Turnstile User Manual Steps 1. Enter Person module. 2. Set the fields of custom information. 1) Click Custom Property. 2) Click Add to add a new property. 3) Enter the property name. 4) Click OK. 3. Set the custom information when adding a person. 1) Select an organization in the organization list to add the person and click Add.

  • Page 63: Configure Additional Information

    DS-K3G501SX Series Tripod Turnstile User Manual 7.4.11 Configure Additional Information When adding person, you can configure the additional information for the person, such as person's identity type, identity No., country, etc., according to actual needs. Steps 1. Enter Person module. 2.

  • Page 64: Import Person Pictures

    DS-K3G501SX Series Tripod Turnstile User Manual 8. Click Import to start importing. Note If a person No. already exists in the client's database, delete the existing information before ● importing. You can import information of no more than 10,000 persons. ●...

  • Page 65: Export Person Pictures

    DS-K3G501SX Series Tripod Turnstile User Manual Note All persons' information will be exported if you do not select any organization. 3. Click Export to open the Export panel and check Person Information as the content to export. 4. Check desired items to export. 5.

  • Page 66: Move Persons To Another Organization

    DS-K3G501SX Series Tripod Turnstile User Manual 3. Click Get from Device. 4. Select the access control device from the drop-down list. 5. Click Get to start importing the person information to the client. The person information, including person details, person's fingerprint information (if configured), and the linked cards (if configured), will be imported to the selected organization.

  • Page 67: Report Card Loss

    DS-K3G501SX Series Tripod Turnstile User Manual 7.4.20 Report Card Loss If the person lost his/her card, you can report the card loss so that the card's related access authorization will be inactive. Steps 1. Enter Person module. 2. Select the person you want to report card loss for and click Edit to open the Edit Person window. 3.

  • Page 68: Configure Schedule And Template

    DS-K3G501SX Series Tripod Turnstile User Manual Serial Port It is only available when the model is DS-K1F100-M. Select the COM the card enrollment station connects to. Buzzing Enable or disable the buzzing when the card number is read successfully. Card No. Type Select the type of the card number according to actual needs.

  • Page 69: Add Template

    DS-K3G501SX Series Tripod Turnstile User Manual Note Up to 16 holiday periods can be added to one holiday. 1) Click Add in the Holiday List field. 2) Drag the cursor to draw the time duration, which means in that duration of time, the configured access group is activated.

  • Page 70: Set Access Group To Assign Access Authorization To Persons

    DS-K3G501SX Series Tripod Turnstile User Manual The access authorization is invalid in each day of the week and it has no holiday. 2. Click Add on the left panel to create a new template. 3. Create a name for the template. 4.
  • Page 71 DS-K3G501SX Series Tripod Turnstile User Manual Before You Start Add person to the client. ● Add access control device to the client and group access points. For details, refer to Group ● Management . Add template. ● Steps When the access group settings are changed, you need to apply the access groups to the devices again to take effect.
  • Page 72 DS-K3G501SX Series Tripod Turnstile User Manual Figure 7-6 Display the Selected Person(s) and Access Point(s) 8. After adding the access groups, you need to apply them to the access control device to take effect. 1) Select the access group(s) to apply to the access control device. 2) Click Apply All to Devices start applying all the selected access group(s) to the access control device or door station.

  • Page 73: Configure Advanced Functions

    DS-K3G501SX Series Tripod Turnstile User Manual Note If you change the persons' access information or other related information, you will view the promptAccess Group to Be Applied on the right corner of the client. You can click the prompt to apply the changed data to the device. You can select either Apply Now or Apply Later.
  • Page 74 DS-K3G501SX Series Tripod Turnstile User Manual Configure Parameters for Access Control Device After adding the access control device, you can configure its parameters. Steps 1. Click Access Control → Advanced Function → Device Parameter . Note If you can find Device Parameter in the Advanced Function list, Hover the cursor on the Advanced Function, and then Click to select the Device Parameter to be displayed.
  • Page 75 DS-K3G501SX Series Tripod Turnstile User Manual Configure Parameters for Door After adding the access control device, you can configure its access point door parameters. Steps 1. Click Access Control → Advanced Function → Device Parameter . 2. Select an access control device on the left panel, and then click to show the doors or floors of the selected device.
  • Page 76 DS-K3G501SX Series Tripod Turnstile User Manual Note The duress code, super code, and dismiss code should be different. ● The duress code, super password, and the dismiss code should be different from the ● authentication password. The length of duress code, super password, and the dismiss code is according the device, ●...
  • Page 77 DS-K3G501SX Series Tripod Turnstile User Manual If enabling the function, user can present card on the card reader. If disabling the function, the card reader for entrance cannot be used. OK LED Polarity/Error LED Polarity/Buzzer Polarity Set OK LED Polarity/Error LED Polarity/Buzzer LED Polarity of main board according to the card reader parameters.

  • Page 78: Configure Remaining Open/Closed

    DS-K3G501SX Series Tripod Turnstile User Manual 4. Click OK. 5. Optional: Set the switch on the upper right corner to ON to trigger the alarm output. Configure Parameters for Lane Controller After adding the lane controller to the client, you can configure its parameters for passing through the lane.
  • Page 79 DS-K3G501SX Series Tripod Turnstile User Manual Before You Start Add the access control devices to the system. Steps 1. Click Access Control → Advanced Function → Remain Open/Closed to enter the Remain Open/ Closed page. 2. Select the door that need to be configured on the left panel. 3.

  • Page 80: Configure Multi-Factor Authentication

    DS-K3G501SX Series Tripod Turnstile User Manual Move the cursor to the time duration and drag the time duration on the timeline bar to the ● desired position when the cursor turns to Click the time duration and directly edit the start/end time in the appeared dialog. ●...
  • Page 81 DS-K3G501SX Series Tripod Turnstile User Manual 5. Enter the maximum interval when entering password. 6. Add an authentication group for the selected access control point. 1) Click Add on the Authentication Groups panel. 2) Select a configured template as the authentication template from the drop-down list. Note For setting the template, refer to Configure Schedule and Template .

  • Page 82: Configure Custom Wiegand Rule

    DS-K3G501SX Series Tripod Turnstile User Manual Note The authentication times should be larger than 0 and smaller than the added personnel ● quantity in the personnel group. The maximum value of authentication times is 16. ● 6) Click Save. Note For each access control point (door), up to four authentication groups can be added.
  • Page 83 DS-K3G501SX Series Tripod Turnstile User Manual Note Up to 80 bits are allowed in the total length. ● The odd parity start bit, the odd parity length, the even parity start bit and the even parity ● length range from 1 to 80 bit. The start bit of the card ID, the manufacturer code, the site code, and the OEM should range ●...

  • Page 84: Configure Card Reader Authentication Mode And Schedule

    DS-K3G501SX Series Tripod Turnstile User Manual 7.7.5 Configure Card Reader Authentication Mode and Schedule You can set the passing rules for the card reader of the access control device according to your actual needs. Steps 1. Click Access Control → Advanced Function → Authentication to enter the authentication mode configuration page.
  • Page 85 DS-K3G501SX Series Tripod Turnstile User Manual Figure 7-10 Select Card Reader Authentication Mode Note PIN refers to the PIN code set to open the door. Refer to Configure Access Control Information . 2) Check the modes in the Available Mode list and they will be added to the selected modes list. 3) Click OK.

  • Page 86: Configure First Person In

    DS-K3G501SX Series Tripod Turnstile User Manual Figure 7-11 Set Authentication Modes for Card Readers 6. Optional: Select a configured day and click Copy to Week to copy the same settings to the whole week. 7. Optional: Click Copy to to copy the settings to other card readers. 8.

  • Page 87: Configure Anti-Passback

    DS-K3G501SX Series Tripod Turnstile User Manual The door remains open for the configured time duration after the first person is authorized until the remain open duration ends. If you select this mode, you should set the remain open duration. Note The remain open duration should be between 0 and 1440 minutes.

  • Page 88: Configure Device Parameters

    DS-K3G501SX Series Tripod Turnstile User Manual 4. Click of the selected first card reader in the Card Reader Afterward column to open the select card reader dialog. 5. Select the afterward card readers for the first card reader. Note Up to four afterward card readers can be added as afterward card readers for one card reader. 6.

  • Page 89: Configure Linkage Actions For Access Control

    DS-K3G501SX Series Tripod Turnstile User Manual Enable M1 Card Encryption M1 card encryption can improve the security level of authentication. Steps Note The function should be supported by the access control device and the card reader. 1. Enter the Access Control module. 2.

  • Page 90: Configure Device Actions For Access Event

    DS-K3G501SX Series Tripod Turnstile User Manual Steps Note The linkage actions here refer to the linkage of the client software's own actions such as audible warning, email linkage, etc. 1. Click Event Management → Access Control Event . The added access control devices will display in the device list. 2.
  • Page 91 DS-K3G501SX Series Tripod Turnstile User Manual Steps Note The linkage actions should be supported by the device. 1. Click Access Control → Linkage Configuration . 2. Select the access control device from the list on the left. 3. Click Add to add a new linkage. 4.

  • Page 92: Configure Device Actions For Card Swiping

    DS-K3G501SX Series Tripod Turnstile User Manual 8. Optional: After adding the device linkage, you can do one or more of the followings: Edit Linkage Select the configured linkage settings in the device list and you can edit its Settings event source parameters, including event source and linkage target. Delete Linkage Select the configured linkage settings in the device list and click Delete to Settings...

  • Page 93: Door Control

    DS-K3G501SX Series Tripod Turnstile User Manual Note The device should support alarm input function. Access Point The door status of open, close, remain open, or remain closed will be triggered. Audio Play The audio prompt will be triggered. And the select audio index related audio content will be played according to the configured play mode.

  • Page 94: Check Real-Time Access Records

    DS-K3G501SX Series Tripod Turnstile User Manual Note For managing the access point group, refer to Group Management in the user manual of the client software. The doors in the selected access control group will display. 3. Click a door icon to select a door, or press Ctrl and select multiple doors. 4.

  • Page 95: Event Center

    DS-K3G501SX Series Tripod Turnstile User Manual The access records triggered at the doors in the selected group will display in real time. You can view the details of the records, including card No., person name, organization, event time, etc. 2. Optional: Check the event type and event status so that these events will show in the list if the events are detected.

  • Page 96: View Real-Time Events

    DS-K3G501SX Series Tripod Turnstile User Manual Figure 7-12 Device Arming Control 3. View the arming status of each device in the Arming Status column. Result The events of armed device(s) are automatically uploaded to the client when the event is triggered.

  • Page 97: Search Historical Events

    DS-K3G501SX Series Tripod Turnstile User Manual Filter by Keywords Enter the keywords to filter the events. 3. Optional: Right-click the table header of the event list to customize the event related items to be displayed in the event list. 4. View the event details. 1) Select an event in the event list.
  • Page 98 DS-K3G501SX Series Tripod Turnstile User Manual Figure 7-13 Search History Event 2. Set the filter conditions to display the required events only. Time The client time when the event starts. Search by Group: Search the events occurred on the resources in the selected group. Device: Search the events occurred on the selected device.
  • Page 99 DS-K3G501SX Series Tripod Turnstile User Manual For the events of access control, you can set the following filter conditions: device, priority, status, event type, card reader type, person name, card no., organization. Note Click Show More to set the event type, card reader type, person name, card no., organization.

  • Page 100: Time And Attendance

    DS-K3G501SX Series Tripod Turnstile User Manual 5. Optional: Handle the event(s). - Handle single event: Select one event that need to be processed, and then click Handle in the event information details page, and enter the processing suggestion. - Handle events in a batch: Select the events which need to be processed, and then click Handle in Batch, and enter the processing suggestion.
  • Page 101 DS-K3G501SX Series Tripod Turnstile User Manual Steps Note The parameters configured here will be set as default for the newly added time period. It will not affect the existed one(s). 1. Enter Time & Attendance module. 2. Click Attendance Settings → General Rule . 3.
  • Page 102 DS-K3G501SX Series Tripod Turnstile User Manual Steps Note By default, all card readers of the added access control devices are set as attendance checkpoint. 1. Enter the Time & Attendance module. 2. Click Attendance Settings → Attendance Check Point to enter the Attendance Check Point Settings page.
  • Page 103 DS-K3G501SX Series Tripod Turnstile User Manual Add Irregular Holiday You can configure a holiday which will take effect annually on irregular days during the effective period, such as Bank Holiday. Steps 1. Enter the Time & Attendance module. 2. Click Attendance Settings → Holiday to enter the Holiday Settings page. 3.
  • Page 104 DS-K3G501SX Series Tripod Turnstile User Manual 6. Optional: Perform one of the following operations for minor leave type. Edit Move the cursor over the minor leave type and click to edit the minor leave type. Delete Select one or multiple major leave types and click Delete on the right to delete the selected minor leave type(s).
  • Page 105 DS-K3G501SX Series Tripod Turnstile User Manual 5. Add break time. 1) Click Add. 2) Enter a name for the break time. 3) Set related parameters for the break time. Start Time / End Time Set the time when the break starts and ends. No Earlier Than / No Later Than Set the earliest swiping time for starting break and the latest swiping time for ending break.

  • Page 106: Add General Timetable

    DS-K3G501SX Series Tripod Turnstile User Manual Enter the mark and select the color. The weekend fields in the report will display with the mark and color. 4. Click Save. 7.11.2 Add General Timetable On the timetable page, you can add general timetable for employees, which requires the fixed start-work time and end-work time.
  • Page 107 DS-K3G501SX Series Tripod Turnstile User Manual 3. Create a name for the timetable. Note You can click the color icon beside the name to customize the color for the valid timetable on the time bar in the Configuration Result area. 4.

  • Page 108: Add Shift

    DS-K3G501SX Series Tripod Turnstile User Manual No Check-in If the employee does not check in, his/her attendance data may be marked as absent or late. No Check-Out If the employee does not check out, his/her attendance data may be marked as absent or early leave.
  • Page 109 DS-K3G501SX Series Tripod Turnstile User Manual Figure 7-16 Add Shift Note You can select more than one timetables. The start and end work time and the valid check-in and out time in different time tables can not be overlapped.
  • Page 110 DS-K3G501SX Series Tripod Turnstile User Manual Figure 7-17 Add Multiple Timetables 6. Click Save. The added shift lists on the left panel of the page. At most 64 shifts can be added. 7. Optional: Assign the shift to organization or person for a quick shift schedule. 1) Click Assign.

  • Page 111: Manage Shift Schedule

    DS-K3G501SX Series Tripod Turnstile User Manual On the holidays, this schedule is still effective and the persons needs to go to work according to the schedule. Effective for Overtime The persons' overtime will be recorded for this schedule. 5) Click Save to save the quick shift schedule. 7.11.4 Manage Shift Schedule Shift work is an employment practice designed to make use of all 24 hours of the clock each day of the week.
  • Page 112 DS-K3G501SX Series Tripod Turnstile User Manual If the multiple shift schedules contains three timetables: 00:00 to 07:00, 08:00 to 15:00 and 16:00 to 23:00. The attendance of the person adopting this multiple shift schedules will be effective in any of the three timetables. If the person checks in at 07:50, it will apply the nearest timetable 08:00 to 15:00 to the person's attendance.
  • Page 113 DS-K3G501SX Series Tripod Turnstile User Manual It contains more than one timetables. The person can check in/out in any of the timetables and the attendance will be effective. If the multiple shift schedules contains three timetables: 00:00 to 07:00, 08:00 to 15:00 and 16:00 to 23:00.

  • Page 114: Manually Correct Check-In/Out Record

    DS-K3G501SX Series Tripod Turnstile User Manual Timetable Select a timetable from drop-down list. Multiple Shift Schedule It contains more than one timetables. The person can check in/out in any of the timetables and the attendance will be effective. If the multiple shift schedules contains three timetables: 00:00 to 07:00, 08:00 to 15:00 and 16:00 to 23:00.

  • Page 115: Add Leave And Business Trip

    DS-K3G501SX Series Tripod Turnstile User Manual Steps 1. Click Time & Attendance → Attendance Handling to enter attendance handling page. 2. Click Correct Check-In/Out to enter adding the check-in/out correction page. 3. Select person from left list for correction. 4. Select the correction date. 5.

  • Page 116: Calculate Attendance Data

    DS-K3G501SX Series Tripod Turnstile User Manual 2. Click Apply for Leave/Business Trip to enter adding the leave/business trip page. 3. Select person from left list. 4. Set the date(s) for your leave or business trip. 5. Select the major leave type and minor leave type from the drop-down list. Note You can set the leave type in Attendance Settings.

  • Page 117: Attendance Statistics

    DS-K3G501SX Series Tripod Turnstile User Manual Steps Note 1. Enter the Time & Attendance module. 2. Click Attendance Settings → General Rule . 3. In the Auto-Calculate Attendance area, set the time that you want the client to calculate the data.
  • Page 118 DS-K3G501SX Series Tripod Turnstile User Manual Get an Overview of Employees' Attendance Data You can search and view the employee's attendance records on the client, including attendance time, attendance status, check point, etc. Before You Start You should add organizations and persons in Person module and the persons have swiped cards. ●...
  • Page 119 DS-K3G501SX Series Tripod Turnstile User Manual Note You can calculate the attendance data manually, or set the schedule so that the client can calculate the data automatically every day. For details, refer to Calculate Attendance Data . Steps 1. Enter the Time & Attendance module. 2.

  • Page 120: Remote Configuration Via Client Software

    DS-K3G501SX Series Tripod Turnstile User Manual Example If you set the effective period as 2018/3/10 to 2018/4/10, select Friday as the sending date, and set the sending time as 20:00:00, the client will send the report at 8 p.m. on Fridays during 2018/3/10 to 2018/4/10.

  • Page 121: Edit Time

    DS-K3G501SX Series Tripod Turnstile User Manual 7.12.3 Edit Time Steps 1. Click Maintenance and Management → Device Management → Device to enter the device list. 2. Click to enter the remote configuration page. 3. Click System → Time to configure the time zone. 4.

  • Page 122: Manage Network User

    DS-K3G501SX Series Tripod Turnstile User Manual 7.12.5 Manage Network User Steps 1. Click Maintenance and Management → Device Management → Device to enter the device list. 2. Click to enter the remote configuration page. 3. Click System → User → Network User . 4.

  • Page 123: Configure Screen Parameters

    DS-K3G501SX Series Tripod Turnstile User Manual The user information verification is compatible with the old client software version when logging in. Encryption Mode High security level during the user information verification when logging in. 6. Optional: Check Enable SSH. 7. Click Save. 7.12.8 Configure Screen Parameters The device can connect to a text screen.

  • Page 124: Configure Screen Parameters

    DS-K3G501SX Series Tripod Turnstile User Manual 7.12.9 Configure Screen Parameters You can set the people counting's parameters and after the configuration. Steps 1. Click Maintenance and Management → Device Management → Device to enter the device list. 2. Click to enter the remote configuration page. 3.

  • Page 125: Configure Audio File

    DS-K3G501SX Series Tripod Turnstile User Manual Click Save to save the settings. 7.12.11 Configure Audio File You can relate the audio file to the corresponding playing scene. You can also export the audio file from the system and import the audio file from the local. Steps 1.

  • Page 126: Appendix A. Tips For Scanning Fingerprint

    DS-K3G501SX Series Tripod Turnstile User Manual Appendix A. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 127 DS-K3G501SX Series Tripod Turnstile User Manual Environment The scanner should avoid direct sun light, high temperature, humid conditions and rain. When it is dry, the scanner may not recognize your fingerprint successfully. You can blow your finger and scan again. Others If your fingerprint is shallow, or it is hard to scan your fingerprint, we recommend you to use other authentication methods.

  • Page 128: Appendix B. Dip Switch

    DS-K3G501SX Series Tripod Turnstile User Manual Appendix B. DIP Switch B.1 DIP Switch Description The DIP switch is on the access control board. No.1 to No 8 is from the low bit to the high bit. When the switch is towards ON, it means the switch is enabled, otherwise, the switch is off. If you set the DIP switch like the figure displayed below, its binary value is 00001100, and its decimal value is 12.
  • Page 129 DS-K3G501SX Series Tripod Turnstile User Manual Device Mode Function Decimal Value Binary Value 5 to 8 Passing Mode Controlled Bi- direction Controlled Entrance and Prohibit Exit Controlled Entrance and Free Exit Free Bi-​ d irection Free Entrance and Controlled Exit Free Entrance and Prohibit Exit Prohibited Bi-...

  • Page 130: Appendix C. Event And Alarm Type

    DS-K3G501SX Series Tripod Turnstile User Manual Appendix C. Event and Alarm Type Event Alarm Type Passing Timeout None...

  • Page 131: Appendix D. Table Of Audio Index Related Content

    DS-K3G501SX Series Tripod Turnstile User Manual Appendix D. Table of Audio Index Related Content Index Content Authenticated. Card No. does not exist. Card No. and fingerprint mismatch. Passing timeout. No permissions. Authentication time out. Authentication failed. Expired card.
  • Page 132 Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure E-2 Device Command...
  • Page 133 UD25711B...

This manual is also suitable for:

Ds-k3g501sx series

Table of Contents
