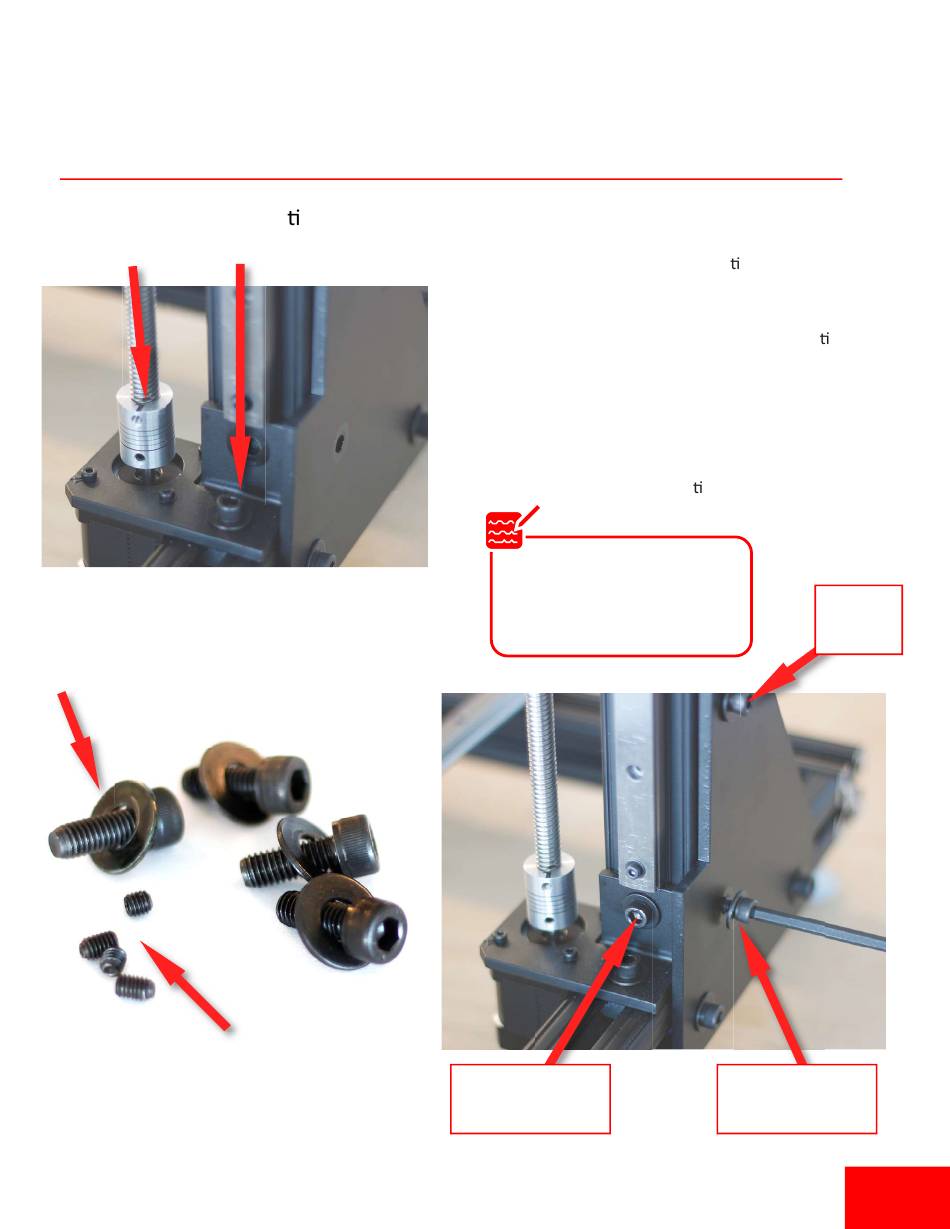

gCreate gMax 2 PRO Unboxing And Setup Instructions page 5

Slide Down Upper Gantry
Slide into
coupler
(4) M6 Socket Head Bolts
(4) 1/4" Washers
Slide un l flat against
the lower frame
(4) Set Screws
1. Slide the upper rails down un l they lay flat
against the lower frame. Make sure the lead
screw slides all the way into the coupler. Turn the
coupler by hand to ensure a solid connec on.
2. In the accessory box, open the bag containing the
M6 bolts, washers and set screws.
3 Screw in the M6 Bolts and washers into the
T-nuts already in the ver cal rail.
Note
If the rubber spacers pop out
they can be easily pressed back
in. These spacers help line up
the T-Nuts with the holes.
(1) M6 Bolt
(1) 1/4" Washer
Tighten
Bolt
(1) M6 Bolt
(1) 1/4" Washer
Pg 4
