gCreate gMax 2 PRO Unboxing And Setup Instructions page 2

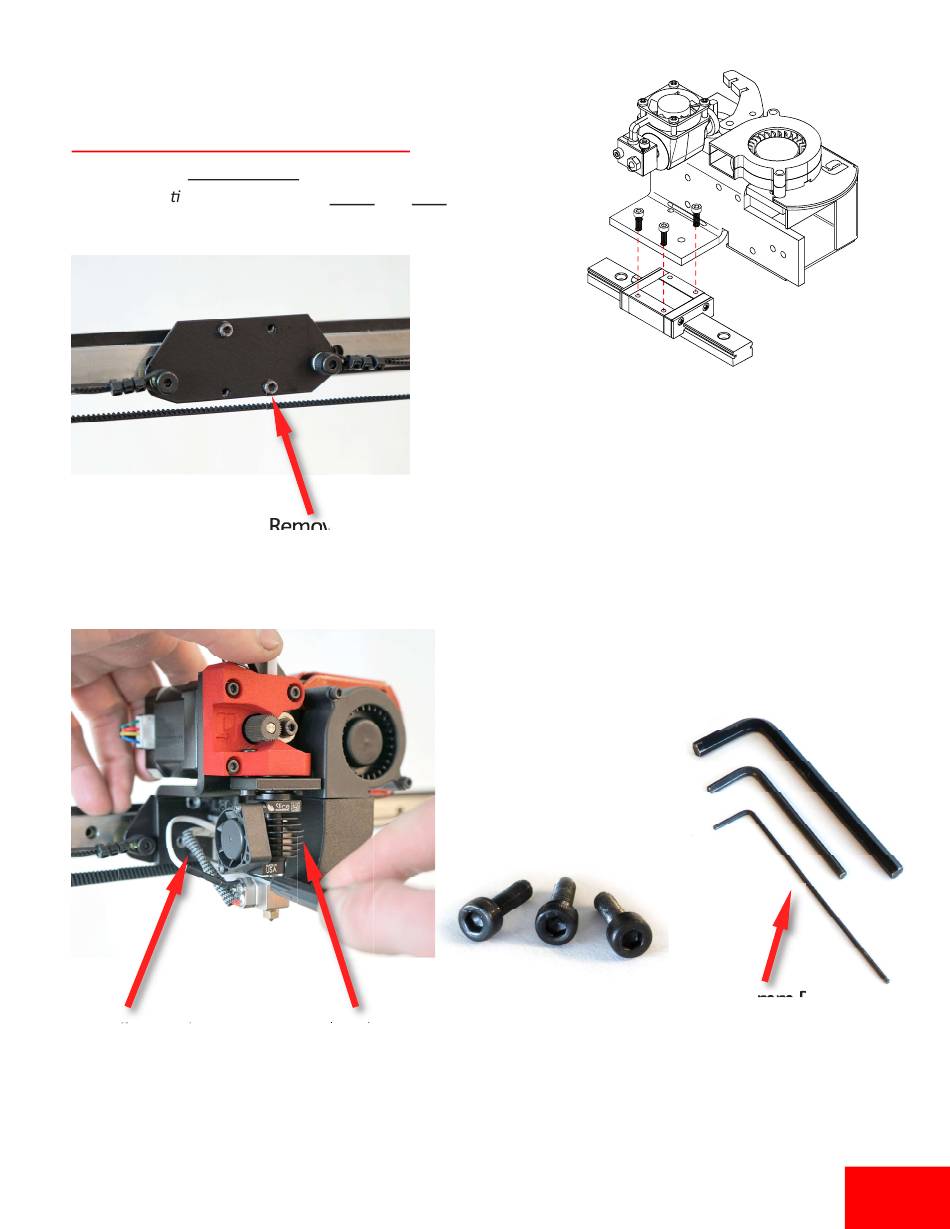

Install Extruder
Images show a Single extruder. Pages 1-5 follow the
same installa on process for both Single and Dual Extruders
Install extruder with
(3) M3x8mm bolts
Remove this
M3x8mm bolt
Other (2) screws are
on right side of hotend
(hidden from view)
1. Open the accessory box and remove the extruder
and hardware. The extruder needs to be installed
on the linear block using (3) M3x8mm socket
head screws. The extruder will go over the belt
bracket already installed
2. Use the supplied 2.5mm hex driver to install (3)
screws on extruder bracket.
3. Tighten all (3) screws and make sure the extruder
slides smoothly on the linear rail.
M3x8mm
2.5mm Driver
Pg 1
