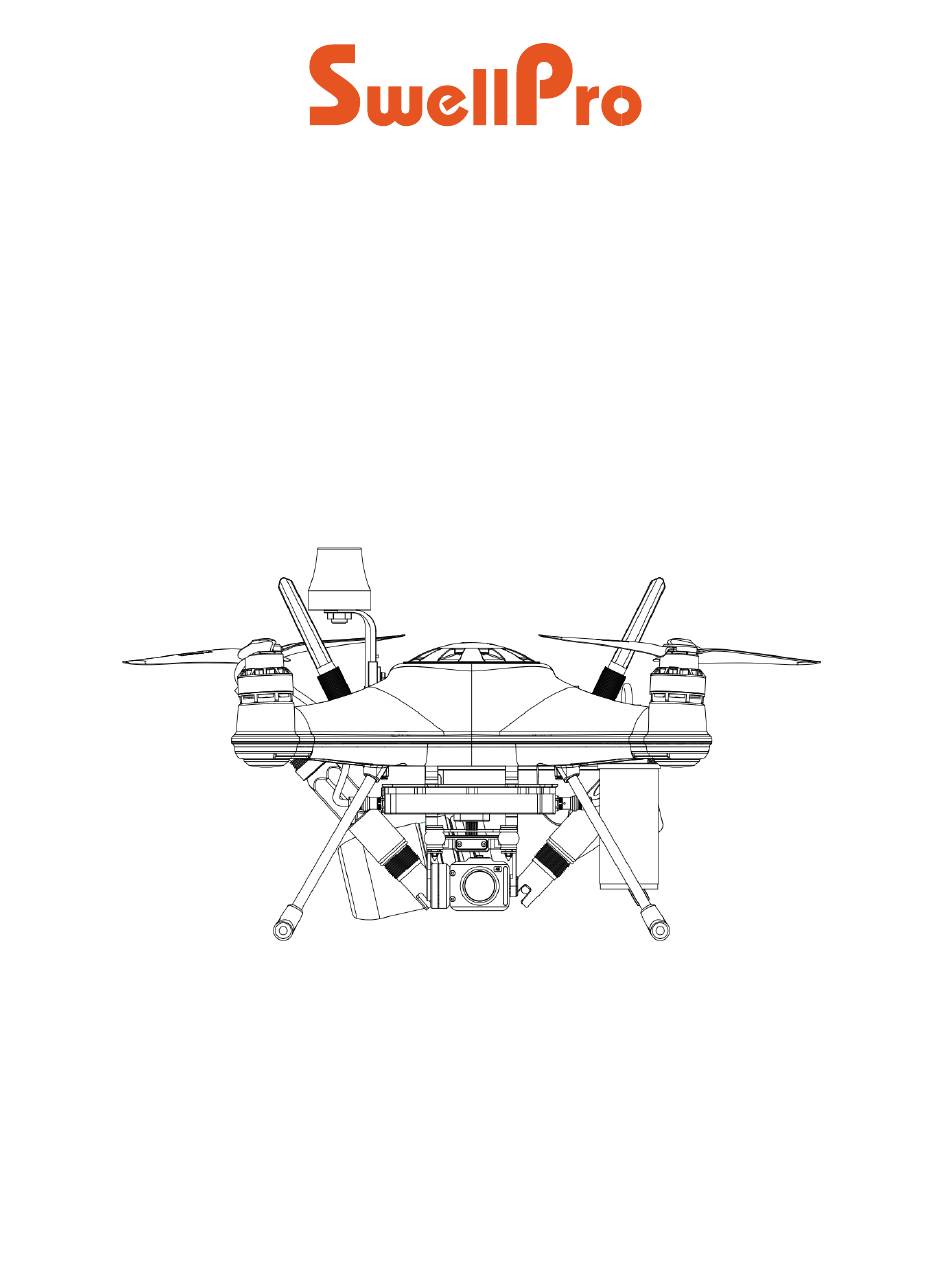

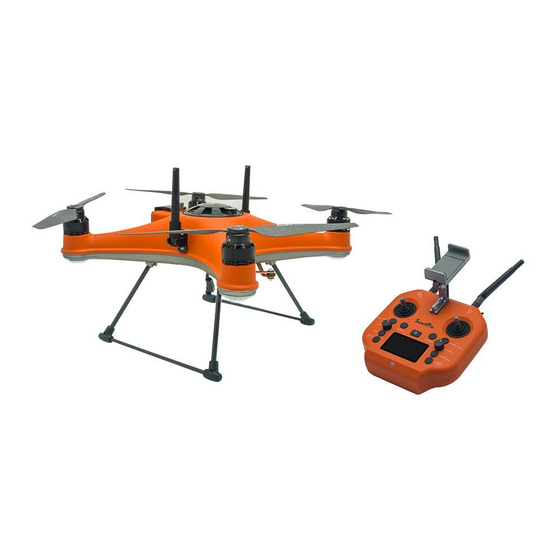

- Page 1 SplashDrone 4 WQMS Water Quality Monitor System User Manual Visit support.swellpro.com for the latest version of this manual and firmware updates for your aircraft and accessories. V1.0 –2022.10...
-
Page 2: Thank You
The user manual is the best companion while using the product. For the specific problem using the product, the FAQ can be another great resource for you to look at. Go to the SwellPro website, look for support >product support > the product > FAQ to find the FAQ page. -
Page 3: Table Of Contents
Flight Environment Requirement Flight Restrictions Product Overview Package Content Aircraft Diagram Installation Sensor pH Sensor Turbidity Sensor Ammonia Nitrogen Sensor Dissolved Oxygen Sensor Conductivity Senor（Suitable for seawater measurement） Instructions SD4 Control Control Cloud System Appendix ©2022 SwellPro All Rights Reserved... - Page 4 Specification Version Information ©2022 SwellPro All Rights Reserved...
-
Page 5: Warning
SplashDrone 4 is configured to not exceed an altitude of 120m the Home Point altitude. If you need to cancel the height limitation, please set the flight altitude to 0 on the SDFly 2 App. ©2022 SwellPro All Rights Reserved... -
Page 6: Product Overview
Package Content SplashDrone 4 Water Quality Monitor Remote Controller*1 System *1 Intelligent Battery *3 Propellers *2sets Charger *1 RC Charging Cable *1 Five sensors for pH, dissolved oxygen, User manual *2 ammonia nitrogen, turbidity and conductivity ©2022 SwellPro All Rights Reserved... -
Page 7: Aircraft Diagram
Aircraft Diagram 1. GPS Module 2. Ammonia Nitrogen Sensor （replaceable） 3. Water Bottle（replaceable） 4. Turbidity Sensor（replaceable） 6. Water Collector Module 5. pH Sensor（replaceable） 7. Core Components of Water Quality 8. Gimbal Camera Monitor System ©2022 SwellPro All Rights Reserved... -
Page 8: Installation
• After inserting the SIM card, check the mobile connection status (please refer to section Cloud System for detail information, Instruction > Cloud System). If there is no signal connection, please contact SwellPro Support. support.swellpro.com • Please insert/remove the SIM card before installing sensors. - Page 9 Press the button ① and snap it down into the button holder ②. Notice: • Do not pull the cable. 3. Sensor ©2022 SwellPro All Rights Reserved...
- Page 10 A1/A2/A3 - Fixing Knob B1/B2/B3 – Waterproof Port Fixing Knob ⚫ A1 can be installed turbidity sensors ©2022 SwellPro All Rights Reserved...
- Page 11 ⚠ pH, ammonia nitrogen, dissolved oxygen, conductivity, turbidity sensors are installed in the same way. Choose the senor according to your need, and an aircraft can only install 3 sensors and a water Collector at the same time. Waterproof Connector ©2022 SwellPro All Rights Reserved...
- Page 12 ①Remove the screw; ②Move the 2 hole of water collector up to the screw hole of aircraft, and then lock it with screws; ③ Install the 350ml water bottle, the installation is done. 5. SD Card ©2022 SwellPro All Rights Reserved...
-
Page 13: Sensor
Measuring range 0...14 pH Accuracy 0.02 pH Resolution 0.01 pH Temperature 0.0...60℃ measurement range Electrode slope ≥96% zero potential 7.00±0.25 Shell material PPS, ABS Thread Liquid junction PTFE Connecting thread NPT3/4,M39*1.5 Withstand voltage range 0...4bar ©2022 SwellPro All Rights Reserved... -
Page 14: Turbidity Sensor
⚫ It is forbidden to dry the sensor for too long, and the dry electrode should be activated in 3M KCl (3 mmol/l potassium chloride solution) solution before it can be used. Turbidity Sensor 1. Use: Measure real-time turbidity values of liquids. 2. Parameter Measuring range 0...4000NTU， 0...4000mg/L ©2022 SwellPro All Rights Reserved... -
Page 15: Ammonia Nitrogen Sensor
⚫ Please calibrate the sensor once every month. Ammonia Nitrogen Sensor Use: Detect real-time ammonia nitrogen value of liquids to understand and control ammonia nitrogen emissions to prevent water eutrophication. 1. Parameter Measuring range 0.1...18000ppm Temperature 0.0...60℃ measurement range Electrode slope 56±4mV（25℃） ©2022 SwellPro All Rights Reserved... - Page 16 ⚫ Store the sensor dry. Do not cover the sensor with water for storage. ⚫ Cable connector must be kept clean and dry. ⚫ Sensor need to be activated and calibrated before use after cleaning or long-term storage. ©2022 SwellPro All Rights Reserved...
-
Page 17: Dissolved Oxygen Sensor
0...4bar voltage range Output 4...20mA and RS485 2. Add electrolyte and replace head ⚫ The new electrode has its own electrolyte; it is recommended to confirm it before use. ⚫ Replace electrolyte every 30 days. ©2022 SwellPro All Rights Reserved... - Page 18 ⚫ Calibration method：Please refer to the water quality sensor data display instrument user guide. 5. Maintenance and Storage ⚫ After rinsing the electrodes, only wipe dry with a soft cloth, do not rub the sensitive film。 ©2022 SwellPro All Rights Reserved...
- Page 19 ⚫ It is forbidden to dry the electrode for a long time, and the dry electrode should be activated in clean water before it can be used. ⚫ No medium attached to the surface during storage. ©2022 SwellPro All Rights Reserved...
-
Page 20: Conductivity Senor（Suitable For Seawater Measurement
⚫ Conductivity sensors need to be stored in a dry environment ⚫ If the sensor is dirty, it will lead to inaccurate measurement. It should be cleaned and calibrated in time. ⚫ Cable joints must be kept clean and dry. ©2022 SwellPro All Rights Reserved... -
Page 21: Instructions
Please read the instructions for use of SD 4 carefully and watch the instructional video. Control Camera Status Indicator There is a camera status indicator on the back of the camera to indicate the camera's working status. It flashes green or red. ©2022 SwellPro All Rights Reserved... - Page 22 Video②: press once to start recording, press again to stop recording, and save files. Gimbal Control Remote controller Description Tilt①: Roll the right gimbal control as shown to turn the gimbal up or down from 0° to -90°. ©2022 SwellPro All Rights Reserved...
-
Page 23: Cloud System
Turn on remote control first, and then turn on drone outside. Check the connection between remote control and drone, open APP to check camera screen, if everything is normal, and please follow the steps below to check whether Water Quality Monitor ©2022 SwellPro All Rights Reserved... - Page 24 ⚠ Each sensor is equipped with temperature detection, and the temperature deviation is within ± 1 ° C. ⚫ Alm：Show query data of last month ⚫ RT Curve：Show real-time data of sensor in curve. ⚫ Historical Curve：Show historical data of sensor in curve. ©2022 SwellPro All Rights Reserved...
- Page 25 1) Delete device: Delete connected devices（Data cannot be repaired） 1) Editing equipment: Use for adding sensor. ⚫ Device group/name：Custom Settings ⚫ Link：Only select MBRTU ©2022 SwellPro All Rights Reserved...
- Page 26 ⚠ It is not recommended to add more than five sensors, because the number of sensors is proportional to the time of data upload. ⚫ Save Device: Save device at the bottom left of the interface ⚠ After adding sensors, users must report to swellpro for background settings. ©2022 SwellPro All Rights Reserved...
- Page 27 ⚠ If the positioning point is inconsistent with the actual location, the aircraft should be placed outdoors to strengthen the signal. 1) Real-time data and historical data:These two functions are the same as those of "3 Monitoring Center". Please refer to "3 Monitoring Center" for details. ©2022 SwellPro All Rights Reserved...
- Page 28 RT Computation is a more professional function, if you want to use this function, please contact the seller. 9. Timing Task Send sensor data to mailbox regularly (only one sensor can be selected at a time) ©2022 SwellPro All Rights Reserved...
- Page 29 Instruction step by step： ①Select device ②Download configuration: Select start and end time and write mail address, and then submit download application ③After submission, the list will be displayed on the "Download List" page. ©2022 SwellPro All Rights Reserved...
- Page 30 Instruction step by step： ① Setup time period and interval ② Select data type ③ data query ④ Select sensor 11. Flow Card 4G card: Purchase 4G card, query purchase orders and view 4G card related data. ©2022 SwellPro All Rights Reserved...
- Page 31 After the water sample is sent back to the laboratory for detailed analysis and testing, an accurate conclusion report can be obtained by combining the real-time data of on-site testing. ©2022 SwellPro All Rights Reserved...
-
Page 32: Appendix
Appendix Specification SwellPro Water Quality Monitor System Waterproof rating: IP67 3.41KG Weight:（Battery and Propellers included）： Stabilization: 450 mm Max Ascend Speed: 4m/s Max Descend Speed: 4 m/s Max Flight Speed: 22 m/s（ATTI），10 m/s（GPS） Max Tilt Angle: ATTI： 12.5°，ATTI （quick mode）： 25°... - Page 33 IP： 192.168.2.220： 2020：Default password: 12345678 Mobile Device Mount: Suitable for any size phones; Tablets require a larger mount (sold separately) Screen： 2.68 inch， 128x64 -10°C - 40°C Working Temperature： Remote Charging time: 3 hours Power Input: 5V/2A ©2022 SwellPro All Rights Reserved...
- Page 34 ISO range: 100 - 3200 shutter speed: 16 - 1/16000 s Photo size: 4:3/16:9 12MP Burst mode: 3/5/10 shoots Video resolution: 4K：3840*2160/30P | 2.7K：2704*1520/60P | FHD： 1920*1080 30/60/120p | HD：1280*720/240p Max data stream: 64 MBps ©2022 SwellPro All Rights Reserved...
- Page 35 ＜250 ms (depending on environmental conditions and mobile devices) Version Information SwellPro products are constantly improving, so as the product user manuals. It is recommended to visit support.swellpro.com to check and download the latest user manual. 1.0 SwellPro Water Quality Monitor System User Manual 1.0 Edition...
