Ergotron PS Laptop Cart Service Manual

Replacing the tray dividers

PS Laptop Cart Service Manual

Replacing the Tray Dividers

Please recycle or discard the

damaged parts responsibly!

Contact Ergotron for recyling

service information.

http://www.ergotron.com/

tabid/65/fi d/137/language/

en-US/default.aspx

Make sure the cart power cord

is disconnected from wall

power before proceeding.

Unlock and open

front doors.

888-97-263-G-00 rev A • 05/12

LEFT

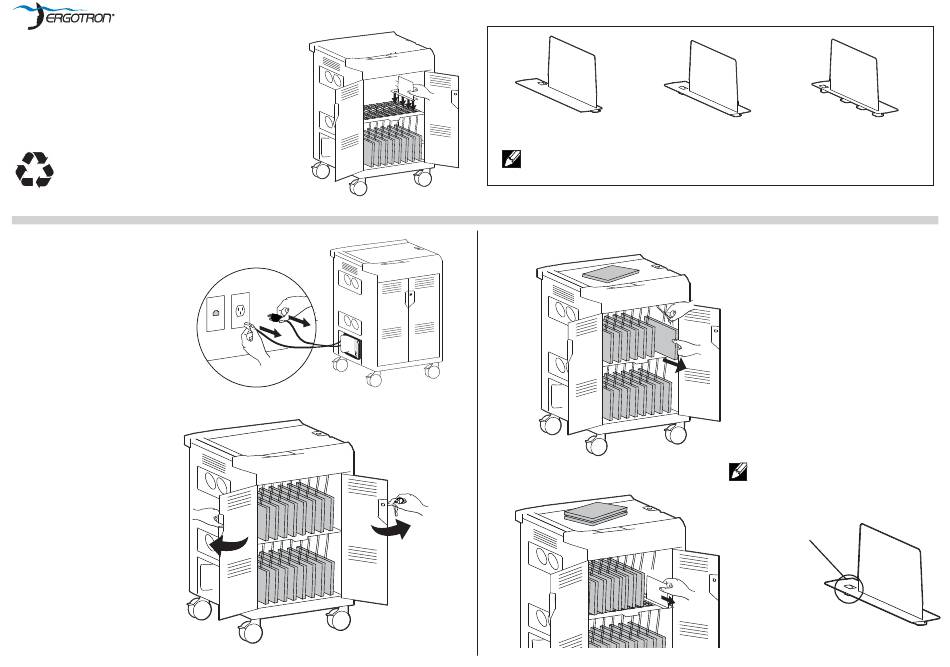

NOTE: there are three divider styles, one for the right end of the

compartment, one for the left end and one for the middle area.

Remove the two laptops surrounding the broken divider.

MIDDLE

RIGHT

NOTE: to remove dividers,

press release tabs in back

of divider

and push

divider

back.

Discard or recycle the

damaged divider.

1 / 2
