Ergotron YES36 Manual

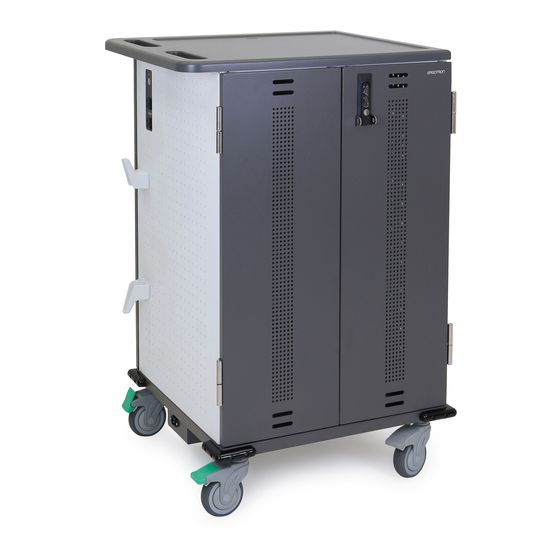

Charging cart for chromebooks, includes powershuttle technology
Hide thumbs Also See for YES36:
Table of Contents

Advertisement

Quick Links

Download this manual

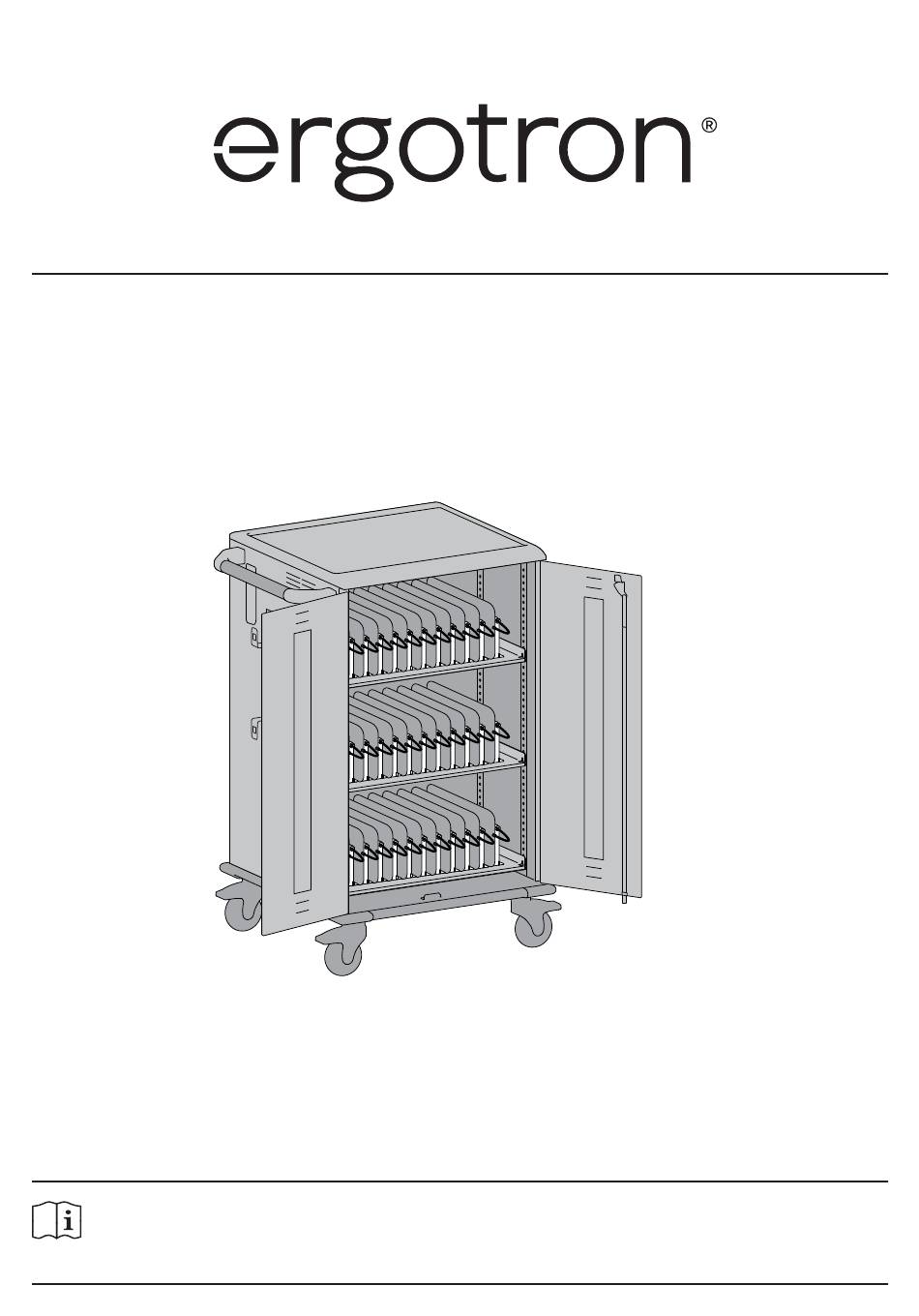

YES36 Charging Cart
This Charging Cart charges, transports, and secures 36 Chromebooks.
Intended for Institutional Use.
For the latest User Installation Guide please visit: www.ergotron.com
English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语
www.ergotron.com |
USA: 1-800-888-8458
888-83-087-E-00 rev. B • 04/19
For Chromebooks
Includes PowerShuttle™ Technology
|
Europe: +31 (0)33-45 45 600
|
|
China: 400-120-3051
Japan: japansupport@ergotron.com
User's Guide
English
1 of 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YES36 and is the answer not in the manual?

Questions and answers

Related Manuals for Ergotron YES36

Summary of Contents for Ergotron YES36

  • Page 1 For Chromebooks Includes PowerShuttle™ Technology This Charging Cart charges, transports, and secures 36 Chromebooks. Intended for Institutional Use. For the latest User Installation Guide please visit: www.ergotron.com English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语 www.ergotron.com | USA: 1-800-888-8458...

  • Page 2: Features And Specifications

    Features & Specifi cations Locking Front Doors Locking Back Door Front and Back Locking Door Latch with Padlock Bracket For added security, each door features hasps to hold your own padlock (maximum Two External Power Receptacles shackle dia 7.9 mm (5/16"); minimum shackle height 5 cm (2")).
  • Page 3 Set-Up and Go Unlock and open front doors. a. Unlock with Key. b. Lift handle up. c. Rotate handle clockwise. d. Open door. Open back door. a. Unlock with Key. b. Lift handle up. c. Rotate handle clockwise. d. Open doors. 888-83-087-E-00 rev.
  • Page 4 Set-Up and Go a. Route device cables into dividers. b. Route adapters through cart to back of cart and plug into outlets. Store adapters and bundled cables on adapter shelves. 888-83-087-E-00 rev. B • 04/19 4 of 13...
  • Page 5 Set-Up and Go a. Insert device into divider. b. Plug power cable into device. Devices must be turned to the ‘off ’ position prior to inserting and connecting power to the devices. a. Plug power cord into base of cart and into wall outlet. b.
  • Page 6 How to Remove Dividers How to Replace Dividers 888-83-087-E-00 rev. B • 04/19 6 of 13...
  • Page 7 How to Adjust Shelf Height 888-83-087-E-00 rev. B • 04/19 7 of 13...

  • Page 8: Specifications

    This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts. Changes or modifi cations not expressly approved by the Ergotron could void the user's authority to operate the equipment. Intended for institutional use.

  • Page 9: Troubleshooting Guide

    Troubleshooting Guide The white ON/OFF switch is fl ashing. What does that mean? There is an over-current condition that cannot be resolved. Power has been removed to the devices. An over-current condition could be a defective device installed or possibly something plugged into external auxiliary outlet causing too much current. To correct, remove source of over-current condition, then unplug from wall and then plug back in, or push power switch OFF then back ON to reset.
  • Page 10 Equipment Electrical Safety There are specifi c risks associated with the use of equipment having power cables. You must be aware of, and avoid these risks when the Cart is located in close proximity to children. WARNING: Failure to observe the following Electrical Safety notices can result in fi re or death by electric shock. Electrical: Electrical cables can be hazardous.

  • Page 11: Cleaning And Maintenance

    CAUTION: Customer Equipment- Make sure equipment is balanced and installed securely to Cart. Contact Ergotron for information about moving Cart components. CAUTION: Changes or Modifi cations not expressly approved by Ergotron could void the user’s authority to operate the equipment.

  • Page 12: Safe Use Recommendations

    Safe Use Recommendations There are specifi c risks associated with the use of Cart when moving or stationary (for charging or storage). You must be aware of, and avoid these risks when the Cart is located in close proximity to children. WARNING: Failure to observe the following Cart Use Safety notices may result in serious personal injury or equipment damage.
  • Page 13 For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com NOTE: When contacting customer service, reference the serial number. www.ergotron.com | USA: 1-800-888-8458 ™ © 2016 Ergotron, Inc. All rights reserved. PowerShuttle is a registered trademark of Ergotron, Inc.
