RENOGY 1000
Portable Power Station
RPS100150AA-PCS
VERSION A1
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Renogy 1000

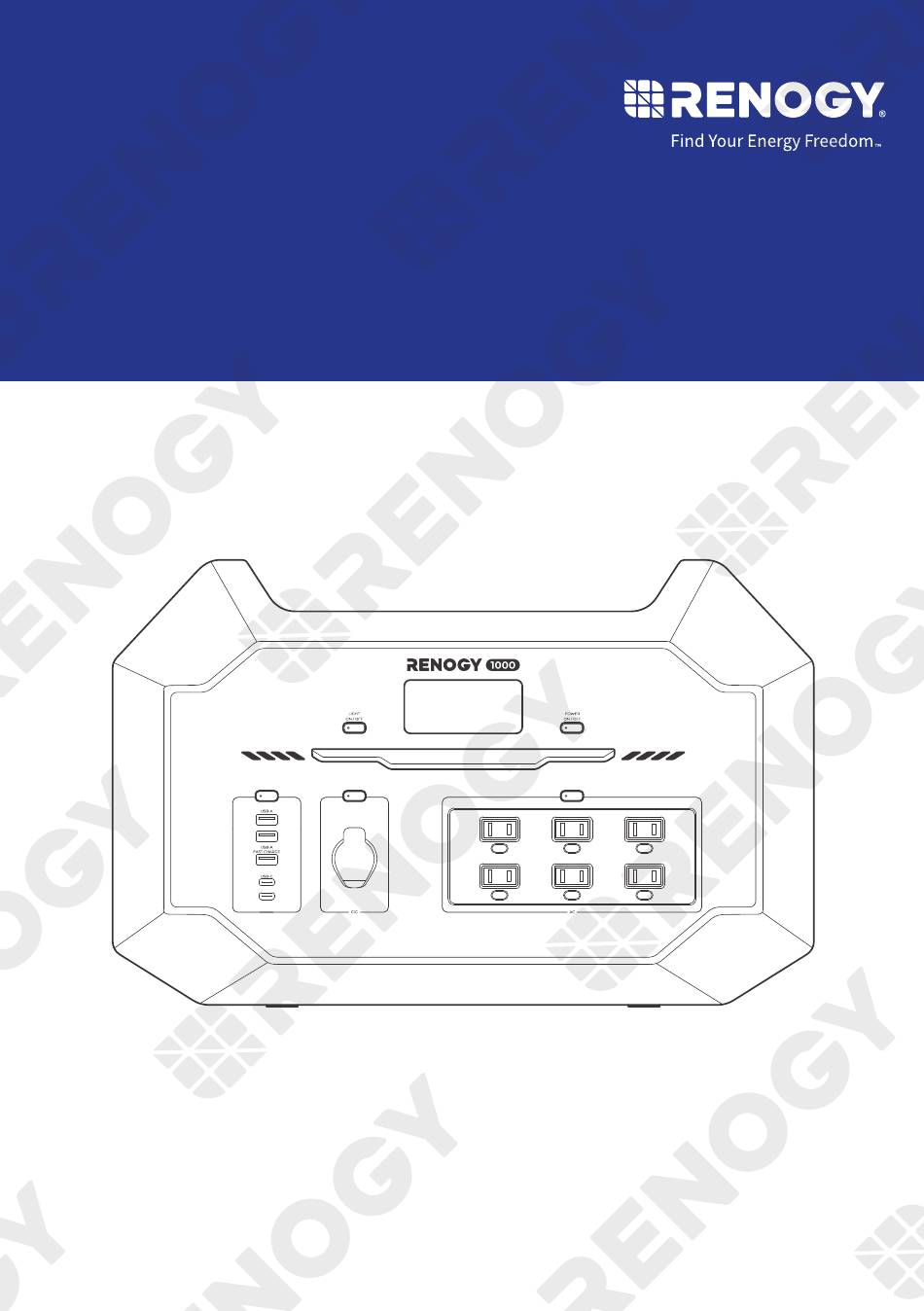

  • Page 1 RENOGY 1000 Portable Power Station RPS100150AA-PCS VERSION A1 USER MANUAL...
  • Page 2 Renogy ensures the accuracy, sufficiency, and the applicability of information in the user manual at the time of printing due to continual product improvements that may occur.
  • Page 3: Table Of Contents

    Table of Contents Symbols Used ..........................1 What ’ s In the Box? .......................... 1 Optional Accessories ........................1 Get to Know RENOGY 1000 Portable Power Station ................2 LCD Display ........................... 3 Environmental Conditions ......................3 Turning On/Off ..........................4 Communication with DC Home ......................
  • Page 4: Symbols Used

    Car Charge Cable × 1 Make sure that all accessories are complete and free of any signs of damage. Optional Accessories Single Phase Parallel Kit Split Phase Parallel Kit (US/CA/JP Models Only) The optional accessories are available on renogy.com. — 1 —...

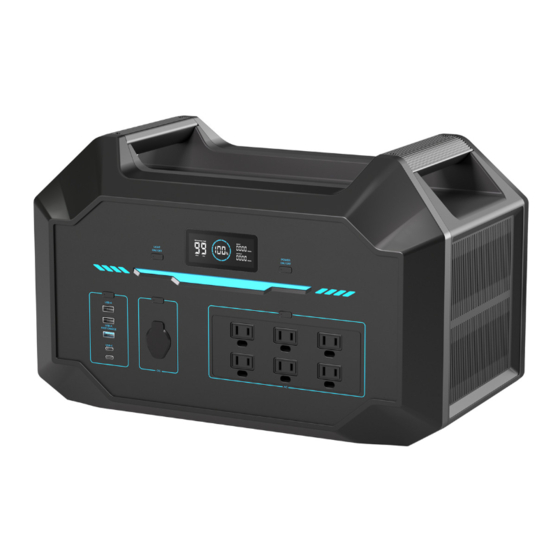

  • Page 5: Get To Know Renogy 1000 Portable Power Station

    Get to Know RENOGY 1000 Portable Power Station LCD Display Light On/O Button Power On/O Button LED Strip Lights USB On/O Button USB-A Ports USB-A Fast Charge Port USB-C Ports CIG Port CIG On/O Button AC Outlets AC On/O Button...
  • Page 6: Lcd Display

    LCD Display Operating Status Ring: - The Ring Segments Lighting Up Clockwise: Charging Voltage Protection - All the Ring Segments On: Fully Charged - The Ring Rotating Counterclockwise: Discharging Current Protection - One Ring Segment Flashing Slowly: The Battery Level < 10% Battery Protection Battery Level Low Temperature...
  • Page 7: Turning On/Off

    My Renogy RPS100150AA-PCS HUB Mode Add Devices 23.0 Time remaining Searching for device Add Renogy ONE Please make sure: 1.Bluetooth on this phone/tablet is 80.97 turned on. 2.The device is running properly. 3.The device's Bluetooth is turned on. - - -...
  • Page 8: How To Charge By Solar Panels

    When the charging current exceeds the current rating of the AC Inlet, the Overload Protector will pop up automatically and the AC charging stops. Please disconnect the AC power cable first and press down the Overload Protector to reset it. Contact us for help if the Overload Protector pops up again: renogy.com/contact-us/. How to Charge by Car...
  • Page 9: How To Power Your Devices

    How to Power Your Devices The portable power station can provide a total output power of up to 2100W. When the portable power station is overloaded, it will turn off the USB-A Ports, USB-A Fast Charge Port, and USB-C Ports, CIG Port, and AC Outlets in sequence until the total output power drops below 2100W.
  • Page 10: Ac Devices

    AC Devices The iBoost mode allows the AC Outlets to power most resistive AC devices rated between 1500W and 3000W, The iBoost mode is enabled by default. The iBoost mode is not applicable for the inductive and capacitive AC devices with strict voltage limits.
  • Page 11: Parallel Connection

    Parallel Connection The iStack technology allows two RENOGY 1000 portable power stations to be connected in parallel to deliver 1996.8Wh capacity and 2700W AC output. Single-Phase AC Device: 2700W Max Single Phase Parallel Kit Split Phase Parallel Kit Split-Phase AC Device:...
  • Page 12: Troubleshooting

    Troubleshooting If the portable power station does not operate properly, refer to the table below for possible causes and corrective steps. If the corrective steps do not work, contact our customer service through renogy.com/contact-us/. Icons Possible Causes Corrective Steps Disconnect the AC Inlet from the wall outlet.
  • Page 13: Specifications

    Icons Possible Causes Corrective Steps Warm up the portable power station. Charging can be resumed automatically. Short press the USB On/Off Button, CIG On/Off Button, or AC On/ Battery Low Temperature Off Button to turn on the USB-A Ports, USB-A Fast Charge Port, and USB-C Ports, CIG Port, or AC Outlets again.
  • Page 14: Maintenance & Storage

    CIG Output (x1) 13.6V 10A, 136W Max 100V (JP)/120V (US & CA)/220V~240V (EU, UK, AU, KR & CN) AC Output (x3/x6) About 50Hz/60Hz, 1500W Rated, 3000W Surge Total Output 2100W Max Maintenance & Storage Inspection For optimum performance, it is recommended to perform these tasks regularly. Check the appearance of the portable power station to make sure it is clean and dry.
  • Page 15: Important Safety Instructions

    Charging Safety Only use Renogy approved accessories to charge the portable power station. Do not use damaged accessories to charge the portable power station as it might cause electric shock. Do not charge the portable power station immediately after a long heavy run.
  • Page 16: Renogy Support

    Warranty Check out the warranty policies for the product from your local Renogy website. For customers in the U.S., register your product and get your e-warranty at https://renogy.force.com/helpcenter/s/warrantyregister. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 17 Save 105 gallons of water from being consumed Renogy Power PLUS Renogy Power Plus allows you to stay in the loop with upcoming solar energy innovations, share your experiences with your solar energy journey, and connect with like-minded people who are changing the world in the Renogy Power Plus community.
