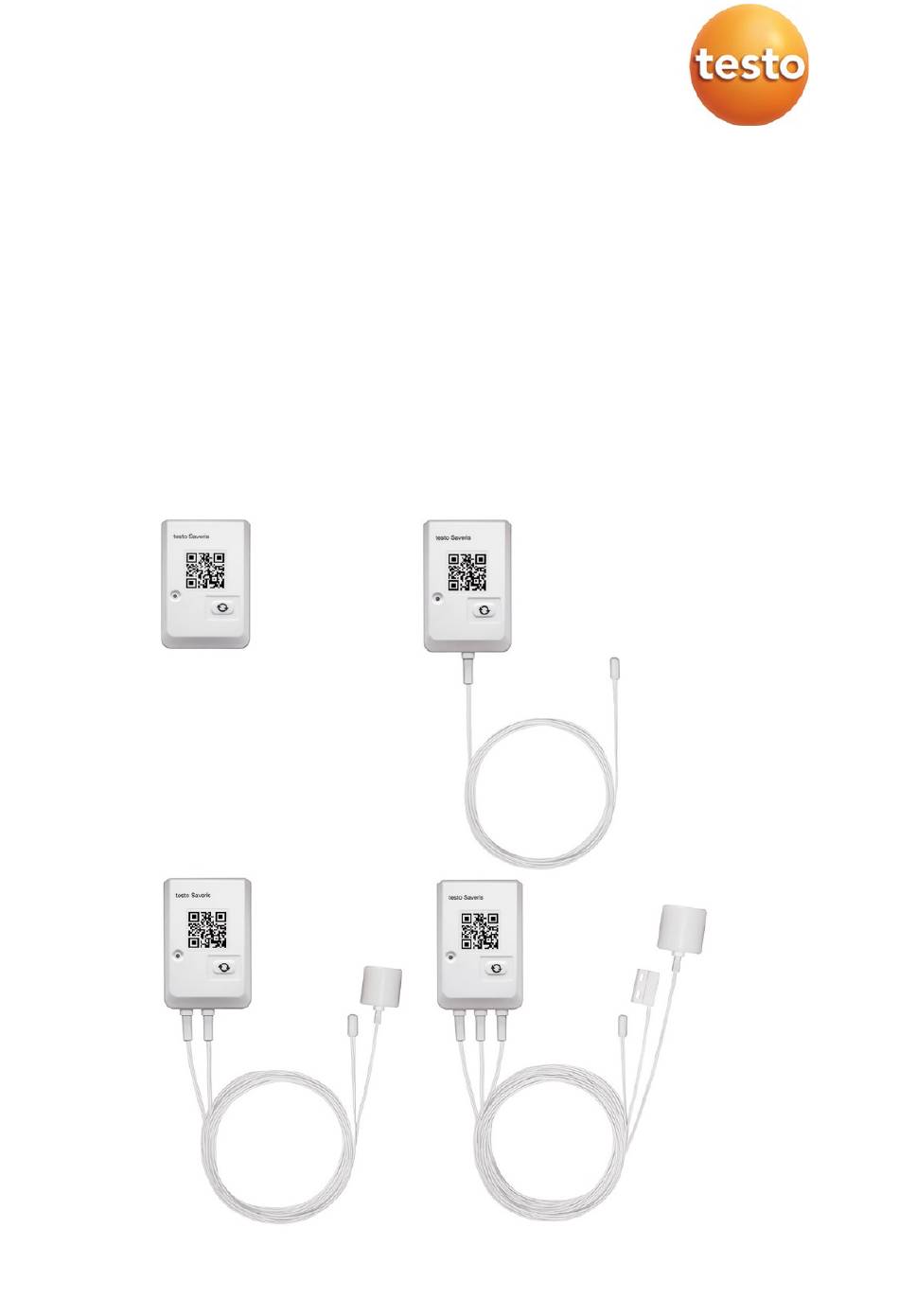

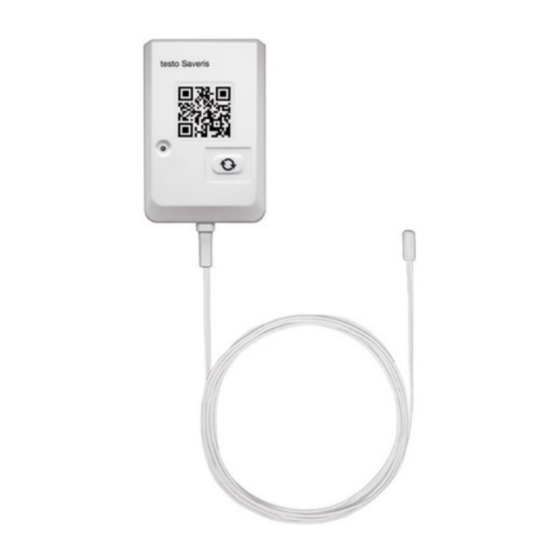

- Page 1 Saveris online data logger 0572 2620 0572 2621 0572 2622 0572 2623 Instruction manual...
-
Page 3: Table Of Contents
Configuration ....................13 Setting up the configuration mode ................14 4.3.1 Configuration via the testo Saveris App on the testo Saveris Control Unit ....14 4.3.2 Configuration via the web interface of the testo Saveris online data logger ....15 4.3.3... - Page 4 Contents Troubleshooting ................20 Status LED signals ................... 20 FAQs and error codes ..................21 Reading out the error code ................25 Technical data ..................25 Order numbers ................... 27 Authorizations ..................28...
-
Page 5: About This Document
• Hand this documentation on to any subsequent users of the product. • You will find the General Terms and Conditions in the login area of the respective testo Saveris solution at: www.testo.com/login. Icons Display Explanation Note: basic or further information Action: several steps, the sequence must be followed. - Page 6 With rechargeable batteries, never use chargers which are not suitable for • the battery type. Suitable chargers for Testo products are to be found in the list of accessories. Do not short batteries. If the positive (+) and negative (-) terminals of a •...
- Page 7 2 Safety and waste disposal In principle, contact with escaping battery components may present a risk to • health and to the environment. Adequate body and breathing protection is therefore required when in contact with batteries that have peculiar aspects (escaping contents, deformations, discolourations, dents or the like).
-
Page 8: Warning Notices
Testo for disposal. 3 Description of the instrument testo Saveris online data loggers are part of the testo Saveris Solution. As a stationary measuring technology solution, they are ideal for monitoring temperature and door contacts in refrigerated storage areas and storerooms. -
Page 9: Scope Of Delivery
WLAN infrastructure provided by the customer (not part of the scope of delivery). The measuring values stored in the Cloud can be called up and analysed at any time on the relevant testo Saveris Cockpit [Webbased analysis]. If limit values are exceeded, this is displayed immediately on the... -
Page 10: Testo Saveris Online Data Logger - Internal
3 Description of the instrument 4 testo Saveris online data logger - 3- channel (Deviation possible per configuration) In addition to the respective online data logger, the following are included in all models: 3x AAA batteries • Wall bracket •... -
Page 11: Testo Saveris Online Data Logger - 2-Channel
4 Commissioning In order for the testo Saveris online data logger to function, you need to carry out the measuring cycle and alarm delay settings as part of the quality manual configuration in the testo Saveris Cockpit. -
Page 12: Wall Mounting
When installing testo Saveris online data loggers in refrigerated or deep-freeze rooms, the nature of the walls may lead to weakening of the WLAN signal. This may affect the battery life. If the WLAN output is too weak, use of online data loggers with external air temperature probes is recommended. -
Page 13: External Product Temperature Simulator
At the start of configuration, ensure that the online data logger is in configuration mode. Then, you can carry out integration into the system either using the testo Saveris app on your Control Unit or via the online data logger's web interface on your PC or laptop. -
Page 14: Setting Up The Configuration Mode
Saveris Control Unit Online data loggers can be configured with WPA/WPA2 Personal encryption methods via the testo Saveris Control Unit. For this, follow the instructions on the Control Unit. All online data loggers displayed on the Control Unit will be configured. -
Page 15: Configuration Via The Web Interface Of The Testo Saveris Online Data Logger
Online data logger is fully configured and connected to the Cloud. The LED flashes green once for 5 s (online data logger is connected to the Testo Cloud). It then flashes green briefly twice (online data logger switching to measuring mode). Configuration via the web interface of the 4.3.3... -
Page 16: Configuration Of Alarms
The online data logger is fully configured and connected to the Cloud. The LED flashes green once for 5 s (online data logger is connected to the Testo Cloud). It then flashes green briefly twice (online data logger switching to measuring mode). Go to Status... -
Page 17: Operation
Go to Settings on the Control Unit and select Access logger info. QR code scanner opens. Scan in QR code. Temperature value is displayed. The measurement data collected is also accessible online in the testo Saveris Cockpit. -
Page 18: Deactivating/Activating The Online Data Logger
In individual cases, it may be necessary to deactivate the online data logger (e.g. to send it away for calibration). The online data logger is logged into the Testo Cloud. Select the menu item Online Data Logger in your Account. -
Page 19: Maintenance And Care
Replace batteries. Pay attention to polarity. Place battery cover on the battery compartment. Secure battery cover using screws. Cleaning the testo Saveris online data logger and external probe Only use weak, commercially available neutral/household cleaning agents (e.g. washing-up liquid) to clean the online data logger and... -
Page 20: Calibration
Cloud. This setting can be made under the menu item "Alarms". Online data loggers are supplied with a calibration protocol as standard. We recommend recalibrating the online data loggers every 12 months. This can be carried out by Testo Services. Please contact Testo http://www.testo.com for more information. 7 Troubleshooting... -
Page 21: Faqs And Error Codes
5 s. configured. … green briefly 2 times. The online data logger is connected to the access point and Testo Cloud. Measurement data was successfully transmitted to the Cloud and the online data logger is back in measuring mode. - Page 22 7 Troubleshooting Error Description No measuring values are For a function test, press the button on the front of displayed in the online the online data logger briefly once. The LED analysis. flashes green briefly once (a measurement is being carried out). Then the online data logger attempts to connect to the router.
- Page 23 Error E51 was detected for The online data logger could not connect to the the online data logger. Testo Cloud. If the online data logger was already connected to the Testo Cloud and suddenly can no longer connect, the Testo Cloud servers are currently unavailable.
- Page 24 To rectify the error, press the button on the front of the online data logger for < 3 s and force communication. If this does not correct the error, contact the Testo contact partner. Error E75 was detected for A firmware update for the online data logger the online data logger.
-
Page 25: Reading Out The Error Code
3 and click under menu item Status on the button Error Log. There, you will find a list of detected errors. If we have not been able to answer your question: Please contact Testo Customer Service. See the back of this document or the www.testo.com/service-contact web page for contact details. - Page 26 PEAP0-PSK, EAP-PEAP1-PSK Technical data for a secure wireless LAN Ports The testo Saveris online data loggers use the MQTT protocol, which communicates via TCP ports 1883 and 8883. These UDP port approvals are also required: Port 53 (DNS name resolution) •...
-
Page 27: Order Numbers
External sensor 9 Order numbers Description Order no. testo Saveris online data logger - internal 0572 2620 testo Saveris online data logger - 1-channel 0572 2621 testo Saveris online data logger - 2-channel 0572 2622 testo Saveris online data logger - 3-channel... -
Page 28: Authorizations
10 Authorizations 10 Authorizations Please note the following country-specific information for the product authorisation. The use of the wireless module is subject to the regulations and stipulations of the respective country of use and the module may only be used in countries for which a national certification has been granted. Users and owners undertake to adhere to these regulations and prerequisites for use and acknowledge that the re-sale, export, import, etc., in particular in, to or from countries without wireless authorisation,... - Page 29 0572 2622: CMIIT ID: 2017DJ2653 0572 2623: CMIIT ID: 2017DJ2650 Europa + EFTA The EU Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads. EU countries: Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE),...
- Page 30 10 Authorizations IC Warnings This instrument complies with Part 15C of the FCC Rules and Industry Canada RSS-210 (revision 8). Commissioning is subject to the following two conditions: (1) This instrument must not cause any harmful interference and (2) this instrument must be able to cope with interference, even if this has undesirable effects on operation.
- Page 32 Testo SE & Co. KGaA Testo-Straße 1 79853 Lenzkirch Germany Tel.: +49 7653 681-0 Fax: +49 7653 681-7699 E-Mail: info@testo.de www.testo.de 0970 2603 en 09...
