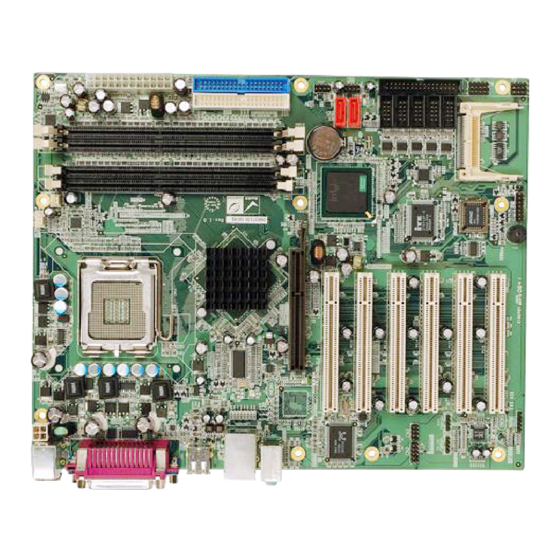

- Page 2 Quick Installation Guide Version 1.0 Feb. 27. 2007 Package Contents IMBA-8654package includes the following items: 1 x IMBA-8654 single board computer 2 x IDE Cable 2 x RS-232 Cable 1 x RS-232 Cable 1 x RS-422/485 Cable 2 x SATA Cable...
- Page 3 Specifications CPU: LGA 775, Intel® Core 2 Duo processor FSB 533/800/1066MHz System Chipset: Intel 865G + ICH5 BIOS : AMI BIOS System memory: 4 x 184-pin Dual channel DDR 333/400 MHz upto Ethernet: Intel® 82541 GbE chipset (IMBA-8650GN) with ASF2.0 support Realtek 8110SC GbE chipset (IMBA-8650GR) I/O Interface: 8 x USB 2.0...

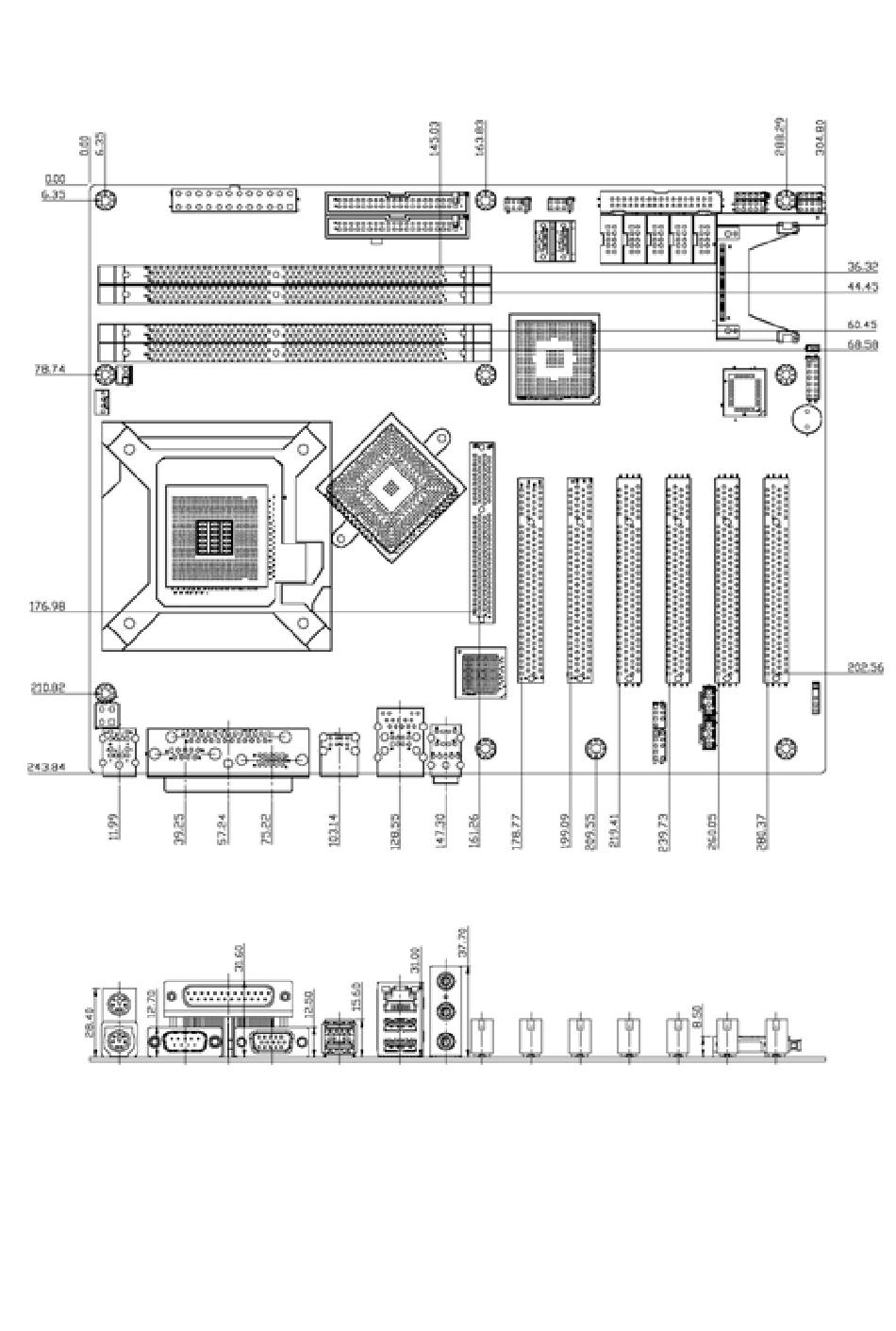

- Page 4 Board Layout: Jumper and Connector Locations...
- Page 5 F_PANEL1 : Pin Assignment and Functions FUNCTION DESCRIPTION BUZZER BUZZER- RESET RESET GROUND HDD LED IDE_LED+ IDE_LED- PWR_LED+ POWER LED PWR_LED- POWER GROUND BUTTON POWER BUTTON ATX1: ATX Power connector DESCRIPTION Pin DESCRIPTION VCC3 VCC3 VCC3 GROUND GROUND PS-ON GROUND GROUND GROUND GROUND...
- Page 6 Weight: GW:1200g / NW:600g Ordering Information IMBA-8654GR-R10 ATX Motherboard with Intel® LGA 775, Core 2 Duo, Pentium® D, Pentium® 4, Celeron® D processor FSB 533/800/1066MHz, AGP 8X, Realtek GbE, SATA and Audio IMBA-8654GN-R10 ATX Motherboard with Intel® LGA 775, Core 2 Duo, Pentium® D, Pentium® 4, Celeron®...
- Page 7 CN2: 5.1 Channel Audio connector DESCRIPTION DESCRIPTION MIC IN GROUND MIC BIAS LINE OUT(R) LINE OUT (R) Return LINE OUT(L) LINE OUT (L) Return CN3: Front Panel Audio connector DESCRIPTION DESCRIPTION SUR OUT(L) CEN OUT GROUND GROUND SUR OUT(R) LFE OUT GROUND USB2: 2 ports USB Connector DESCRIPTION...
- Page 8 CPU_FAN1: CPU Fan Connector IR1: IrDA connector DESCRIPTION DESCRIPTION Ground +12V Rotation Signal IR-RX FANPWM1 GROUND IR-TX SYS_FAN1: SYSTEM Fan Connector CPU12V1: CPU12V1: ATX DESCRIPTION +12V Power connector DESCRIPTION Ground +12V GROUND Rotation Signal GROUND +12V +12V AUX1: Audio AUX In connector CD_IN1: Audio CD In connector DESCRIPTION DESCRIPTION...
