GX470 REAR WINDOW INTERIOR

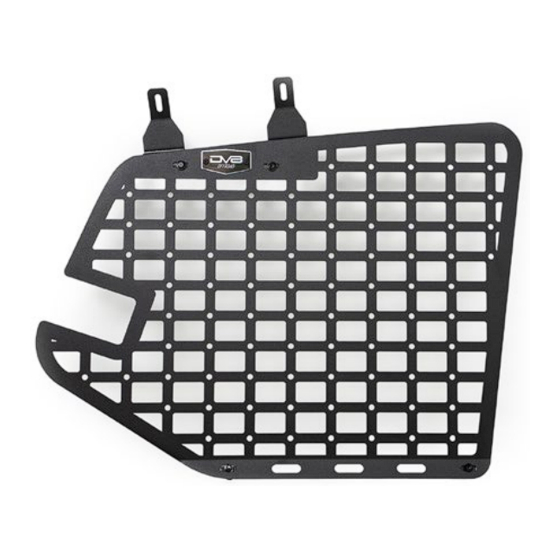

MOLLE PANEL
2003-2009 LEXUS GX470
TOOLS
REQUIRED
-Nutsert Tool
-Trim Removal Tool
-4mm Allen Bit
-10mm Wrench
-Philips Head Screwdriver
-Drill
-11/32" Drill Bit or Stepped Drill Bit
-Boxcutter or Knife
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1.5 Hours
Time to install this should only
take about an hour and a half
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Related Manuals for DVB GX470
Summary of Contents for DVB GX470
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM GX470 REAR WINDOW INTERIOR MOLLE PANEL 2003-2009 LEXUS GX470 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED -Nutsert Tool - Novice/Intermediate - 1.5 Hours -Trim Removal Tool - 1 (you) to 2 persons...
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concens, please contact the company the product was purhcased from. HARDWARE INCLUDED -(16) M6x16 Allen -(2) Aluminum Spacers -(4) M6x12 Allen -(4) M6x14 Nutserts -(4) M6 Spring Washers -(36) M6 Flat Washers -(12) M6 Nylon Lock Nuts...
- Page 3 INSTALLATION MANUAL STEP 2 | Install two of the smaller “L” shaped brackets onto the bracket with the bend facing towards the side with the logo. The brackets can be adjusted forward to have the panels sit flush with the window, or backward to have it stick into the cab more.
- Page 4 INSTALLATION MANUAL STEP 4 | Install the molle panel utilizing the factory mounting points and hardware with a philips head screwdriver. STEP 5 | Loosely install the aluminum spacers at the bottom of the molle panel using the provided M6x12 hardware (This is the shortest hardware provided).
- Page 5 INSTALLATION MANUAL STEP 7 | To prepare for drilling, you may choose to cut a small hole in the fabric to drill through to prevent the bit from pulling on the fabric. Drill out the marked holes to 11/32” and install the provided M6 nutserts using a nutsert tool.
- Page 6 4mm allen bit. Double check all hardware is secure. Repeat steps 1-10 for passenger side of vehicle. STEP 11 | Congratulations! You are finished with the install of the Lexus GX470 Rear Window Interior Molle Panels. NEED HELP? 855-680-9595...
