Hamptons Tallboy
Thank you for your purchase.
Please follow the instructions below for correct assembly.
D
A
B
C
51 x
51 x
27 x
13 x
long
bolt
locking
dowel
screw
nut
G
H
I
10 x
10 x
8 x
L+R
L+R
handle
slide rail
slide rail

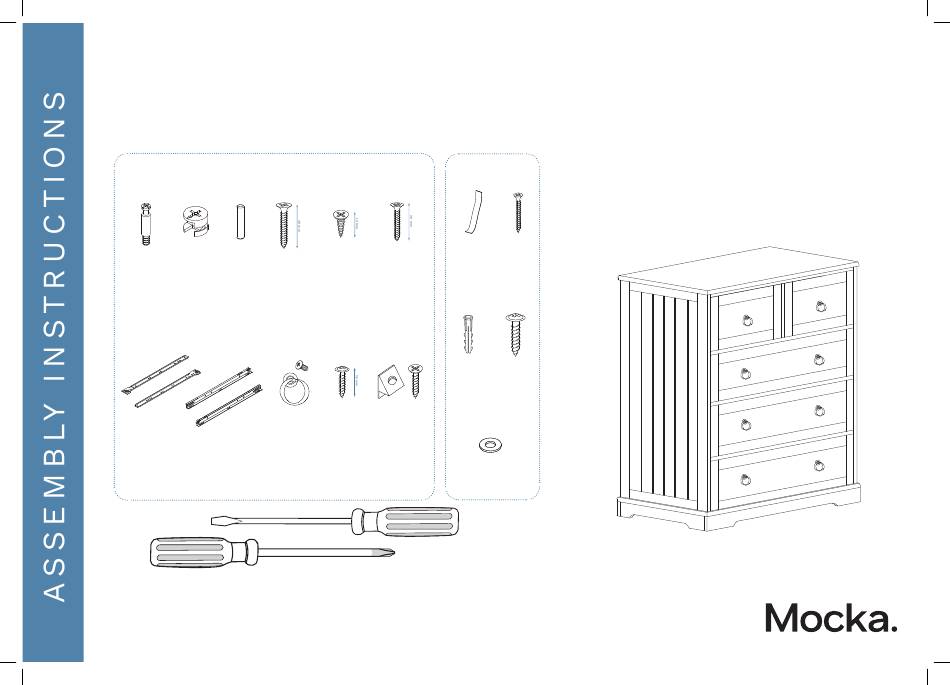

HARDWARE SUPPLIED
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz I mocka.com.au
F
W
E
1 x
safety
strap
screw
50 x
23 x
long
small
X
screw
screw
J
K
1 x
wall
screw
anchor
Z
10 x
4 x
wedge
small
screw
1 x
washer
WARNING: Any furniture that is not anchored to a wall has the potential to
tip over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthpuake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with
all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those
supplied.
1 x
long
Y
1 x
Advertisement
Related Manuals for Mocka Hamptons Tallboy
Summary of Contents for Mocka Hamptons Tallboy
- Page 1 Hamptons Tallboy Thank you for your purchase. WARNING: Any furniture that is not anchored to a wall has the potential to Please follow the instructions below for correct assembly. tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthpuake.
- Page 2 Hamptons Tallboy Attach 4 x left slide rails (G) to panel [3] and secure with 12 x small screws (E). Insert 8 x bolts (A) into panel [1]. Attach panel [6] to panel [1] and Insert 3 x bolts (A) into panel [3]. Tighten with a screwdriver.
- Page 3 Hamptons Tallboy Attach 4 x right slide rails (G) to panel [4] and secure with 12 x small screws (E). Attach 1 x left slide rail (G) and 1 x right slide rail (G) to panel [5] and secure with Insert 3 x bolts (A) into panel [3].
- Page 4 Hamptons Tallboy Insert 6 x dowels (C) to panels [7] and [8]. Attach panels [7] and [8] to panels [3] and [4] and secure with 6 x locking nuts (B). Tighten with a screwdriver. Insert 1 x dowel (C) into panel [5]. Attach panel [7] to panel [5] and secure with 1 x long screw (D).
- Page 5 Hamptons Tallboy Insert 4 x dowels (C) into panels [3] and [4]. Attach panel [2] to panels Attach 10 x bolts (A) into panel [2]. Tighten with a screwdriver. [3] and [4], securing with 4 x long screws (D). mocka.co.nz I mocka.com.au...
- Page 6 Hamptons Tallboy Attach panel [9] to panels [2] and [5], securing with 4 x long screws (D). Attach 4 x bolts (A) into panels [21]. Insert 4 x dowels (C) to panels [20], Attach 1 x wall strap (W) to panel [9] using 1 x screw (Y). Tighten with a Attach panels [20] to panels [21].
- Page 7 Hamptons Tallboy Insert 6 x dowels (C) into panels [21]. Attach panels [20] and [21] to panel Attach panel [7] to panel [19], securing with 4 x long screws (D). Tighten with a screwdriver. [2] and secure with 10 x locking nuts (B). Tighten with a screwdriver.
- Page 8 Hamptons Tallboy Insert 6 x dowels (C) into panels [3] and [4]. Attach panel [1] to panels [3] and Slide panels [18] between the grooves on panels [3], [4] and [9] to [4], [9] and secure with 8 x locking nuts (B). Tighten with a screwdriver.
- Page 9 Hamptons Tallboy Small Drawers x 2 Small Drawers x 2 Insert 8 x bolts (A) into panels [10]. Attach panels [12] and [13] to panel Slide panels [16] between the grooves on panels [12] and [13] to form [10] and secure with 8 x locking nuts (B). Tighten with a screwdriver.
- Page 10 Hamptons Tallboy Small Drawers x 2 Small Drawers x 2 Attach 4 x slide rails (H) to panels [12] and [13] and secure with 8 x small Attach panels [17] to panels [12] and [13], secure with 8 x medium screws (E).
- Page 11 Hamptons Tallboy Large Drawers x 3 Large Drawers x 3 Slide panels [14] between the grooves on panels [12] and [13] to form the base of the drawer as shown. Attach panels [15] to panels [11] and secure Insert 15 xbolts (A) into panels [11]. Attach panels [12] and [13] to panels with 3 x locking nuts (B).
- Page 12 Hamptons Tallboy Large Drawers x 3 Large Drawers x 3 Attach 6 x slide rails (H) to panels [12] and [13] and secure with 12 x small screws (E). Attach 6 x handles and screws (I) into panels [11]. Tighten woth Attach panels [18] to panels [12], [13] and [15], secure with 15 x medium a screwdriver.
- Page 13 Hamptons Tallboy Strap Washer Wall anchor Wall screw Wall screw Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety stap (W). Fasten to wall using wall anchor (X), washer (Z) and screw.
