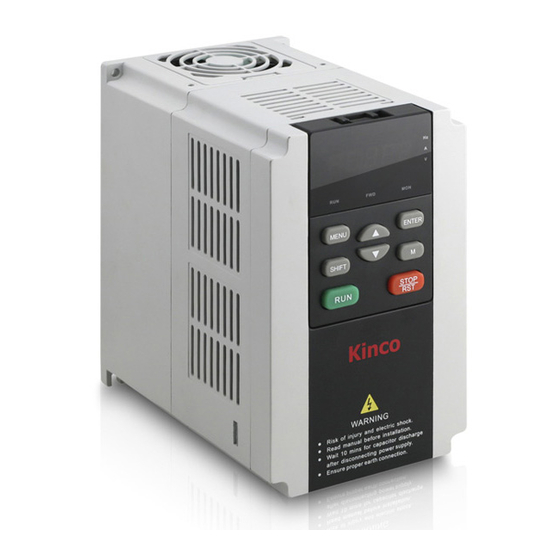

FV100 series high profermance vector control VFD
User Mannual
Kinco (Shenzhen) electronic Ltd provides customers with technical support. Users may contact the nearest Kinco local
sales office or service center, or contact headquarter of Kinco directly.
Copyright © 2011 by Kinco (Shenzhen) electronic Co. Ltd
All rights reserved. The contents in this document are subject to change without notice.
Kinco Automation
Website:
http://www.kinco.cn/en/index.aspx
Email:sales@kinco.cn
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kinco FV100 Series
Summary of Contents for Kinco FV100 Series
- Page 1 FV100 series high profermance vector control VFD User Mannual Kinco (Shenzhen) electronic Ltd provides customers with technical support. Users may contact the nearest Kinco local sales office or service center, or contact headquarter of Kinco directly. Copyright © 2011 by Kinco (Shenzhen) electronic Co. Ltd All rights reserved.
- Page 2 Preface Thank you for using FV100 series Variable Frequency Drive made by Kinco Automation. FV100 satisfies the high performance requirements by using a unique control method to achieve high torque, high accuracy and wide speed-adjusting range. Its anti-tripping function and capabilities of adapting to severe power network, temperature, humidity and dusty environment exceed those of similar product made by other companies, which improves the product’s reliability noticeably;...
-
Page 3: Table Of Contents
5.2.1 Control mode of VFD ..........................26 5.2.2 Operating Status ............................. 26 5.2.3 Control mode and operation mode of Kinco VFD ................. 26 5.2.4 The channels to set the VFD frequency ....................27 5.3 Power on the Drive for the first time ........................28 5.3.1 Checking before power on ........................ - Page 4 6.3 Group A2 ................................34 6.4 Group A3 ................................35 6.5 Group A4 ................................37 6.6 Group A5 ................................38 6.7 Group A6 ................................40 6.8 Group A7 ................................48 6.9 Group A8 ................................49 6.10 Group b0 ................................50 6.11 Group b1 ................................
-
Page 5: Chapter 1 Safety
parts inside the drive so as to avoid the risk of fire. Chapter 1 Safety · Parameter settings of the control panel that has been changed must be revised, otherwise accidents may 1.1 Safety occur. · The bare portions of the power cables must be bound Operations without following instructions with insulation tape Danger... -
Page 6: About Variable Frequency Drive
FV100 series drives are voltage type variable frequency The mechanical resonance point of load drive. The output voltage is in PWM wave with some The drive system may encounter mechanical resonance harmonics. Therefore, temperature rise, noise and with the load when operating within certain band of vibration of motor are higher compared to the rated output frequency. -
Page 7: Disposing Unwanted Driver
1.4 Disposing Unwanted Driver FV100 When disposing the VFD, pay attention to the following issues: The electrolytic capacitors in the driver may explode when they are burnt. Poisonous gas may be generated when the plastic parts like front covers are burnt. Fig. -
Page 8: Chapter 2 Product Introduction
Chapter 2 Product introduction In this chapter we introduce the basice product information of specifications, model, and structure and so on. 2.1 Genernal sepcifications Table 2-1 Genernal specifications Item Description Rated voltage and 4T:3-phase,380V～440V AC; 50Hz/60Hz; 2S:Single-phase,200V~240V;50Hz/60Hz frequency Input Allowable voltage 4T: 320V～460V AC;... -
Page 9: Introduction Of Product Series
Cooling method Air cooling, with fan control. Installation method Wall-mounted Power under 45kW≥93%；Power above 55kW≥95% Effeciency 2.2 Introduction of product series Table 2-1 Series of Kinco VFD Rated capacity Rated input current Rated output current Motor power Model of VFD （kVA）... -
Page 10: Structure Of Vfd
FV100-4T-0015G FV100-4T-0022G FV100-4T-0037G 10.5 FV100-4T-0055G 14.5 13.0 FV100-4T-0075G 11.0 20.5 17.0 FV100-4T-0110G 17.0 26.0 25.0 FV100-4T-0150G 21.0 35.0 32.0 FV100-4T-0185G 24.0 38.5 37.0 18.5 FV100-4T-0220G 30.0 46.5 45.0 FV100-4T-0300G 40.0 62.0 60.0 FV100-4T-0370G 50.0 76.0 75.0 FV100-4T-0450G 60.0 92.0 90.0 FV100-4T-0550G 72.0 113.0... -
Page 11: External Dimension And Weight
2.4 External dimension and weight 2.4.1 External dimension and weight External dimension and weight is as following figure. Fig 2-2 FV100-4T-0037G and lower power VFD Fig 2-3 FV100-4T-0450G～FV100-4T-0900G... - Page 12 Tabble 2-2 Mechanical parameters VFD model External dimension and (mm) （G：Constant torque Weigh load; Installation t (kg) L: Draught fan and hole(d) water pump load） FV100-2S-0004G FV100-2S-0007G FV100-2S-0015G FV100-2S-0022G FV100-4T-0007G FV100-4T-0015G FV100-4T-0022G FV100-4T-0037G FV100-4T-0055G FV100-4T-0075G FV100-4T-0110G FV100-4T-0150G FV100-4T-0185G FV100-4T-0220G FV100-4T-0300G 88.5 FV100-4T-0370G FV100-4T-0450G...
-
Page 13: Operation Panel And Installation Box
2.4.2 Operation panel and installation box Fig 2-4 Operation panel dimension Fig 2-5 Installation box dimension... -
Page 14: Chapter 3 Installation Environment
Chapter 3 Installation Environment In this chapter we introduce the installation environment of VFD Please mount the drive vertically inside a well-ventilated location. When considering mounting environment, the following issues should be taken into account: Ambient temperature should be within the range of-10℃~40℃. If the temperature is higher than 40 ℃, the drive should be derated and forced ventilation is required;... -
Page 15: Chapter 4 Wiring Guide Of Vfd
Chapter 4 Wiring Guide of VFD In this chapter we introduce the wiring of VFD Danger ·Wiring can only be done after the drive’s AC power is disconnected, all the LEDs on the operation panel are off and waiting for at least 5 minutes. Then, you can remove the panel. ·... -
Page 16: Wiring Of Vfd For Basic Operation
Applicable Model: FV100-4T-0055G～FV100-4T-0220G Applicable Model: FV100-4T-0300G～FV100-4T-0900G Table 4-1 Description of main loop terminal Terminal Function description name Single phase 220VAC input L、N terminal R、S、T 3-phase 380V AC input termianl DC negative bus output terminal Resvered terminal for extermianl 、 DC reactor B1、B2 Braking resistor terminal U、V、W... -
Page 17: Wiring And Configuration Of Control Circuit
Fig.4-1 Basic wiring chart 4.2 Wiring and configuration of control circuit 4.2.1 Wiring of control circuit termial. Wire the terminals correctly before using the Drive. Refer to the table 4-2 for control circuit terminal function Table 4-2 Control circuit terminal function Sequence No. - Page 18 Refer to table 4-3 and 4-4 for description of each terminal Table 4-3 function list of each list Category Terminals Name Function description Specification PE terminal connected to shielding layer.Analog singal, Connected to circuit PE inside the Shield Shielded PE communication,motor power cable...
- Page 19 Category Terminals Name Function description Specification Providing analog voltage or current output, they are selected by the jumper Voltage output range: 0V~10V Analog output 2 AO2. The default setting is output Current output range: voltage, refer to the function code 0/4~20mA A6.29 (Reference ground: GND) RS485+...
- Page 20 Category Terminals Name Function description Specification output Common port of multi-function output common port terminal Y1 R1a-R1b：Normally closed， R1a-R1c：normally open Contact capacity ： AC250V/2A（COSΦ＝1） Relay Can be defined as multi-function relay AC250V/1A（COSΦ＝0.4） output Relay output output terminal(Refer to the A6.16 for DC30V/1A terminal 1 function description)
