Kinco CV20-1S-0002G User Manual

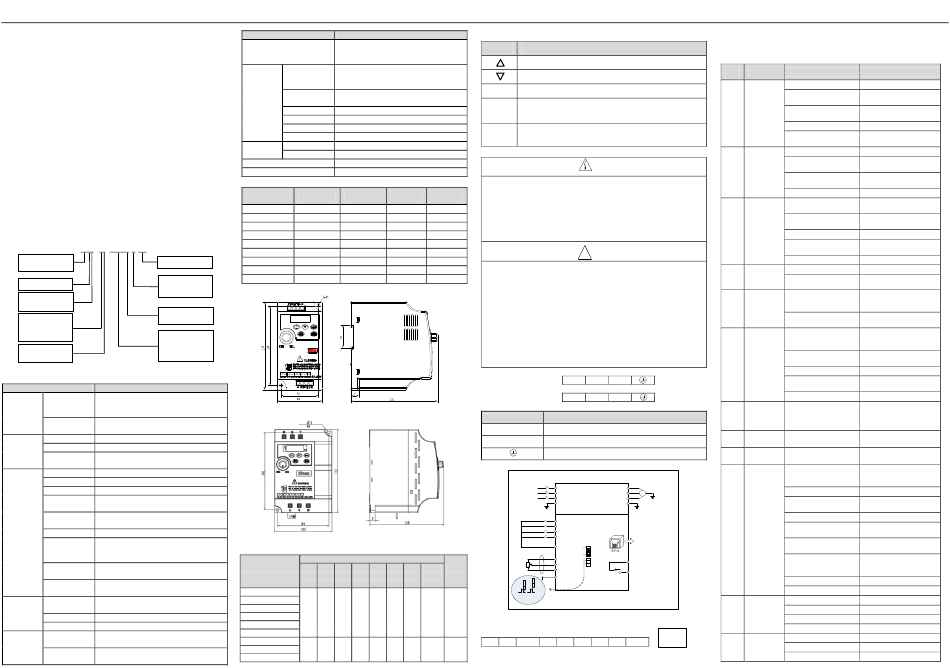

1

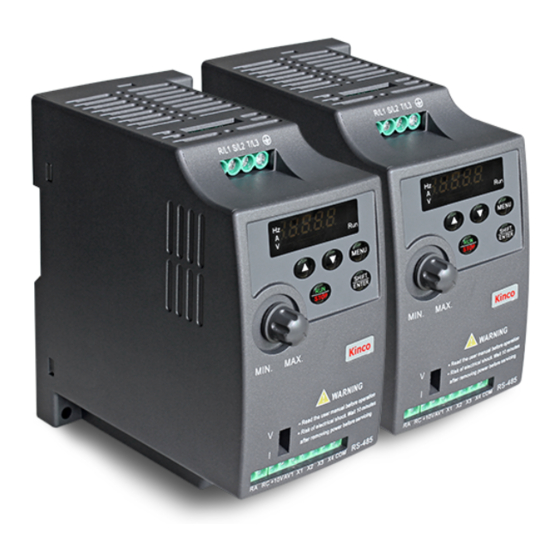

Mini type VFD of CV20 series
Thank you for using CV20 series Variable Frequency Drive made by Kinco Automation.
CV20 satisfies the high performance requirements by using a unique control method to achieve high
torque, high accuracy and wide speed-adjusting range. Its anti-tripping function and capabilities of
adapting to severe power network, temperature, humidity and dusty environment exceed those of
similar product made by other companies, which improves the product's reliability
noticeably;Without PG connector, strong speed control, flexible input/output terminal, pulse
frequency setting, saving parameters at power outage and stop, frequency setting channel, master and
slave frequency control and so on, all these satisfy various of high accuracy and complex drive
command, at the same time we provide the OEM customer high integration total solution, it values
highly in system cost saving and improving the system reliability.
CV20 can satisfy the customers' requirements on low noise and EMI by using optimized PWM
technology and EMC design.
This manual provides information on installation, wiring, parameters setting, trouble-shooting,
and daily maintenance. To ensure the correct installation and operation of CV20, please read this
manual carefully before starting the drive and keep it in a proper place and to the right person.
Unpacking Inspection Note
Upon unpacking, please check for:

Any damage occurred during transportation;

Check whether the rated values on the nameplate of the drive are in accordance with your order.
Our product is manufactured and packed at factory with great care. If there is any error, please contact
us or distributors.
The user manual is subject to change without notifying the customers due to the continuous process
of product improvements
VFD model rule
CV20 – 4T– XXXXG–U–000
VFD code
Reserved
CV: Mini type
Communication port:
The second generation
None: Standard RS485
A: CAN
00: Standard model
.....other models
G: Constant torque
L: Constant power
Power supply
1：100V
2：200V
4：400V Power
0002: 200w
0004: 400w
S: Signal phase
0015: 1.5kw
4: 400V
......
T: Three-phase
Production introduction:
General specifications
Item Description
4T:3-phase,380V~440V AC; 50Hz/60Hz
Rated voltage and
2S:Single-phase,200V~240V;50Hz/60Hz
frequency
Input 1S:Single-phase, 100~120V; 50/60HZ
Allowable voltage 4T: 320V~460V AC;2S:180V~260V; 1S: 90~132V
range Voltage tolerance＜3%; Frequency: ± 5%
Rated voltage 4T:0~440V；2S:0~240V；1S:0~240V
Frequency 0Hz~300Hz (0~800HZ customizable)
Output
G type: 150% rated current for 1 minute, 180% rated
Overload capacity
current for 10 seconds;
Control mode V/F control
Modulation mode Space vector PWM modulation
Starting torque 1 Hz 150%rated torque
Digital setting: Max frequency × ± 0.01%;
Frequency accuracy
Analog setting: Max. frequency × ± 0.2%
Digital setting: 0.01Hz;
Frequency resolution
Analog setting: Max frequency× 0.1%
Control
Torque boost Manual torque boost :0%~30.0%
Characteristics
4 patterns: 1 V/F curve mode set by user and
V/F pattern 3 kinds of torque-derating modes (2.0 order, 1.7 order, and
1.2 order)
Linear acceleration/deceleration,
Acc/Dec curve
Four kinds of acceleration/deceleration time
Limit current during the operation automatically
Auto current limit
to prevent frequent overcurrent trip
Operation Panel, Terminal, CommunicationControl,
Operation Command
Supportswitching between these control channesl.
Operation
Function Frequency Setting Digital, Analog Voltage/current setting.
Support main and auxiliary setting("+","-", "min", "max")
Auxiliary frequency
Display setting frequency, output frequency, output voltage,
LED Display
output current and so on, about 20 parameters.
Operation panel
Keys lock and Lock part of keys or all the keys.
function selection Define the function of part of keys
2
Item Description
Open phase protection (optional), overcurrent protection,
Protection function overvoltage protection, under-voltage protection, overheat
protection, over-load protection and so on.
Indoor, installed in the environment free from
Operating site directsunlight, dust, corrosive gas, combustible gas, oil
mist, steam and drip.
Derated above 1000m, the rated output current
Altitude
shall be decreased by 10% for every rise of 1000m
Environment
Ambient temperature -10℃~40℃, derated at 40℃~ 50℃
Humidity 5%~95%RH, non-condensing
Vibration Less than 5.9m/s2 (0.6g)
－40℃~＋70℃
Storage temperature
Protection class IP20
Structure
Cooling method Air cooling, with fan control.
Installation method Wall-mounted
≥90%
Efficiency
Introduction of CV20 series:
Rated capacity Rated input Rated output
Model of VFD
（kVA）
current（A） current（A）
CV20-1S-0002G 0.6 6.0 1.3
CV20-1S-0004G 1.0 9.0 2.5
CV20-1S-0007G 1.5 18.0 4.0
CV20-2S-0004G 1.0 5.3 2.5
CV20-2S-0007G 1.5 8.2 4.0
CV20-2S-0015G 3.0 14.0 7.5
CV20-4T-0007G 1.5 3.4 2.3
CV20-4T-0015G 3.0 5.0 3.7
CV20-4T-0022G 4.0 5.8 5.5
External dimension:
CV20-2S-0004G~ CV20-2S-0015G/ CV20-1S-0002G~ CV20-1S-0007G
CV20-4T-0007G~CV20-4T-0022G
Mechanical parameters
VFD model External dimension and (mm)
（G: Constant torque load;
L: Draught fan and water W H D W1 H1 D1 T1
pump load）
CV20-1S-0002G
CV20-1S-0004G
CV20-1S-0007G
68 132 131 56 120 - 12
CV20-2S-0004G
CV20-2S-0007G
CV20-2S-0015G
CV20-4T-0007G
CV20-4T-0015G 100 151 128 89 140 - 9
CV20-4T-0022G
3
Operation Button Description
Button Description
Increase the value or function
Decrease the value or function
MENU Enter or Exit the programming status
In panel operation mode, run the vfd by the first pressing; stop vfd by the second
RUN /
STOP
pressing. In VFD error status, reset the error by pressing
SHIFT / Short pressing to shift data or function code. Hold pressing(more than 1s) to enter
ENTER function code or save the changed value
Wiring:
Danger
-Wiring can only be done after the drive's AC power is disconnected, all the LEDs on the operation
panel are off and waiting for at least 5 minutes. Then, you can remove the panel.
Motor power
-Wiring job can only be done after confirming the charge indicator on the right bottom is off and the
（kW）
voltage between main circuit power terminals + and - is below DC36V.
0.2
-Wire connections can only be done by trained and authorized person
0.4
-Check the wiring carefully before connecting emergency stop or safety circuits.
0.75
-Check the drive's voltage level before supplying power to it, otherwise human injuries or equipment
0.4
damage may happen.
0.75
!
1.5
Attention
0.75
-Check whether the Variable Speed Drive's rated input voltage is in compliant with the AC supply
1.5
voltage before using.
2.2
-Dielectric strength test of the drive has been done in factory, so you need not do it again.
-Refer to chapter 2 on connected braking resistor or braking kit.
-It is prohibited to connect the AC supply cables to the drive's terminals U, V and W.
-Grounding cables should be copper cables with section area bigger than 3.5mm2, and the grounding
resistance should be less than 10Ω.
-There is leakage current inside the drive. The total leakage current is greater than 3.5mA, depending
on the usage conditions. To ensure safety, both the drive and the motor should be grounded, and a
leakage current protector (RCD) should be installed. It is recommended to choose B type RCD and
set the leakage current at 300mA.
-The drive should be connected to the AC supply via a circuit breaker or fuse to provide convenience
to input over-current protection and maintenance.
Top of single-phase/3-phase
R/L 1 S/L 2
Bottom
U/L 1 V/L 2
Terminal name
R/L1、S/L2、T/L3 Single-phase 220V(R/L1, S/L2) or 3-phase 380VAC input terminal
U/T1、V/T2、W/T3
3-phase AC output terminal
Braker
R/L1
3-Phase AC power S/L2
T/L3
PE
Main loop
Multi-function input 1
Control loop
X1
Multi-function input 2
X2
Multi-function input 3
X3
Multi-function input 4
X4
COM
+10V
I
Analog input AI1
AI
V
Weight
Installa-
COM
tion (kg)
PE
×
√
hole(d)
Note: DIP
switch setting
5 0.8
Arrangement of control circuit terminals is as follows:
RA RC +10V A1 X1 X2 X3
5 1.0
It lists the possible faults of CV20. The fault code varies from E001 to E027. Once a fault occurs, you
may check it against the table and record the detailed phenomena before seeking service from your
supplier.
Faults and actions
Fault Fault
code categories
Over-current
E001 during
acceleration
Over-current
E002 during
deceleration
Over-current
in
E003
constant speed
operation
Over voltage
E004 during
acceleration
Over voltage
E005 during
deceleration
Over voltage
in
E006 constant-speed
operating
process
T/L 3
W/L 3
Drive's
control power
Function description E007
supply over
voltage
Input phase
E008
loss
Shield terminal Output phase
E009
loss
U/T1
V/T2 M
W/T3
PE for motor
Protections of
E010
Modbus rtu
IGBT act
RS485
2:+5v
3:485+
4:485-
5:GND
Ra
Programable relay output
Rc
IGBT
module's
E011
heatsink
overheat
RS-485
Rectifier's
X4 COM
E012 heatsink
overheat
4
Possible reasons for fault Actions
Acc time is too short Prolong the Acc time
Auto-tune the parameters of
Parameters of motor are wrong
motor
Coded disc breaks down, when Check the coded disc and the
PG is running connection
Drive power is too small Select a higher power drive
Check and adjust V/F curve,
V/F curve is not suitable
adjust torque boost
Deceleration time is too short Prolong the Dec time
The load generates energy or
Connect suitable braking kit
the load inertial is too big
Coded disc breaks down, when Check the coded disc and the
PG is running connection
Drive power is too small Select a higher power drive
Acceleration /Deceleration Prolong Acceleration/
time is too short Deceleration time
Sudden change of load or
Check the load
Abnormal load
Low AC supply voltage Check the AC supply voltage
Coded disc breaks down, when Check the coded disc and the
PG is running connection
Drive power is too small Select a higher power drive
Abnormal AC supply voltage Check the power supply
Too short acceleration time Prolong acceleration time
Too short Deceleration time
(with reference to generated Prolong the deceleration time
energy)
The load generates energy or
Connect suitable braking kit
the load inertial is too big
Wrong ASR parameters, when
Refer to A5. ASR parameter
drive run in the vector control
setting
mode
Acceleration /Deceleration Prolong Acceleration/
time is too short Deceleration time
Abnormal AC supply voltage Check the power supply
Abnormal change of input
Install input reactor
voltage
Too big load inertia Connect suitable braking kit
Check the AC supply voltage or
Abnormal AC supply voltage
seek service
Any of phase R, S and T Check the wiring and installation
cannot be detected
Check the AC supply voltage
Check the drive's output wiring
Any of Phase U, V and W
cannot be detected
Check the cable and the motor
Short-circuit among 3-phase
Rewiring, please make sure the
output or line-to-ground short
insulation of motor is good
circuit
Instantaneous over-current Refer to E001~E003
Vent is obstructed or fan does
Clean the vent or replace the fan
not work
Over-temperature Lower the ambient temperature
Wires or connectors of control
Check and rewiring
board are loose
Current waveform distorted
Check the wiring
due to output phase loss
Auxiliary power supply is
damaged or IGBT driving Seek service
voltage is too low
Short-circuit of IGBT bridge Seek service
Control board is abnormal Seek service
Ambient over-temperature Lower the ambient temperature
Vent is obstructed Clean the vent
Fan does not work Replace the fan
IGBT module is abnormal Seek service
Ambient over-temperature Lower the ambient temperature
Vent is obstructed Clean the vent
Fan does not work Replace the fan
