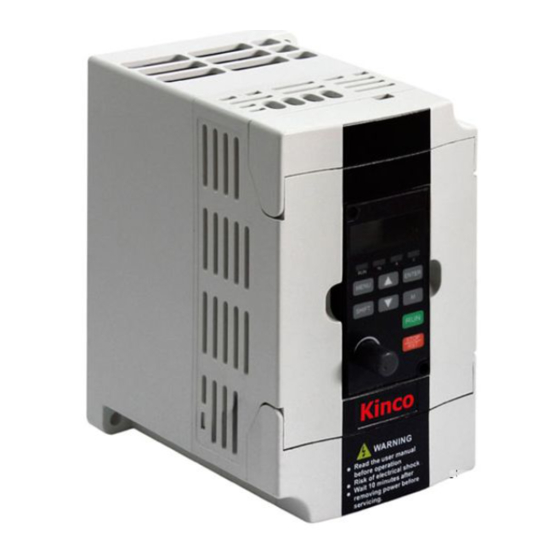

Kinco VFD CV100 Quick Start Manual

Kinco VFD CV100 Quick Start Guide Kinco VFD CV100 Quick Start Guide

BASIC FUNCTIONS

This guide wil familiarize the user with the basic functions of the CV100
Varible Frequency Drive (VFD) and assist with start up. The guide will cover
the following:

Restoring Parameters to Default

Set Speed in Digital Mode

Control Direction and Run/Stop

Connect 3 Phase AC Motor Wires to CV100-2S Motor Terminals

U (T1)
V (T2)
W (T3)

Connect Single Phase 220 VAC Power to CV100-2S Power Terminals

L (L1)
N (L2)
≡

Power on VFD

Upon initial start-up, the frequency on display should be flashing
1. Restore VFD to Factory Default. Go to B4.03
Note: This function is used to return ALL the parameter values back to default
1. Press MENU
2. Press SHIFT, press ˄ 1 time. (B) should be displayed
3. Press SHIFT, press ˄ 4 times, (4) should be displayed
4. Press SHIFT twice, Press ˄ 3 time, (3) should be displayed
5. Press ENTER
6.Press ˄ 2 times, (2) should be displayed, press ENTER
2= Factory Default
7. A0.01 Should be displayed
L011153
910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471
B4.03
A0.01
