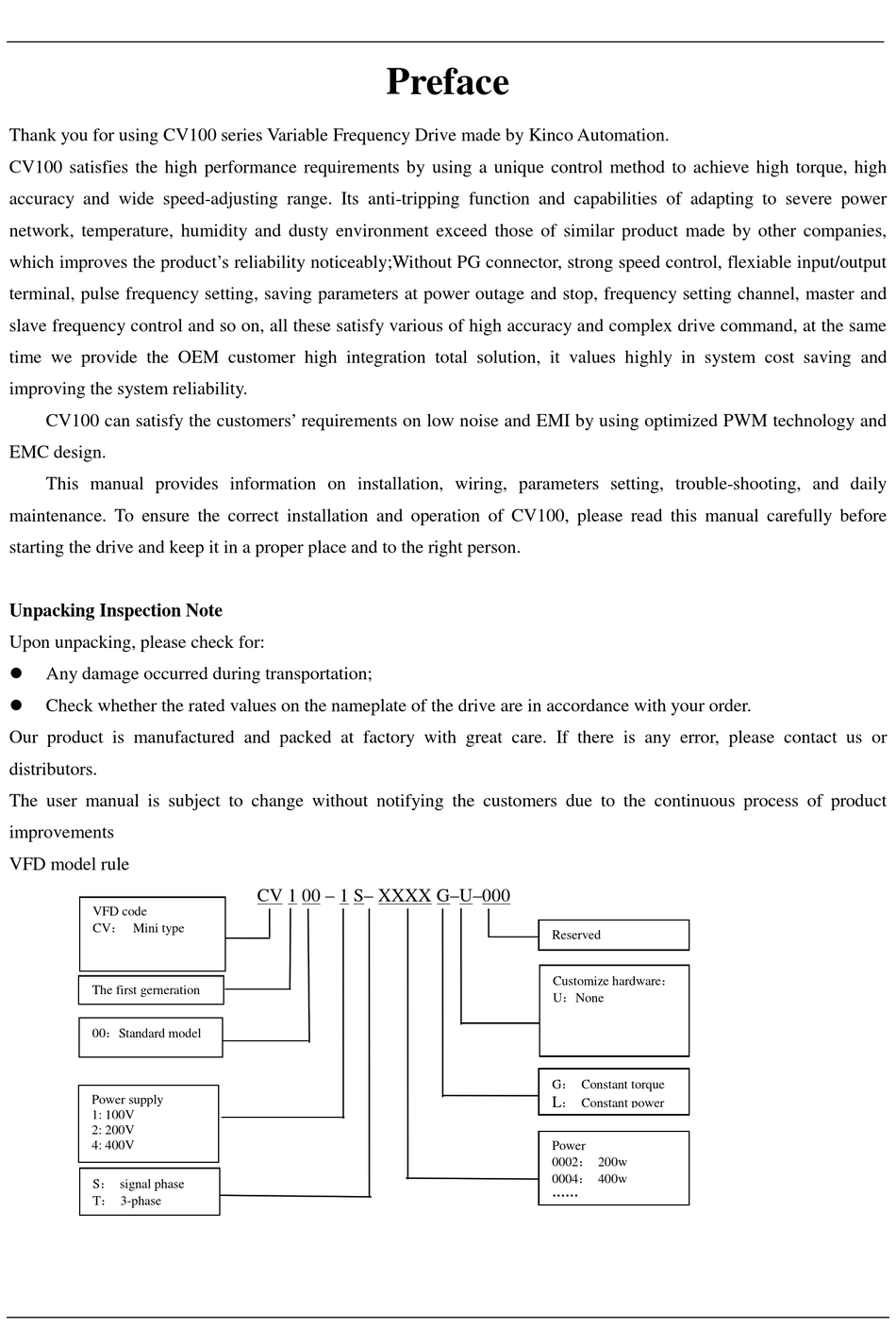

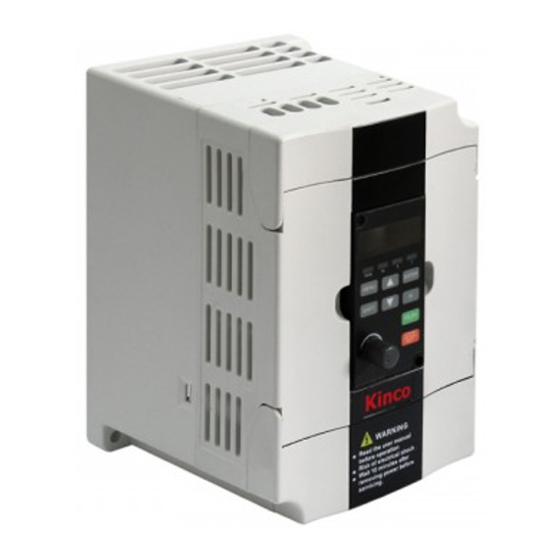

Thank you for using CV100 series Variable Frequency Drive made by Kinco Automation.
CV100 satisfies the high performance requirements by using a unique control method to achieve high torque, high
accuracy and wide speed-adjusting range. Its anti-tripping function and capabilities of adapting to severe power
network, temperature, humidity and dusty environment exceed those of similar product made by other companies,
which improves the product's reliability noticeably;Without PG connector, strong speed control, flexiable input/output
terminal, pulse frequency setting, saving parameters at power outage and stop, frequency setting channel, master and
slave frequency control and so on, all these satisfy various of high accuracy and complex drive command, at the same
time we provide the OEM customer high integration total solution, it values highly in system cost saving and
improving the system reliability.
CV100 can satisfy the customers' requirements on low noise and EMI by using optimized PWM technology and
EMC design.
This manual provides information on installation, wiring, parameters setting, trouble-shooting, and daily
maintenance. To ensure the correct installation and operation of CV100, please read this manual carefully before
starting the drive and keep it in a proper place and to the right person.
Unpacking Inspection Note
Upon unpacking, please check for:
Any damage occurred during transportation;
Check whether the rated values on the nameplate of the drive are in accordance with your order.
Our product is manufactured and packed at factory with great care. If there is any error, please contact us or
distributors.
The user manual is subject to change without notifying the customers due to the continuous process of product
improvements
VFD model rule
VFD code
CV： Mini type
The first gerneration
00：Standard model
Power supply
1: 100V
2: 200V
4: 400V
S： signal phase
T： 3-phase
Preface
CV 1 00 – 1 S– XXXX G–U–000
Reserved
Customize hardware：
U：None
G： Constant torque
： Constant power
L
Power
0002： 200w
0004： 400w
......
