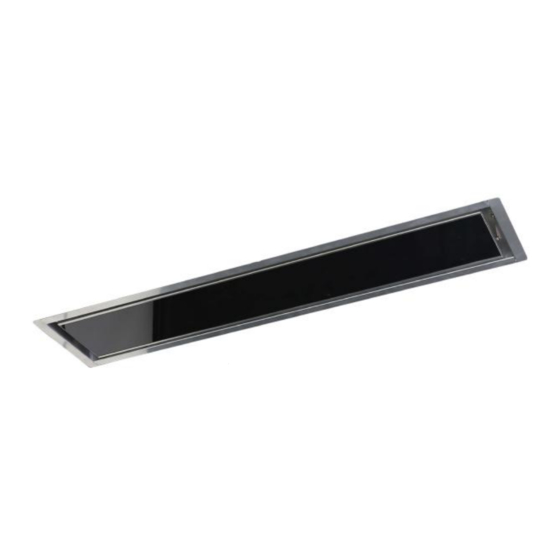

Summary of Contents for Burda PERFECTCLIME RELAX GLASS FRAME IRA IP65 1500W
Page 1
æ ndringer forbeholdt ・Fel och tekniska ändringar reserverade ・Feil og tekniske endringer reservert ・Virheet ja tekniset muutokset on varattu! Burda Worldwide Technologies GmbH – Rudolf-Diesel Straße 18 – 65760 Eschborn T: +49 6173 324240 - F:+49 6173 3242424 - info@burdawtg.de – www.burdawtg.de...
Page 2
BRELGF1500-1800 LUSH MOUNTED INSTALLATION FOR Dear Customer, please read the following information carefully before using the appliance for the first time for your own safety and to ensure correct use and installation. ESIGNATED USE Outdoor areas. NFORMATION • The Flush Mount Enclosure is an ideal way to neatly install the heater into a ceiling.
Page 3
INSTRUCTION 1. Please check if following accessories are complete before installation: Part no. Part name Heater ① Bracket for flush- ② mounted Cabinet ③ Screw ST5*30mm ④ Screw M5*10mm ⑤ 2. Hole cut-out dimensions on the ceiling is shown in figure below: 956±1.5mm 3.
Page 4
4. Fix the bracket (no.2) on the back of the heater, as per the dimension shown in the figure below: 5. Lock the bracket by tightening the 4 screws (M5*10mm) show in the figure below: 6. Fix the frame on the ceiling and fix it by 4 pcs ST5*30mm (not supplied) screws.
Page 5
7. Connect the heater to the power source, ensure the power is OFF. Ensure the power cable will not lay on the back of the heater. 8. Lift the heater into the frame, ensuring the brackets go through the cut holes on the top of the frame shown in figure below: 9.
