PAX E700 - Integrated Smart Terminal Quick Setup Guide

Contents Checklist

Please check the components after unpacking. If any are missing, please contact the dealer.

Qty Part
1 E700
1 AC Power Adapter
1 AC Power Cable
1 Thermal Paper Roll
1 Quick Setup Guide

Product Description

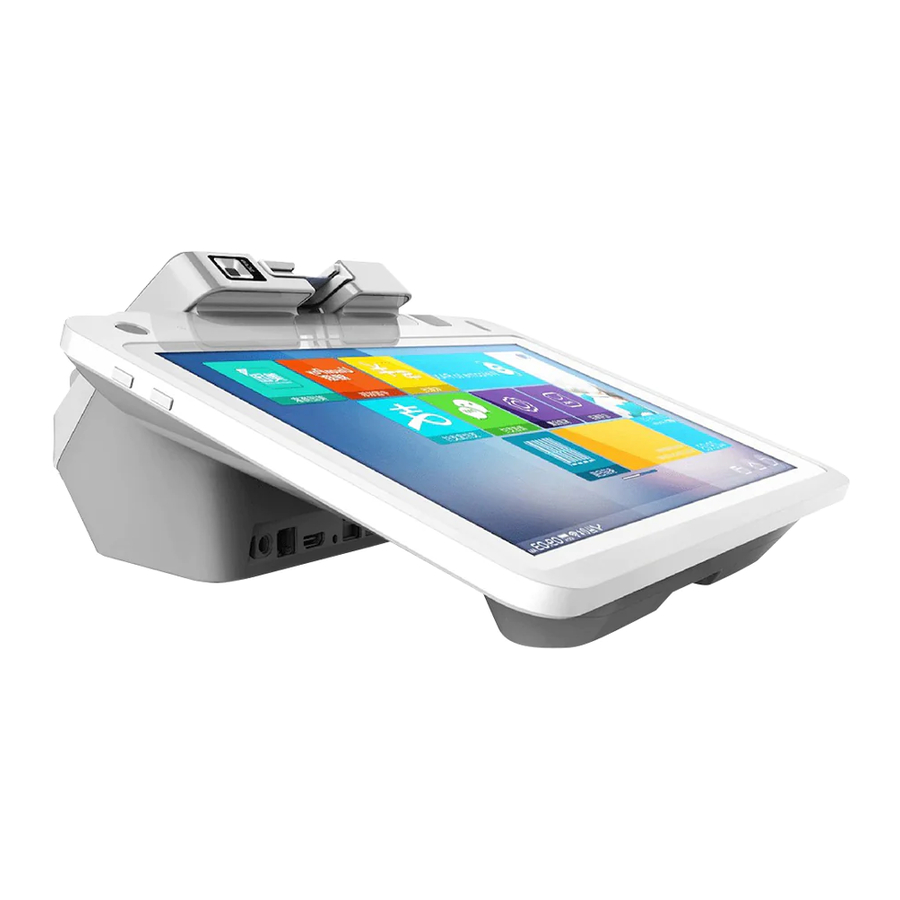

Front View Product Description - ViewPorts ViewSide View

Terminal Ports

The following ports are accessible on the back of the E700:

  • Power – Connect AC power supply to E700
  • Cash Drawer – Insert the cable from cash drawer to connect with cash register
  • HDMI – Connect to HDMI device
  • Audio Jack – Allows hearing impaired to connect assistive listening device
  • USB Host – Connect USB device
  • RS232 – Used to connect to serial device such an external POS device
  • USB-Slave – Connected to PC for local terminal download
  • LAN – Used for bi-directional Ethernet connections

Open the back cover to access following ports:

  • SD Card Slot – Open card cover, remove battery and insert card into SD card slot
  • SIM Card Slot – Open card cover, remove battery and insert SIM card into SIM slot to connect to cellular carrier's network.

Power ON/OFF

Power on: Press and hold the Power button for three seconds until the main screen displays normally.
Power off: Press and hold the Power button for three seconds until the shutdown menu displays. Select Power off. The terminal turns off after a few seconds

Hybrid Card Reader

The Q20 on the consumer-facing side of the E700 includes a reader that can be used as a Magnetic Stripe, EMV, and NFC/Contactless card reader.
Hybrid Card Reader

Magnetic Stripe Reader
Insert the card into the reader slot located on the top of the Q20. The terminal reads the information from the card when the magnetic stripe is inserted into the card slot.
EMV Card Reader
Insert the card with the front facing you and the chip down into the card slot. Leave the card inserted until the terminal prompts to remove the card.
NFC/Contactless Card Reader
Tap the card to the Q20 screen when prompted. The terminal uses an antenna device that detects and retrieves information from the card.

Specifications

Operation System: Android 7.1
CPU: Quad-core Cortex™-A53,1.8GHz
Memory: 2GB DDR+16GB eMMC
Main Display: 12.5 inch, 1920x1080 resolution, capacitive touch screen
Printer: 3" high-speed thermal printer with auto-cutter, printing
speed 150mm/s, paper width 80mm, diameter 80mm
Audio: Built-in speaker, support headphone output
Camera with scan window: (coverage of 30mm-120mm) for 1D/2D scan
  • Front fixed focus camera with 0.3 mega pixels (cashier- facing)
  • Rear fixed focus camera with 2 mega pixels (customer- facing)
L-Sensor (Ambient Light Sensor): Automatically adjusts the backlight brightness of the main display
Wireless Communication: Supports LAN, WIFI, Bluetooth, 4G
Peripheral Ports: Power port x 1
USB A ports x 4
USB C port x 1

HDMI x 1
LAN x 1
Cash drawer x 1
Serial port x 1
Audio jack x 1
Card Slot: SIM card slot x 1
Micro SD card slot x 1
Magnetic Card Reader: Supports track 1/2/3.
IC Card Reader: Conforms to the standard ofISO7816, EMV2000 L1&L2, PBOC3.0
Contactless Card Reader: Compatible with ISO14443 Type A&B

Load Printer Paper

  1. When the printer is out of paper, the yellow "Paper Out" indicator lights. Press the button on the left of printer to open the cover.
    Load Printer Paper - Step 1
  2. Load the paper roll into the paper compartment and extend the end of the paper out of the printer.
    Load Printer Paper - Step 2
  3. Close printer cover. The Paper Out indicator light turns off.
    Load Printer Paper - Step 3

Installation and Usage Tips

  • Avoid exposing the device to an excessively hot, humid, dusty, or strong electromagnetic environment.
  • Do not vibrate, shake, or drop the device.
  • Do not plug or unplug any part of the device while it is powered on. This may cause damage to an internal circuit.
  • Please contact PAX technical support for assistance with the device.


Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

This document is provided to you for informational purposes only. All features and specifications are subject to change without notice. PAX's name and PAX's logo are registered trademarks of PAX Technology Inc. All rights reserved.

Responsible Party:
PAX Technology, Inc.
8880 Freedom Crossing Trail
Building 400, 3rd Floor, Suite 300
Jacksonville, FL 32256, USA
Help Desk 1-877-859-0099
www.pax.us

Note: Product images shown may be different than actual product received
