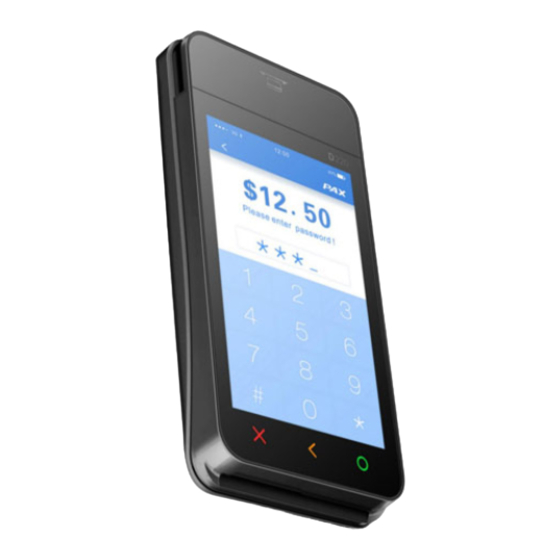

PAX D220 User Manual

1. Installation

Micro SAM/SIM Card：
a) Remove the bottom cover.
b) Insert the Micro SAM/SIM card to the corresponding card slot.

2. Instructions

1) Power ON/OFF
Power on: Plug in power adapter, Press Power ON/OFF button for 5 seconds, and then PAX
LOGO will display on LCD.
Power off: Press Power ON/OFF button for 3 seconds until Shutting down... can be seen.
Forced shutdown：Press Power ON/OFF button more than 6 seconds，until the screen no
display, that is forced to shut down.
2) IC Card
Put IC card chip side upward, push-in IC card slot and to bottom.
3) Contactless Card
The card read area is above the LCD, Put the card above the LCD.
4) Battery Charge display
Connecting USB port with external adapter can charger battery. And there are charging
display.
5) Battery Charge style
Please use the original adapter instead of pc usb port if you need to charge.

3. Installation and Usage Tips

1）Avoid putting the terminal in direct sunlight, high temperature, moist, or dusty environment.
2）Forbid non-professional to repair the terminal.
3）Before insert the card, please check internal and around of IC card slot. when you found some
suspicious objects , must report to related administrator.

4. Lithium Ion Battery Usage Tips

1) In order to prolong the battery life, the terminal needs to charge at least once in 3 months..
2) Avoid putting the battery in sunlight or smoke, dusty environment.
3) Forbid crushing, treading ,throwing the battery into fire or liquid.
4) Replace the battery immediately if it is damaged(exothermic or distorted).
5) It is recommended changing battery that used more than two years.

5. Specifications

1) CPU
2) Memory
3) Display
4) Keypad
D220 Wireless POS Terminal
32-bit, ARM Cortex-A9, 1.25 GHz
512MB FLASH, 512MB SDRAM
4" TFT, 480 x 800 pixels
Enter, Cancel, Clear (Touch key)
