Quick Start Guide
N3G001W
3G Wireless Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N3G001W and is the answer not in the manual?

Questions and answers

Related Manuals for NetComm N3G001W

Summary of Contents for NetComm N3G001W

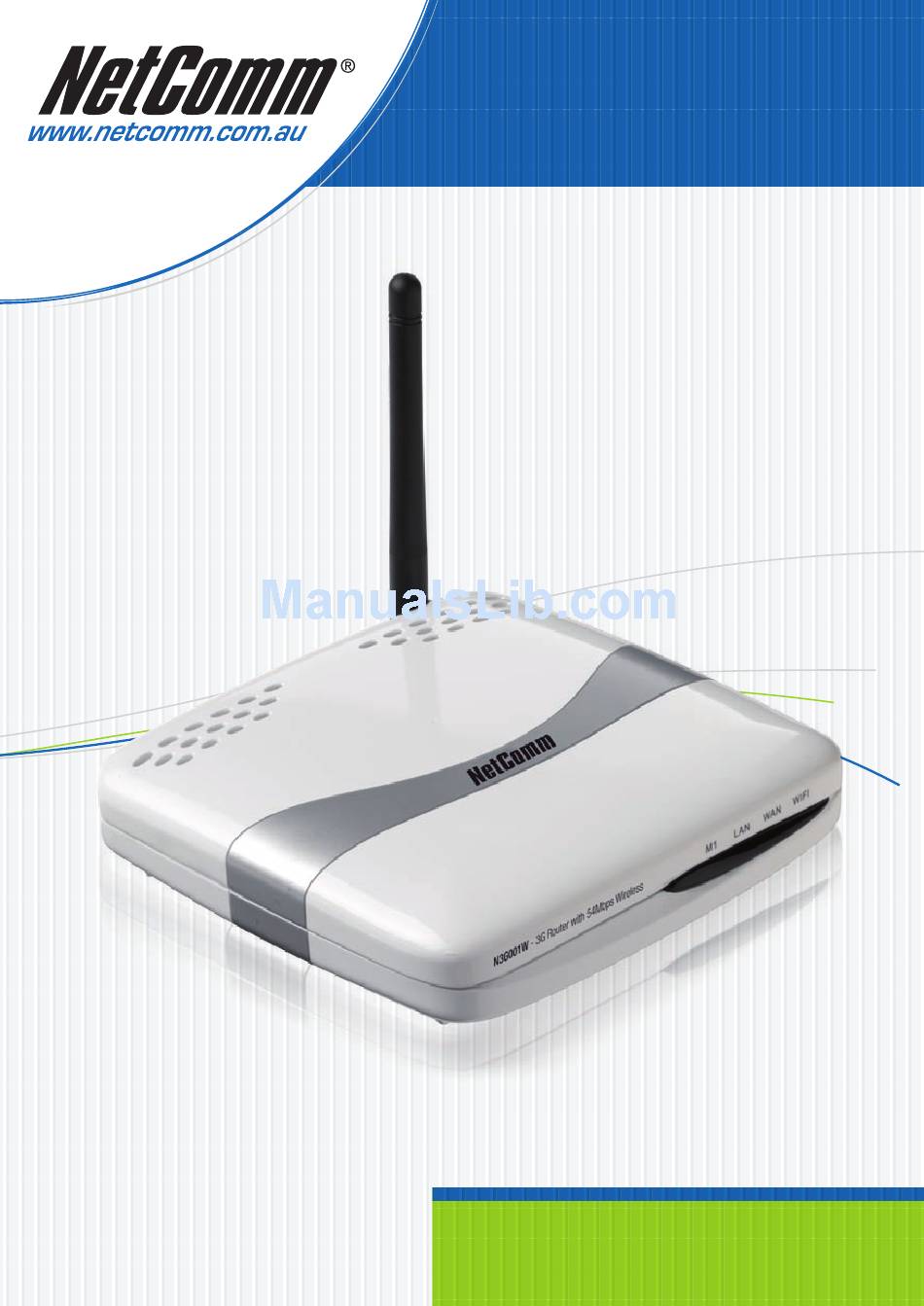

  • Page 1 Quick Start Guide N3G001W 3G Wireless Router...

  • Page 2: Table Of Contents

    Windows® XP PCs ...6 Windows 2000 PCs ...7 Windows Me PCs ...7 Windows 95, 98 PCs ...8 Windows Vista ...8 Mac OSX 10.4 ...9 Chapter 3. Using the N3G001W configuration Wizard ...10 N3G001W 3G Wireless Router Quick Start Guide YML868Rev1 www.netcomm.com.au...

  • Page 3: Chapter 1 Installation

    Chapter 1 INStallatIoN Connect the N3G001W Wireless Router to Your Network Note: DO NOT connect N3G001W 3G Wireless Router to power before performing the installation steps below. Step1. Attach the antenna. Remove the antenna from its plastic wrapper. Screw the antenna in a clockwise direction to the back panel of the unit.
  • Page 4 Insert your wireless Type II 3G card (either 16-bit or 32-bit ) into the WAN PCMCIA Card Slot. Note: The N3G001W 3G Wireless Router is designed to work with either UMTS, EV-DO or HSDPA 3G cards that can be used as modems (support tethered data).
  • Page 5 Step 4. Connect the power adapter to the port on the back panel of your N3G001W 3G Wireless Router. Then plug the other end of the power adapter into a wall outlet or power strip. The M1 LED will turn ON to indicate that the unit is powered on.

  • Page 6: Chapter 2 Setting Up Your Computer

    Chapter 2 SettING Up yoUr CompUter Having physically connected your N3G001W, the next step is to configure the router to establish a broadband connection. Depending on your computers current settings you may first need to reconfigure the TCP/IP (Network Settings) to access your 3G Wireless Router.

  • Page 7: Windows 2000 Pcs

    In the TCP/IP Settings dialog box, click the radio button labeled Obtain an IP address automatically. Click OK twice to confirm and save your changes, and then close the Control Panel. YML868 Rev1 www.netcomm.com.au N3G001W 3G Wireless Router Quick Start Guide N3G001W 3G Wireless Router Quick Start Guide...

  • Page 8: Windows 95, 98 Pcs

    In the Internet Protocol Version 4 (TCP/IPv4) properties dialog box, click the radio button labeled Obtain an IP address automatically. Also click the radio button labeled Obtain DNS server address automatically. Click OK twice to confirm your changes and close the Control Panel. N3G001W 3G Wireless Router Quick Start Guide YML868Rev1 www.netcomm.com.au...

  • Page 9: Mac Osx 10.4

    Set Location to Automatic and Show to Built In Ethernet. Click on TCP/IP tab. In the Configure option, choose Use DHCP with automatic address. Click on Apply Now. YML868 Rev1 www.netcomm.com.au N3G001W 3G Wireless Router Quick Start Guide N3G001W 3G Wireless Router Quick Start Guide...

  • Page 10: Chapter 3 Using The N3G001W Configuration Wizard

    Having physically connected your N3G001W, the next step is to establish the broadband connection to the internet. Please follow the steps below to configure your N3G001W router via the web configuration wizard utility. Open your web browser (e.g. Internet Explorer/Firefox/Safari) and navigate to http://192.168.123.254/ At the login screen, type in “admin”...
  • Page 11 This page shows you the steps needed to configure your N3G001W unit. Click Next to continue. This page allows you to change the web configuration login password. To change the password, enter the old password (default is “admin”) and enter the new password. You also need to enter the new password in the Reconfirm field.
  • Page 12 After choosing 3G, you need to enter the information below, this will have been provided to you by your 3G broadband service provider. Click Next once you finished. Notes: This example shows Bigpond Next G connection settings. Note that you do not have to change the LAN IP address. N3G001W 3G Wireless Router Quick Start Guide YML868Rev1 www.netcomm.com.au...
  • Page 13 Next Notes: Please refer to the user guide for more information regarding wireless security and how to utilize wireless security on your network. YML868 Rev1 www.netcomm.com.au N3G001W 3G Wireless Router Quick Start Guide N3G001W 3G Wireless Router Quick Start Guide...
  • Page 14 After several minutes the N3G001W will save all the settings and the wizard is complete. Click Finish to go back to the Status page and the unit will now use the new settings.
  • Page 15 If everything is configured properly, the System Status page will show that your 3G service is online and the WAN IP address that has been assigned. For Advanced Configuration please refer to the User Guide on the supplied CD Rom. YML868 Rev1 www.netcomm.com.au N3G001W 3G Wireless Router Quick Start Guide N3G001W 3G Wireless Router Quick Start Guide...

  • Page 16: Contact Information

    Note: NetComm Technical Support for this product only covers the basic installation and features outlined in the Quick Start Guide. For further information regarding the advanced features of this product, please refer to the configuring sections in the User Guide or contact a Network Specialist.
