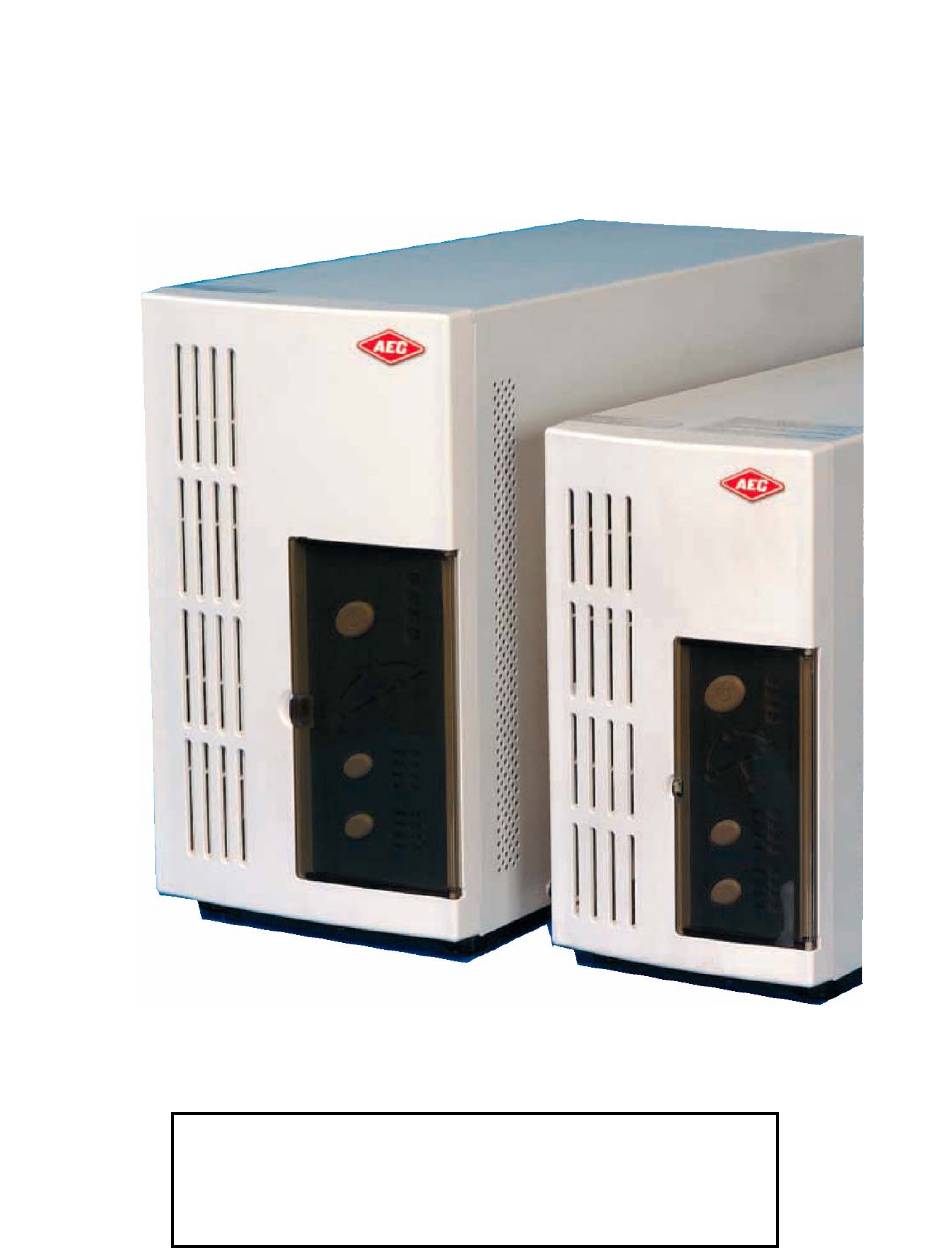

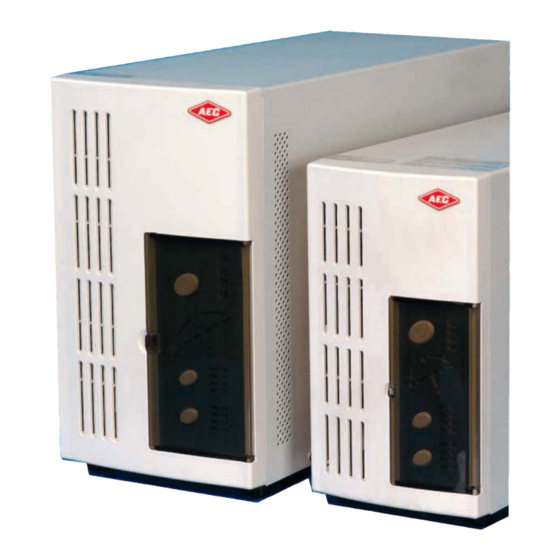

- Page 1 NS Series Uninterruptible Power Supply User Manual NS1500/2200/3000-1T SAVE THIS MANUAL This manual contains important instructions that should be followed during installation, operation, and storage of this UPS. Please read these instructions carefully before installation and start-up of the UPS.
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ________________________________________________________1 2. Safety Instructions __________________________________________________4 3. Installation _________________________________________________________6 3.1 Unpacking _______________________________________________________6 3.2 Installation ______________________________________________________6 4. Operation __________________________________________________________7 4.1 Control Panel ____________________________________________________7 4.2 Turn On the UPS__________________________________________________7 4.3 Turn Off the UPS__________________________________________________7 4.4 LED Indicators ___________________________________________________8 4.5 Control Panel Buttons _____________________________________________8 4.6 Audible Alarms __________________________________________________10 4.7 Communications Interface ________________________________________11... -
Page 3: Introduction
User Manual NS1500/2200/3000-1T 1. Introduction The NS series UPS are advanced true On-Line uninterruptible power supplies which produce reliable and pure sine-wave power to equipment, ranging from computers and telecommunication systems to industrial automated equipment. The On-Line design enables the UPS to adjust and filter power fluctuations continuously and automatically under normal power conditions. - Page 4 User Manual NS1500/2200/3000-1T Control Panel Front & Rear Panel of NS1500 Rear Panel of NS1500 Rev. 11/2005...
- Page 5 User Manual NS1500/2200/3000-1T Standard Outlets of NS1500 Standard Outlets of NS2200/NS3000 Rev. 11/2005...
-
Page 6: Safety Instructions
User Manual NS1500/2200/3000-1T 2. Safety Instructions This manual contains important instructions that should be followed during installation, operation, maintenance, and storage of this UPS. IMPORTANT SAFETY WARNINGS AND INFORMATION WARNING! DO NOT USE FOR LIFE-SUPPORT EQUIPMENT • DO NOT use this UPS for applications in which a malfunction or failure of the UPS would cause failure or alter the performance of a life-support equipment. - Page 7 User Manual NS1500/2200/3000-1T • Do not connect inductive loads, such as laser printers, to the UPS. BATTERY WARNING • This UPS contains a sealed lead-acid battery. DO NOT open the battery. • DO NOT short or bridge the battery terminals with any object. •...
-
Page 8: Installation
User Manual NS1500/2200/3000-1T 3. Installation 3.1 Unpacking Examine the packing carton for damage. Notify the carrier immediately if damage is present. Retain the package for future use. 3.2 Installation 1. Before making any connection and switching on the UPS, please check the following conditions: (1) your AC power source should be 120 volts and 60Hz and (2) all the equipment connected to the UPS does not exceed the maximum output power of the UPS (as indicated on the UPS rear panel and specifications shown... -
Page 9: Operation
User Manual NS1500/2200/3000-1T 4. Operation 4.1 Control Panel 4.2 Turn On the UPS 1. Turn on the utility power to the UPS. 2. Turn on the input switch from the rear panel. 3. The UPS begins its auto-start sequence. This takes about ten seconds. 4. -
Page 10: Led Indicators
User Manual NS1500/2200/3000-1T 4.4 LED Indicators FAULT – UPS is abnormal. CHARGER – Charger is working. PFC OL – Input current too large due to low input utility power. GREEN – UPS is in green mode. LINE – Utility power is normal. Input relay is in closed state. BOOST –... - Page 11 User Manual NS1500/2200/3000-1T 10 seconds, then the batteries are good. If it does not, then the batteries need to be replaced. Contact your sales representative for assistance. SET – When the utility power is unstable, pressing this button will silence the audible alarm.
-
Page 12: Audible Alarms
User Manual NS1500/2200/3000-1T 5. When finished, press the FUNCTION and SET buttons at the same time for 1 second to exit the special functions settings. A short audible beep will sound and return the control panel to its normal display. 6. -
Page 13: Communications Interface
(A) RS232 ISOP interface Card NOTE: An SNMP card will not work with the standard RS232 card which comes with the NS series UPS. If you want to use an SNMP card, then the RS232 card must be replaced by a RS232 ISOP card. - Page 14 User Manual NS1500/2200/3000-1T (B) RS232 Interface Card Software UPSilon 2000 SPECIAL Cables PC Cables 9 pin Cables Non-standard standard MS-Windows 95/98/NT/2000/Me/XP Supported Novell NetWare v3.x, v4.x, v5.x Linux / FreeBSD RS232 Card (C) Optional DB9 ISOP Interface Card Rev. 11/2005...
- Page 15 User Manual NS1500/2200/3000-1T (A) PIN Definition of DB9 for Mechanical Dry Contact interface (Optional DB9 ISOP interface card) PIN# of DB9 FUNCTION BATTERY POWER FAILURE REMOTE SHUTDOWN UPS FAULT (B) SPECIAL CABLE (RUPS 2000) PIN# (UPS) PIN# (PC) 4, 7 Software RUPS2000 9 pin Cables...
- Page 16 User Manual NS1500/2200/3000-1T (D) DB9 interface card (A) Pin Definition of DB9 for NOVELL Interface: (Optional DB9 interface card) PIN # of DB9 Function explanation POWER FAILURE - normally open state, will OUTPUT become closed during active state. POWER FAILURE - normally closed state, will OUTPUT become open during active state.
-
Page 17: Storage
User Manual NS1500/2200/3000-1T Software RUPS2000 9 pin Cables SPECIAL Cables Non-standard Windows95,98,NT,2000,ME,XP Supported Novell Net Ware3.1x,4.x,5.x /MS-DOS / Linux DB9 Card J9 J10 Function PIN of J# Definition FAULT RY1 Normal open RY2 Normal close LOW BAT Function PIN of J# Definition For LCD Panel SELECT... -
Page 18: Troubleshooting
User Manual NS1500/2200/3000-1T 6. Troubleshooting Please follow the guidelines below for trouble shootings in advance: 1. Check UPS input plug and wiring. 2. Check UPS input voltage. When contacting service personnel, please have the following information: 1. Date of occurrence. 2. - Page 19 User Manual NS1500/2200/3000-1T Problem Possible Cause Action Code After AC connected to UPS, alarm sounds short and AC abnormal Check utility power 1001 fast beeps and UPS shut down After starting the Check utility power or battery AC noise or environment noise 1101 UPS, alarm sounds wires...
-
Page 20: Specifications
User Manual NS1500/2200/3000-1T 7. Specifications The principal operating characteristics of the NS series UPS at 77°F (25°C) ambient operating temperature are shown below. MODEL NS1500-1T NS2200-1T NS3000-1T INPUT Voltage 80~138V 80~138V 80~138V Frequency 50/60±5Hz OUTPUT Power 1500VA/1050W 2200VA/1540W 3000VA/2100W 100V...
