Summary of Contents for AEC ST3200
-

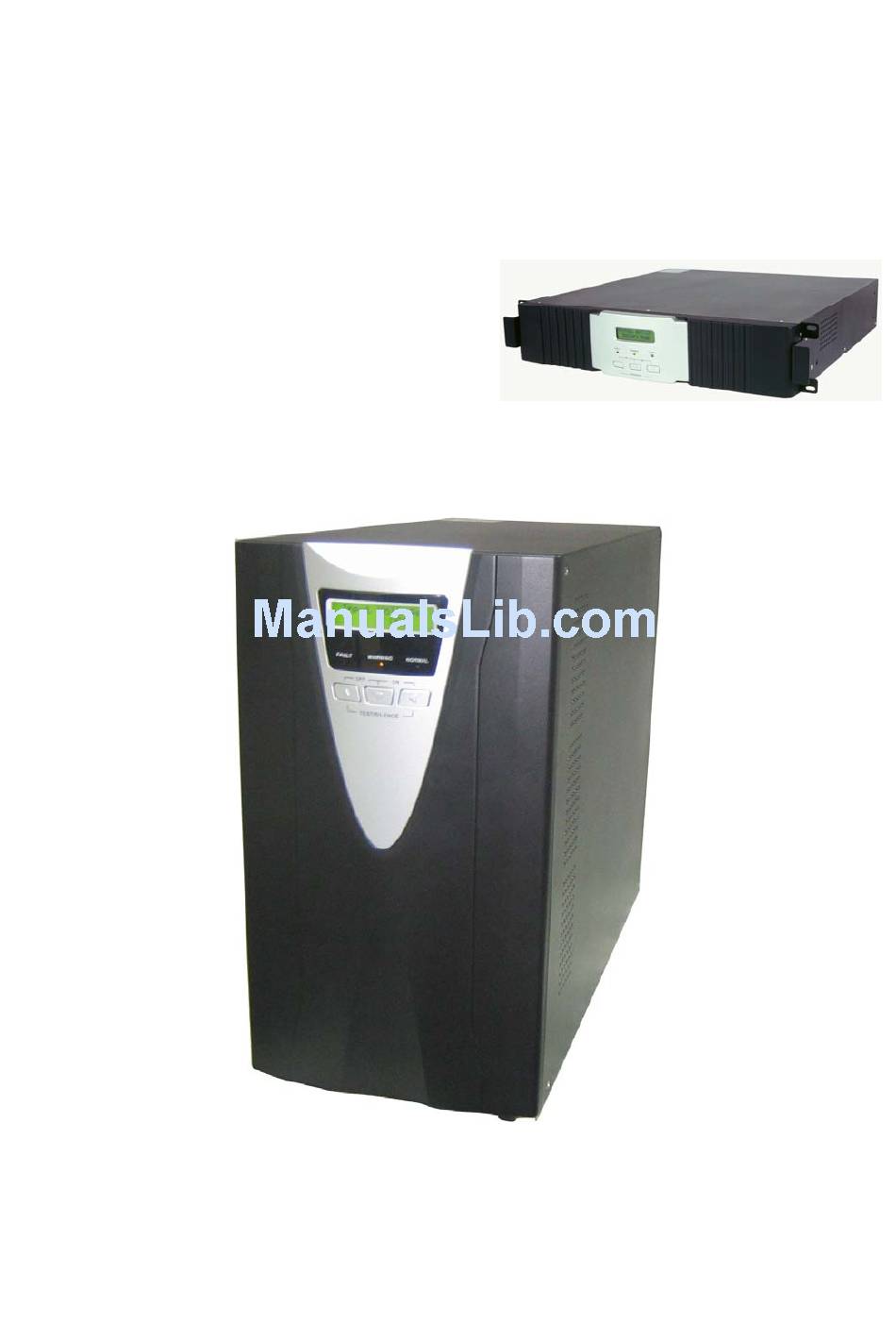

Page 1: User Manual
User Manual 1kVA ~ 3kVA 220VAC... -
Page 2: Table Of Contents
User Manual 1-3kVA Rev. 9 Contents 1.1 General Description ....................1 1.2 System Configuration................... 2 Tower ....................……… 2 Rack-Mount ....................3 1.3 Front Panel ......................4 1.3.1 Tower ......................4 ..................................1.3.2 Rack-Mount ....................5 1.4 Rear Panel......................6 Tower ...................... -
Page 3: User Manual 1-3Kva Rev
User Manual 1-3kVA Rev. 9 Important Safety Instructions SAVE THESE INSTRUCTIONS. This UPS unit operates from utility power and contains a number of high current back-up batteries, the information is important to all personnel involved. Please read this manual before installation and operation of the UPS. Safety of Persons Opening or removing the cover of the unit may expose you to lethal voltage within the unit, even if it is apparently not in operation and the input wiring is disconnected from the electrical source. -
Page 4: General Description
User Manual 1-3kVA Rev. 9 1. Presentation 1.1 General Description The continuity of electrical power is an essential requirement for critical load operations .The Uninterruptible Power System (UPS) is a compact and quiet solution for power protection of computer, server and office equipment. To choose the UPS as your equipment protector is a wise investment as it supplies reliable, pure and stable power at an affordable price. -
Page 5: System Configuration

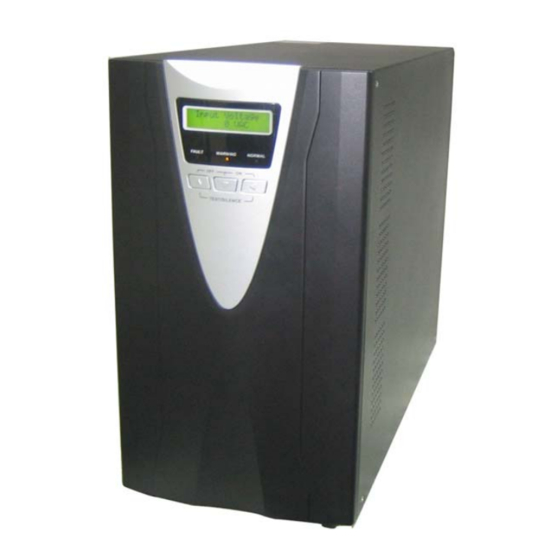

User Manual 1-3kVA Rev. 9 1. Presentation 1.2 System Configuration Tower 1kVA: 160W x 220H x 400D mm / 15 kgs 2kVA: 200W x 352H x 450D mm / 34 kgs 3kVA: 200W x 352H x 450D mm / 35 kgs - Page 2 of Total 30 -... -
Page 6: Rack-Mount
User Manual 1-3kVA Rev. 9 1. Presentation Rack-Mount 1kVA: 440W x 88H x 465D mm / 15.5 kgs 2kVA: 440W x 88H x 465D mm / 35 kgs 3kVA: 440W x 88H x 465D mm / 36 kgs - Page 3 of Total 30 -... -
Page 7: Front Panel
User Manual 1-3kVA Rev. 9 1. Presentation 1.3 Front Panel 1.3.1 Tower 1 2 3 4 1. 2-line LCD Display 2. Normal LED (green) 3. Warning LED (yellow) 4. Fault LED (red) 5. Select-up button 6. Select-down button 7. Enter button 5-6. -
Page 8: Rack-Mount
User Manual 1-3kVA Rev. 9 1. Presentation 1.3.2 Rack-Mount 1 2 3 4 1. 2-line LCD Display 2. Normal LED (green) 3. Warning LED (yellow) 4. Fault LED (red) 5. Select-up button 6. Select-down button 7. Enter button 5-6. Off button 6-7. -
Page 9: Rear Panel
User Manual 1-3kVA Rev. 9 1. Presentation 1.4 Rear Panel Tower ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ 1kVA 2kVA 3kVA 1. -
Page 10: Rack-Mount
User Manual 1-3kVA Rev. 9 1. Presentation Rack-Mount 1kVA ○ ○ ○ ○ ○ ○ ○ ○ ○ 2kVA ○ ○ ○ ○ ○ ○ ○ ○ ○ 3/2(long run time)kVA ○ ○ ○ ○ ○ ○ ○ ○ ○ ○... -
Page 11: External Battery Bank Or Module
User Manual 1-3kVA Rev. 9 1. Presentation External Battery Bank or Module For Tower Product ranges: For Rack-Mount product ranges: - Page 8 of Total 30 -... -
Page 12: Installation
User Manual 1-3kVA Rev. 9 2. Installation 2.1 Unpacking You may find the “series number” labeled on both shipping box and UPS rear panel. If the UPS has a problem please send the number to your sales representative for tracking and troubleshooting. The ST Series UPS can be supplied in a varied number of boxes depending upon the model ordered. - Page 13 User Manual 1-3kVA Rev. 9 2. Installation ST Series 1-3kVA Rack Mount Box 1 Shipping Box Includes: 1. UPS 2. User Manual 3. Input Power Cord (German, British, Australian) 4. Extension Power Cord (IEC) to PC (for output receptacles “IEC” only) 5.
-
Page 14: Installation
User Manual 1-3kVA Rev. 9 2. Installation 2.2 Installation Tower Optional Communication Slot Standard RS232 to PC AS400 RJ45 protection for Tel/Fax/Modem/DSL Remote control To external battery cabinet Output to the loads To the wall socket SNMP/HTTP Rack-Mount To the wall socket Optional Communication Slot Output to the load To external battery... -
Page 15: Connection To Communication
User Manual 1-3kVA Rev. 9 2. Installation 2.3 Connection to communication 2.3.1 Standard RS-232 The communication interface (DB9 port) on the back of the UPS may be connected to a host computer with specific monitoring software installed. (Please contact a sales representative for further information of monitor software) The pins of the connector are as following: PIN #... -
Page 16: Optional Interface Cards
User Manual 1-3kVA Rev. 9 2. Installation 2.3.2 Optional Interface Cards A variety of interface cards can be installed into optional communication slot such as DB9 Dry Contact Card, USB Card, AS400 Card, and SNMP/HTTP Card. USB Card DB9 Dry Contact Card Pin Definition of DB9 for NOVELL Interface PIN # of DB9 Function explanation... -
Page 17: As400 Card
User Manual 1-3kVA Rev. 9 2. Installation AS400 Card SNMP/HTTP Agent NetAgent Mini allows a user to obtain the status, and issue commands to the UPS. The communications protocol includes the MegaTec/ PPC/ SEC 2400 / 9600. Also it is possible to build in your own protocol. -
Page 18: Operation
User Manual 1-3kVA Rev. 9 3. Operation 3.1 LCD and LED Display “Select-Down” Key: “Select-Up” Key: The welcome screen only shows for 10 seconds as UPS starts up, after that the “UPS Status” will show on the display. The screen should go back to “UPS Status” if you do not push any buttons for 2 minutes. - Page 19 User Manual 1-3kVA Rev. 9 3. Operation Display 5 – Battery Voltage/ Capacity Battery Voltage 37 VDC Battery Capacity 100 % Display 6 – Output Power Output Power 100 % Display 7 – Inside Temperature Inside TEMP 33 ℃ 91 ℉ Display 8 –...
-
Page 20: Led
User Manual 1-3kVA Rev. 9 3. Operation 6 7 8 9 10 2 3 4 5 1. Line LED (green): This indicates the AC power is applied to the UPS input. If the LED blinks, it means the AC power source is out of tolerance. 2. -
Page 21: Starting Up/ Shutting Down The Ups
User Manual 1-3kVA Rev. 9 3. Operation 3.2 Starting up/ Shutting down the UPS Starting up the UPS Step 1. Plug the UPS into an AC wall socket and the UPS will enter Bypass mode. Step 2. Press the “Select-down” & “Enter” button simultaneously to switch on UPS. The UPS will begin its start-up process. -
Page 22: Operating Modes
User Manual 1-3kVA Rev. 9 3. Operation 3.3 Operating Modes Normal Mode There are two main circuits when AC utility is normal: the AC circuit and the battery charging circuit. The AC output power comes from AC utility input and passes through AC/DC rectifier, DC/AC inverter and static switch to support power to load. - Page 23 User Manual 1-3kVA Rev. 9 3. Operation Bypass Mode Under the following conditions, the bypass will be enabled: 1. Overload. 2. Inverter failure. 3. Over-temperature - Page 20 of Total 30 -...
-
Page 24: Configuration Settings
User Manual 1-3kVA Rev. 9 3. Operation 3.4 Configuration Settings UPS must be working on Bypass Mode in advance for any setting, because the setting function can not be available on Normal Mode and Battery Mode. Output Voltage / Frequency Step 1. -
Page 25: Bypass Voltage
User Manual 1-3kVA Rev. 9 3. Operation Bypass Voltage UPS must be working on Bypass Mode in advance for any setting, because the setting function can not be available on Normal Mode and Battery Mode. Step 1. To protect the load, the function of bypass auto-transfer is activated only when the AC main voltage is within the range of LO (low) and HI (high). -
Page 26: Maintenance
User Manual 1-3kVA Rev. 9 4. Maintenance 4.1 General Maintenance The ST Series UPS requires only very simple maintenance. The batteries are sealed, valve-regulated, maintenance-free and enclosed in a fire-retardant pack. The batteries should be kept charged to maintain their designed lifetime. When utility power is supplied to the UPS, it will continuously charge the batteries. -
Page 27: Replacing The New Battery
User Manual 1-3kVA Rev. 9 4. Maintenance 4.2 Replacing the New Battery This UPS contains potentially hazardous voltages. Do not open the UPS. There are no user-serviceable parts inside. When replacing the battery, use the same number and voltage(V) /capacity(Ah). Avoid harm to the environment: proper disposal or recycling of the batteries is required. -
Page 28: Troubleshooting
User Manual 1-3kVA Rev. 9 5. Troubleshooting LCD & LED Status / Possible Cause Action Audible Alarms 1. Fan fail. Replace the fan. AC: OK BATT: OK 2. Temperature is Reduce ambient TEMP Fail higher than temperature or O/P load. Fault Warning Normal... -
Page 29: Lcd Led
User Manual 1-3kVA Rev. 9 5. Troubleshooting LCD & LED Status / Possible Cause Action Audible Alarms 1. Overload. 1. Please reduce the load less Output Power than 100%. 125 % Fault Warning Normal AC utility power is normal but UPS is overloaded up to 125%. - Page 30 User Manual 1-3kVA Rev. 9 5. Troubleshooting LED Status / Possible Cause Action Audible Alarms No indication and 1. No input voltage Check building wiring buzzer alarm even socket outlet and input though system is cable. connected to mains power supply.
-
Page 31: Appendix
User Manual 1-3kVA Rev. 9 6. Appendix 6.1 Specifications General Specification Specifications ST3200 (tower) ST3200 (tower) ST3200 (tower) Model No. ST3200R (rack-mount) ST3200R (rack-mount) ST3200R (rack-mount) Topology True On - Line , Double Conversion On- battery Output Waveform Pure Sine Wave Number of Phase Single ( 1 Φ... -
Page 32: Battery Run Time
User Manual 1-3kVA Rev. 9 6. Appendix Battery Run Time Tower RUN TIME CHART in Minutes Output load 200 VA 400 VA 600 VA 800 VA 1000 VA 1500 VA 2000 VA 2500 VA 3000 VA (140 W) (280 W) (420W) (560W) (700 W)
