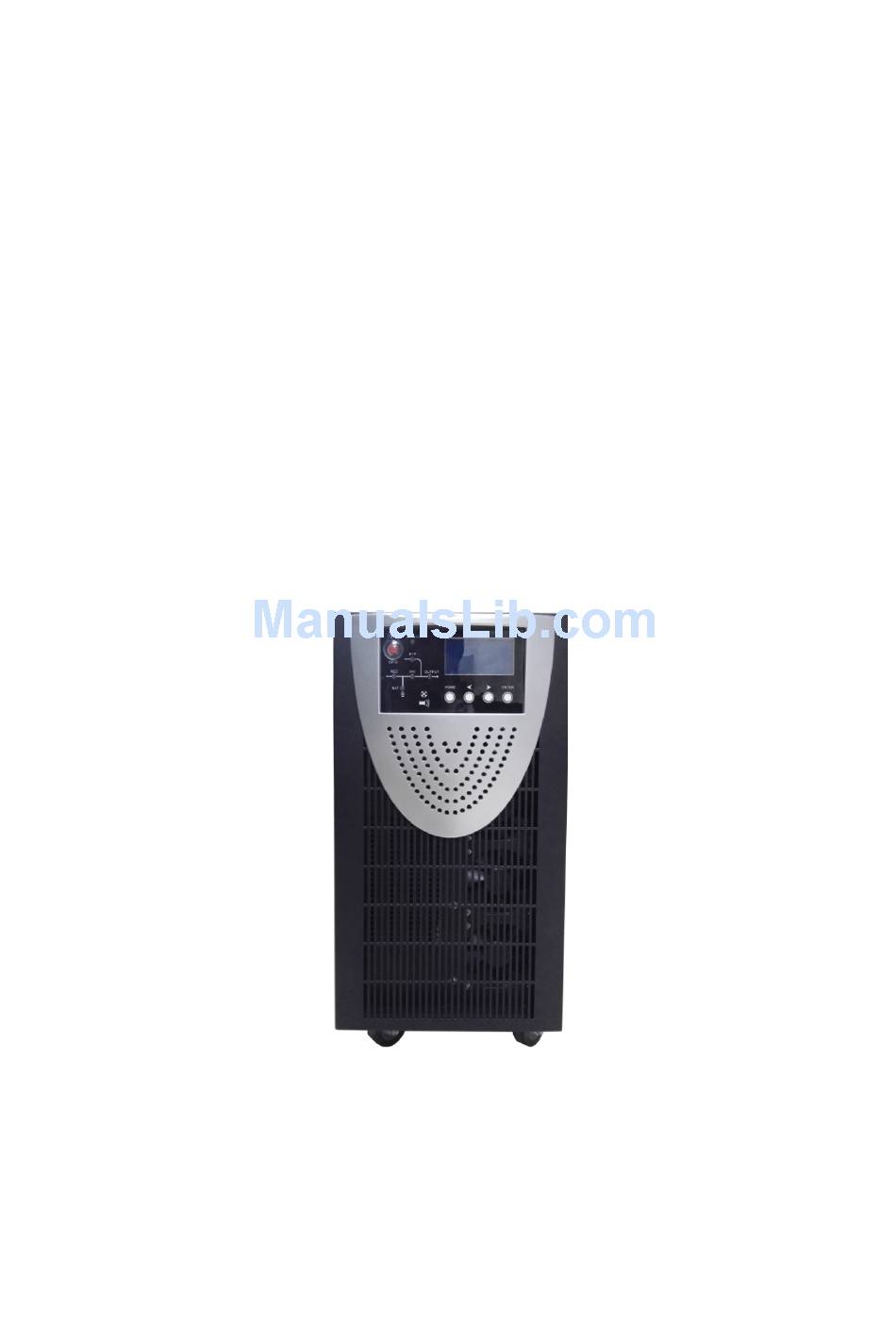

  • Page 1: User Manual

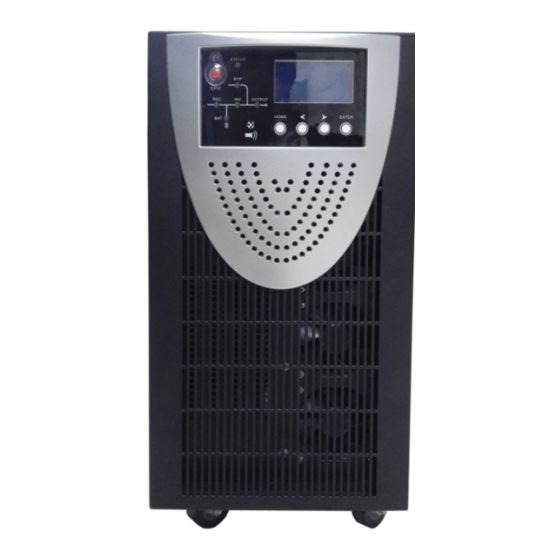

    User Manual True on-line UPS (6-20k)
  • Page 2 Important Safety Instructions IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important safety instructions. Read all safety and operating instructions before operating the uninterruptible power systems (UPS). Adhere to all warnings on the unit and in this manual. Follow all operating and user instructions. This equipment can be operated by individuals without previous training.
  • Page 3 Important Safety Instructions ELECTRICAL SHOCK OR FIRE. TO ENSURE SAFETY, OBSERVE THE FOLLOWING PRECAUTIONS: Turn off and unplug the UPS before cleaning it. Clean the UPS with a dry cloth. Do not use liquid or aerosol cleaners. Never block or insert any objects into the ventilation holes or other openings of the UPS.

  • Page 4: Table Of Contents

    Contents CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 1. ELECTROMAGNETIC COMPATIBILITY .................. 3 2. INTRODUCTION ..........................4 3. SYSTEM DESCRIPTION ........................ 7 3.1 T (TVSS) EMI/FRI F ........ 7 RANSIENT OLTAGE URGE UPPRESSION ILTERS 3.2 R (PFC) C ............7 ECTIFIER OWER ACTOR ORRECTION...
  • Page 5 Contents 7.2 P ........................ 23 ARALLEL PERATION 7.3 MAINTENANCE BYPASS OPERATION MODE ..............24 8. BATTERY MAINTENANCE ......................27 9. NOTES FOR BATTERY DISPASAL AND REPLACEMENT PROCEDURES ......28 9.1 B ........................28 ATTERY ISPOSAL 9.2 B ..................28 ATTERY EPLACEMENT ROCEDURES 10.

  • Page 6: Electromagnetic Compatibility

    Introduction 1. ELECTROMAGNETIC COMPATIBILITY * Safety IEC/EN 62040-1-1 * EMI Conducted Emission..IEC/EN 62040-2 Category C3 Radiated Emission....IEC/EN 62040-2 Category C3 *EMS ESD........IEC/EN 61000-4-2 Level 4 RS........IEC/EN 61000-4-3 Level 3 EFT........IEC/EN 61000-4-4 Level 4 SURGE......IEC/EN 61000-4-5 Level 4 Low Frequency Signals....:IEC/EN 61000-2-2 Warning: This is a product for commercial and industrial application in the second environment-installation restrictions or additional measures may be needed to prevent disturbances.

  • Page 7: Introduction

    Introduction 2. INTRODUCTION Congratulations on your choice of the UPS uninterruptible power system(UPS), the UPS comes in nominal power ratings of 6000VA,10000VA,15000VA and 20,000VA. It is designed to provide conditioned power to microcomputers and other sensitive electronic equipment. When it is generated, alternating current is clean and stable. However, during transmission and distribution it may be subject to voltage sags, spikes and complete power failure that may interrupt computer operations, cause data loss and even damage equipment.
  • Page 8 Introduction True Online 6-20k UPS User Manual...
  • Page 9 Introduction Fig 2. Rear View Function instructions: SNMP card slot Dry contactor slot USB port RS232 Parallel ports Fans Reserved customer function External battery connector. Optional for standard model. 10. Internal maintenance bypass 11. Input breaker 12. Cable entry protector 13.

  • Page 10: System Description

    System Description 3. SYSTEM DESCRIPTION 3.1 Transient Voltage Surge Suppression (TVSS) and EMI/FRI Filters These UPS components provide surge protection and filter both electromagnetic interference (EMI) and radio frequency interference (RFI). They minimize any surge or interference present in the utility line and keep the sensitive equipment protected. 3.2 Rectifier/Power Factor Correction (PFC) Circuit In normal operation, the rectifier/power factor correction (PFC) circuit converts utility AC power to regulated DC power for use by the inverter while ensuring that the waveform of the...

  • Page 11: Battery Charger

    System Description 3.4 Battery Charger The battery charger utilizes energy from the utility power and precisely regulates it to continuously float charge the batteries. The batteries are being charged whenever the UPS is connected to utility power. 3.5 DC-to-DC Converter The DC-to-DC converter utilizes energy from the battery system and raises the DC voltage to the optimum operating voltage for the inverter.

  • Page 12: Product Specification And Performance

    Production Specification and Performance 4. PRODUCT SPECIFICATION And PERFORMANCE 4.1 Model Description This manual is applicable to the following models: Model No. Type Standard model 10KS 10KL Long backup model 15KL 20KL “L” Model: Long backup time 4.2 Product Specification and Performance 1.
  • Page 13 Product Specification and Performance Output Voltage Power Frequency Distortion Overload capacity Crest ratio Regulation Factor tolerance. 110% load: transfers to Bypass mode after minutes THD<1% 130% load: transfers to ±0.1% Full load Bypass mode after ±1% 0.9 lag normal (Linear minute maximum Load)

  • Page 14: Installation

    Installation 5. INSTALLATION The system should be installed and wired only by qualified electricians in accordance with applicable safety regulations. NOTICE：UPS operation in sustained temperature outside the range of 15-25°C (59°-77°F) reduces battery life. 5.1 Unpacking and Inspection 1) Unpack the packaging and check the package contents. The shipping package contains: ●...
  • Page 15 Installation other insulated wire which complies with AWG Standard for the UPS input and output wirings. 4) For 15kL/20kL UPS, it is recommended to select the UL1015 6AWG(25mm ) wire or other insulated wire which complies with AWG Standard for the UPS input wires and output wirings.
  • Page 16 Installation For 15KL/20KL,connect the input 3 line wires to input A/B/C separately as fig.4. Or connect 1 input wire to input C. (a）Cables entry (b) Wiring connection Fig 4. Input and Output Terminal Block Wiring Diagram of 15KL/20KL NOTICE：You must make sure that the input and output wires and the input and output terminals are connected tightly.

  • Page 17: Operating Procedure For Connecting The Long Backup Time Model Ups With The

    Installation 9） After having completed the installation, make sure the wiring connection is correct. 10） Please install the output breaker between the output terminal and the load, and the breaker should with leakage current protective function if necessary. 11) To connect the load with the UPS, please turn off all the loads first, then perform the connection and finally turn on the loads one by one.

  • Page 18: External Battery

    Installation charging. 1. The nominal DC voltage of external battery pack is 192VDC. Each battery pack consists of 16 pieces of 12V maintenance free batteries in series. To achieve longer backup time, it is possible to connect multi-battery packs, but the principle of “same voltage, same type”...
  • Page 19 Installation Fig.5 communication cables connection Strictly follow the stand-alone wiring requirement to perform the input wiring of each UPS. 3) Connect the output wires of each UPS to an output breaker panel. 4) Each UPS need an independent battery pack. 5) Please refer to the wiring diagram in the next page, and opt suitable breaker.
  • Page 20 Installation (a)Wiring Diagram of 6K(L/S)/10K(L/S) True Online 6-20k UPS User Manual...
  • Page 21 Installation UPS2 output breaker UPS2 battery breaker UPS2 input breaker UPS1 output breaker UPS1 battery breaker UPS1 input breaker (b)Wiring Diagram of 15KL/20KL Fig.6 wiring diagram True Online 6-20k UPS User Manual...
  • Page 22 Installation Operation 1) To perform the general operation, follow the stand-alone operating requirement. 2) Startup: The units transfer to INV mode simultaneously as they start up sequentially in Line mode. Shutdown: the units shut down sequentially in INV mode. When the last one completes the shutdown action, each unit will shut down the inverter simultaneously and transfer to Bypass mode.

  • Page 23: Controls And Indicators

    Controls and Indicators 6. CONTROLS And INDICATORS Fig.8 Display Panel Description of Panel Controls Description 1.Press on/off to start inverter when rectifier is OK NOTE Not available when UPS is set in automatically start mode 2.Press on/off directly when there is no main input, press again ON/OFF to start UPS 3.Press on/off to shutdown inverter when UPS is in normal...
  • Page 24 Controls and Indicators flicker--rectifier starting, red--rectifier fault, flicker--rectifier alarm, dark—rectifier is not working Inverter indicator: green--inverter normal, green flicker--inverter is starting or tracking with bypass(ECO), red—inverter fault and load is not on inverter, red flicker—inverter fault and load is on inverter, dark—inverter is not working Bypass indicator: green—bypass is normal, dark—UPS is in normal mode and bypass is normal, red—bypass fault, red...
  • Page 25 Controls and Indicators Display Function Submenu Output information: Output Voltage, current, frequency, PF information Load information: Active power, apparent power, percent Alarms, S-code, firmware version, system Status of UPS information Set: language, contrast, communication set(SNT, Modbus), Modbus set Set and function Function: function 1(transfer to bypass/escape, fault clear, mute on/off), function 2(battery test, maintenance test, stop test)

  • Page 26: Operation

    Operation 7. OPERATION 7.1 Operation Mode 1. Turn on the UPS in normal mode 1) After you make sure that the power supply connection is correct, and then close the battery breaker (this step only for long backup time model), after that close the input breaker.

  • Page 27: Maintenance Bypass Operation Mode

    Operation This UPS system has parallel machine function, if you want to add single machine to parallel system, please follow operational process of joining new machine; if you must remove UPS, please follow operational processes of removing parallel machine. 2. How to install a new parallel UPS system: 1) Before installing a new parallel UPS system, user need to prepare the input and output wires, the output breaker, and the parallel cables.
  • Page 28 Operation To transfer the UPS to Maintenance Mode, the following procedures should be followed. Check the status before the Maintenance Mode. Before transferring to the Maintenance Mode, the circuit breakers (CB) are in the following status: Input and Output are closed (in the on position); the Maintenance Bypass is open, as it is shown in the figure above;...
  • Page 29 Operation the UPS transfers to Bypass Mode with warning and wait until the LED indicator for bypass goes green (b) Close the Maintenance Bypass CB; (c) Open the CB for output and input and disconnect the battery( For the standard UPS type , pull out Battery terminal of positive and negative ;...

  • Page 30: Battery Maintenance

    True Online 6-20k UPS User Manual Battery Maintenance 8. BATTERY MAINTENANCE The UPS only requires minimal maintenance. The batteries used for standard models are value regulated, sealed lead-acid, maintenance free battery. When being connected to the utility power, whether the UPS is turned on or not, the UPS keeps charging the batteries and also offers the protective function of overcharging and over-discharging.

  • Page 31: Notes For Battery Dispasal And Replacement Procedures

    Battery Maintenance 9. NOTES for BATTERY DISPASAL and REPLACEMENT PROCEDURES 9.1 Battery Disposal Before disposing of batteries, remove jewelry, watches and other metal objects. Use rubber gloves and boots, use tools with insulated handles. If it is necessary to replace any connection cables, please purchase the original materials from the authorized distributors or service centers, so as to avoid overheat or spark resulting in fire due to insufficient capacity.

  • Page 32: Troubie Shooting

    Trouble Shooting 10. TROUBIE SHOOTING This section describes checking the UPS’s status. This section also indicates various UPS symptoms a user may encounter and provides a troubleshooting guide in the event the UPS develops a problem. Use the following information to determine whether external factors caused the problem and how to remedy the situation.
  • Page 33 Trouble Shooting Seq. Items Solution Reserved Reserved Reserved Input phase Fault over current Check rectifier IGBT Input phase broken, DC bus is shorted, or Fault over current IGBT drivers are lost, input voltage display is wrong Input phase Fault over current Output voltage Check if...
  • Page 34 Trouble Shooting Seq. Items Solution installed. Positive bus over Fault UPS requires service voltage Negative bus over Fault UPS requires service voltage Fan Fault Fault At least one of fans fail. Reserved Reserved Positive Fault UPS requires service under voltage Negative Fault UPS requires service...
  • Page 35 Trouble Shooting Seq. Items Solution Bypass SCR or Fault UPS requires service. relay fault Reserved Reserved frequency Check bypass input Fault over track range frequency is abnormal Reserved Reserved Over load time Fault Reserved Reserved shutdo Manual shutdown normal INV protect Fault Transfer times...
  • Page 36 Trouble Shooting Seq. Items Solution Fault shorted or opened. Reserved Parallel Check whether parallel Fault connection fault connection cable disconnect. Reserved Reserved Reserved Shutdown open output breaker, check if load is Output shorted Fault effective or short internally, check if output connector is shorted.

  • Page 37: Annex A. Rated Parameters Set On Lcd

    Trouble Shooting Annex A. Rated Parameters Set on LCD 1. Power on LCD 2. Press button together for 3 seconds, enters in rated setting menu as below 3. Press button “ENTER” to activate setting function as below. Shadow means the current parameter can be set now.
  • Page 38 6-10KVA Rack-mount UPS User Manual Annex A. Intelligent Slot 7. Press “ENTER” button to confirm frequency selection, and the current parameters are shown on LCD as below 8. Shutdown UPS completely and restart UPS to activate the setting. Enter in and enter in system information to check if the rated setting has been activated as below True Online 6-20k UPS User Manual...

  • Page 39: Annex B. Inteligent Slot

    Trouble Shooting Annex A. Intelligent Slot There are two types of intelligent slot for option: DB9, phoenix terminator. Max output current for intelligent slot is 1A. The functions of intelligent slot are listed as fig.10: 2 6 1 Fig.10 User wiring diagram of intelligent slot Description of intelligent slot: Pin NO.

  • Page 40: Annex C. Epo

    Rated Parameters Set on LCD Annex C. EPO EPO is used to quickly cut off machine under emergerncy, the function is triggered by customer’s connector. By shorting common-open point NO with +24V, EPO function is effective. Far-away EPO connector denotation: Pins Name Denotation...
  • Page 41 66007- 00064 V1.0...
