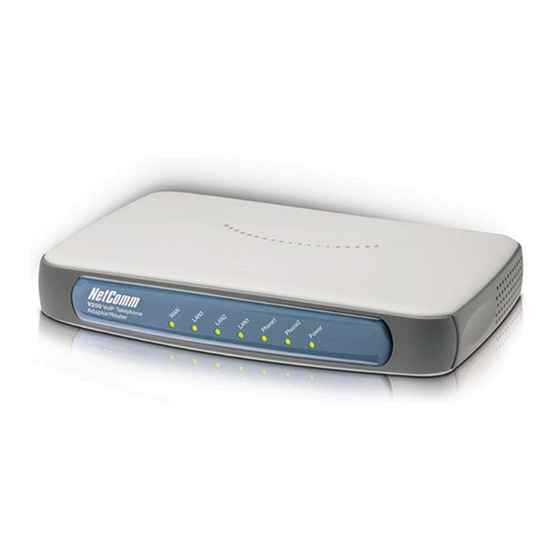

NetComm V200 User Manual

Voip telephone adaptor/router
Hide thumbs Also See for V200:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for NetComm V200

Summary of Contents for NetComm V200

  • Page 2: Table Of Contents

    Typical Network Connections for V200 ... 14 Installation ... 16 2.3.1 Cable Connections ... 16 2.3.2 Power on your V200 and PC ... 16 2.3.3 Connecting to V200 ... 16 2.3.4 Configure the V200 via Web browser ... 19 Chapter 3 How to Log-in using a Web Browser ... 24 V200 IP Address ...
  • Page 3 Ping ... 51 Save ... 52 Reset ... 53 Upgrade ... 54 Rebooting the System ... 55 Appendix A: Cable Information ... 56 Appendix B: Glossary ... 58 Appendix C: Registration and Warranty Information ... 63 V200 VoIP Telephone Adaptor/Router YML795 Rev1...

  • Page 4: Voip Telephone Adaptor/Router Settings

    VoIP Telephone Adaptor/Router settings WEB account: User Name: Password: LAN port IP: YML795 Rev1 admin admin 192.168.30.1 V200 VoIP Telephone Adaptor/Router...

  • Page 5: Chapter 1 Introduction

    Two standard analogue telephones (desktop or cordless) can be connected to the Phone (FXS) ports on the back of the V200, allowing the user to route calls over the Internet to anywhere in the world using VoIP, significantly reducing or eliminating long distance call charges.

  • Page 6: Features

    Internal bandwidth control • Allocating enough bandwidth for VoIP calls VoIP Call types • SIP proxy • Phone Book for Peer-to-Peer IP Call Built-in Router • DHCP client/server • • Port Forwarding • • Virtual Server YML795 Rev1 V200 VoIP Telephone Adaptor/Router...
  • Page 7 • 2 FXS RJ-11 for connection to analog telephone *Note: The availability of some listed call features is dependent on the service supported by your VoIP service provider. Please consult them for further information. V200 VoIP Telephone Adaptor/Router YML795 Rev1...

  • Page 8: Application

    V200. In addition to providing basic VoIP calls, the V200 provides you with normal VoIP and router/switch capabilities, so it can work as a router and a VoIP ATA (analog telephone adapter) at the same time.

  • Page 9: System Minimum Requirements

    In order to achieve good voice quality when using the V200 VoIP feature, we recommend that you use the V200 on a broadband connection with an upstream speed of at least 128kpbs. This should allow you to have two simultaneous VoIP calls (with G.729 codec) using the V200 with good voice quality**.

  • Page 10: Package Contents

    Package Contents Your V200 package contains the following items: YML795 Rev1 V200 VoIP Telephone Adaptor/Router...

  • Page 11: Front Panel Led Indicators

    Flash LAN 1 ~ LAN3 Flash Phone1~2 Flash POWER V200 VoIP Telephone Adaptor/Router YML795 Rev1 Function The WAN link is established Ethernet link for the WAN port is not established Data transmitting or receiving over WAN Ethernet link for LAN port is established...

  • Page 12: Back Panel And Wiring

    Please only power up your V200 after all cables are connected. The POWER LED should always be on after the V200 has powered up. Once the power is on, the V200 will boot up automatically. Do not do anything until the boot up process has completed.

  • Page 13: Chapter 2 Quick Start

    Chapter 2 Quick Start Before you begin You will need to collect your VoIP account details before you start to configure your V200. Details should include your SIP username/ VoIP number, your SIP account authentication ID and its password, SIP proxy server IP/URL, your VoIP network preferred codec and whether you need use STUN.

  • Page 14: Typical Network Connections For V200

    2.2 Typical Network Connections for V200 The Quick Start section will show you how to connect the V200 to your network. A typical ADSL and cable broadband network are illustrated here. ADSL Broadband In general, a residential ADSL router runs PPPoE client and DHCP server for your PCs to share Internet access.
  • Page 15 Cable Broadband Figure 3 illustrates the V200 installation for cable broadband network. V200 VoIP Telephone Adaptor/Router YML795 Rev1 Figure 3...

  • Page 16: Installation

    The purpose of this section is to provide instructions on how to assign an IP address to your PC. When the PC completely boots up, it might already be able to talk to the V200. You can check it using “Ping” utility. If the connectivity is OK, you can skip this section and jump to Section 2.3.4.
  • Page 17 11. In the TCP/IP Settings dialog box, click the radio button labelled Obtain an IP ad- dress automatically. 12. Click OK twice to confirm and save your changes, and then close the Control Panel. V200 VoIP Telephone Adaptor/Router YML795 Rev1...
  • Page 18 11. In the TCP/IP Properties dialog box, click the IP Address tab. 12. Click the radio button labelled Obtain an IP address automatically. 13. Click OK twice to confirm and save your changes. You will be prompted to restart Win- dows. 14. Click Yes. YML795 Rev1 V200 VoIP Telephone Adaptor/Router...

  • Page 19: Configure The V200 Via Web Browser

    A unique default user account is assigned with user name admin and password admin. After you have logged in to the V200, you will be presented with the V200 Status page. V200 VoIP Telephone Adaptor/Router YML795 Rev1...
  • Page 20 ADSL or cable broadband network as shown in Figures 2 & 3. The following screen shot is an example of the V200 in DHCP mode. If you are using a cable broadband service, you can simply use the V200 WAN port default setting as DHCP.
  • Page 21 C. Configure V200 SIP On the V200 Configuration page, click the SIP button will bring a SIP configuration page. The following screen shows you an example of SIP configuration of the V200 which will allow the V200 to use “630801” and “683752” as its VoIP phone number and authentication ID to register on “fwd.pulver.com”...
  • Page 22 When you finish your configuration, click the Apply button to apply your settings. Once you click the Apply button, the V200 will return you to the Status page. A few seconds later, refresh this page using your Web browser refresh button; it should display Registered Success in the Register Status field.
  • Page 23 You have now completed the basic installation and configuration of your new NetComm V200. At this point you will be able to make VoIP calls to and from your V200 connection. You may consider contacting your VoIP service provider’s customer support line to test your VoIP service and enable any available supplementary call features.

  • Page 24: Chapter 3 How To Log-In Using A Web Browser

    V200 IP Address To log on to the V200 using a web browser, your PC and the V200 should both be on the same network segment. The default IP address for the V200 is 192.168.30.1. If your PC is not on the same network segment, you can modify its IP address or change its IP address assignment to DHCP mode so that the V200 can assign a valid LAN IP address to your PC.

  • Page 25: Chapter 4 Wan And Lan Set-Up

    Click on the WAN Setup menu item from the menu bar to bring up the WAN Status window. The WAN IP address information will be displayed. The following screen is an example which shows the V200’s WAN port is in PPPoE mode and currently active.
  • Page 26 A static IP address, it can be a static LAN IP address or public IP address. If you will use static public IP address and are using ADSL broadband, you can enable the V200 QoS feature which will maintain VoIP call quality even in periods of heavy Internet usage.

  • Page 27: Static Ip Address

    Subnet Mask Default Gateway Primary DNS Server Secondary DNS Server Enter the necessary parameters and click the Apply button to submit the settings. V200 VoIP Telephone Adaptor/Router YML795 Rev1 Description The WAN IP address. The subnet mask of this network.

  • Page 28: Dhcp Mode

    4.1.2 DHCP Mode Select the DHCP Mode option and click on the Next button to display the following window: Click the YES button to enable your V200 as a DHCP client. YML795 Rev1 V200 VoIP Telephone Adaptor/Router...

  • Page 29: Pppoe

    When using PPPoE, the V200 will assign you an IP address via PPPoE protocol from your ISP. When WAN port is set in PPPoE mode, the V200 will do routing for your network and you are able to enable its QoS feature. Please see Section 5.2 for details about cable connection of the V200 and your ADSL modem/router and its WAN mode.

  • Page 30: Lan Ip Address

    The subnet mask of the IP network. Select Enable if you use the V200 as a DHCP server. The first IP address of the address pool in the DHCP server. The IP address should be in the same subnet as the V200 LAN IP address.

  • Page 31: Chapter 5 Voip Setup

    Account 2 before you configure it. Field Client Phone Number Display Name V200 VoIP Telephone Adaptor/Router YML795 Rev1 Description The phone number used for your V200 to register on a SIP server. What the call party see when you call them.
  • Page 32 SIP server or remote end. This port can be changed. Default 5060. In order to use the V200 with a VoIP service provider you will need to specify a Proxy server which the V200 communicates with. Choose Yes and enter the details under the Proxy/Register and Domain sections.
  • Page 33 V200 VoIP Telephone Adaptor/Router YML795 Rev1 Description The base RTP port of V200. The real range of V200 RTP port is Base Port ~ Base Port +7 (8 ports in total). For example, by specifying 16384 here, the real RTP port range will be 16384 ~ 16391.
  • Page 34 DIRECT_CALL will be displayed all the time if you choose non-UseProxy mode. Not Registered will be displayed if you configure the V200 in UseProxy mode, but fail to register. Registered Success will be displayed if you choose UseProxy mode and registered successfully.

  • Page 35: Stun

    STUN stands for Simple Traversal of UDP over NAT. It is a protocol which enables the V200 to detect the presence and type of NAT behind which the phone is placed. STUN will allow SIP signalling and bi-direction to successfully traverse a NAT without requiring any configuration changes on the NAT.

  • Page 36: Phone Book

    Display Name You will need to ask the person you are calling to configure their Internet device (Modem/ Router) to allow connections on the specified port to be forwarded to their SIP phone or ATA. To add a new phone number to the phone book, click the Add button. The Add phone number window is opened: Enter the information and click the Add button.

  • Page 37: Call Forward

    5.1.4 Call Forward Call Forward lists the configured call forward information. The first page displays the current call forward list. The V200 has two call forwarding entries, which allows you to specify call forwarding for each SIP account. To modify the call forward list, select the corresponding Select option and then click on the Modify button.
  • Page 38 You also can delete any entry from the call forward list by selecting the corresponding Select option and clicking on the Delete button. In the V200’s default state, there are no entries for this window, so the Add button is displayed, instead of the Modify button. Use the Add button to add the list.

  • Page 39: Dial Plan

    5.1.5 Dial Plan Dial Plan can make your dialling easier. If the dialled number meets the Prefix, the V200 will modify the dialled number before dialling it. If the dialled number does not meet the Prefix, the V200 will dial the number without any modification.
  • Page 40 You also can modify or delete any specific method from the Dial Plan by selecting the corresponding Select option and clicking on the Modify or Delete button. YML795 Rev1 V200 VoIP Telephone Adaptor/Router...

  • Page 41: Voip Qos

    ADSL service plan contract. Secondly, you will need to let your V200 to handle the Internet traffic for your LAN network. We recommend you install your V200 based on the following network diagram which will let the V200 QoS work properly.
  • Page 42 Routing Internet Traffic for your LAN Network When your V200 WAN interface is assigned with a Public IP either through static WAN IP or PPPoE, it actually does the routing for your Internet connection. When you configure QoS, you need to specify your ADSL true upstream bandwidth. It might be 64, 128, 256 or 512.

  • Page 43: Chapter 6 Additional Routing Features

    Internet) to reach services provided by internal servers such as FTP, HTTP, Telnet, etc. The V200 has the capability to perform port forwarding. Click the NAT Port Forward menu item in the menu bar on the left to display the current port forward setting.

  • Page 44: Dmz

    Click the DMZ menu item in the menu bar on the left to display the current DMZ configuration setting. You can decide to Enable or Disable DMZ. Enter the internal IP address if DMZ is enabled. Then click the Apply button to submit the setting. YML795 Rev1 V200 VoIP Telephone Adaptor/Router...

  • Page 45: Access Control

    You can change your password in this menu. Click the Access Control menu item in the menu bar on the left to change your password for the V200’s Web log-in. Type the old password and then type the new password twice. Click on the Apply button to submit the settings.

  • Page 46: Remote Access

    6.4 Remote Access To manage the V200 via a web browser you do not have to login from a PC directly connected to the V200. With the Remote Access feature, you can login through the Internet from anywhere if you know the public WAN IP address of the V200. This feature is only available if you connect your V200 and configure your network in:...

  • Page 47: Chapter 7 V200 System Information

    Chapter 7 V200 System Information This Chapter describes the System section, where information on the whole system is displayed or is used to implement certain configurations. Status The Status window displays the basic information of the system. It is also the first window displayed when you login to the web configuration utility.

  • Page 48: Traffic Statistics

    Traffic Statistics The Traffic Statistics menu will display detailed information on the V200’s LAN & WAN Interface, TCP-IP settings and DHCP client leased information. 7.2.1 Interface Statistics Interfaces is the first page of the Traffic Statistics window. Interface Name Admin Status...

  • Page 49: Tcp-Ip

    7.2.2 TCP-IP The TCP-IP page displays the IP statistics, UDP statistics, TCP statistics, and ICMP statistics. V200 VoIP Telephone Adaptor/Router YML795 Rev1...

  • Page 50: Dhcp-Lease

    7.2.3 DHCP-Lease DHCP-Lease page displays information regarding MAC Address mapping to Lease-IP. V200 VoIP Telephone Adaptor/Router YML795 Rev1...

  • Page 51: Ping

    Field Packets transmitted Packets received Packets loss (%) Minimum round trip time Maximum round trip time V200 VoIP Telephone Adaptor/Router YML795 Rev1 Description Number of packets that were transmitted. Number of packets that were received. Number of packets lost (transmitted-received) The fastest round-trip time.

  • Page 52: Save

    Save A new setting will take effect immediately after the setting is submitted. If the V200 is powered down, however, it will be lost. To keep your new settings permanently, you need to save them into flash memory by using the Save menu. Click the Save menu item in the menu bar on the left and then click on the Save button to save your configuration settings.

  • Page 53: Reset

    Reset This function allows you to reset your V200 back to the factory default settings. Please note that any customised configuration settings will be lost if you proceed with this function. We recommend that you take a note of your settings before you proceed.

  • Page 54: Upgrade

    Upgrade This function allows you to Upgrade your V200’s firmware. Please note that any customised configuration settings will be lost if you proceed with this function. We recommend that you take a note of your settings before you proceed. From time to time, new Upgrade firmware may become available from NetComm’s web site.

  • Page 55: Rebooting The System

    Rebooting the System It may be necessary to reboot the V200. Ensure that you have saved any changes to the system setting of the V200. Please note that any customised configuration settings will be lost if you proceed with this function without saving the changes (refer to the section on the Save menu).

  • Page 56: Appendix A: Cable Information

    If you are unsure about which cable to use or which socket to connect it to, please refer to the hardware installation section in this manual. If you are still not sure about cable connections, please contact a professional computer technician or NetComm for further advice. RJ-45 Network Ports RJ-45 Network Ports can connect any networking devices that use a standard LAN interface, such as a Hub/Switch Hub or Router.

  • Page 57: Straight And Crossover Cable Configuration

    Straight-Through Cabling Cross-Over Cabling Note: To prevent loss of signal, make sure that the length of any twisted-pair connection does not exceed 100 metres. V200 VoIP Telephone Adaptor/Router YML795 Rev1 Figure 3 Wire Becomes Figure 4...

  • Page 58: Appendix B: Glossary

    IP address to a host when the host connects to the network. Domain Name Server. A server that retains the addresses and routing information for TCP/IP PAT users. To receive a file over a network (compare with upload). V200 VoIP Telephone Adaptor/Router...
  • Page 59 ICMP: IEEE: IEEE: IP address: IRQ: ISO: V200 VoIP Telephone Adaptor/Router YML795 Rev1 Digital Signal Processor. The microprocessor that handles line signaling in a modem. Data Terminal Equipment. Equipment that transmits or receives data in the form of digital signals.
  • Page 60 An access point where data can enter or exit. Plain Old Telephone Service. Point-to-Point Protocol. A protocol (RFC 1661) for transmitting packets over serial links between devices made by the same or different manufacturers. V200 VoIP Telephone Adaptor/Router...
  • Page 61 Routing table: RS-232: Server: SIP: Static route: STP: V200 VoIP Telephone Adaptor/Router YML795 Rev1 Point-to-Point Protocol over Ethernet. A method for establishing sessions and encapsulating PPP packets over an Ethernet, specified by RFC 2516. Point-to-Point Tunneling Protocol. An extension of Point-to-Point Protocol used to create virtual private networks between PCs.
  • Page 62 Internet. Virtual Private Network. A network implemented over a public network that is made “private” by use of encryption. Wide area network. A communications network that connects geographically separated areas (Compare with LAN). V200 VoIP Telephone Adaptor/Router...

  • Page 63: Appendix C: Registration And Warranty Information

    NetComm. Failure to do so may cause damage to this product, fire or result in personal injury.

  • Page 64: Product Warranty

    The warranty is automatically voided if: 1. You, or someone else, use the product, or attempts to use it, other than as specified by NetComm; 2. The fault or defect in your product is the result of a voltage surge subjected to the product either by the way of power supply or communication line, whether caused by thunderstorm activity or any other cause(s);...
