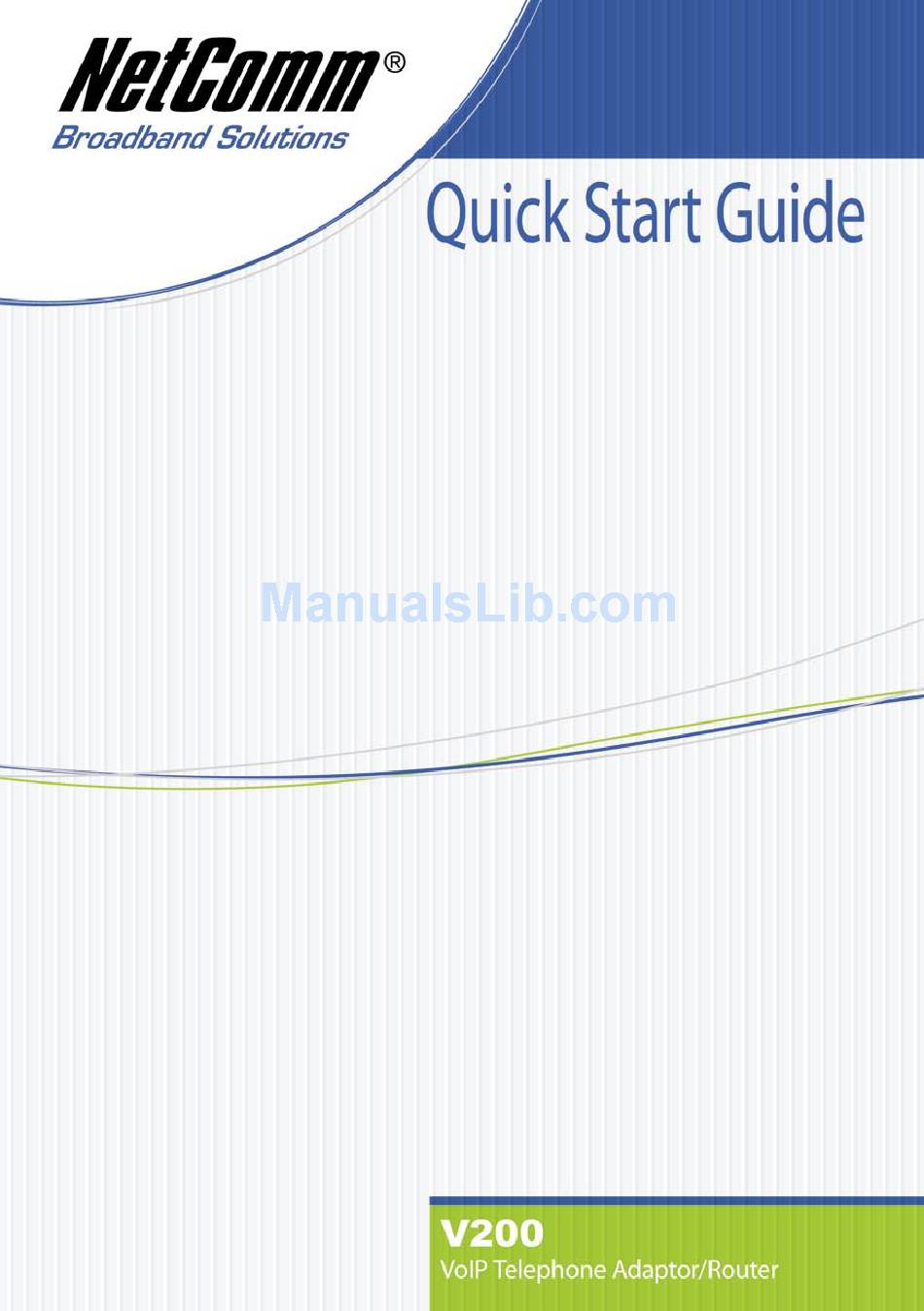

NetComm V200 Quick Start Manual

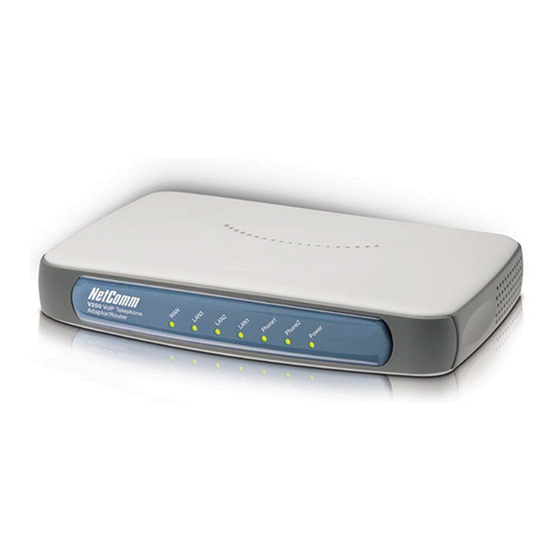

Voip telephone adaptor/router
Hide thumbs Also See for V200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for NetComm V200

Summary of Contents for NetComm V200

  • Page 2: Table Of Contents

    Typical Network Connections for V200 ... 13 Installation ... 15 2.3.1 Cable Connections ... 15 2.3.2 Power on your V200 and PC ... 15 2.3.3 Connecting to V200 ... 15 2.3.4 Configure the V200 via Web browser ... 18 Appendix A: Cable Information ... 23 Appendix B: Glossary ...

  • Page 3: Voip Telephone Adaptor/Router Settings

    VoIP Telephone Adaptor/Router settings WEB account: User Name: Password: LAN port IP: V200 VoIP Telephone Adaptor/Router YML796 Rev1 admin admin 192.168.30.1...

  • Page 4: Chapter 1 Introduction

    Two standard analogue telephones (desktop or cordless) can be connected to the Phone (FXS) ports on the back of the V200, allowing the user to route calls over the Internet to anywhere in the world using VoIP, significantly reducing or eliminating long distance call charges.

  • Page 5: Features

    Internal bandwidth control • Allocating enough bandwidth for VoIP calls VoIP Call types • SIP proxy • Phone Book for Peer-to-Peer IP Call Built-in Router • DHCP client/server • • Port Forwarding • • Virtual Server V200 VoIP Telephone Adaptor/Router YML796 Rev1...
  • Page 6 • 2 FXS RJ-11 for connection to analog telephone *Note: The availability of some listed call features is dependent on the service supported by your VoIP service provider. Please consult them for further information. YML796 Rev1 V200 VoIP Telephone Adaptor/Router...

  • Page 7: Application

    V200. In addition to providing basic VoIP calls, the V200 provides you with normal VoIP and router/switch capabilities, so it can work as a router and a VoIP ATA (analog telephone adapter) at the same time.

  • Page 8: System Minimum Requirements

    In order to achieve good voice quality when using the V200 VoIP feature, we recommend that you use the V200 on a broadband connection with an upstream speed of at least 128kpbs. This should allow you to have two simultaneous VoIP calls (with G.729 codec) using the V200 with good voice quality**.

  • Page 9: Package Contents

    Package Contents Your V200 package contains the following items: V200 VoIP Telephone Adaptor/Router YML796 Rev1...

  • Page 10: Front Panel Led Indicators

    Ethernet link for a LAN port is not established Data transmitting or receiving over LAN Phone is off-hook and being used Phone is not being used VoIP call is coming Power is supplied Power is not supplied V200 VoIP Telephone Adaptor/Router...

  • Page 11: Back Panel And Wiring

    Please only power up your V200 after all cables are connected. The POWER LED should always be on after the V200 has powered up. Once the power is on, the V200 will boot up automatically. Do not do anything until the boot up process has completed.

  • Page 12: Chapter 2 Quick Start

    Chapter 2 Quick Start Before you begin You will need to collect your VoIP account details before you start to configure your V200. Details should include your SIP username/ VoIP number, your SIP account authentication ID and its password, SIP proxy server IP/URL, your VoIP network preferred codec and whether you need use STUN.

  • Page 13: Typical Network Connections For V200

    2.2 Typical Network Connections for V200 The Quick Start section will show you how to connect the V200 to your network. A typical ADSL and cable broadband network are illustrated here. ADSL Broadband In general, a residential ADSL router runs PPPoE client and DHCP server for your PCs to share Internet access.
  • Page 14 Cable Broadband Figure 3 illustrates the V200 installation for cable broadband network. YML796 Rev1 Figure 3 V200 VoIP Telephone Adaptor/Router...

  • Page 15: Installation

    The purpose of this section is to provide instructions on how to assign an IP address to your PC. When the PC completely boots up, it might already be able to talk to the V200. You can check it using “Ping” utility. If the connectivity is OK, you can skip this section and jump to Section 2.3.4.
  • Page 16 11. In the TCP/IP Settings dialog box, click the radio button labelled Obtain an IP ad- dress automatically. 12. Click OK twice to confirm and save your changes, and then close the Control Panel. YML796 Rev1 V200 VoIP Telephone Adaptor/Router...
  • Page 17 11. In the TCP/IP Properties dialog box, click the IP Address tab. 12. Click the radio button labelled Obtain an IP address automatically. 13. Click OK twice to confirm and save your changes. You will be prompted to restart Win- dows. 14. Click Yes. V200 VoIP Telephone Adaptor/Router YML796 Rev1...

  • Page 18: Configure The V200 Via Web Browser

    A unique default user account is assigned with user name admin and password admin. After you have logged in to the V200, you will be presented with the V200 Status page. YML796 Rev1 V200 VoIP Telephone Adaptor/Router...
  • Page 19 ADSL or cable broadband network as shown in Figures 2 & 3. The following screen shot is an example of the V200 in DHCP mode. If you are using a cable broadband service, you can simply use the V200 WAN port default setting as DHCP.
  • Page 20 C. Configure V200 SIP On the V200 Configuration page, click the SIP button will bring a SIP configuration page. The following screen shows you an example of SIP configuration of the V200 which will allow the V200 to use “630801” and “683752” as its VoIP phone number and authentication ID to register on “fwd.pulver.com”...
  • Page 21 When you finish your configuration, click the Apply button to apply your settings. Once you click the Apply button, the V200 will return you to the Status page. A few seconds later, refresh this page using your Web browser refresh button; it should display Registered Success in the Register Status field.
  • Page 22 You have now completed the basic installation and configuration of your new NetComm V200. At this point you will be able to make VoIP calls to and from your V200 connection. You may consider contacting your VoIP service provider’s customer support line to test your VoIP service and enable any available supplementary call features.

  • Page 23: Appendix A: Cable Information

    If you are unsure about which cable to use or which socket to connect it to, please refer to the hardware installation section in this manual. If you are still not sure about cable connections, please contact a professional computer technician or NetComm for further advice. RJ-45 Network Ports RJ-45 Network Ports can connect any networking devices that use a standard LAN interface, such as a Hub/Switch Hub or Router.

  • Page 24: Straight And Crossover Cable Configuration

    Straight-Through Cabling Cross-Over Cabling Note: To prevent loss of signal, make sure that the length of any twisted-pair connection does not exceed 100 metres. YML796 Rev1 Figure 3 Wire Becomes Figure 4 Wire Becomes V200 VoIP Telephone Adaptor/Router...

  • Page 25: Appendix B: Glossary

    CPE: DHCP server: DHCP: DNS: Download: V200 VoIP Telephone Adaptor/Router YML796 Rev1 A 100 Mbps Ethernet standard that uses twisted-pair wiring. A 10 Mbps Ethernet standard that uses twisted-pair wiring. Address Resolution Protocol The symbol (usually numeric) identifying an interface attached to a network.
  • Page 26 Institute of Electrical and Electronics Engineers. The Institute of Electrical and Electronics Engineers. Internet Protocol address. The decimal-numeric, fixed-length address assigned to an Internet host. Interrupt re-quest, a hardware interrupt on a PC. International Standards Organization. V200 VoIP Telephone Adaptor/Router...
  • Page 27 Ping: Point-to-point connection: Port: POTS: PPP: V200 VoIP Telephone Adaptor/Router YML796 Rev1 Internet Service Provider. An organization that provides access to the Internet. Literally it means Kilobits per second, but usually it is taken to mean 1,024 bits per second.
  • Page 28 Session Initiation Protocol, a signaling protocol for Internet conferencing/telephony. A route that is permanent rather than a route that is dynamically assigned by another router. Shielded Twisted Pair. Telephone wire that is wrapped in a sheath to eliminate external interference. V200 VoIP Telephone Adaptor/Router...
  • Page 29 UDP: Upload: URL: VPN: WAN: V200 VoIP Telephone Adaptor/Router YML796 Rev1 Simple Traversal of UDP (User Datagram Protocol) through NAT (Network Address Translation). The subnet portion of an IP address. A number that identifies the subnet portion of a network address so that IP addresses can be shared on a local area network.

  • Page 30: Appendix C: Registration And Warranty Information

    NetComm. Failure to do so may cause damage to this product, fire or result in personal injury.

  • Page 31: Product Warranty

    The warranty is automatically voided if: 1. You, or someone else, use the product, or attempts to use it, other than as specified by NetComm; 2. The fault or defect in your product is the result of a voltage surge subjected to the product either by the way of power supply or communication line, whether caused by thunderstorm activity or any other cause(s);...
