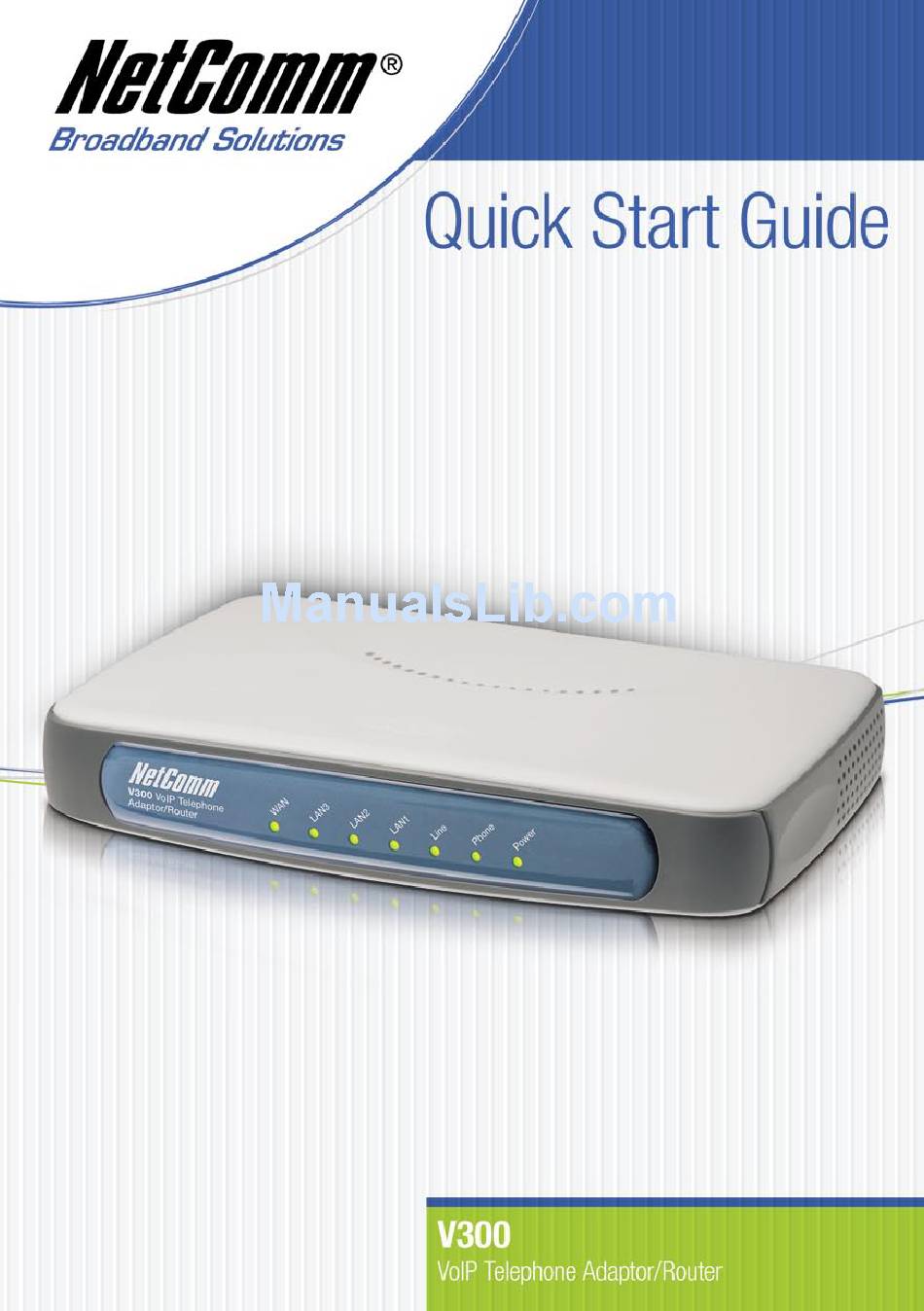

NetComm V300 Quick Start Manual

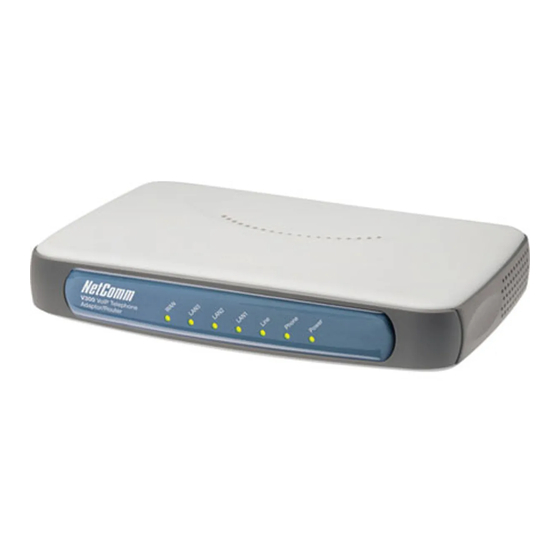

Voip telephone adaptor/router
Hide thumbs Also See for V300:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NetComm V300

Summary of Contents for NetComm V300

  • Page 2: Table Of Contents

    Typical Network Connections for the V300 ... 13 Installation ... 15 2.3.1 Cable Connections ... 15 2.3.2 Power on your V300 and PC ... 15 2.3.3 Connecting to the V300 ... 15 2.3.4 Configure the V300 via Web browser ... 18 Appendix A: Cable Information ...

  • Page 3: Voip Telephone Adaptor/Router Settings

    V300’s line circuits; the user disabling the LifeLine support in the V300’s advanced features; problems with the user’s handset or damage caused to the V300 by it; the user not having a valid account with the telephone service providers for a regular telephone service;...

  • Page 4: Chapter 1 Introduction

    A standard analogue telephone (desktop or cordless) is connected to the Phone (FXS) port on the back of the V300, allowing the user to route calls over the Internet to anywhere in the world using VoIP, significantly reducing or eliminating long distance call charges.

  • Page 5: Features

    DTMF tone generation • Dial tone, Busy tone, Ring back tone generation • Internal bandwidth control • Allocating enough bandwidth for VoIP calls VoIP Call types • SIP proxy • Phone Book for Peer-to-Peer IP Call V300 VoIP Telephone Adaptor/Router YML767 Rev1...

  • Page 6: Internet Support

    1 PSTN RJ-11 for connection to a normal landline to provide LifeLine and PSTN pass- through *Note: The availability of some listed call features is dependent on the service supported by your VoIP service provider. Please consult them for further information. YML767 Rev1 V300 VoIP Telephone Adaptor/Router...

  • Page 7: Application

    VoIP ATA (analog telephone adapter) at the same time. Figure 1 illustrates a simplified connection for the V300. In addition to providing basic VoIP calls, the V300 is also capable of handling your landline telephone calls (PSTN Pass-through) and provide you with a “LifeLine”...

  • Page 8: System Minimum Requirements

    An Analog telephone with RJ11 line cord (Desktop, Cordless or Dect.) • An ADSL micro filter** • A PC with Web browsing application (for V300 configuration only) *Note: In some cases, you may need to configure your broadband router in bridge-mode. The V300 will perform routing on your network.

  • Page 9: Package Contents

    Package Contents Your V300 package contains the following items: V300 VoIP Telephone Adaptor/Router YML767 Rev1...

  • Page 10: Front Panel Led Indicators

    Data transmitting or receiving over WAN Function Phone is off-hook and in VoIP mode Landline is in use VoIP call is coming A call reaches landline number Synchronously flashes when booting Consecutively flashing when Internet service is down Normal operation V300 VoIP Telephone Adaptor/Router...

  • Page 11: Back Panel And Wiring

    Please only power up your V300 after all cables are connected. The POWER LED should always be on after the V300 has powered up. Once the power is on, the V300 will boot up automatically. Do not do anything until the boot up process has completed.

  • Page 12: Chapter 2 Quick Start

    Chapter 2 Quick Start Before you begin You will need to collect your VoIP account details before you start to configure your V300. Details should include your SIP username/ VoIP number, your SIP account authentication ID and its password, SIP proxy server IP/URL, your VoIP network preferred codec and whether you need use STUN.

  • Page 13: Typical Network Connections For The V300

    2.2 Typical Network Connections for the V300 The Quick Start section will show you how to connect the V300 to your network. A typical ADSL and cable broadband network are illustrated here. ADSL Broadband In general, a residential ADSL router runs PPPoE client and DHCP server for your PCs to share Internet access.
  • Page 14 Cable Broadband Figure 3 illustrates the V300 installation for cable broadband network. YML767 Rev1 Figure 3 V300 VoIP Telephone Adaptor/Router...

  • Page 15: Installation

    The purpose of this section is to provide instructions on how to assign an IP address to your PC. When the PC completely boots up, it might already be able to talk to the V300. You can check it using “Ping” utility. If the connectivity is OK, you can skip this section and jump to Section 2.3.4.
  • Page 16 If you have multiple TCP/IP listings, select the listing associated with your network card or adapter. 11. In the TCP/IP Settings dialog box, click the radio button labelled Obtain an IP ad- dress automatically. YML767 Rev1 V300 VoIP Telephone Adaptor/Router...
  • Page 17 11. In the TCP/IP Properties dialog box, click the IP Address tab. 12. Click the radio button labelled Obtain an IP address automatically. 13. Click OK twice to confirm and save your changes. You will be prompted to restart Win- dows. 14. Click Yes. V300 VoIP Telephone Adaptor/Router YML767 Rev1...

  • Page 18: Configure The V300 Via Web Browser

    A unique default user account is assigned with user name admin and password admin. After you have logged in to the V300, you will be presented with the V300 Status page. YML767 Rev1 V300 VoIP Telephone Adaptor/Router...
  • Page 19 ADSL or cable broadband network as shown in Figures 2 & 3. The following screen shot is an example of the V300 in DHCP mode. If you are using a cable broadband service, you can simply use the V300 WAN port default setting as DHCP.
  • Page 20 The following screen shows you an examples of SIP a account configuration which will allow the V300 to use “630801” as its VoIP phone number and authentication ID to register on “fwd.pulver.com” SIP server. It will also show the use of STUN for traversing your router’s NAT/Firewall.
  • Page 21 When you finish your configuration, click the Apply button to apply your settings. Once you click the Apply button, the V300 will return you to the Status page. A few seconds later, refresh this page using your Web browser refresh button; it should display Registered Success in the Register Status field.
  • Page 22 You have now completed the basic installation and configuration of your new NetComm V300. At this point you will be able to make VoIP calls to and from your V300 connection. You may consider contacting your VoIP service provider’s customer support line to test your VoIP service and enable any available supplementary call features.

  • Page 23: Appendix A: Cable Information

    If you are unsure about which cable to use or which socket to connect it to, please refer to the hardware installation section in this manual. If you are still not sure about cable connections, please contact a professional computer technician or NetComm for further advice. RJ-45 Network Ports RJ-45 Network Ports can connect any networking devices that use a standard LAN interface, such as a Hub/Switch Hub or Router.

  • Page 24: Straight And Crossover Cable Configuration

    Straight-Through Cabling Cross-Over Cabling Note: To prevent loss of signal, make sure that the length of any twisted-pair connection does not exceed 100 metres. YML767 Rev1 Figure 3 Wire Becomes Figure 4 Wire Becomes V300 VoIP Telephone Adaptor/Router...

  • Page 25: Appendix B: Glossary

    CPE: DHCP server: DHCP: DNS: Download: V300 VoIP Telephone Adaptor/Router YML767 Rev1 A 100 Mbps Ethernet standard that uses twisted-pair wiring. A 10 Mbps Ethernet standard that uses twisted-pair wiring. Address Resolution Protocol The symbol (usually numeric) identifying an interface attached to a network.
  • Page 26 Institute of Electrical and Electronics Engineers. The Institute of Electrical and Electronics Engineers. Internet Protocol address. The decimal-numeric, fixed-length address assigned to an Internet host. Interrupt re-quest, a hardware interrupt on a PC. International Standards Organization. V300 VoIP Telephone Adaptor/Router...
  • Page 27 Ping: Point-to-point connection: Port: POTS: PPP: V300 VoIP Telephone Adaptor/Router YML767 Rev1 Internet Service Provider. An organization that provides access to the Internet. Literally it means Kilobits per second, but usually it is taken to mean 1,024 bits per second.
  • Page 28 Session Initiation Protocol, a signaling protocol for Internet conferencing/telephony. A route that is permanent rather than a route that is dynamically assigned by another router. Shielded Twisted Pair. Telephone wire that is wrapped in a sheath to eliminate external interference. V300 VoIP Telephone Adaptor/Router...
  • Page 29 UDP: Upload: URL: VPN: WAN: V300 VoIP Telephone Adaptor/Router YML767 Rev1 Simple Traversal of UDP (User Datagram Protocol) through NAT (Network Address Translation). The subnet portion of an IP address. A number that identifies the subnet portion of a network address so that IP addresses can be shared on a local area network.

  • Page 30: Appendix C: Registration And Warranty Information

    NetComm. Failure to do so may cause damage to this product, fire or result in personal injury.

  • Page 31: Limitations Of Warranty

    The warranty is automatically voided if: 1. You, or someone else, use the product, or attempts to use it, other than as specified by NetComm; 2. The fault or defect in your product is the result of a voltage surge subjected to the product either by the way of power supply or communication line, whether caused by thunderstorm activity or any other cause(s);...
