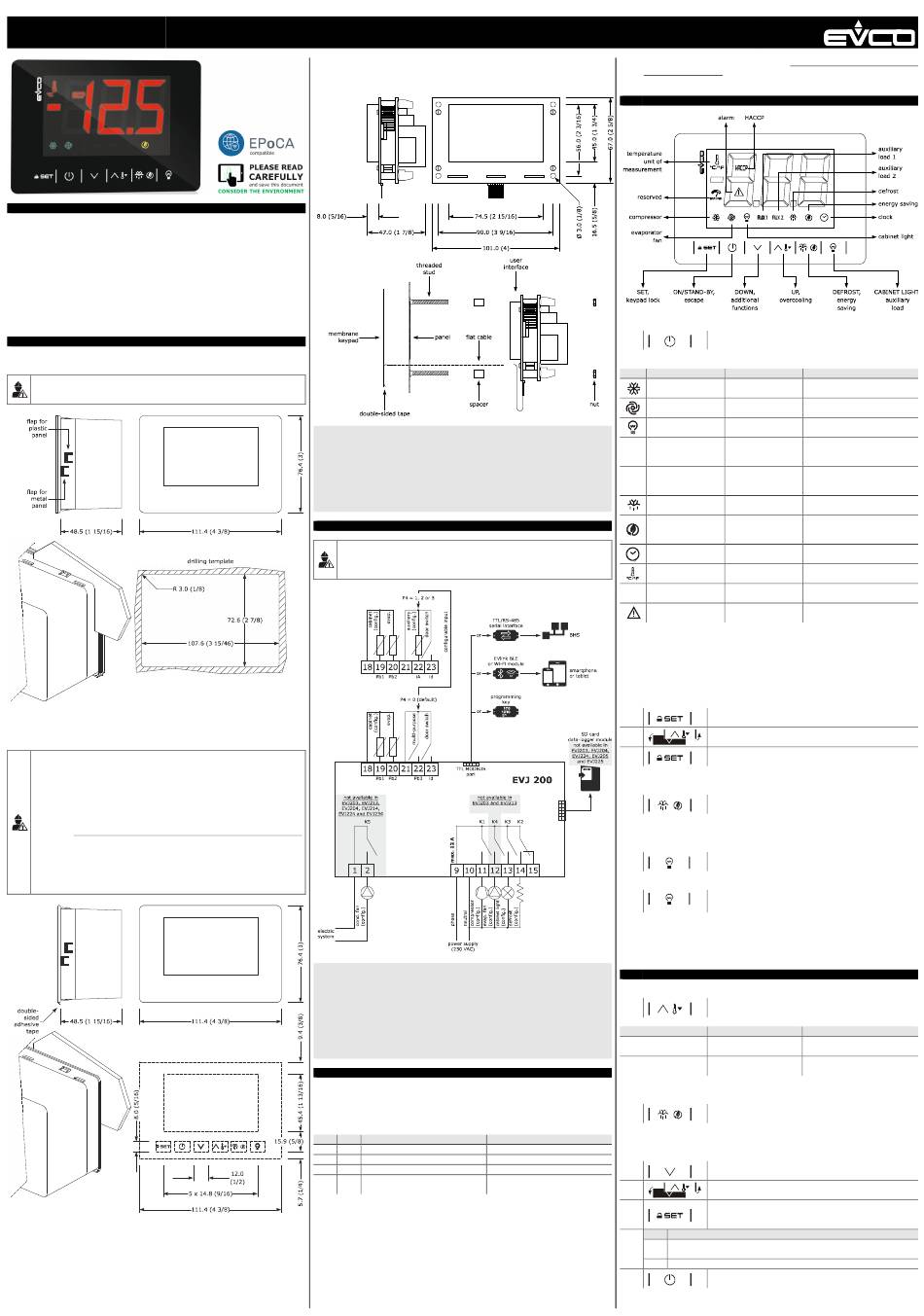

EVCO S.p.A. | EVJ 200 | Instruction sheet ver. 4.0 | Code 104J200E403 | Page 1 of 4 | PT 27/18
EVJ 200
EN ENGLISH
- Controllers for low temperature units.
- Power supply 230 VAC.
- Incorporated clock (according to the model).
- Cabinet probe and evaporator probe (PTC/NTC).
- Door switch input.
- Compressor relay 16 A res. @ 250 VAC or 30 A res. @ 250 VAC (according to the
model).
- Alarm buzzer.
- TTL MODBUS slave port for EVconnect app, EPoCA remote monitoring system or for
BMS.
- Port for SD card data-logger module EVBD05 (according to the model).
- Models in plastic container or open-frame (according to the model).
1

MEASUREMENTS AND INSTALLATION | Measurements in mm (inches)

1.1 Models in plastic container for front installation
Front installation on a plastic or metal panel (with elastic holding flaps).
N.B.
The thickness of a metal panel must be between 0.8 and 1.5 mm (1/32 and 1/16 in),
while that for a plastic panel must be between 0.8 and 3.4 mm (1/32 and 1/8 in).
1.2 Models in plastic container installed from behind
Installed from behind a glass or methacrylate panel (with biadhesive) customizing the keys on
the front of the unit.
N.B.
- The maximum thickness of a glass panel must be 4.0 mm (3/16 in), while that for
a methacrylate panel must be 2.0 mm (1/16)
- The panel and the material used to make screen printing must not contain
conductive substances
- Keep the device and the panel at a temperature between 15 and 38 °C (59 and
100 °F) about an hour before the installation
- Before the installation clean the panel surface in contact with the biadhesive
carefully, making sure the product used to clean is suitable for the panel material
(we recommend using isopropyl alcohol, hydrocarbon solvent in case of greasy
surfaces); keep cleaning with a cloth as long as it results clean and dry after the
use
- During the installation, exert a uniform and constant pressure about 30 s on the
panel surface in contact with the biadhesive; later keep the device and the panel
horizontally about 48 h at a temperature between 15 and 38 °C (59 and 100 °F).
Extra-large controllers for refrigerated cabinets and display units,
with energy-saving strategies
1.3 Open-frame models
To be installed from behind, with threaded studs and membrane keypad.
INSTALLATION PRECAUTIONS
- Ensure that the working conditions are within the limits stated in the TECHNICAL
SPECIFICATIONS section.
- Do not install the device close to heat sources, equipment with a strong magnetic field,
in places subject to direct sunlight, rain, damp, excessive dust, mechanical vibrations
or shocks.
- In compliance with safety regulations, the device must be installed properly to ensure
adequate protection from contact with electrical parts. All protective parts must be
fixed in such a way as to need the aid of a tool to remove them.
2

ELECTRICAL CONNECTION

N.B.
- Use cables of an adequate section for the current running through them.
- To reduce any electromagnetic interference connect the power cables as far away
as possible from the signal cables.
PRECAUTIONS FOR ELECTRICAL CONNECTION
- If using an electrical or pneumatic screwdriver, adjust the tightening torque.
If the device has been moved from a cold to a warm place, the humidity may have
-
caused condensation to form inside. Wait about an hour before switching on the
power.
- Make sure that the supply voltage, electrical frequency and power are within the set
limits. See the section TECHNICAL SPECIFICATIONS.
Disconnect the power supply before doing any type of maintenance.
-
Do not use the device as safety device.
-
- For repairs and for further information, contact the EVCO sales network.
3

FIRST-TIME USE

1. Install following the instructions
INSTALLATION.
2. Power up the device and an internal test will be run.
The test normally takes a few seconds, when it is finished the display will switch off.
3. Configure the device as shown in the section Setting configuration parameters.
Recommended configuration parameters for first-time use.
PAR. DEF. PARAMETER
SP 0.0 setpoint
P0 1 probe type
P2 0 temperature unit of measurement
d1 0 defrost type
Then check that the remaining
Configuration Parameters.
4. Disconnect the device from the mains.
5. Make the electrical connection as shown in the section ELECTRICAL CONNECTION
without powering up the device.
6. For the connection in an RS-485 network connect the interface EVIF22TSX or
EVIF23TSX, to activate real time functions in EVJ203, EVJ204, EVJ205, EVJ224 and
EVJ225 connect the module EVIF23TSX, for recording HACCP data in CSV format on SD
card connect the module EVBD05, to use the device with the EPoCA remote monitoring
system, connect the EVIF25TWX module, to use the device with the Android APP
EVconnect connect the interface EVIF25TBX (or use EVJ214N7VXXRXV, EVJ234 or
7.
4
4.1
1.
If the device is switched on, the display will show the P5 value ("cabinet temperature" default);
if the display shows an alarm code, see the section ALARMS.
LED
AUX 1
AUX 2
HACCP
If Loc = 1 (default) and 30s have elapsed without the keys being pressed, the display will show
the "Loc" label and the keypad will lock automatically.
4.2
Touch a key for 1s: the display will show the label "UnL".
4.3
Check that the keypad isn't locked.
1.
2.
3.
4.4
Check that the keypad is not locked and that overcooling is not active.
1.
If P3 = 1 (default), defrost is activated provided that the evaporator temperature is lower than
the d2 threshold.
4.5
1.
4.6
1.
If u1c... u5c = 6, the demisting switch on for the u6 duration.
4.7
Touch a key.
If u1c... u5c = 11 and u4 = 1, the alarm output is deactivated.
5
5.1
Check that the keypad is not locked.
1.
FUNCTION
overcooling
overheating
given in the section MEASUREMENTS AND
5.2
Check that the keypad is not locked.
1.
The setpoint becomes "setpoint + r4", at maximum for HE2 duration.
MIN... MAX.
5.3
r1... r2
Check that the keypad isn't locked.
0 = PTC 1 = NTC
0 = °C 1 = °F
1.
0 = electric 1 = hot gas
2 = compressor stopped
2.
Settings are appropriate; see the section
3.
4.
EVJ235); see the relevant instruction sheets. If EVIF22TSX or EVIF23TSX is used,
set parameter bLE to 0.
Power up the device.

USER INTERFACE AND MAIN FUNCTIONS

Switching the device on and off

If POF = 1 (default), touch the ON/STAND-BY key for 2s.
ON OFF FLASHING
compressor on compressor off - compressor protection active
- setpoint being set
evaporator fan on evaporator fan off evaporator fan stop active
cabinet light on cabinet light off cabinet light on by digital input
auxiliary function 1 on auxiliary function 1 off - auxiliary function 1 on by digital
input
- auxiliary function 1 delay active
auxiliary function 2 on auxiliary function 2 off - auxiliary function 2 on by digital
input
- auxiliary function 2 delay active
defrost or pre-drip - - defrost delay active
active - dripping active
- energy saving active - -
- low consumption
active
view time - set date, time and day of the
current week
view temperature - overcooling or overheating active
saved HACCP alarm - new HACCP alarm saved
alarm active - -

Unlock keypad

Set the setpoint (if r3 = 0, default)

Touch the SET key.
Touch the UP or DOWN key within 15s to set the value within the
limits r1 and r2 (default "-40... 50")
Touch the SET key (or do not operate for 15s).

Activate manual defrost (if r5 = 0, default)

Touch the DEFROST key for 2s.

Cabinet light on/off (if u1c... u5c = 5)

Touch the CABINET LIGHT key.

Button-operated load on/off (if u1c... u5c = 10 or 11)

Touch the CABINET LIGHT key (for 2s if u1c... u5c = 5).

Silence buzzer (if u9 = 1, default)

ADDITIONAL FUNCTIONS

Activate/deactivate overcooling and overheating
Touch the UP key for 2s.
CONDITION CONSEQUENCE
r5 = 0 and defrost not the setpoint becomes "setpoint -
active r6", for the r7 duration
r5 = 1 the setpoint becomes "setpoint +
r6", for the r7 duration
Activate/deactivate energy saving in manual mode (if r5 = 0)
Touch the DEFROST key.
Activate the high or low humidity functions (if F0 = 5)
Touch the DOWN key for 1s.
Touch the UP or DOWN key within 15s to select the label "rH".
Touch the SET key for 2s until the display shows the right label
for the function (only touch the key to see the function
activated).
LAB. DESCRIPTION
rhL low humidity function (evaporator fan with F17 and F18 if the compressor is
off, on if the compressor is on)
rhH high humidity function (evaporator fan on)
Touch the ON/STAND-BY key (or do not operate for 60s) to exit
the procedure.
