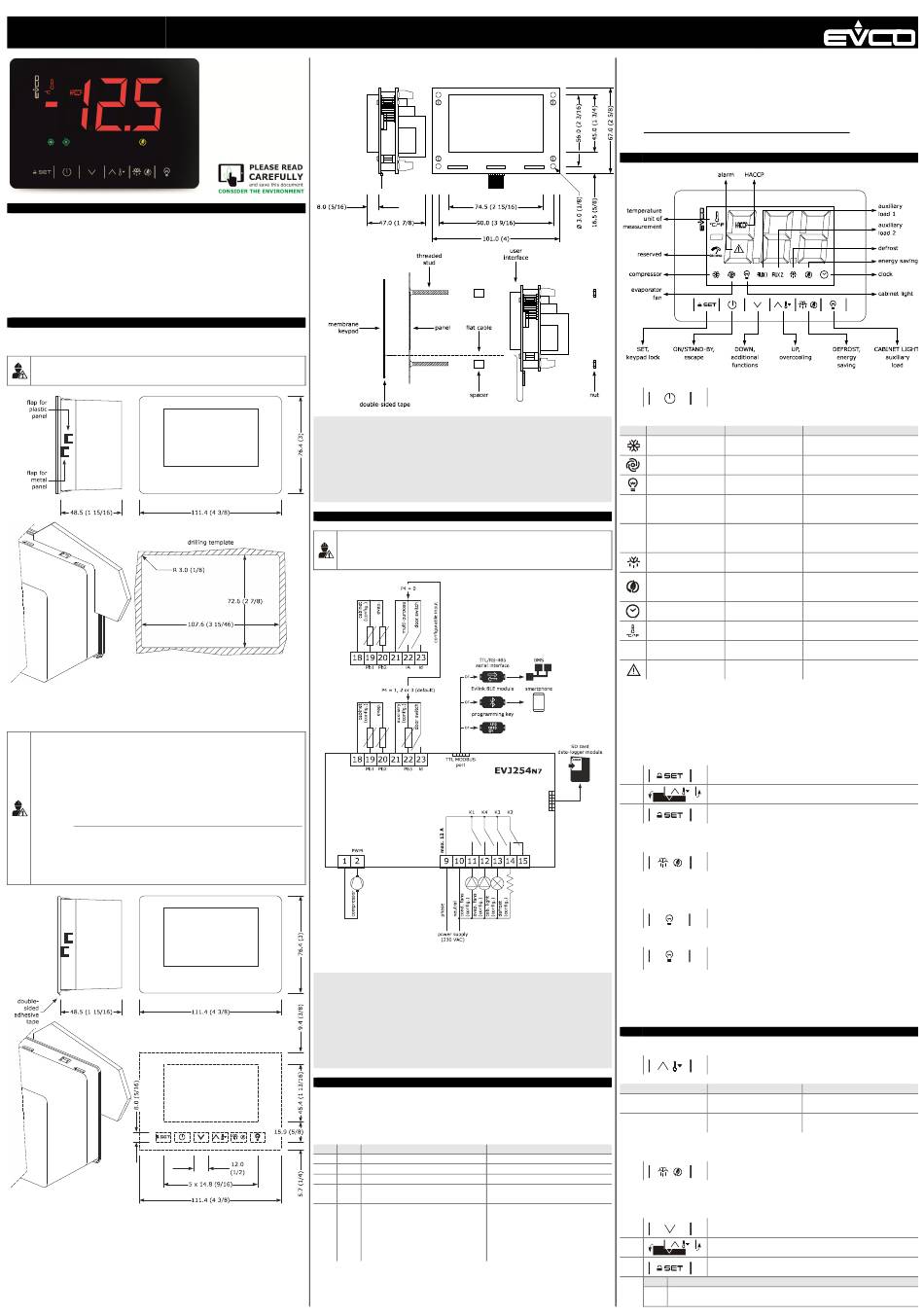

EVCO S.p.A. | EVJ254 | Instruction sheet ver. 1.0 | Code 104J254I103 | Page 1 of 4 | PT 13/18
EVJ254
EN
ENGLISH
-

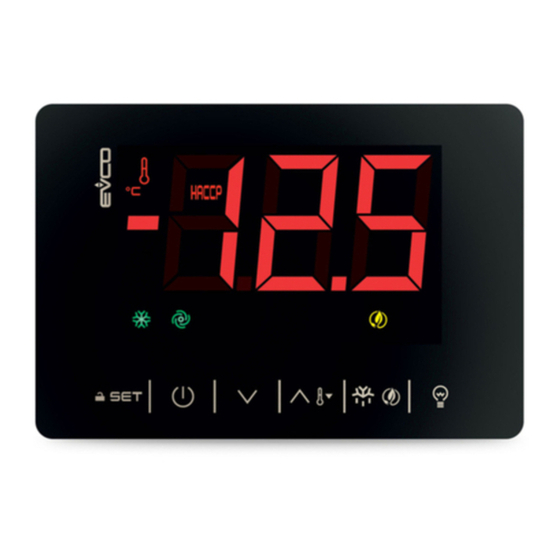

Controllers for low temperature units.
-
Power supply 230 VAC.
-
Incorporated clock (according to the model).
-
Cabinet probe and evaporator probe (PTC/NTC).
-
Door switch input.
-
Capable of managing Embraco and Secop variable speed compressors.
-
Alarm buzzer.
-
TTL MODBUS slave port for EVconnect APP or BMS.
-
Port for SD card data-logger module EVBD05 (according to the model).
-
Models in plastic container or open-frame (according to the model).
1
MEASUREMENTS AND INSTALLATION | Measurements in mm (inches)
1.1
Models in plastic container for front installation
Front installation on a plastic or metal panel (with elastic holding flaps).
N.B.
The thickness of a metal panel must be between 0.8 and 1.5 mm (1/32 and 1/16 in),
while that for a plastic panel must be between 0.8 and 3.4 mm (1/32 and 1/8 in).
1.2
Models in plastic container installed from behind
Installed from behind a glass or methacrylate panel (with biadhesive) customizing the keys on
the front of the unit.
N.B.
- The thickness of a glass panel must be between 2.0 and 4.0 mm (1/16 and 1/8 in),
while that for a methacrylate panel must be between 2.0 and 3,0 mm (1/16 e 1/8
in)
- The panel and the material used to make screen printing must not contain
conductive substances
- Keep the device and the panel at a temperature between 15 and 38 °C (59 and
100 °F) about an hour before the installation
- Before the installation clean the panel surface in contact with the biadhesive
carefully, making sure the product used to clean is suitable for the panel material
(we recommend using isopropyl alcohol, hydrocarbon solvent in case of greasy
surfaces); keep cleaning with a cloth as long as it results clean and dry after the
use
- During the installation, exert a uniform and constant pressure about 30 s on the
panel surface in contact with the biadhesive; later keep the device and the panel
horizontally about 48 h at a temperature between 15 and 38 °C (59 and 100 °F).
Controllers for refrigerated cabinets with variable speed compressors
1.3
Open-frame models
To be installed from behind, with threaded studs and membrane keypad.
INSTALLATION PRECAUTIONS
Ensure that the working conditions are within the limits stated in the TECHNICAL
-
SPECIFICATIONS section.
-
Do not install the device close to heat sources, equipment with a strong magnetic field,
in places subject to direct sunlight, rain, damp, excessive dust, mechanical vibrations
or shocks.
In compliance with safety regulations, the device must be installed properly to ensure
-
adequate protection from contact with electrical parts. All protective parts must be
fixed in such a way as to need the aid of a tool to remove them.
2
ELECTRICAL CONNECTION
N.B.
- Use cables of an adequate section for the current running through them.
- To reduce any electromagnetic interference connect the power cables as far away
as possible from the signal cables.
In model EVJ254N7VXXRXV the EVlink BLE module is integrated.
PRECAUTIONS FOR ELECTRICAL CONNECTION
If using an electrical or pneumatic screwdriver, adjust the tightening torque.
-
If the device has been moved from a cold to a warm place, the humidity may have
-
caused condensation to form inside. Wait about an hour before switching on the
power.
-
Make sure that the supply voltage, electrical frequency and power are within the set
limits. See the section TECHNICAL SPECIFICATIONS.
Disconnect the power supply before doing any type of maintenance.
-
-
Do not use the device as safety device.
-
For repairs and for further information, contact the EVCO sales network.
3
FIRST-TIME USE
1.
Install
following
the
instructions
INSTALLATION.
2.
Power up the device and an internal test will be run.
The test normally takes a few seconds, when it is finished the display will switch off.
3.
Configure the device as shown in the section Setting configuration parameters.
Recommended configuration parameters for first-time use.
PAR.
DEF.
PARAMETER
SP
0.0
setpoint
P0
1
probe type
P2
0
temperature unit of measurement
d1
0
defrost type
r15
1
compressor type
Then
check
that
the
CONFIGURATION PARAMETERS.
4.
Disconnect the device from the mains.
given
in
the
section
MEASUREMENTS
MIN... MAX.
r1... r2
0 = PTC
1 = NTC
0 = °C
1 = °F
0 = electric
1 = hot gas
2 = compressor stopped
1 = Embraco VEM
2 = Embraco VEG
3 = Embraco VNEK e VNEU
4 = Secop VNL 50... 150 Hz (25 Hz
in off)
5 = Secop 33... 133 Hz
remaining
settings
are
appropriate;
see
the
section
5.
Make the electrical connection as shown in the section ELECTRICAL CONNECTION
without powering up the device.
6.
For the connection in an RS-485 network connect the interface EVIF22TSX or
EVIF23TSX, to activate real time functions in EVJ254N7 connect the module
EVIF23TSX, for recording HACCP data in CSV format on SD card connect the module
EVBD05, to use the device with the Android APP EVconnect connect the interface
EVIF25TBX
(or
use
EVJ254N7VXXRXV);
If EVIF22TSX or EVIF23TSX is used, set parameter bLE to 0.
7.
Power up the device.
4
USER INTERFACE AND MAIN FUNCTIONS
4.1
Switching the device on and off
1.
If POF = 1 (default), touch the ON/STAND-BY key for 2s.
If the device is switched on, the display will show the P5 value ("cabinet temperature" default);
if the display shows an alarm code, see the section ALARMS.
LED
ON
OFF
compressor on
compressor off
evaporator fan on
evaporator fan off
cabinet light on
cabinet light off
auxiliary function 1 on
auxiliary function 1 off
AUX 1
auxiliary function 2 on
auxiliary function 2 off
AUX 2
defrost
or
pre-drip
-
active
- energy saving active
-
- low
consumption
active
view time
-
view temperature
-
saved HACCP alarm
-
HACCP
alarm active
-
If Loc = 1 (default) and 30s have elapsed without the keys being pressed, the display will show
the "Loc" label and the keypad will lock automatically.
4.2
Unlock keypad
Touch a key for 1s: the display will show the label "UnL".
4.3
Set the setpoint (if r3 = 0, default)
Check that the keypad isn't locked.
1.
Touch the SET key.
Touch the UP or DOWN key within 15s to set the value within the
2.
limits r1 and r2 (default "-40... 50")
3.
Touch the SET key (or do not operate for 15s).
4.4
Activate manual defrost (if r5 = 0, default)
Check that the keypad is not locked and that overcooling is not active.
1.
Touch the DEFROST key for 2s.
If P3 = 1 (default), defrost is activated provided that the evaporator temperature is lower than
the d2 threshold.
4.5
Cabinet light on/off (if u1c... u4c = 4)
1
Touch the CABINET LIGHT key.
4.6
Button-operated load on/off (if u1c... u4c = 9 or 10)
1.
Touch the CABINET LIGHT key (for 2s if u1c... u4c = 4).
If u1c... u4c = 5, the demisting switch on for the u6 duration.
4.7
Silence buzzer (if u9 = 1, default)
Touch a key.
If u1c... u4c = 11 and u4 = 1, the alarm output is deactivated.
5
ADDITIONAL FUNCTIONS
5.1
Activate/deactivate overcooling and overheating
Check that the keypad is not locked.
1.
Touch the UP key for 2s.
FUNCTION
CONDITION
AND
overcooling
r5 = 0 and defrost not
active
overheating
r5 = 1
5.2
Activate/deactivate energy saving in manual mode (if r5 = 0)
Check that the keypad is not locked.
1.
Touch the DEFROST key.
The setpoint becomes "setpoint + r4", at maximum for HE2 duration.
5.3
Activate the high or low humidity functions (if F0 = 5)
Check that the keypad isn't locked.
1.
Touch the DOWN key for 1s.
2.
Touch the UP or DOWN key within 15s to select the label "rH".
Touch the SET key until the display shows the right label for the
3.
function (only touch the key to see the function activated).
LAB.
DESCRIPTION
rhL
low humidity function (evaporator fan with F17 and F18 if the compressor is
off, on if the compressor is on)
see
the
relevant
instruction
sheets.
FLASHING
- compressor protection active
- setpoint being set
evaporator fan stop active
cabinet light on by digital input
- auxiliary function 1 on by digital
input
- auxiliary function 1 delay active
- auxiliary function 2 on by digital
input
- auxiliary function 2 delay active
- defrost delay active
- dripping active
-
set date, time and day of the
current week
overcooling or overheating active
new HACCP alarm saved
-
CONSEQUENCE
the setpoint becomes "setpoint -
r6", for the r7 duration
the setpoint becomes "setpoint +
r6", for the r7 duration
