EVJ 700
EVJ 700
EVJ 700
EVJ 700
Application Manual:
Controller for horizontal cooking
modules
144EVJ700E204

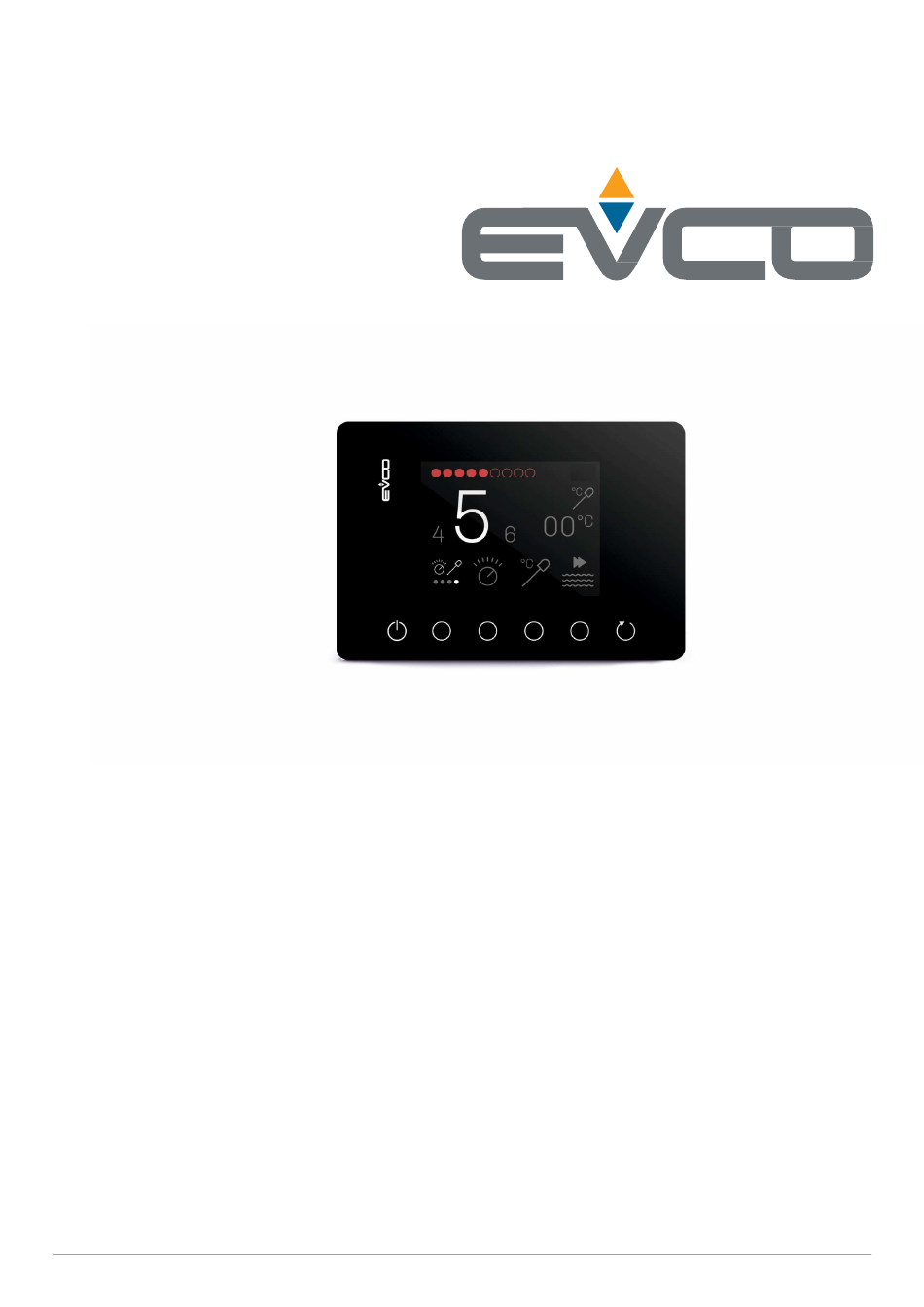

4 cooking combinations (depending on the application):
| | | |
power or temperature + timer or needle probe
ON-OFF or PI temperature control
| | | |
Models for managing external SSRs
| | | |
Push encoder and/or 6 capacitive
| | | |
touch keys
2.8" LCD colour graphic display
| | | |
IP65 front protection
| | | |
2 installation methods on front panel: built-in
| | | |
or concealed under the panel
(if made of glass or methacrylate) with customizable
keys on the panel surface
EVCO | 29.01.2021
| 1
