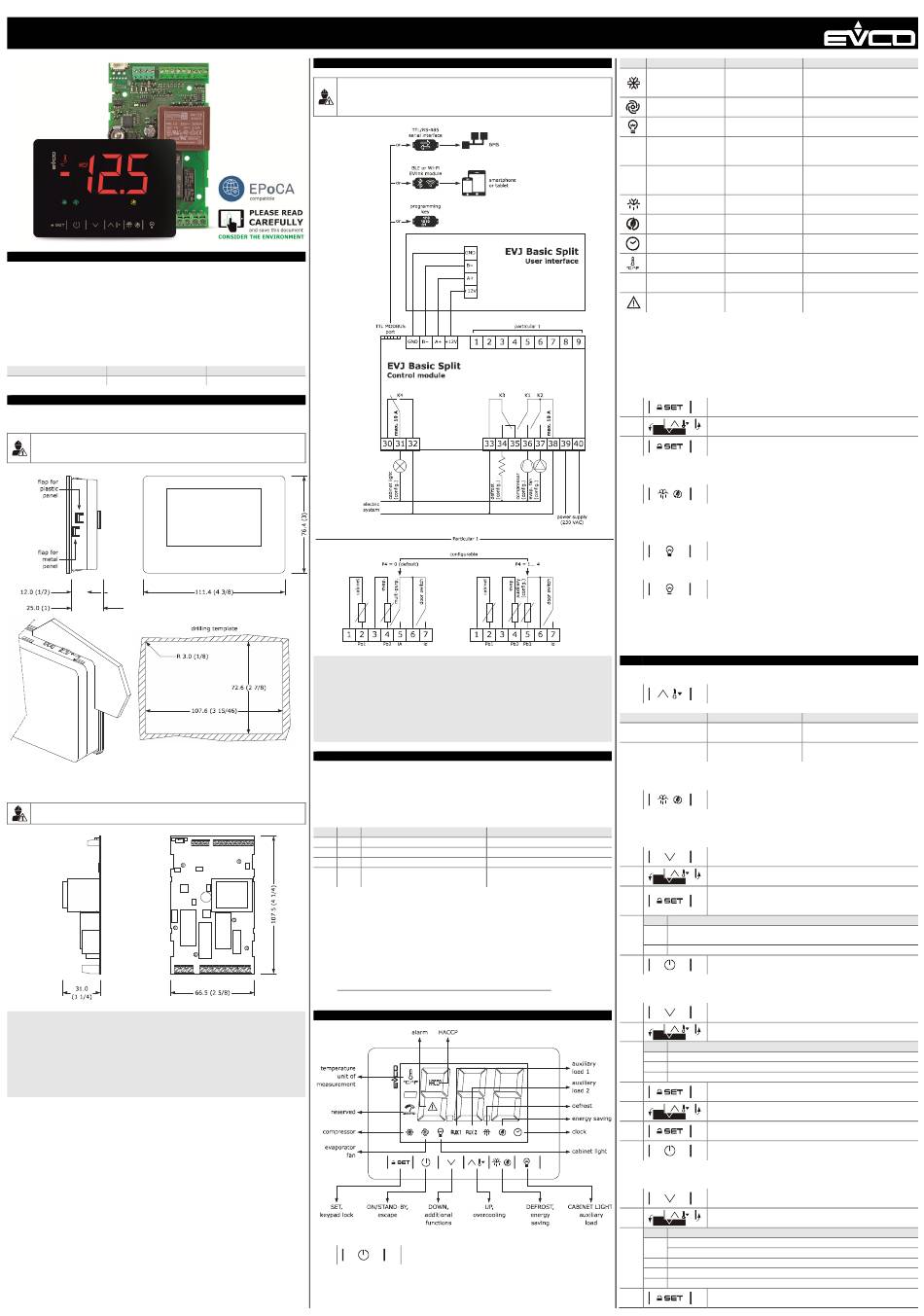

EVCO S.p.A. | EVJ Basic Split | Instruction sheet ver. 1.0 | Code 104JBSE103 | Page 1 of 3 | PT 49/18
EVJ Basic Split
I
ENGLISH
-
controllers for normal and low temperature units
-
power supply 230 VAC
-
cabinet probe and evaporator probe (PTC/NTC)
-
door switch and multi-purpose input
-
compressor relay 16 A res. @ 250 VAC
-
sealed relays compliant with the standard EN 60079-15
-
alarm buzzer
-
TTL MODBUS slave port for EVJKEY programming key, EVconnect app, EPoCA remote
monitoring system or for BMS
-
hot or cold mode regulation.
Purchasing code
Number of relays
EVJSB24N7
4
1
MEASUREMENTS AND INSTALLATION | Measurements in mm (inches)
1.1
User interface
To be fitted to a plastic or metal panel (with elastic holding flaps).
N.B.
The thickness of a metal panel must be between 0.8 and 1.5 mm (1/32 and 1/16 in),
while that for a plastic panel must be between 0.8 and 3.4 mm (1/32 and 1/8 in).
1.2
Control module
To be installed on an electrical panel, on spacers (not provided).
N.B.
Any metal parts must be far enough away so as not to compromise safety distances.
INSTALLATION PRECAUTIONS
-
ensure that the working conditions are within the limits stated in the TECHNICAL
SPECIFICATIONS section
-
do not install the device close to heat sources, equipment with a strong magnetic field,
in places subject to direct sunlight, rain, damp, excessive dust, mechanical vibrations
or shocks
-
in compliance with safety regulations, the device must be installed properly to ensure
adequate protection from contact with electrical parts. All protective parts must be
fixed in such a way as to need the aid of a tool to remove them.
Split-version controllers for refrigerated units
2
ELECTRICAL CONNECTION
N.B.
- use cables of an adequate section for the current running through them
- to reduce any electromagnetic interference, locate the power cables as far away as
possible from the signal cables.
Power supply
230 VAC
PRECAUTIONS FOR ELECTRICAL CONNECTION
-
if using an electrical or pneumatic screwdriver, adjust the tightening torque
-
if the device is moved from a cold to a warm place, humidity may cause condensation
to form inside. Wait for about an hour before switching on the power
-
make sure that the supply voltage, electrical frequency and power are within the set
limits. See the section TECHNICAL SPECIFICATIONS
-
disconnect the power supply before carrying out any type of maintenance
-
do not use the device as a safety device
-
for repairs and for further information, contact the EVCO sales network.
3
FIRST-TIME USE
1.
Carry out the installation following the instructions given in the section MEASUREMENTS
AND INSTALLATION.
2.
Power up the device as set out in the section ELECTRICAL CONNECTION: an internal
test will start up.
The test normally takes a few seconds; when it is finished the display will switch off.
3.
Configure the device as shown in the section Setting configuration parameters.
Recommended configuration parameters for first-time use:
PAR.
DEF.
PARAMETER
SP
0.0
setpoint
P0
1
type of probe
P2
0
temperature measurement unit
d1
0
type of defrost
Then check that the remaining settings are appropriate; see the section CONFIGURA-
TION PARAMETERS.
4.
Disconnect the device from the mains.
5.
Make the electrical connection as shown in the section ELECTRICAL CONNECTION,
without powering up the device.
6.
To use the device with the Evconnect app, connect the EVIF25TBX module. To use the
device with the EPoCA remote monitoring system, connect the EVIF25TWX module.
When connecting to an RS-485 network, connect the EVIF22TSX interface. To activate
real-time functions, connect the EVIF23TSX module.
If using EVIF22TSX or EVIF23TSX, set the bLE parameter to 0.
7.
Power up the device.
4

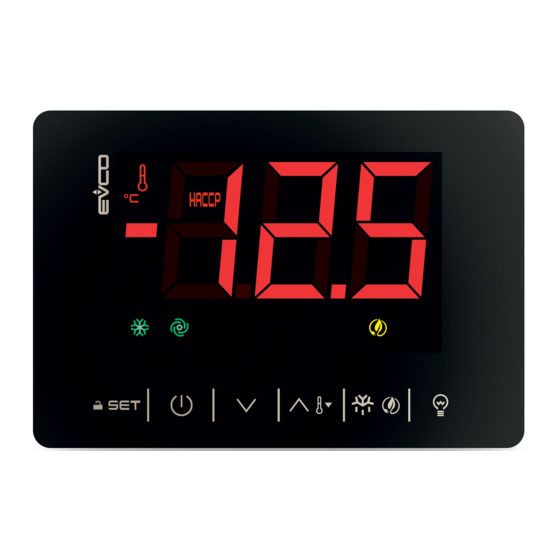

USER INTERFACE AND MAIN FUNCTIONS
4.1
Switching the device on/off
1.
If POF = 1 (default), touch the ON/STAND-BY key for 4 s.
If the device is switched on, the display will show the P5 value ("regulation temperature" de-
fault); if the display shows an alarm code, see the section ALARMS.
LED
ON
compressor
on
evaporator fan on
cabinet light on
auxiliary load 1 on
AUX 1
auxiliary load 2 on
AUX 2
defrost or pre-drip ac-
tive
energy saving active
time display
temperature display
HACCP alarm saved in
HACCP
EVlink
alarm active
If Loc = 1 (default) and 30s have elapsed without the keys being pressed, the display will show
the "Loc" label and the keypad will lock automatically.
4.2
Unlocking the keypad
Touch a key for 1 s: the display will show the label "UnL".
4.3
Setting the setpoint (if r3 = 0, default)
Check that the keypad is not locked.
1.
2.
3.
4.4
Activating manual defrost (if r5 = 0, default)
Check that the keypad is not locked and that overcooling is not active.
1.
If P3 = 1 (default), defrost is activated provided that the evaporator temperature is lower than
the d2 threshold.
4.5
Switching the cabinet light on/off (if u1c... u5c = 5)
1.
4.6
Switching the cabinet light on/off (if u1c... u5c = 10 or 11)
1.
If u1c... u5c = 6, the demisting heaters switch on for u6.
4.7
Silencing the buzzer (if u9 = 1, default)
Touch a key.
If u1c... u5c = 11 and u4 = 1, the alarm output is deactivated.
5
ADDITIONAL FUNCTIONS
5.1
Activating/deactivating overcooling and overheating
Check that the keypad is not locked.
1.
FUNCTION
overcooling
overheating
5.2
Activating/deactivating energy saving in manual mode (if r5= 0)
Check that the keypad is not locked.
1.
the setpoint becomes "setpoint+ r4" maximum for the HE2 time.
MIN... MAX.
5.3
Activating the high or low humidity function (if F0 = 5)
r1... r2
Check that the keypad is not locked.
0 = PTC
1 = NTC
1.
0 = °C
1 = °F
0 = electric
1 = hot gas
2.
2 = compressor stopped
3.
LAB.
rhL
rhH
4.
5.4
Displaying/deleting compressor functioning hours
Check that the keypad is not locked.
1.
2.
LAB.
CH1
CH2
rCH
3.
4.
5.
6.
5.5
Viewing the temperature detected by the probes
Check that the keypad is not locked.
1.
2.
LAB.
Pb1
Pb2
Pb3
Pb4
3.
OFF
FLASHING
switched
compressor
switched
- compressor protection in pro-
off
gress
- setpoint being set
evaporator fan off
evaporator fan stop in progress
cabinet light off
cabinet light on by digital input
auxiliary load 1 off
- auxiliary load 1 on by digital in-
put
- auxiliary load 1 delay active
auxiliary load 2 off
- auxiliary load 2 on by digital in-
put
- auxiliary load 2 delay active
-
- defrosting delay in progress
- dripping active
-
-
-
set date, time and day of the cur-
rent week
-
overcooling or overheating active
-
-
-
-
Touch the SET key.
Touch the UP or DOWN keys within 15 s to set the value within
the limits r1 and r2 (default "-40... 50")
Touch the SET key (or take no action for 15 s).
Touch the DEFROST key for 4 s.
Touch the CABINET LIGHT key.
Touch the CABINET LIGHT key (for 2 s if u1c... u5c = 5).
Touch the UP key for 2 s.
CONDITION
CONSEQUENCE
r5 = 0 and defrosting not
the setpoint becomes "setpoint -
activated
r6", for the r7 time
r5 = 1
the setpoint becomes "setpoint +
r6", for the r7 time
Touch the DEFROST key.
Touch the DOWN key for 1 s.
Touch the UP or DOWN key within 15 s to select the label "rH".
Touch the SET key for 2 s until the display shows the right label
for the function (only touch the key to see the function acti-
vated).
MEANING
low humidity function (evaporator fan with F17 and F18 if the compressor is
off, on if the compressor is on)
high humidity function (evaporator fan on)
Touch the ON/STAND-BY key (or take no action for 60 s) to exit
the procedure.
Touch the DOWN key for 1 s.
Touch the UP or DOWN key within 15 s to select a label.
MEANING
view compressor functioning hours (in hundreds)
view compressor 2 functioning hours (in hundreds) (if u1c... u5c = 1)
delete compressor and compressor 2 functioning hours
Touch the SET key.
Touch the UP or DOWN key to set "149" (to select rCH).
Touch the SET key.
Touch the ON/STAND-BY key (or take no action for 60 s) to exit
the procedure.
Touch the DOWN key for 1 s.
Touch the UP or DOWN key within 15 s to select a label.
MEANING
cabinet temperature (if P4 = 0, 1, 2 or 4)
incoming air temperature (if P4 = 3)
evaporator temperature (if P3 = 1 or 2)
auxiliary temperature (if P4 = 1, 2, 3 or 4)
calculated product temperature (CPT; if P4 = 3)
Touch the SET key.
