TE Connectivity 2379255-1 Instruction Sheet

TE Connectivity 2379255-1 Instruction Sheet

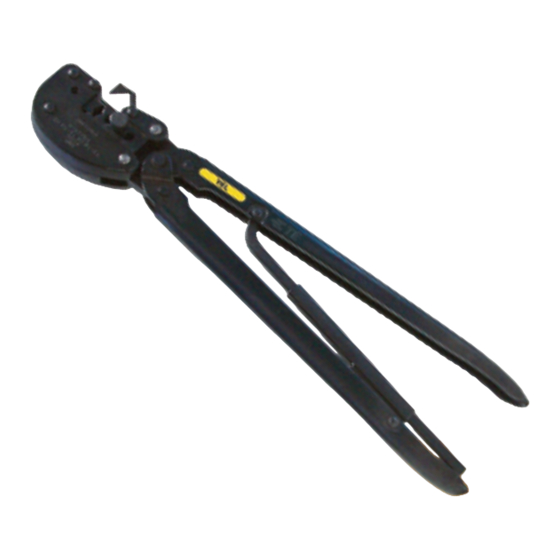

Heavy head hand tool (hhht)

Advertisement

Quick Links

PROPER USE GUIDELINES
Cumulative trauma disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional
use and low-volume applications. A wide selection of powered application equipment is available for extended-use production operations.
1
2
3
© 2022 TE Connectivity Ltd. family of companies.
All Rights Reserved.
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
Heavy Head Hand Tool
(HHHT) 2379255-1

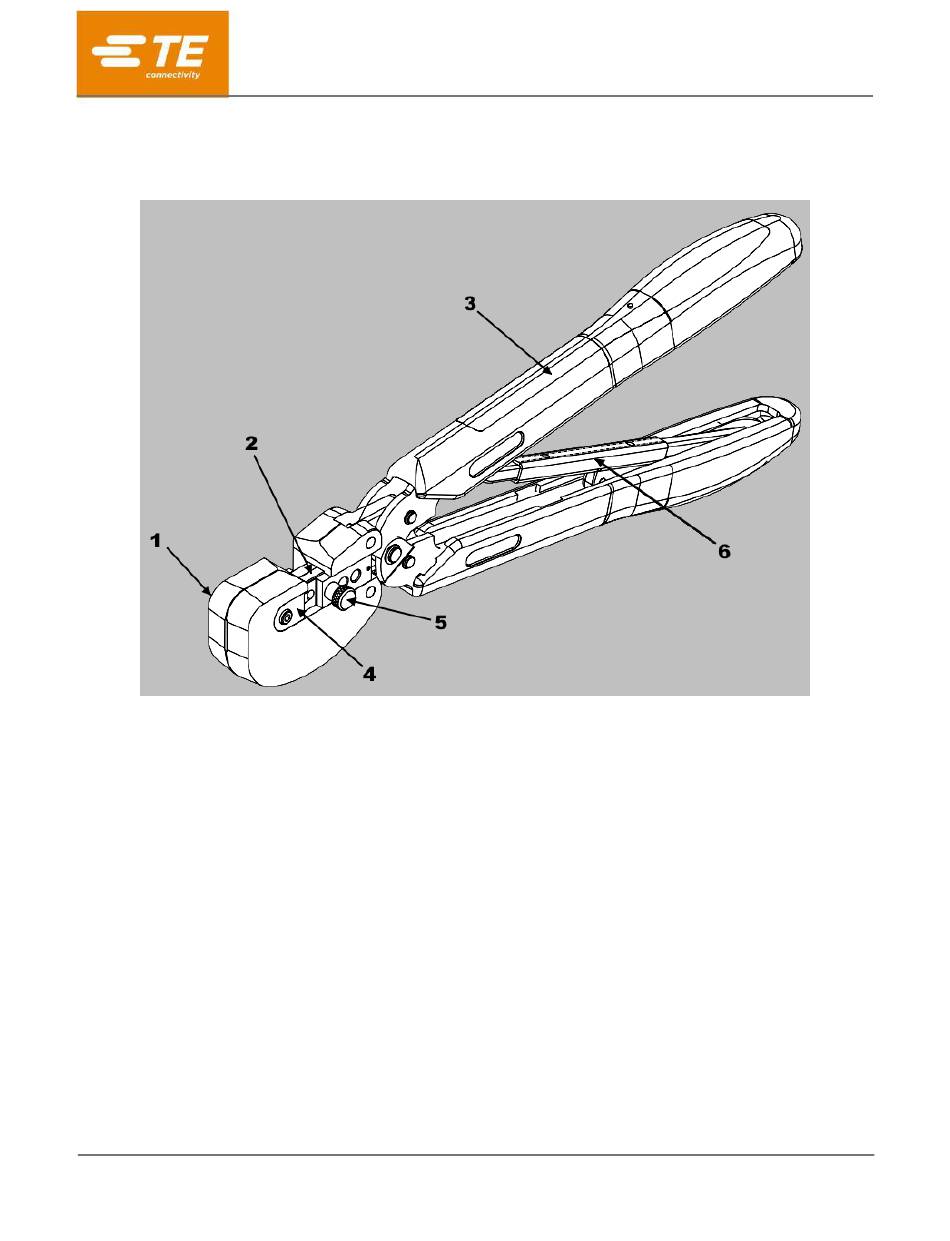

Figure 1: Heavy Head Hand Tool 2379255-1
Head
Movable dies (crimpers)
Handle
PRODUCT INFORMATION 1-800-522-6752
Stationary dies (anvils)
4
Insulation crimping adjustment pin
5
Ratchet
6
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Instruction Sheet
408-35137
27 DEC 2022 Rev B
1 of 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2379255-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TE Connectivity 2379255-1

  • Page 1 1 of 6 For latest revision and Regional Customer Service, All Rights Reserved. visit our website at www.te.com. TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
  • Page 2 408-35137 1. INTRODUCTION The Heavy Head Hand Tool 2379255-1 (Figure 1) is designed to crimp DEUTSCH stamped PIN and Socket contacts onto the wires listed in Table 1. Table 1: Crimping specifications Insulation Crimp tool Terminal Wire type Insulation range...
  • Page 3 408-35137 3. CRIMPING 1. Select a wire of the correct size and insulation diameter for the terminal (see Table 1). 2. Strip the wire to the length listed in Table 1. Do not nick or cut wire strands. CAUTION Do not use wire with nicked or missing conductors. 3.
  • Page 4 408-35137 7. Place the terminal in the locator so that the raised collar on the terminal body is bottomed in the locator (Figure 3). CAUTION Make sure that both sides of the wire barrel are started evenly into the crimping section. Do not attempt to crimp an improperly positioned contact.
  • Page 5 Crimp height inspection is performed using a micrometer with a modified anvil, commonly referred to as a crimp-height comparator. TE Connectivity does not manufacture or market crimp height comparators. Detailed information on obtaining and using crimp-height comparators can be found in instruction sheet 408-7424.
  • Page 6: Maintenance And Inspection

    Shop TE link at the top of the page.  Call 800-522-6752.  Write to: CUSTOMER SERVICE (038-035) TE CONNECTIVITY CORPORATION PO BOX 3608 HARRISBURG PA 17105-3608 For customer repair services, call 800-522-6752. 7. REVISION SUMMARY Since the last revision of this document, the following changes were made: ...
