TE Connectivity 2255140-1 Original Instructions

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low
volume applications. A wide selection of powered application equipment for extended-use, production operations is available.

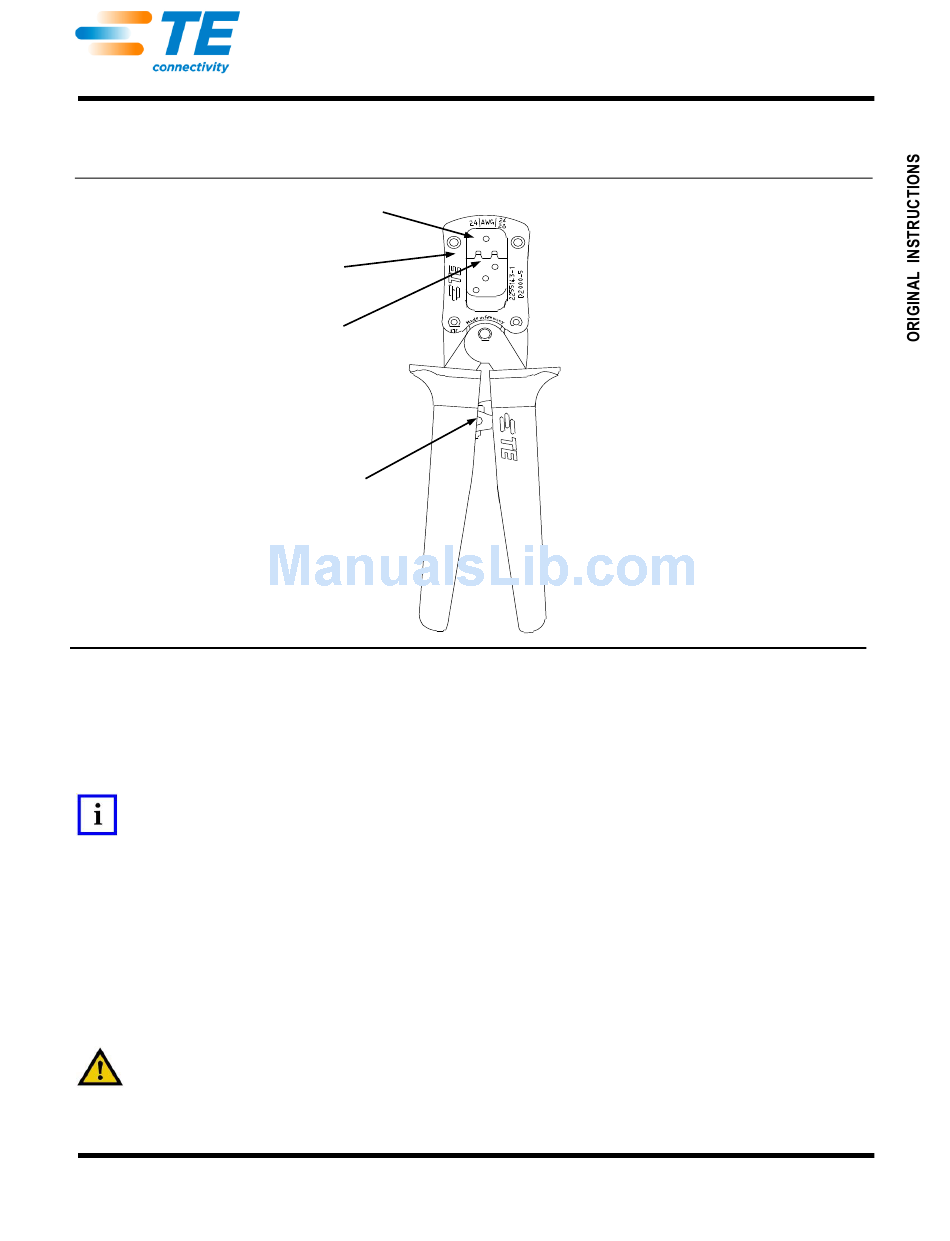

Back of Tool
NOTE: 2255139-1 is
Shown, but Other SAHTs on
this Document are Similar

1. INTRODUCTION

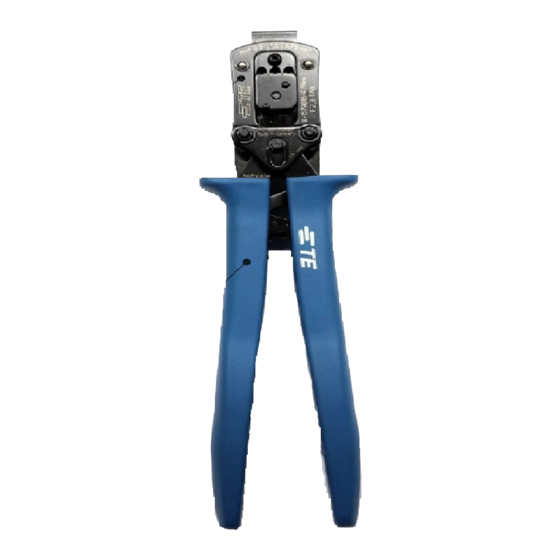

This instruction sheet covers the use of TE Connectivity Hand Crimping Straight Action Hand Tools (SAHT)
2255139-1, 2255140-1, 2255141-1, and 2255142-1 with flip locators which crimp D1000 Dynamic Series
contacts listed in Figure 2.
NOTE
Dimensions are in metric units with [inches in brackets]. Figures and illustrations are for reference only and are not drawn to
scale.
Read these instructions thoroughly before crimping any contacts.

2. DESCRIPTION

Figure 1
(
The FRONT OF TOOL (contact side), is where the contact is inserted. The BACK OF TOOL (wire side), is
where the wire is inserted and has the wire size markings above each crimp section.
Each tool features a fixed die (crimper), a movable die (anvil), two crimp sections with applicable wire size
markings, a flip locator, a wire stop, and a ratchet release lever.
Once engaged, the ratchet will not release until the handles have been FULLY closed.
CAUTION
The ratchet ensures full crimping of the contact. This is a design feature that ensues maximum electrical and tensile
performance of the crimp. Do NOT readjust the ratchet.
© 2015 TE Connectivity family of companies
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
Mini Straight Action Hand Tools (SAHT)
2255139-1, 2255140-1, 2255141-1, and
2255142-1 for D1000 Dynamic Series
Contacts
Crimper
Anvil
Ratchet
Figure 3
and )
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
0 0 0 0
Figure 1
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Instruction Sheet
408-32126
Rev A1
13 MAR 15
1 of 4
