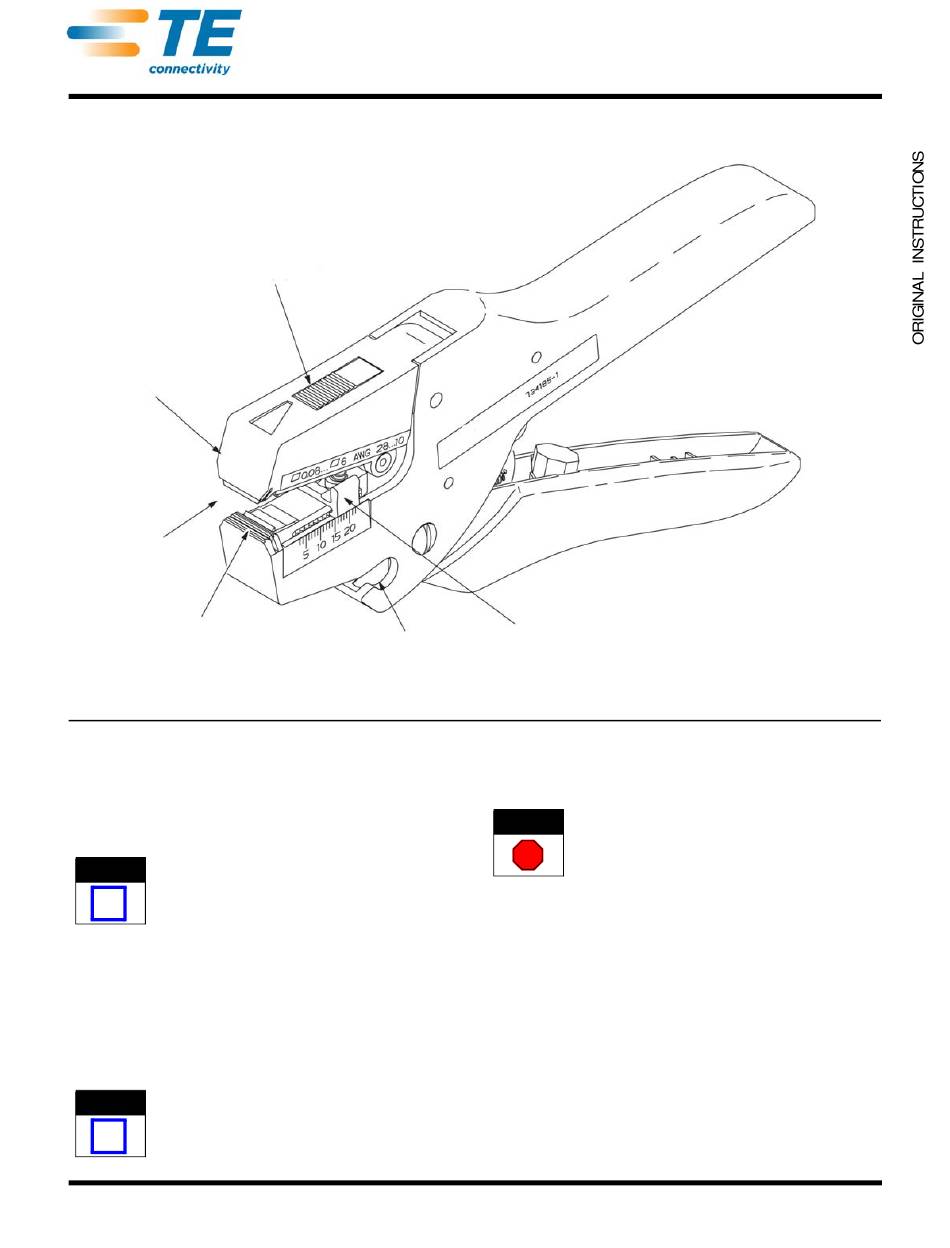

TE Connectivity 734185-1 Original Instructions

Insulation Thickness
Adjustment Indicator
Upper
Stripping
Jaw
Front of
Tool
Lower
Stripping
Jaw
1. INTRODUCTION

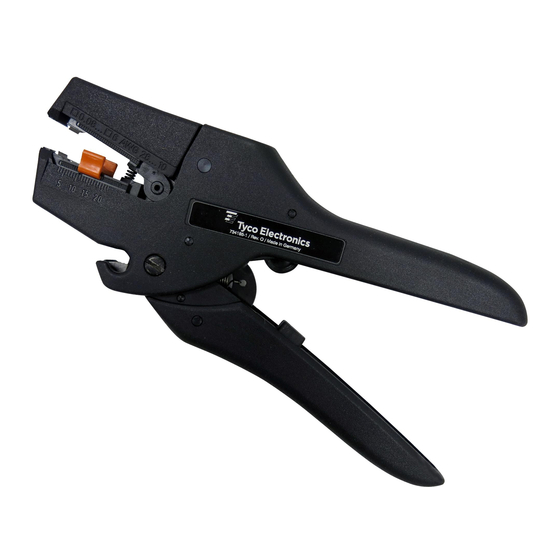

Wire Stripper 734185-1 is designed to strip wire sizes
28-10 AWG. Read these instructions thoroughly before
using the tool.
All dimensions on this document are in metric units
NOTE
[with U.S. customary units in brackets].
i
2. DESCRIPTION
The tool, which has a retracting jaw type hand
operated wire stripper, automatically strips wire sizes
28-10 AWG with minor adjustments. Wire ends can be
stripped up to 16 mm [.625 in.].
3. WIRE CUTTING AND STRIPPING
For proper operation of the tool, jaws and insulation
NOTE
must be free of lubrication.
i
©2011 Tyco Electronics Corporation, Berwyn, PA
All Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names might be trademarks of their respective owners.
Wire Stripper 734185-1
Cutting
Blades
Figure 1
1. Insert wire into the cutting blades and squeeze
handles to cut. See Figure 1.
DANGER
2. To strip insulation, adjust the stripping blade
depth for the insulation thickness at the top of the
tool. Slide the insulation thickness adjustment
regulator as follows:
•
•
•
3. To adjust the strip length, move the wire stop by
squeezing the top tabs with fingers and sliding wire
stop to the desired measured wire length. Refer to
Figure 2.
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Wire
Stop
Keep fingers away from blades at all times.
STOP
Thin-Rear Position (toward handles)
Normal-Center Position
Thick-Forward Position
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-8907
03 OCT 11 Rev B
1 of 3
LOC B
