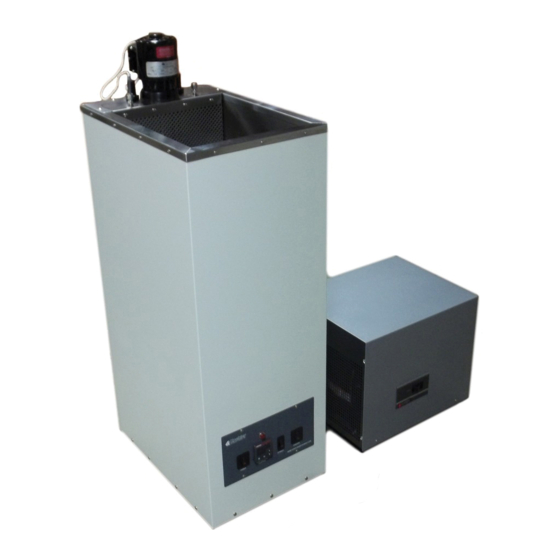

Constant Temperature Water Bath
Operation and Instruction Manual
REV C
Koehler Instrument Company, Inc.
1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA
Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815
http://www.koehlerinstrument.com • e-mail: info@koehlerinstrument.com
Petroleum Testing & Analysis Instrumentation • Custom Design & Manufacturing
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Koehler K259 Series
Summary of Contents for Koehler K259 Series

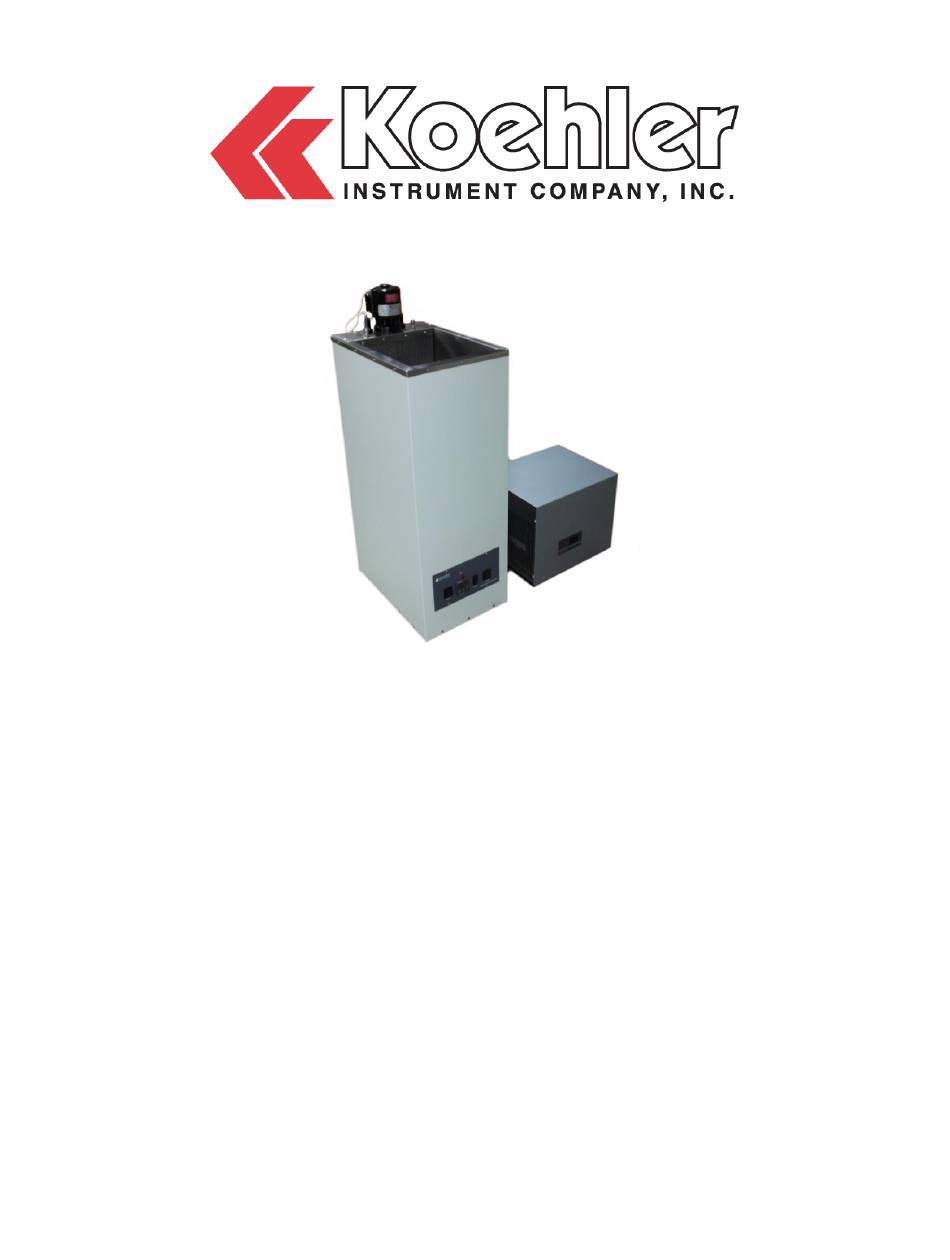

- Page 1 Constant Temperature Water Bath Operation and Instruction Manual REV C Koehler Instrument Company, Inc. 1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815 http://www.koehlerinstrument.com •...
- Page 3 GPA 2140 This unit is tested before it leaves the factory, to ensure total functionality and compliance to the above specifications and ASTM standards. Test and inspection records are on file for verification. Jesse Kelly Application Engineer Koehler Instrument Company...
- Page 5 K259XX Constant Temperature Water Bath Operation and Instruction Manual K295XX-Manual...
- Page 6 K259XX Constant Temperature Water Bath Operation and Instruction Manual K295XX-Manual...
- Page 7 Responsibility for Registration and Annual Reporting: Koehler will not sell directly to end users in the EU and so has no responsibility to register within each EU state and to make annual reports. Koehler declares that this responsibility is born by the importer who is the first level of the distribution chain and is subject to producer responsibility.
- Page 8 WEEE Marking Since Koehler products are subject to the WEEE Directive we must display the WEEE symbol shown above in accordance with European Standard EN 50419 on the equipment. It must be indelible, at least 5mm in height, and clearly legible.
-
Page 9: Table Of Contents
K259XX Constant Temperature Water Bath Operation and Instruction Manual Table of Contents 1 Introduction ........................6 1.1 Koehler’s Commitment to Our Customers ....................6 1.2 Recommended Resources and Publications ..................... 6 2 Safety Information and Warnings ................... 7 3 Getting Started ......................... 7 3.1 Packing List .............................. -
Page 10: Introduction
Electrical understand your requirements and provide you with Requirements: 115V, 60Hz, 12.5 A the best solutions. You can depend on Koehler for a 220-240V, 60Hz, 6.4 A full range of accurate and reliable instrumentation as 220-240V, 50Hz, 6.4 A well as support for your laboratory testing programs. -
Page 11: Safety Information And Warnings
K259XX Constant Temperature Water Bath Operation and Instruction Manual Bath Interior 3 Getting Started Dimensions Packing List 12” x 18 x 22” (30x46x56) (l x w x h,in.(cm)): K259XX Constant Temperature Water Bath Overall 115V/230V Dimensions 18” x 20” x 49" (46x51x124) Comprised of: (l x w x h,in.(cm)): - Constant Temperature Bath... -
Page 12: Setup
Damage may occur to the unit and the warranty submitting a claim for shipping damage, request that would be void. the carrier inspect the shipping container and equipment. Do not return goods to Koehler without written authorization. Setup Equipment Placement: Place the instrument on a firm, level surface in an area with adequate environmental control. -
Page 13: Descriptions
K259XX Constant Temperature Water Bath Operation and Instruction Manual 4 Descriptions 4.1 Instrument Descriptions Figure 2. Instrument Descriptions_Front Panel 7. Line Switch. For powered on entire unit. Temperature controller LED lights and power indicator light will illuminate. 8. Power Indicator Light. For informing user that instrument is powered on. - Page 14 K259XX Constant Temperature Water Bath Operation and Instruction Manual 12. Line Cord. Connect to a properly fused and grounded receptacle with the correct voltage as indicated in section 1.3 or on the information plate at the back of the unit. 13.
-
Page 15: Temperature Controller Operation
IMPORTANT NOTE: digital changing the bath medium type, or utilizing a temperature controller for the unit comes different temperature set point 20% different pre-programmed from the Koehler factory. from previously used point Please do NOT attempt to re-program the temperature. -
Page 16: Operation
If any other temperature is reached. Auto tune can be service problems arise, please contact Koehler’s terminated by pressing the up & down Technical Service department. Over the course of buttons simultaneously again. -
Page 17: Wiring Diagrams
K259XX Constant Temperature Water Bath Operation and Instruction Manual 7 Wiring Diagrams 7.1 K25900 115V K295XX-Manual -13-... -
Page 18: K25995 230V 50Hz
K259XX Constant Temperature Water Bath Operation and Instruction Manual 7.2 K25995 230V 50Hz K295XX-Manual -14-... -
Page 19: K25990 230V 60Hz
K259XX Constant Temperature Water Bath Operation and Instruction Manual 7.3 K25990 230V 60Hz K295XX-Manual -15-... -
Page 20: Service
Goods must be returned freight prepaid. Returns will be We at Koehler would like to thank you for your subject to a restocking charge, the application of equipment purchase, which is protected by the... -
Page 21: Notes
K259XX Constant Temperature Water Bath Operation and Instruction Manual Notes K295XX-Manual -17-... - Page 22 K259XX Constant Temperature Water Bath Operation and Instruction Manual Notes K295XX-Manual -18-...
