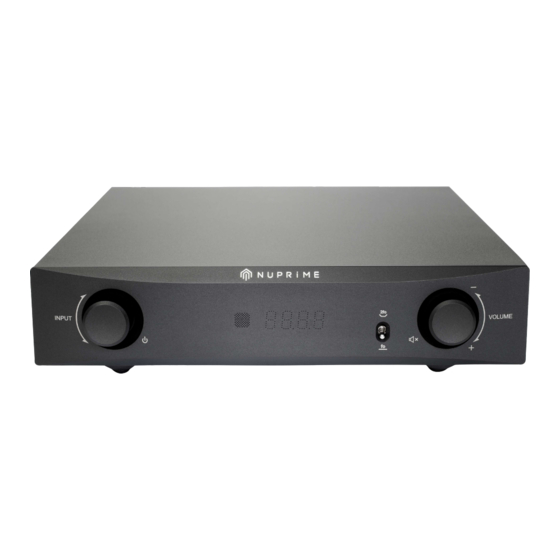

- Page 1 IA- 9X NuPrime's IA-9X amplifier combines two cutting-edge technologies - NuPrime ODC and Harmonic Generation circuits - to offer adjustable sonic characteristics. This makes it perfect for either studio monitoring or relaxing music listening. USER’S MANUAL...
-
Page 2: Table Of Contents
....................... 3 Safety Instructions ......................... 4 Introduction ........................... 7 Specifications ..........................11 Quick Start Guide .......................... . 13 Display ............................Rear Panel ............................15 Remote Control ......................................19 NuPrime’s Limited Warranty and Limitation of Liabilities www.nuprimeaudio.com... -
Page 3: Fcc Notice - Declaration Of Conformity Information
FCC Notice - Declaration of Conformity Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Eu Declaration Of Conformity
Hereby, NuPrime Audio, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. The manufacturer of this product is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA. -
Page 5: Safety Instructions
Safety Instructions There are two categories of Safety Instructions included in this manual: • Product Warnings, (i.e., what must never be done to assure avoiding those hazards that • could cause bodily injury or property damage); and • User Directions (i.e., what must always be done to assure the safe use of your device). The Safety Instructions contained in this manual have been categorized in accordance with the seriousness of the potential hazards through the use of Signal Words. - Page 6 WARNING: Never attempt to disassemble, repair or make any modification to your device. Disassembly, modification or any attempt at repair could cause bodily injury or property damage, as well as damage to the device itself. WARNING: Your device is not a toy. Never allow children to play with your device. Misuse, rough or improper handling of your device by children could result in serious bodily injury for any of the enumerated safety warnings in this manual.
- Page 7 Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage speci ed on the rear panel. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent.
-
Page 8: Introduction
Introduction NuPrime's IA-9X is an integrated amplifier designed to work well in an analogue audio system. It combines two innovative designs to give it adjustable sonic characteristics. •NuPrime Only Distortion Cancellation (ODC) circuit for ultra-low distortion for neutral and detailed sound. - Page 9 The ODC class D PWM module include two NuPrime's new ultra-low distortion amplifier modules (THD=0.0014%) composed of MUSES8820 op-amp in a new delta sigma circuit. It has excellent ultra-low distortion and high driving force characteristics. www.nuprimeaudio.com...
- Page 10 NuPrime IA-9X pre-amp includes a MM phono input. The input and output use a special audio Relay Switch, which has the lowest interference and highly accurate transmission, to switch the source. The phono input has a variety of settings for input resistors and capacitors to match different MM cartridges.
- Page 11 • Input digital volume, adjustable in 99 segments. Automatic memory when powered off. • Input and output Trigger for power on/off control of multiple devices. • Nuprime specially customized audio-specific capacitors, 13200uf and 25A high-current bridge rectifiers, providing fast and dynamic speaker driving force.
-
Page 12: Specifications
• Sensitivity (to rated power): 1.5Vrms • Input Impedance: 47K Ohms • IA-9X WATT / THD / S/N (typcial) : @5W (0.0014% ,95dB) , @50W (0.003% , 105dB) • Frequency Response: 10Hz to 50kHz (-3dB) • Standby Power : 4.6W @ 115V outlet, 3.3W @ 230V outlet •... - Page 13 Phono Stage : • Input resistance: 32K ohm / 47K ohm / 100K ohm • Input capacitance: 100 pF / 220 pF / 320 pF • MM Input Sensitivity: 4.0 mV @ 1KHz • GAIN: MM input to LINE output (Vol./Max.) => 65dB @ 1K Hz Dimensions and Weight: •...
-
Page 14: Quick Start Guide
Briefly press for 3 sec to On/Off standby mode Turn the knob to switch between inputs Remote IR receiver Display 2fo : NuPrime ODC with natural harmonics Model fo : NuPrime ODC Model Volume control: Turn the knob clockwise to increase volume Turn the knbo counterwise to decrease volume Briefly press the knob to Mute / un-Mute... -
Page 15: Display
Display Volume display: Inputs Display: 00 ~ 99 C1 : MM Phono Stage input C2 : Analog Stereo XLR input C3 : L1 Analog Stereo RCA input C4 : L2 Analog Stereo RCA input www.nuprimeaudio.com... -
Page 16: Rear Panel
Rear Panel Omnia Stream Mini NuPrime DAC-9X or CD/DVD/BD Player XLR or RCA input Phono Stage Stereo Speakers Inputs: Phono (RIAA): MM Phono input. Line In: One stereo XLR inputs. Two pairs of stereo RCA inputs. Outputs: Speaker Out: Two Stereo Speaker Output... - Page 17 Bottom Phono Switch Input Impedance : Switch 1 ON = 47K Switch 2 ON = 100K Switch 1&2 ON = 32K Input Capacitance : Switch 1 ON = 100PF Switch 2 ON = 220PF Switch 1&2 ON = 320PF www.nuprimeaudio.com...
- Page 18 AC Voltage Selector : Make sure that the AC voltage selector switch at the bottom of the unit is switched to the appropriate voltage for your country. All NuPrime products are shipped with the switch set to 230V AC in order to prevent accidental damage.
-
Page 19: Remote Control
Remote Control • Toggle power STANDBY and ON • DIS: • Vol +: Volume up • Vol –: Volume down • Mute: Volume Mute • input selection • : input selection • : input selection • : selection • : Battery Replacement: To change the battery, please remove the bottom cover to reveal the battery casing. -
Page 20: Nuprime's Limited Warranty And Limitation Of Liabilities
If a hardware defect exists and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, NuPrime will (1) repair the hardware defect at no charge, using new or refurbished replacement parts, (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product, or (3) refund the purchase price of the product. - Page 21 When a refund is given, your product becomes NuPrime's property. OBTAINING WARRANTY SERVICE If you purchased the product in the U.S., deliver the product, at your expense, to any NuPrime Service Center located in the U.S. If you purchased the product outside of the U.S., deliver the product to any NuPrime Authorized Importer in the country where you purchased the product.
- Page 22 www.nuprimeaudio.com...
- Page 23 www.nuprimeaudio.com...
