Product Manual

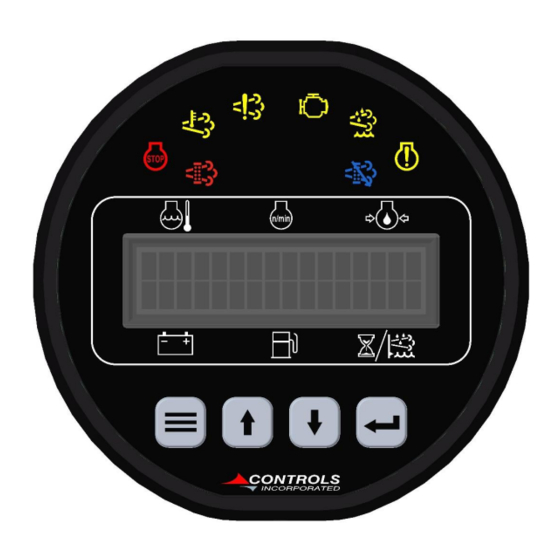

Engine Display and Control
J1939 Engines
Part Number: MVP-350
Revision: 1.1
______________________________________________________________________________________________________________________________________
Copyright Controls, Inc.
P.O. Box 368 • Sharon Center, OH 44274
Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Controls MVP-350
Summary of Contents for Controls MVP-350

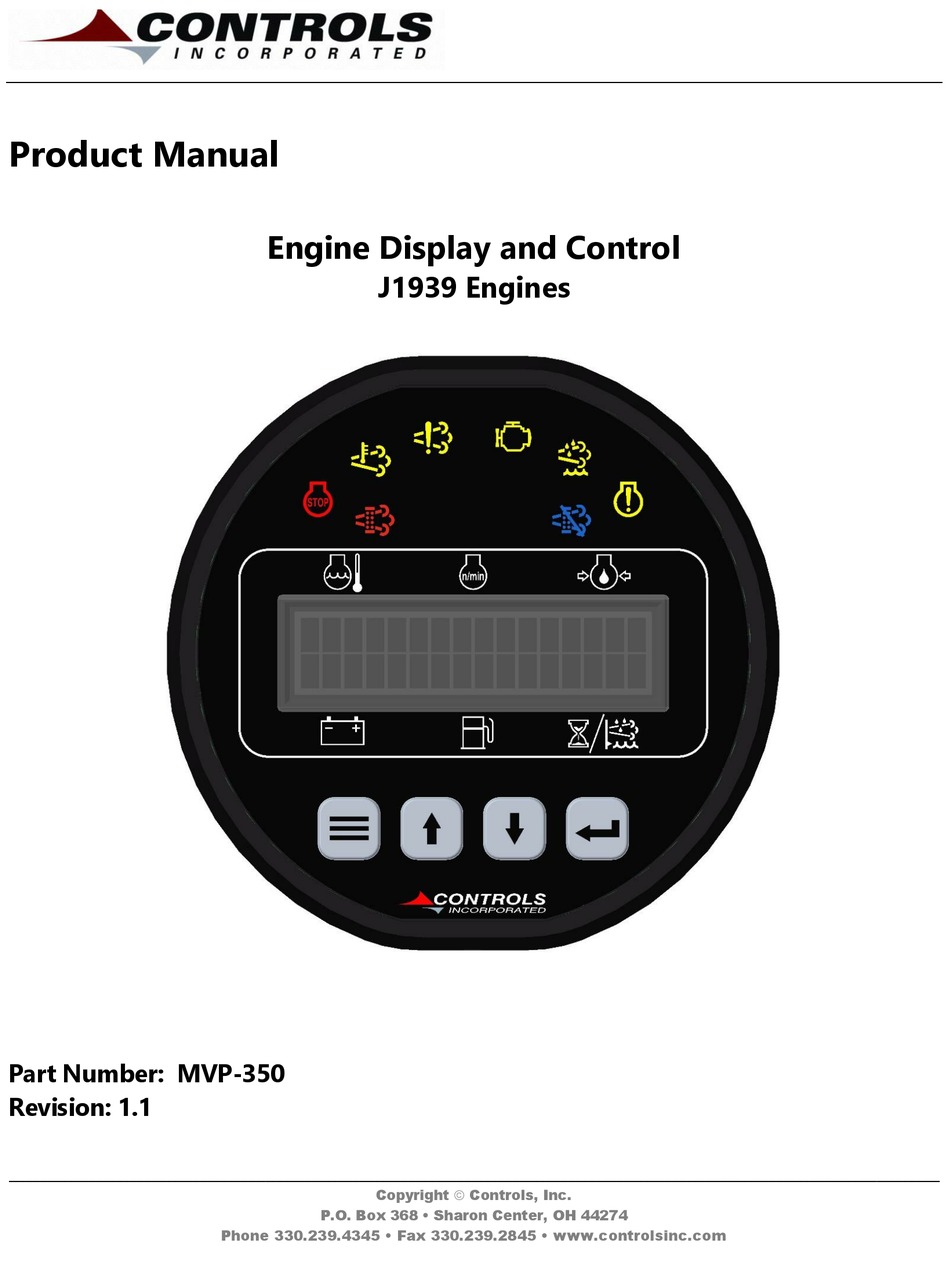

- Page 1 Product Manual Engine Display and Control J1939 Engines Part Number: MVP-350 Revision: 1.1 ______________________________________________________________________________________________________________________________________ Copyright Controls, Inc. P.O. Box 368 • Sharon Center, OH 44274 Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com...
-
Page 2: Table Of Contents
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S TABLE OF CONTENTS PRIOR TO ENGINE START ………………...…………………………………………………………………….….……….……….…………... CAN Bus CONFIGURATION THROTTLE SETTINGS INSTALLATION INFORMATION ……...………………………………...…………..……………………………………………….. -
Page 3: Can Bus Configuration
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Prior to starting the engine, select the proper throttle control mode and parameters required for application. -
Page 4: Installation Information
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S INSTALLATION INFORMATION - 3 -... - Page 5 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONNECTOR INFORMATION FUEL / RUN BATTERY + THROTTLE UP CAN HIGH DIGITAL INPUT 4...
-
Page 6: Engine Alarms, Codes And Messages
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ENGINE ALARMS, CODES AND MESSAGES Engine ECU Alarm/De-Rate/Shut Downs It is important to understand panel operation with respect to engine safety protections, alarms, and fault codes. -
Page 7: Active And Stored Engine Ecu Codes
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Indicator Lamps Regen Malfunction Wait-to- Active Lamp Start Lamp Lamp Lamp Engine Engine Alarm/Fault... - Page 8 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL DIGITAL INPUTS The panel has two digital inputs available to monitor other components, senders or signals. The analog input is preset to fuel level and cannot be configured.
- Page 9 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S - 8 -...
-
Page 10: Menu System
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL OUTPUTS The panel has two outputs available to signal other devices based on predefined events. These Outputs can be used for a number of purposes including engine operation or driving an audible alarm. - Page 11 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S To Enter Menu System Hold MENU button and press ENTER button. Menu Navigation Press MENU button to scroll menu options.
- Page 12 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Main Menus Main Menus Sub Menus Active Engine Fault Codes View/Scroll Active Fault Codes...
- Page 13 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Configuration Menus Quick Setup Engine Manufacturer TSC Minimum Speed TSC Maximum Speed Performance Display Off/On Eng.
- Page 14 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CAN Configuration Engine Manufacturer TSC1 Address (Default = 3) Others available Source Address (Default = 44) Others available...
