Part Number: MVP-238
Revision: 2.0
Engine Type: Kubota Diesel with DPF Emissions Control
______________________________________________________________________________________________________________________________________

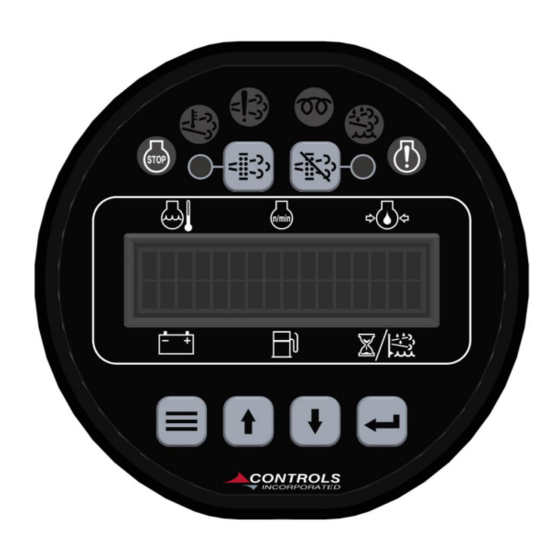

Product Manual
Engine Control Module
Kubota Diesel Engines
Copyright  Controls, Inc.
P.O. Box 368 • Sharon Center, OH 44274
Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVP-238 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Controls MVP-238

Summary of Contents for Controls MVP-238

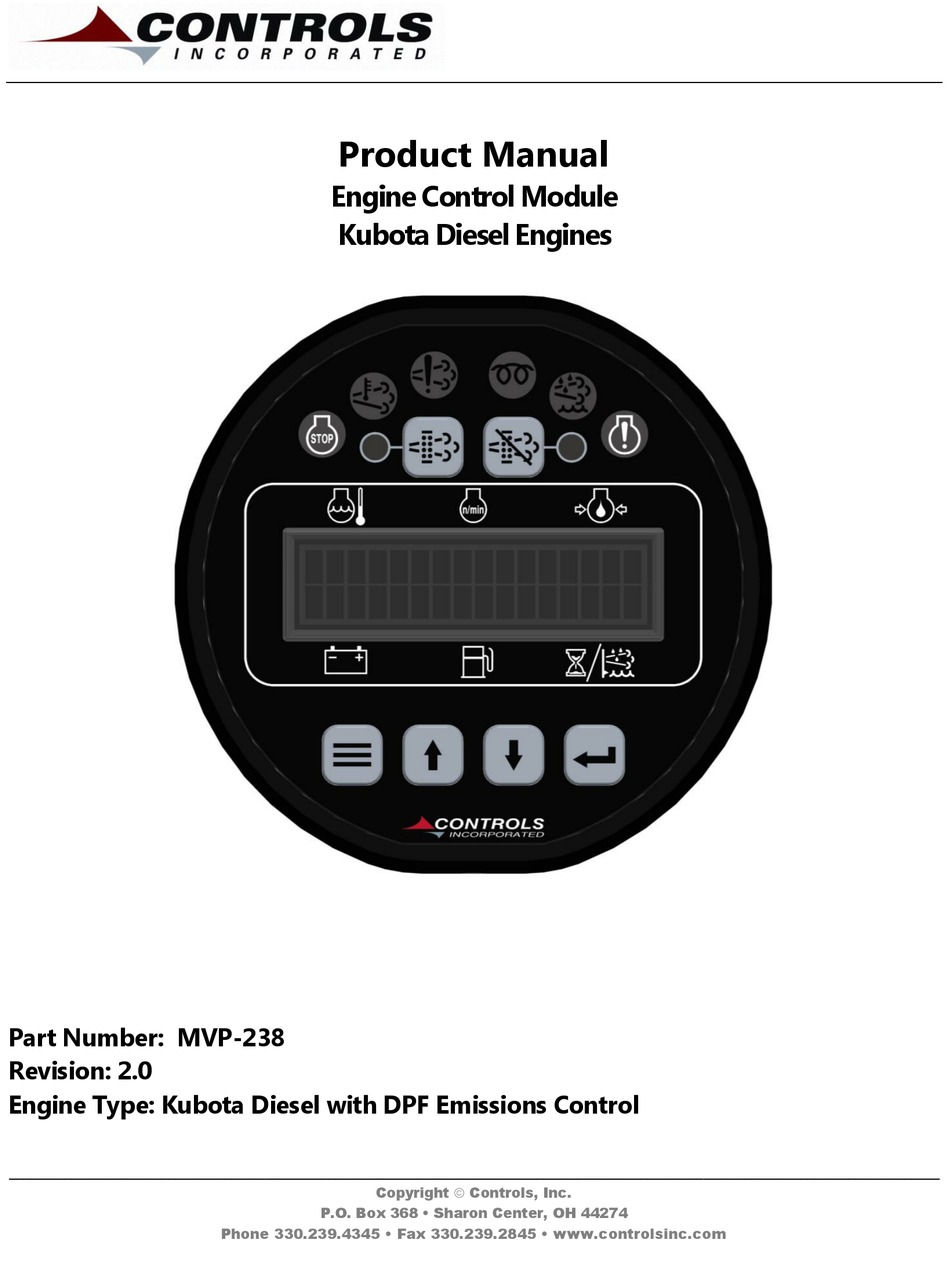

  • Page 1 Product Manual Engine Control Module Kubota Diesel Engines Part Number: MVP-238 Revision: 2.0 Engine Type: Kubota Diesel with DPF Emissions Control ______________________________________________________________________________________________________________________________________ Copyright  Controls, Inc. P.O. Box 368 • Sharon Center, OH 44274 Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com...

  • Page 2: Table Of Contents

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S TABLE OF CONTENTS INSTALLATION INFORMATION ……...………………………………...……………………………………………………………..CONNECTOR INFORMATION ……...………………………………...………………..…………………………………………………. MENU NAVIGATION ………………………………………………………………..……………………………………………..…………….…..MENU SYSTEM …………………………………………………………………...…………………………………………………..……………….…..

  • Page 3: Installation Information

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S INSTALLATION INFORMATION - 2 -...
  • Page 4 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONNECTOR INFORMATION BATTERY + 5V + OUTPUT CAN HIGH NEUTRAL SWITCH CAN LOW THROTTLE DOWN...

  • Page 5: Menu Navigation

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MENU NAVIGATION To access the control module menu system, power the unit and press the Menu button. While pressing the menu button a message will appear to also press Enter to access.

  • Page 6: Menu System

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MENU SYSTEM Operator First Menu Menu Controller Setup Menu - 5 -...

  • Page 7: Operator Menu

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S OPERATOR MENU Emissions Parameters This menu allows for the viewing of the engine emissions data as broadcast by the ECU by pressing the up arrow button.

  • Page 8: Engine Identification

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Engine Identification This menu allows for the viewing on the engine model number and serial number.
  • Page 9 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Navigating the Controller Setup menu structure is done in the same manner as the Operator menu system.

  • Page 10: Controler Setup Menu

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROLLER SETUP MENUS QUICK SETUP The Quick Setup menu is available to allow a user to quickly set up the basic configuration of the control panel to match the engine.

  • Page 11: Parameter Configuration

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ENGINE PARAMETER CONFIGURATION The Parameter Configuration menu allows you to configure each critical engine parameter to the source of the information.

  • Page 12: Input Configuration

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S INPUT CONFIGURATION The Input Configuration menu allows you to set up a discreet switch input that can be treated as Pre Alarm or Alarm.

  • Page 13: Throttle Configuration

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S THROTTLE CONFIGURATION The Throttle Configuration menu allows you to design the appropriate speed control for your application.
  • Page 14 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Throttle Options 1) Vernier Throttle Vernier throttle is standard up and down throttle between the minimum and maximum selections.

  • Page 15: Engine Safety Configuration

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ENGINE SAFETY CONFIGURATION The Engine Safety Configuration menu enables the user to set warnings for the critical engine parameters.

  • Page 16: Module Configuration

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MODULE CONFIGURATION The Module Configuration menu is available to change the behavior of the control and clear several of the log files.

  • Page 17: Panel Engine Safety Protection

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S PANEL ENGINE SAFETY PROTECTIONS PREALARMS AND ALARM The primary engine protection in an engine equipped with an ECU is managed by the engine’s ECU.

  • Page 18: Indicator Lamps

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S The control panel also has the ability to monitor the engine vitals if configured. The ability to set pre alarms and alarms in the panel is supported to back up the ECUs safeties in the event the ECU shutdowns were not enabled for some reason or a more conservative setting is desired.

  • Page 19: Emissions Monitoring - Regeneration

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S EMISSIONS MONITORING - REGENERATION The engine ECU continuously monitors the engine’s emissions parameters. When certain conditions are reached, the ECU will indicate that a regen is needed.
  • Page 20 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Module Regen Buttons The MVP module has two regeneration function buttons, Regen Request and Regen Inhibit.
  • Page 21 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S If the operator chooses No, then the Parked Regen Needed will continue to scroll with the normal operating screen.
  • Page 22 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S To ensure that the engine load is removed, the regen process requires that the parking brake input (Pin B5 - closed to ground) and the Neutral Switch (Pin B2 –...
  • Page 23 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Regen Fail / Abort The regen process will be aborted if either the Neutral Switch or the Parking Brake circuits open during the process.
