Hillsdale Furniture LAKEVIEW BAR 4264-890 Manual

HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure
that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult
assembly is required. Customer Service Phone Number: 502-562-0000
HARDWARE LIST
A (26) Allen Bolts 1/4” x 5/8”
B (6) Allen Bolts 1/4” x 1-1/4”
C (30) Spring Washers 1/4”
D (30) Flat Washers 1/4”
F (1) Allen Wrench
PARTS LIST
G (1) Bar Top
J (2) Rear Legs
K1 (1) Front Left Leg
K2 (1) Front Right Leg
L (2) Wine Racks
M (2) Support Bars
N (1) Lower Shelf
P (1) Foot Support

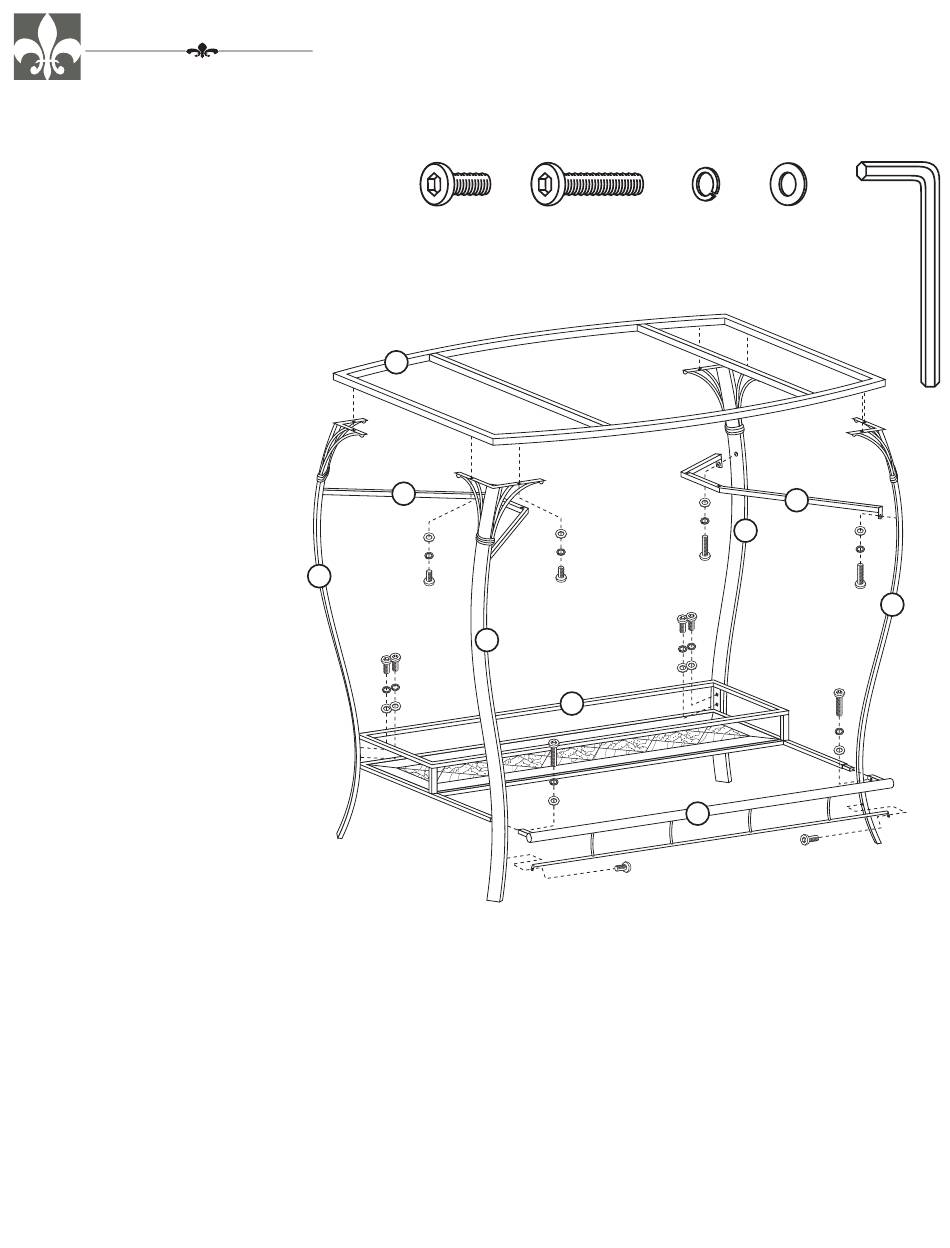

STEP 1
Begin assembly by attaching
each Rear & Front Leg (J & K)
to the bottom of the Bar Top
(G) by aligning holes and
securing from the bottom using
2 Allen Bolts (A), 2 Spring
Washers (C) & 2 Flat Washers
(D) per each leg. Do not fully
tighten bolts for this step.
STEP 2
Attach each Wine Rack (L) to the bottom of the Bar Top (G) using 2 Allen Bolts (A), 2 Spring Washers
(C) & 2 Flat Washers (D) per each side to secure each in place. Do not tighten bolts.
STEP 3
Secure the Wine Rack (L) to the top of each Support Bar (M) by aligning holes and securing from the
bottom with 1 Allen Bolt (B), 1 Spring Washer (C) & 1 Flat Washer (D) per each corner. Do not tighten
bolts.
STEP 4
Attach the Support Bars (M) to the inside of each Rear & Front Leg (J & K) by aligning holes and using
1 Allen Bolt (A), 1 Spring Washer (C) & 1 Flat Washer (D) per each leg. Do not fully tighten bolts.
See next page for more assembly instructions

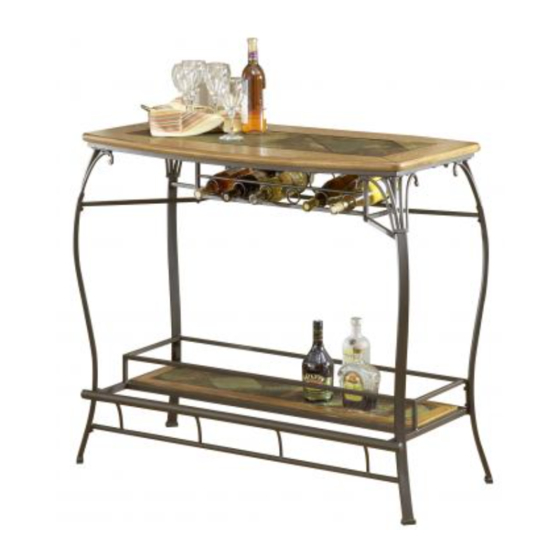

LAKEVIEW BAR
Model #4264-890 Metal w/Granite Top
A
G
M
D
C
A
J
K1
A
A
C
C
D
D
B C
D
C
D
A
C
A
A
A
C
C
D
D
N
B
C
D
P
A
Date:
12/08/09
Page 1 of 2
D F
M
J
D
C
A
K2
B
C
D
A
