HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 1-800-455-2344

HARDWARE LIST

A
(4)
1/4" x 2-3/4" Allen Bolts
B
(4)
1/4" x 1" Long Flat Allen Bolts
C
(4)
1/4" x 3/4" Short Flat Allen Bolts
D
(16)
1/4" Metal Washers
E
(8)
1/4" Spring Washers
F
(8)
1/4" Hex Nuts
G
(1)
Open Wrench
H
(1)
Allen Wrench

PARTS LIST

I
(2)
Leg Extensions
J
(2)
Adapter Plates
K
(1)
Headboard
I
A
J
A
D
J
B
FIGURE 3

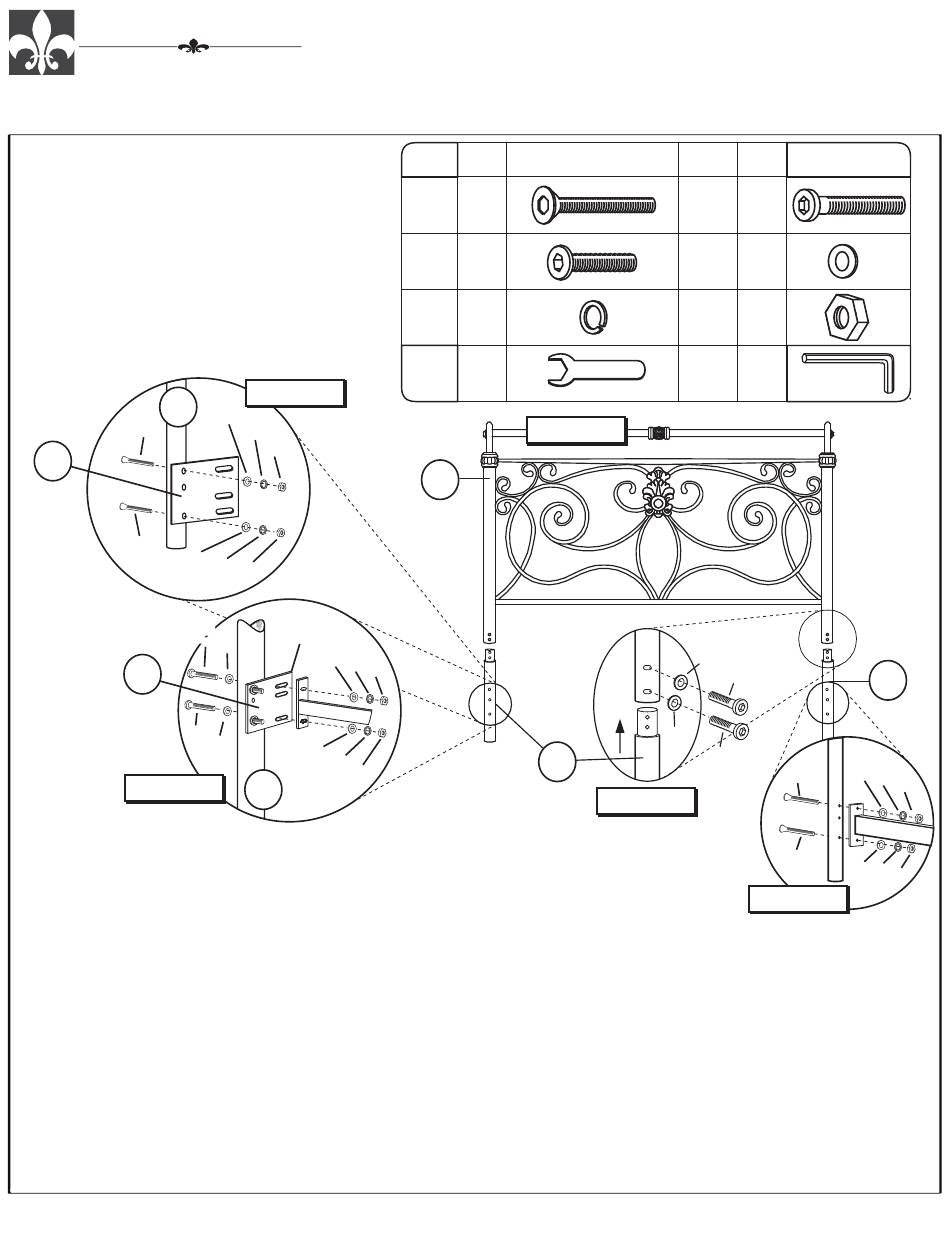

STEP 1 - Figures 1 and 4

Begin assembly by first attaching each Leg Extension (I) to the bottom of each post
(K), using 2 Short Flat Allen Bolts (C) and 2 Metal Washers (D). Tighten all bolts
using the Allen Wrench (H) provided.

STEP 2 - Figure 5 - Queen Size Only

Next, attach the Bed Frame (Not Included) to each Leg Extension (I) using 2 Allen Bolts (A) from the backside,
2 Metal Washers (D), 2 Spring Washers (E) & 2 Hex Nuts (F) per each post. Tighten all bolts using the Open
Wrench & Allen Wrench (G & H). The assembly is now complete.

STEP 3 - Figure 2 - Full Size Only

Attach each Adapter Plate (J) to each Leg Extension (I) using 2 Allen Bolts (A) from the backside, 2 Metal Washers
(D), 2 Spring Washers (E), & 2 Hex Nuts (F) per each side. Tighten all bolts and nuts using the Open Wrench
(G) and Allen Wrench (H) provided.

STEP 4 - Figure 3 - Full Size Only

Once in place, secure the Bed Frame (Not Included) to each Adapter Plate (J) using 2 Allen Bolts (B) & 2 Metal
Washers (D) from the backside, 2 Metal Washers (D), 2 Spring Washers (E) & 2 Hex Nuts (F) from the front per
each plate. Tighten all bolts and nuts using the Open Wrench (G) and Allen Wrench (H) provided. The assembly
is now complete.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
Model #1643-490 Full/Queen Headboard Panel
FIGURE 2
D
E
F
E
F
B B
D
D
E
F
D
D E
F
I
BRADY BED
PART
QTY
HARDWARE
A
4
C
4
E
8
G
1
FIGURE 1
K
I
PART
QTY
B
4
D
16
F
8
H
1
D
C
D
C
FIGURE 4
A
FIGURE 5
Date: 02-28-2013
Page 1 of 1
HARDWARE
I
D
A
E
F
D E
F
